NSN 5310-00-880-0625 10941915-3, 00-880-0625, 109419153
Product Details | FLAT WASHER
5310-00-880-0625 A washer having a centrally located hole with a solid or laminated cross-section and two flat parallel bearing surfaces. The hole must be 75 percent or less than the largest dimension and the bearing surface finish is greater than 32 microinch (0.8 micrometer). The thickness cannot exceed 25 percent of the largest outside dimension. When the largest outside dimension is less than 1/4 inch or 6mm, the thickness must be 0.006 inches (0.15mm) or greater and for items 1/4 inch (6mm) or larger, the thickness must be 0.016 inches (0.4mm) or greater. The maximum tolerance is applied to dimensions and used as a determining factor. Items with separable lamination use SHIM. For items fabricated from ceramic or electrically rated materials by specification or industry standards use INSULATOR (1), WASHER. Excludes DISK, VALVE, graphite impregnated and lubricated items.
Part Alternates: 10941915-3, 5310-00-880-0625, 00-880-0625, 5310008800625, 109419153, 008800625
Hardware and Abrasives | Nuts and Washers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1960 | 00-880-0625 | 13393 ( WASHER, FLAT ) |

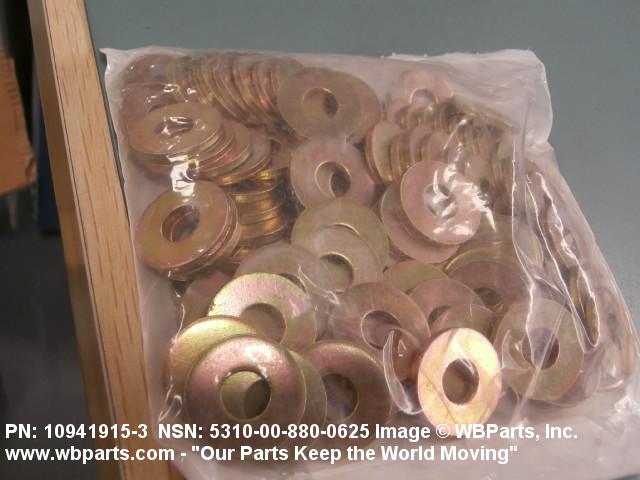

Drawings & Photos | NSN 5310-00-880-0625
Demand History | NSN 5310-00-880-0625
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5310-00-880-0625 | 2025-10-289 | 2088 | DIBBS |
| 5310-00-880-0625 | 2025-08-224 | 2088 | DIBBS |
| 5310-00-880-0625 | 2025-02-59 | 2088 | DIBBS |
| 5310-00-880-0625 | 2025-02-50 | 2088 | DIBBS |
| 5310-00-880-0625 | 2024-01-24 | 1220 | DIBBS |
| 5310-00-880-0625 | 2023-05-134 | 1220 | DIBBS |
| 5310-00-880-0625 | 2021-09-256 | 1415 | DIBBS |
| 109419153 | 2021-02-48 | 384 | United States |
| 5310-00-880-0625 | 2020-09-257 | 1112 | DIBBS |
| 5310-00-880-0625 | 2020-04-94 | 100 | IN |
| 5310-00-880-0625 | 2019-09-249 | 50 | US |
| 109419153 | 2013-10-298 | 100 | United States |
| 5310-00-880-0625 | 2009-06-153 | 516 | DIBBS |
| 5310-00-880-0625 | 2008-03-87 | 35224 | DIBBS |
| 5310-00-880-0625 | 2008-02-36 | 32799 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5310-00-880-0625
Technical Data | NSN 5310-00-880-0625
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 4130 OR STEEL COMP 4140 OR STEEL COMP 8640 OR STEEL COMP 8740 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | QQ-S-624 FED SPEC 1ST MATERIAL RESPONSE OR QQ-S-626 FED SPEC 1ST MATERIAL RESPONSE OR QQ-S-627 FED SPEC 1ST MATERIAL RESPONSE AND QQ-S-624 FED SPEC 2ND MATERIAL RESPONSE OR QQ-S-626 FED SPEC 2ND MATERIAL RESPONSE OR QQ-S-627 FED SPEC 2ND MATERIAL RESPONSE AND QQ-S-624 FED SPEC 3RD MATERIAL RESPONSE OR QQ-S-626 FED SPEC 3RD MATERIAL RESPONSE OR QQ-S-627 FED SPEC 3RD MATERIAL RESPONSE AND QQ-S-624 FED SPEC 4TH MATERIAL RESPONSE OR QQ-S-626 FED SPEC 4TH MATERIAL RESPONSE OR QQ-S-627 FED SPEC 4TH MATERIAL RESPONSE OVERALL |
| SURFACE TREATMENT | CADMIUM OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-416 TYPE 2 CLASS 1 FED SPEC SINGLE TREATMENT RESPONSE OVERALL |
| HARDNESS RATING | 33.0 ROCKWELL C MINIMUM AND 38.0 ROCKWELL C MAXIMUM |

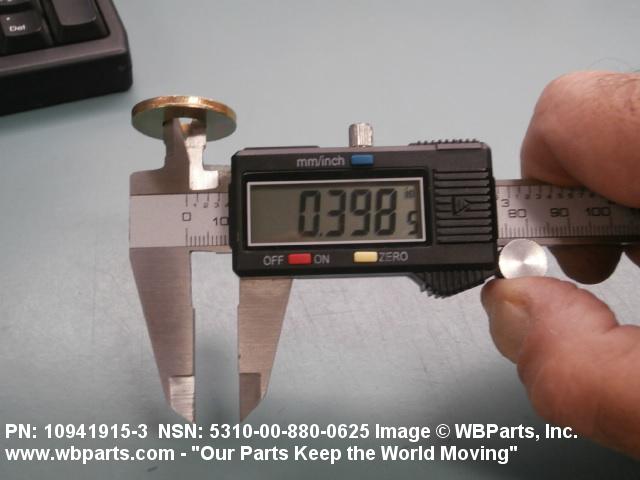

| HOLE DIAMETER | 0.396 INCHES MINIMUM AND 0.416 INCHES MAXIMUM |
| PERIPHERAL SHAPE STYLE | 1 ROUND |

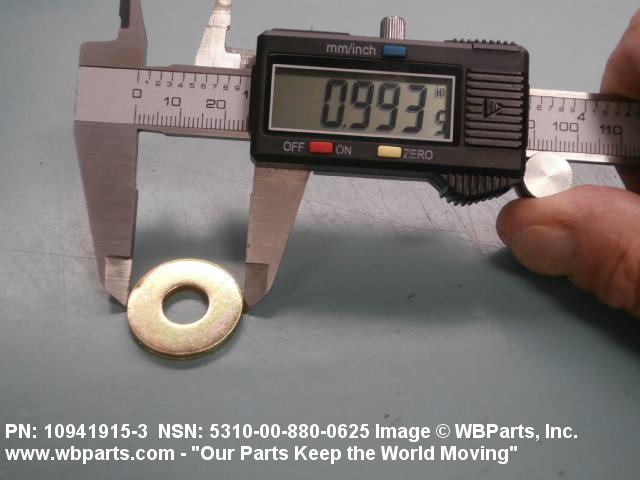

| OVERALL DIAMETER | 0.990 INCHES MINIMUM AND 1.010 INCHES MAXIMUM |
| CENTER HOLE SHAPE STYLE | 1 ROUND |
| CROSS-SECTIONAL SHAPE STYLE | 1 RECTANGULAR |

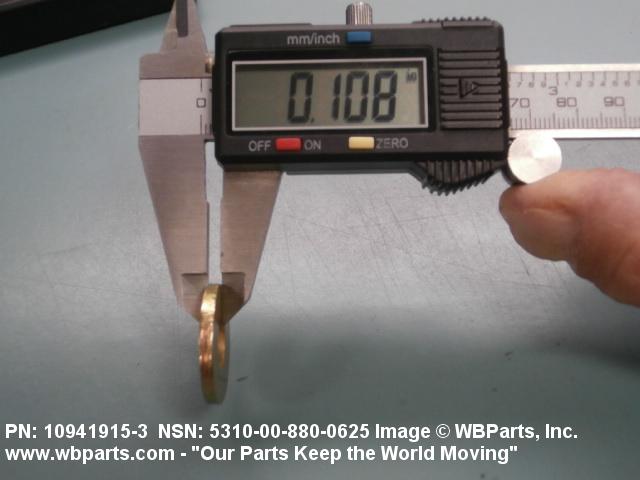

| THICKNESS | 0.099 INCHES MINIMUM AND 0.109 INCHES MAXIMUM |
| III HEAT TREATMENT | QUENCHED AND TEMPERED |
Restrictions/Controls & Freight Information | NSN 5310-00-880-0625
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 061680 | ELEC WIRING PLUGS ETC |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 658 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
