NSN 5310-00-912-0472 2147630PC3, 00-912-0472, 009120472
Product Details | LOCK WASHER
5310-00-912-0472 A washer which is usually round with a centrally located hole. Its edges and two bearing surfaces are so designed that applied pressure brings into play the spring tension and/or frictional locking principle which materially resists any tendency toward turning. It may be made of one or two pieces
Part Alternates: 2147630PC3, 5310-00-912-0472, 00-912-0472, 5310009120472, 009120472
Hardware and Abrasives | Nuts and Washers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1960 | 00-912-0472 | 14218 ( WASHER, LOCK ) |

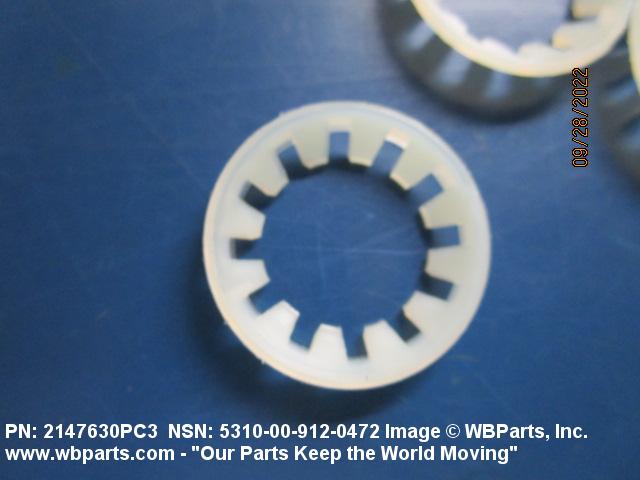

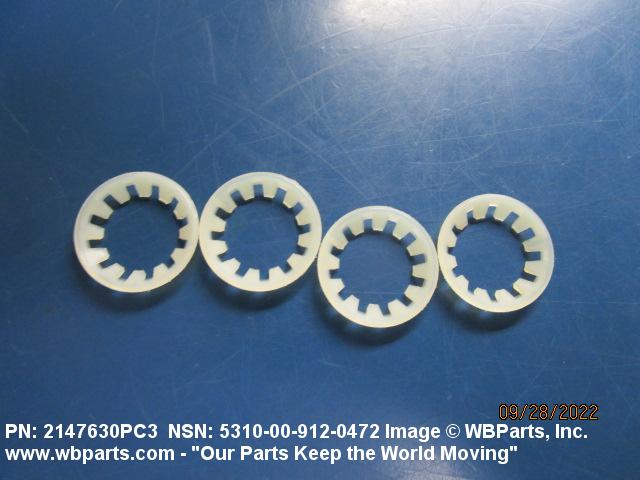

Drawings & Photos | NSN 5310-00-912-0472
Demand History | NSN 5310-00-912-0472
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5310-00-912-0472 | 2023-10-293 | 3 | United States |
| 5310-00-912-0472 | 2022-08-222 | 4 | United States |
| 5310-00-912-0472 | 2021-04-104 | 2 | US |
| 5310-00-912-0472 | 2018-02-39 | 25 | DIBBS |
| 5310-00-912-0472 | 2018-01-31 | 25 | DIBBS |
| 5310-00-912-0472 | 2011-11-307 | 120 | DIBBS |
| 5310-00-912-0472 | 2011-10-292 | 120 | DIBBS |
| 5310-00-912-0472 | 2011-06-171 | 120 | DIBBS |
| 5310-00-912-0472 | 2011-01-10 | 120 | DIBBS |
| 5310-00-912-0472 | 2010-12-350 | 120 | DIBBS |
| 2147630PC3 | 2010-11-327 | 180 | KR |
| 2147630PC3 | 2010-11-323 | 2 | KR |
| 2147630PC3 | 2010-11-308 | 30 | US |
| 5310-00-912-0472 | 2010-11-308 | 30 | US |
| 2147630PC3 | 2010-10-286 | 30 | United States |
Cross Reference | NSN 5310-00-912-0472
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 2147630PC3 | 10001 | NAVAIR AND NAVSEA MANAGED ORIGINAL DESIGN ACTIVITY DWG NOT |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5310-00-912-0472
Related Products | NSN 5310-00-912-0472
Technical Data | NSN 5310-00-912-0472
| Characteristic | Specifications |
|---|---|
| MATERIAL | PLASTIC POLYAMIDE OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | MIL-M-20693,TY 1 MIL SPEC SINGLE MATERIAL RESPONSE OVERALL |

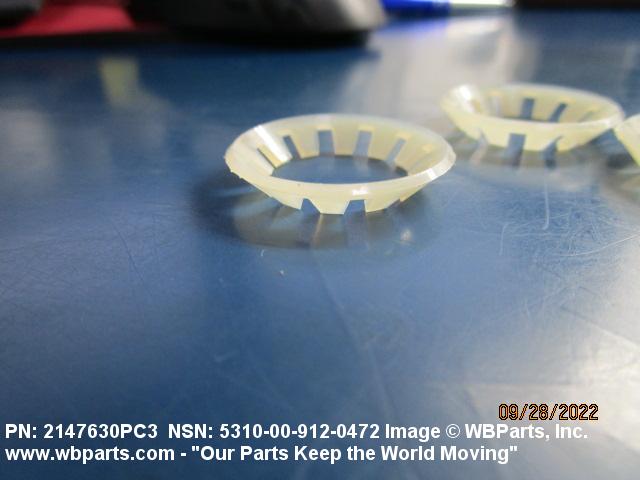

| STYLE DESIGNATOR | 103 COUNTERSINK INTERNAL TEETH |

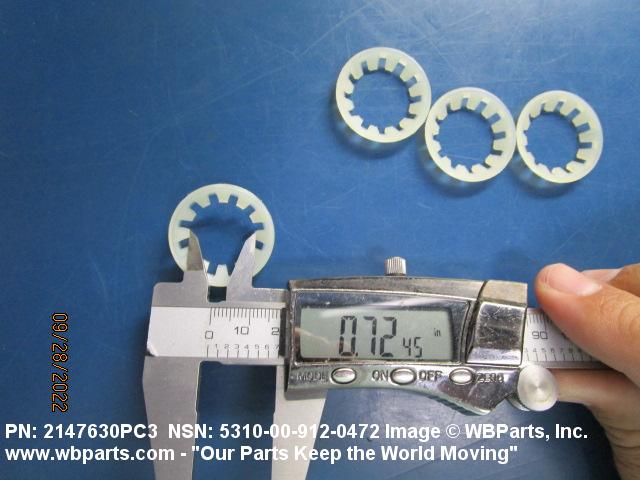

| HOLE DIAMETER | 0.724 INCHES NOMINAL |

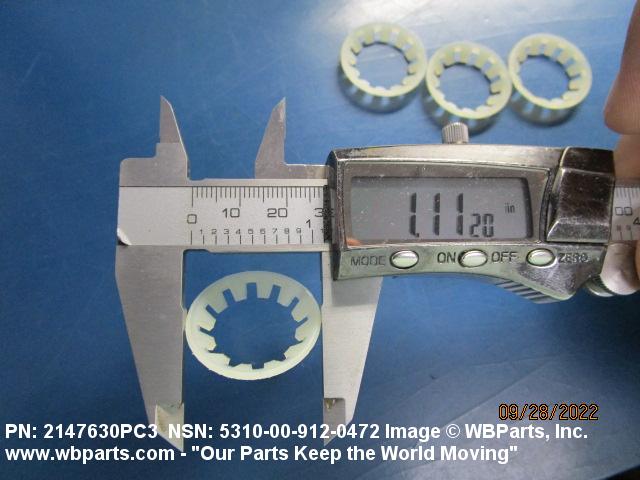

| OUTSIDE DIAMETER | 1.115 INCHES NOMINAL |

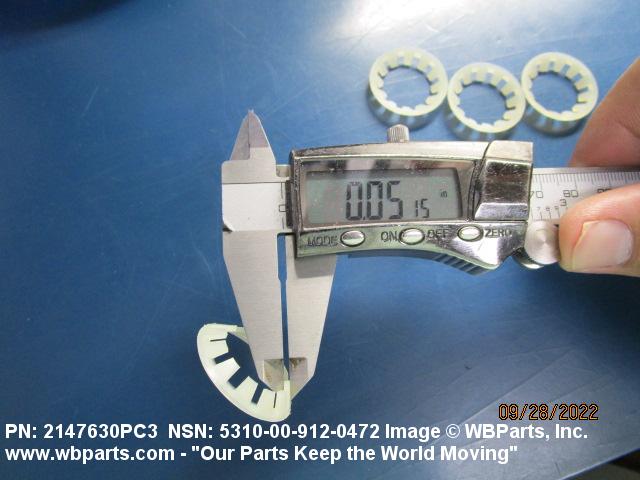

| MATERIAL THICKNESS | 0.052 INCHES MINIMUM AND 0.062 INCHES MAXIMUM |
| COUNTERSINK ANGLE | 43.0 DEGREES MINIMUM AND 47.0 DEGREES MAXIMUM |
Restrictions/Controls & Freight Information | NSN 5310-00-912-0472
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 194120 | WASHERS/GASKETS/PCKG DVCS NOI |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 772 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5310-00-912-0472
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
