NSN 5310-00-926-5871 MS35338147, MS35338-147, MS3533890
Product Details | LOCK WASHER
5310-00-926-5871 A washer which is usually round with a centrally located hole. Its edges and two bearing surfaces are so designed that applied pressure brings into play the spring tension and/or frictional locking principle which materially resists any tendency toward turning. It may be made of one or two pieces
Part Alternates: MS35338147, MS35338-147, MS3533890, MS35338-90, D301079 FIND NO 65, D301079FINDNO65, D301080 FIND NO 56, D301080FINDNO56, D301087 FIND NO 65, D301087FINDNO65, 004003005028, 004-003005-028, 5310-00-926-5871, 00-926-5871, 5310009265871, 009265871
Hardware and Abrasives | Nuts and Washers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 21 DEC 1966 | 00-926-5871 | 14218 ( WASHER, LOCK ) |

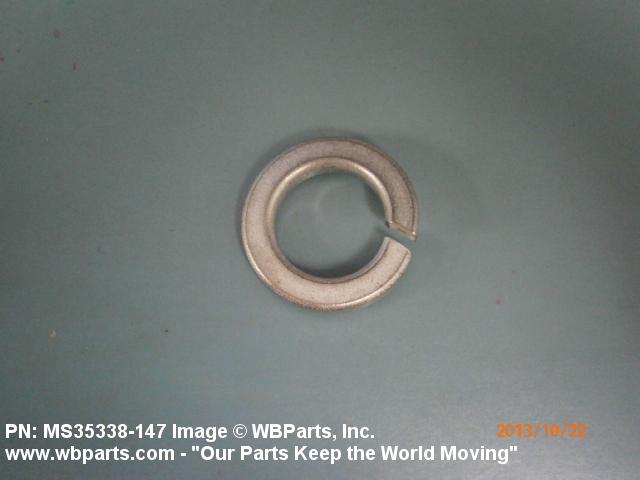

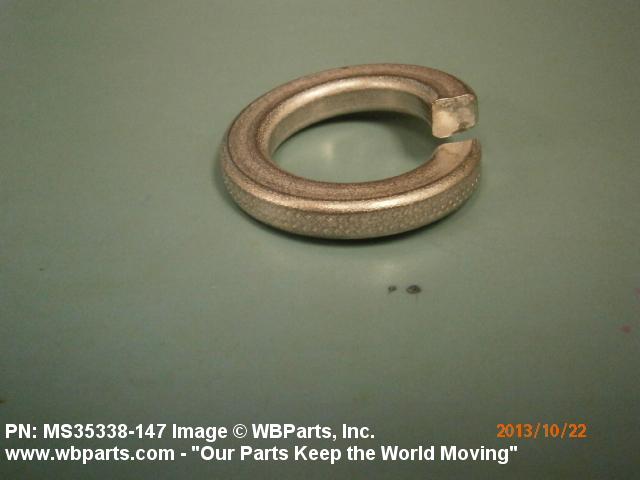

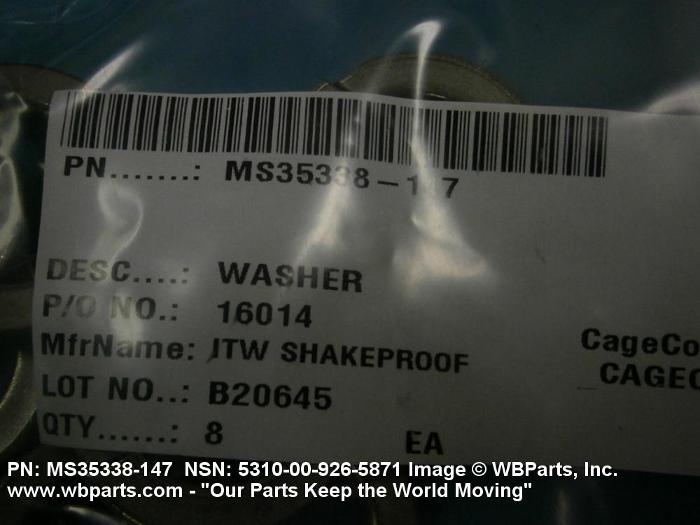

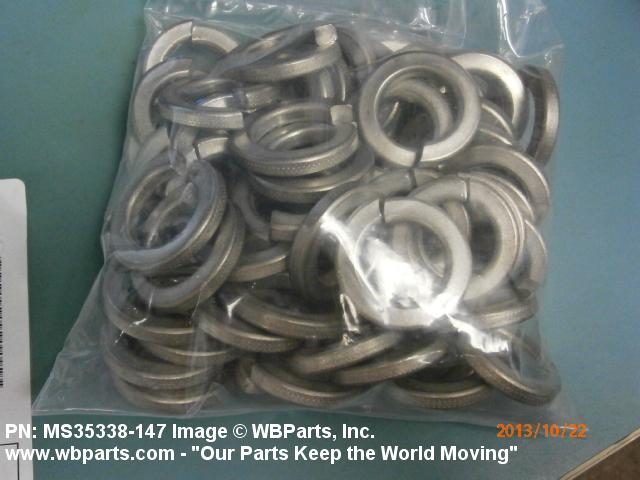

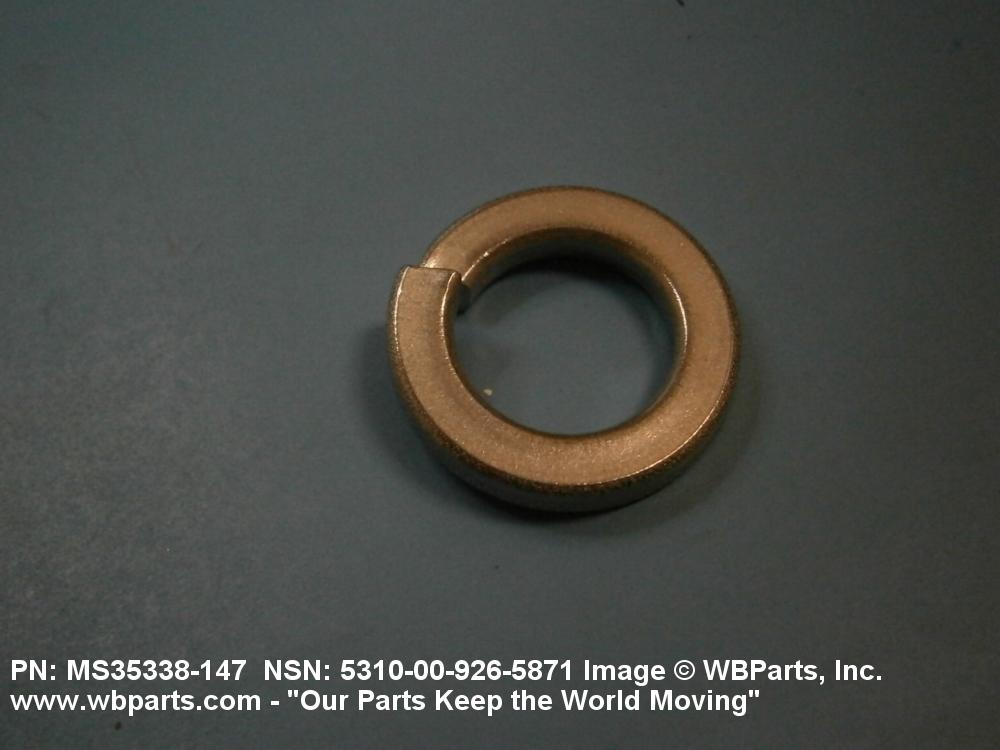

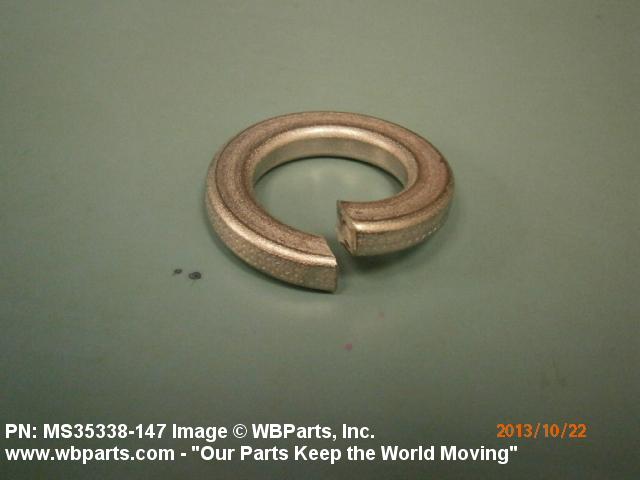

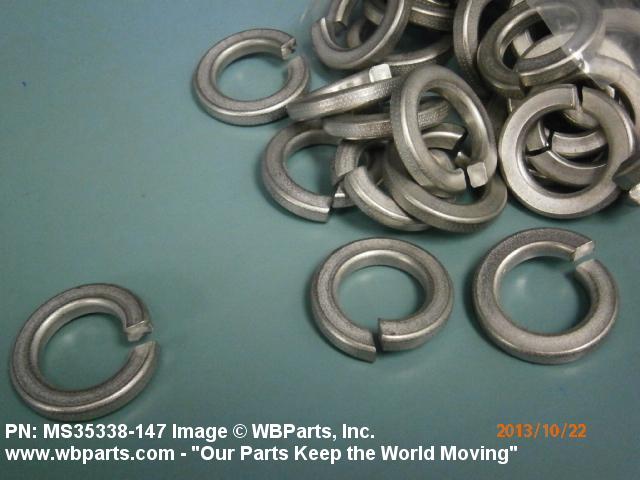

Drawings & Photos | NSN 5310-00-926-5871
Demand History | NSN 5310-00-926-5871
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| MS35338147 | 2024-08-220 | 15 | Japan |
| 5310-00-926-5871 | 2018-09-259 | 2351 | DIBBS |
| 5310-00-926-5871 | 2017-02-53 | 2728 | DIBBS |
| 5310-00-926-5871 | 2016-11-335 | 3245 | DIBBS |
| MS35338147 | 2015-06-175 | 1000 | United States |
| 5310-00-926-5871 | 2015-02-56 | 3147 | DIBBS |
| 5310-00-926-5871 | 2013-12-358 | 4214 | DIBBS |
| 5310-00-926-5871 | 2013-12-343 | 4214 | DIBBS |
| 5310-00-926-5871 | 2013-10-301 | 2002 | DIBBS |
| MS35338147 | 2013-10-282 | 54 | United States |
| 5310-00-926-5871 | 2012-08-241 | 0 | DIBBS |
| MS35338147 | 2012-02-40 | 8 | United States |
| 5310-00-926-5871 | 2012-02-39 | 2484 | DIBBS |
| 5310-00-926-5871 | 2010-06-172 | 4690 | DIBBS |
| 5310-00-926-5871 | 2010-04-96 | 2741 | DIBBS |
| 5310-00-926-5871 | 2008-12-339 | 3826 | DIBBS |
Cross Reference | NSN 5310-00-926-5871
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 004-003005-028 | 26916 | NORTHROP GRUMMAN SYSTEMS CORPORATION DIV MULTIPLE |
| D301079 FIND NO 65 | 3X894 | CONTROL FLOW, INC. DBA WESTECH HEAVY MACHINERY DIV |
| D301080 FIND NO 56 | 3X894 | CONTROL FLOW, INC. DBA WESTECH HEAVY MACHINERY DIV |
| D301087 FIND NO 65 | 3X894 | CONTROL FLOW, INC. DBA WESTECH HEAVY MACHINERY DIV |
| MS35338-147 | 80205 | NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES |
| MS35338-147 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
| MS35338-90 | D9182 | BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5310-00-926-5871
Related Products | NSN 5310-00-926-5871
Technical Data | NSN 5310-00-926-5871
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 301 OR STEEL COMP 302 OR STEEL COMP 303 OR STEEL COMP 303SE OR STEEL COMP 304 OR STEEL COMP 304L OR STEEL COMP 305 OR STEEL COMP 308 OR STEEL COMP 309 OR STEEL COMP 309S OR STEEL COMP 310 OR STEEL COMP 310S OR STEEL COMP 314 OR STEEL COMP 316 OR STEEL COMP 316L OR STEEL COMP 317 OR STEEL COMP 321 OR STEEL COMP 347 OR STEEL COMP 348 OR STEEL COMP 385 OR STEEL COMP 302 OR STEEL COMP 384 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | 66 FED STD ALL MATERIAL RESPONSES OVERALL |
| SURFACE TREATMENT | PASSIVATE OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-35 FED SPEC SINGLE TREATMENT RESPONSE OVERALL |
| HARDNESS RATING | 35.0 ROCKWELL C MINIMUM AND 43.0 ROCKWELL C MAXIMUM |
| STYLE DESIGNATOR | 108 SPLIT HELICAL-RIGHT HAND |

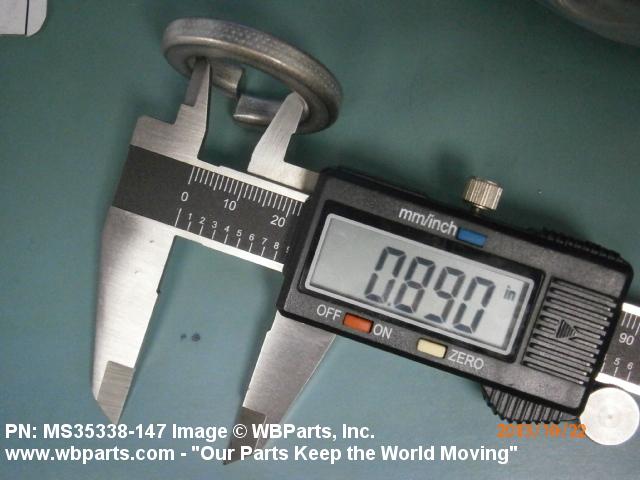

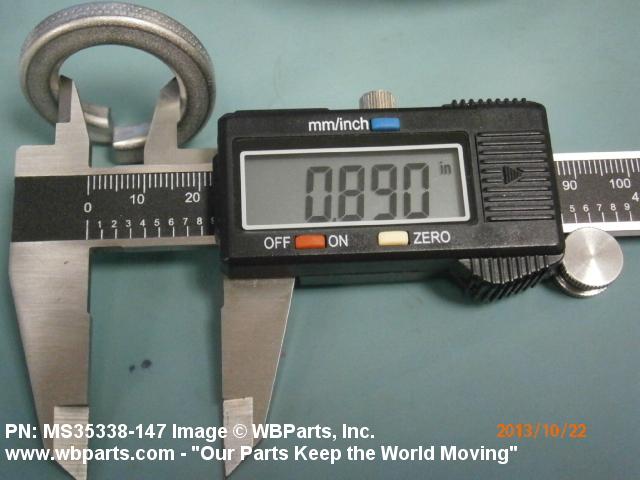

| HOLE DIAMETER | 0.890 INCHES MINIMUM AND 0.912 INCHES MAXIMUM |

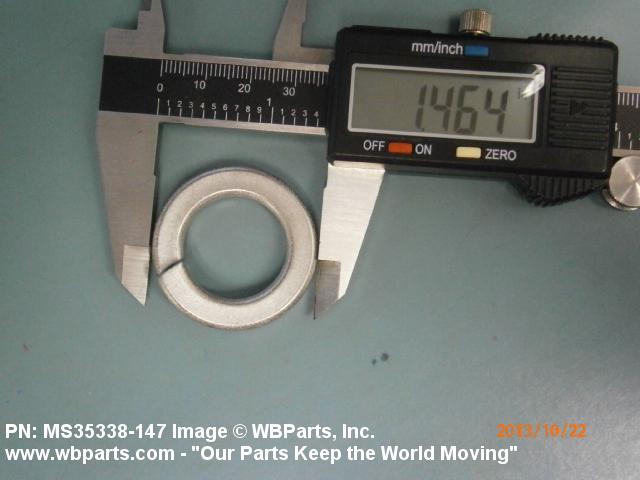

| OUTSIDE DIAMETER | 1.464 INCHES MAXIMUM |

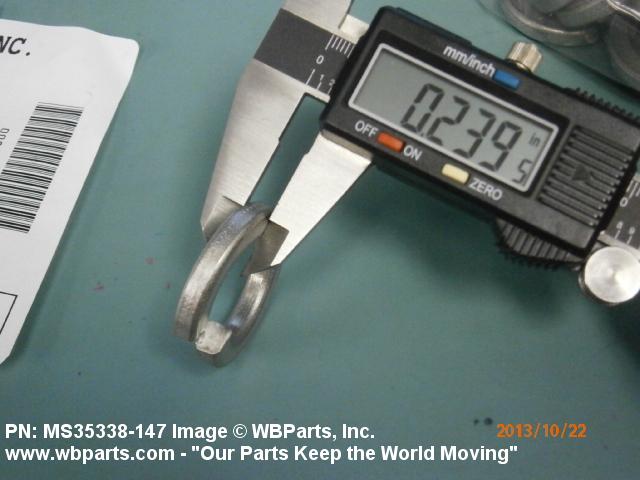

| MATERIAL THICKNESS | 0.219 INCHES MINIMUM AND 0.239 INCHES MAXIMUM |
| NONDEFINITIVE SPEC/STD DATA | 2 STYLE AND C CLASS |
| III END ITEM IDENTIFICATION | ENGINE, AIRCRAFT, F100-PW-100 (F-15A/B/C/D);DEEP SUBMERGENCE SYSTEMS PROGRAMS (DSSP);CLOSE IN WEAPON SYSTEM (CIWS-PHALANX);HELICOPTER LANDING SYSTEM, LAMPS MK III;TICONDEROGO CLASS CG (47);SPRUANCE CLASS DD (963);SUPPORT EQUIPMENT, B-1 AIRCRAFT;FORRESTAL CLASS CV;SUPPORT EQUIPMENT (SE), B-2 BOMBER |
Restrictions/Controls & Freight Information | NSN 5310-00-926-5871
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 194160 | WASHER OR GASKETS, IRON OR STEEL, |
| Less than car load rating | ||
| Less than truck load rating | U | 50.0 |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | KZ | Defense Supply Center Philadelphia Philadelphia, PA 19101 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5310-00-926-5871
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Special Material Content | 9 | Non-Hazardous or Non-Sensitive Item, does not require hazardous or special handling, packaging or precautions |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 HD : Each |
