NSN 5310-00-928-6329 SL61N9F, 00-928-6329, 009286329
Product Details | ROUND PLAIN NUT
5310-00-928-6329 A nut, circular in shape, which may have wrenching facilities such as flats, holes, protrusions, slots or splines in or on the periphery or in the face opposite the bearing surface. For items having a thickness (or height) exceeding two times the outside diameter, use POST, ELECTRICAL-MECHANICAL EQUIPMENT. See also NUT (1), PLAIN, KNURLED. (When height or thickness and/or outside diameter is designated as a tolerance dimension, the maximum dimension will be used to determine compliance.
Part Alternates: SL61N9F, 5310-00-928-6329, 00-928-6329, 5310009286329, 009286329
Hardware and Abrasives | Nuts and Washers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 31 AUG 1966 | 00-928-6329 | 15887 ( NUT, PLAIN, ROUND ) |

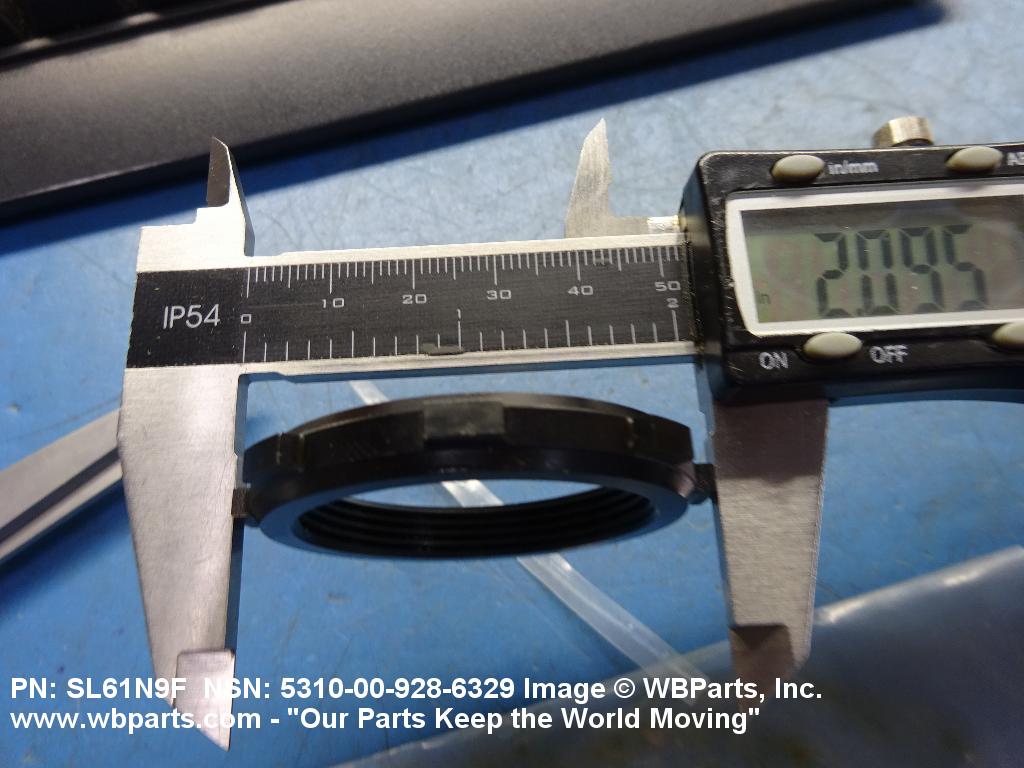

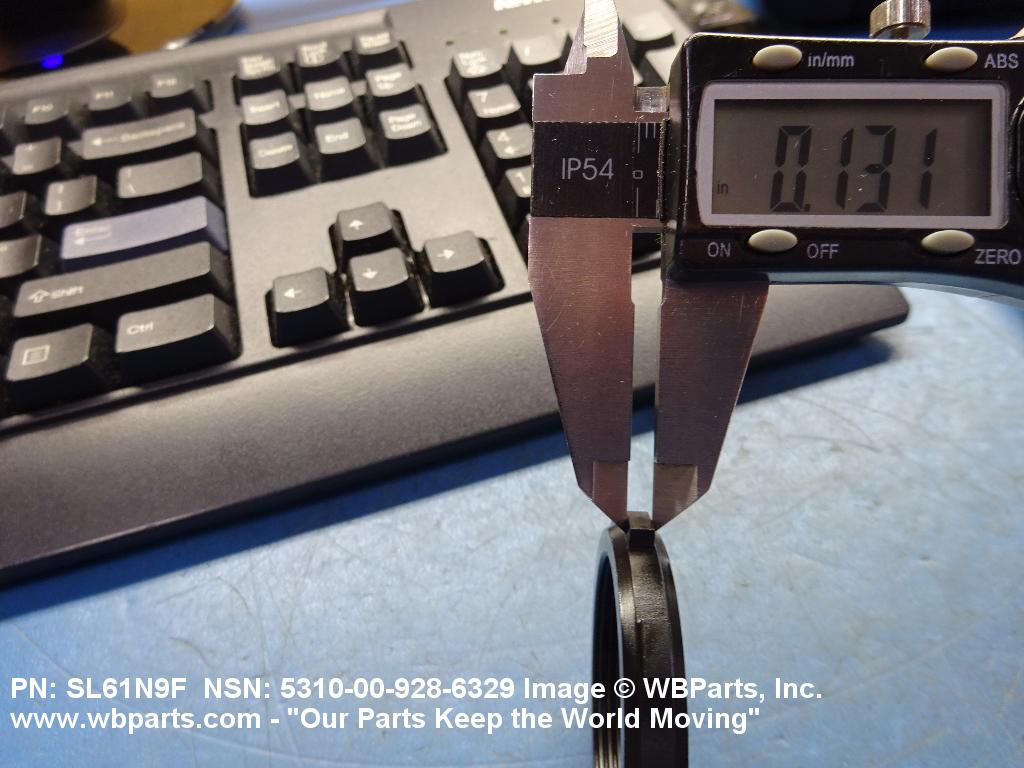

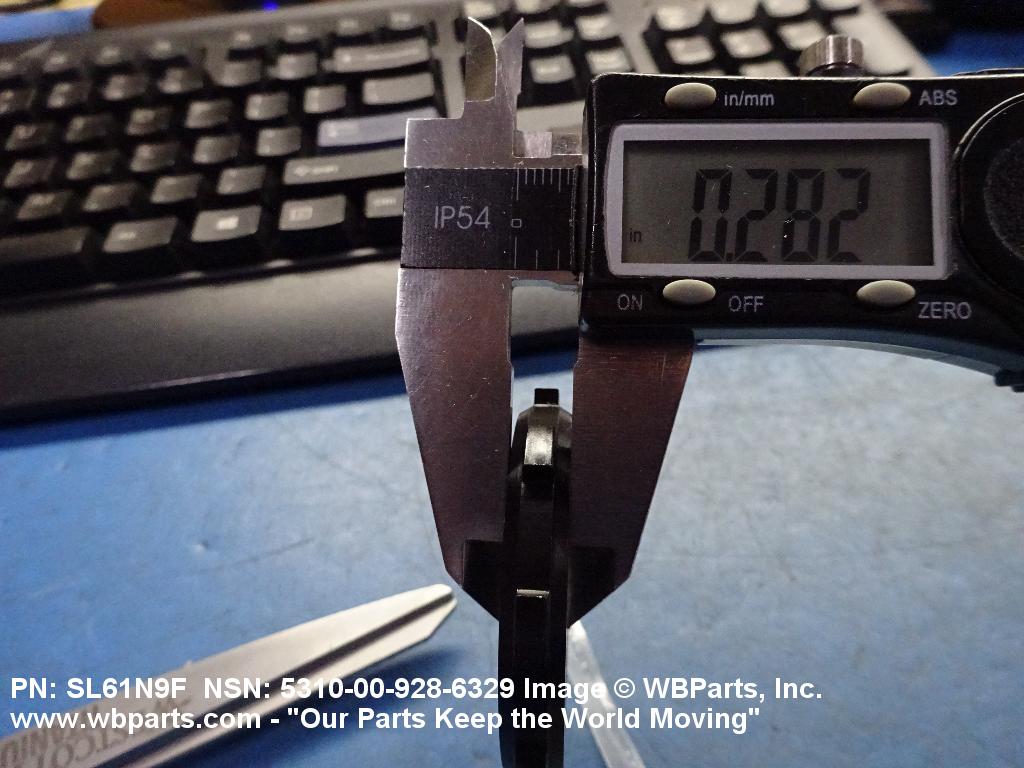

Drawings & Photos | NSN 5310-00-928-6329
Demand History | NSN 5310-00-928-6329
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| SL61N9F | 2022-04-102 | 4 | United States |
| 5310-00-928-6329 | 2018-01-16 | 2 | us |
| SL61N9F | 2011-06-155 | 10 | Saudi Arabia |
| SL61N9F | 2010-05-131 | 10 | Saudi Arabia |
Cross Reference | NSN 5310-00-928-6329
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| SL61N9F | 97393 | SHUR-LOK CORPORATION DBA SPS FASTENER DIVISION, A PCC |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5310-00-928-6329
Technical Data | NSN 5310-00-928-6329
| Characteristic | Specifications |
|---|---|
| THREAD SERIES | UNEF |
| NOMINAL THREAD SIZE | 1.562 INCHES |
| THREAD QUANTITY PER INCH | 18 |
| THREAD CLASS | 3B |
| THREAD DIRECTION | RIGHT-HAND |
| MATERIAL | STEEL COMP 4130 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | MIL-S-6758,COND F4 MIL SPEC SINGLE MATERIAL RESPONSE OVERALL |
| SURFACE TREATMENT | OXIDE OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | MIL-C-13924,CL2 MIL SPEC SINGLE TREATMENT RESPONSE OVERALL |
| HARDNESS RATING | 26.0 ROCKWELL C MINIMUM AND 33.0 ROCKWELL C MAXIMUM |
| NUT STYLE | A81A ROUND |
| FLANGE THICKNESS | 0.127 INCHES NOMINAL |
| DRIVE POINT DEPTH | 0.093 INCHES NOMINAL |
| NUT DIAMETER | 2.084 INCHES MINIMUM AND 2.104 INCHES MAXIMUM |
| NUT THICKNESS | 0.271 INCHES MINIMUM AND 0.291 INCHES MAXIMUM |
| DRIVE POINT WIDTH | 0.240 INCHES MINIMUM AND 0.260 INCHES MAXIMUM |
| UNDERCUT THICKNESS | 0.094 INCHES NOMINAL |
| DRIVE POINT QUANTITY | 8 |
| TEMP RATING | NOT RATED |
| SPECIAL FEATURES | W/CORROSION PREVENTIVE COMPOUND MIL-C-16173 GRADE 3 |
| MANUFACTURERS CODE | 97393 |
| DESIGN CONTROL REFERENCE | SL61N9F |
Restrictions/Controls & Freight Information | NSN 5310-00-928-6329
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 093486 | BOLTS,NUTS OR SCREWS, NOI (SUB 3) |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 573 | unknown |
| Originating Activity Code | CT | U.S. Army Aviation and Missile Command (AIR) Redstone Arsenal, AL 35898-5230 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5310-00-928-6329
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
