NSN 5310-00-930-5029 MDRC500306, MDRC500-3-06, NS103739362
Product Details | CLIP-ON NUT
5310-00-930-5029 An internally threaded fastener, plain or self-locking, of various shapes attached to a preformed item of semi-rigid material designed to retain, position or support other items by its own inherent spring action. The internally threaded fastener and the preformed item may be of one piece construction or fastened together by other means.
Part Alternates: MDRC500306, MDRC500-3-06, NS103739362, NS103739-3-62 , NS103739562, NS103739-5-62, A11330562, A11330-5-62, A4972562, A4972-5-62, BACN10FX61, SI231061281, SI231-06-1-281, RM52LHA497256, RM52LHA4972-5-6, RM52LHA4972562, RM52LHA4972-5-62, 11688476, 13060001, 192716-001, 19452742, 1945274-2, 3D00393, 3D0039-3, 5310-00-930-5029, 00-930-5029, 5310009305029, 009305029, 192716001
Hardware and Abrasives | Nuts and Washers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JUN 1966 | 00-930-5029 | 35871 ( NUT, CLIP-ON ) |

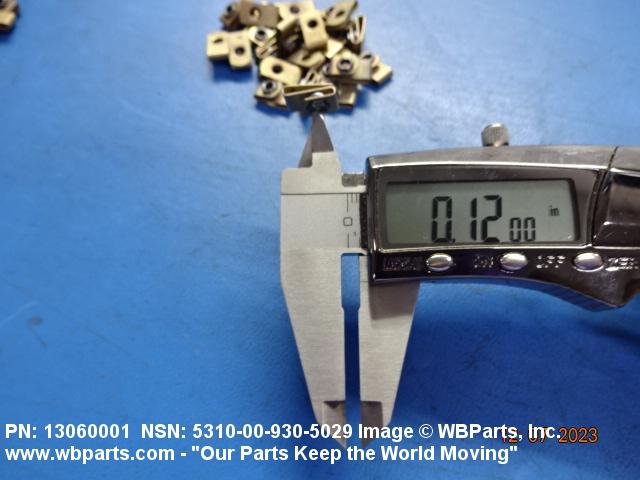

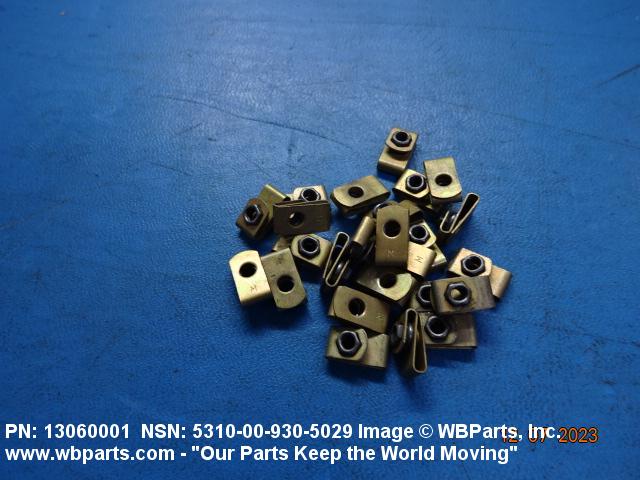

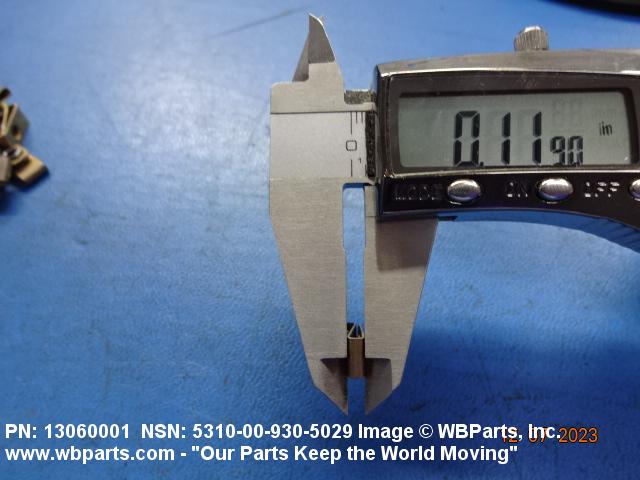

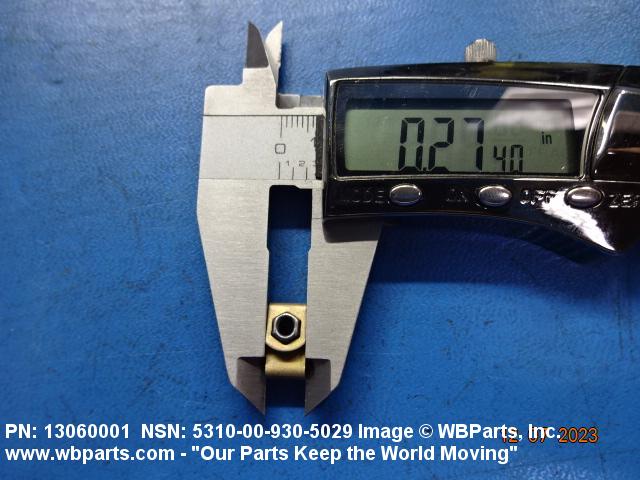

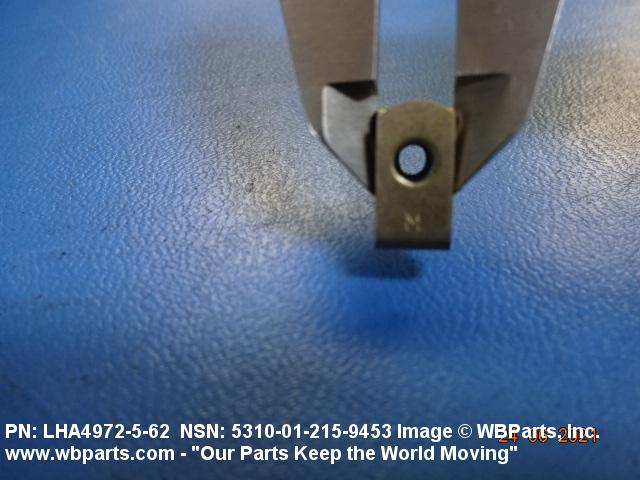

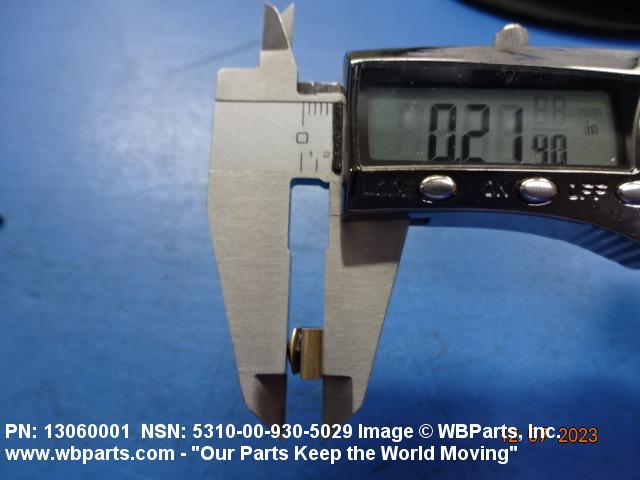

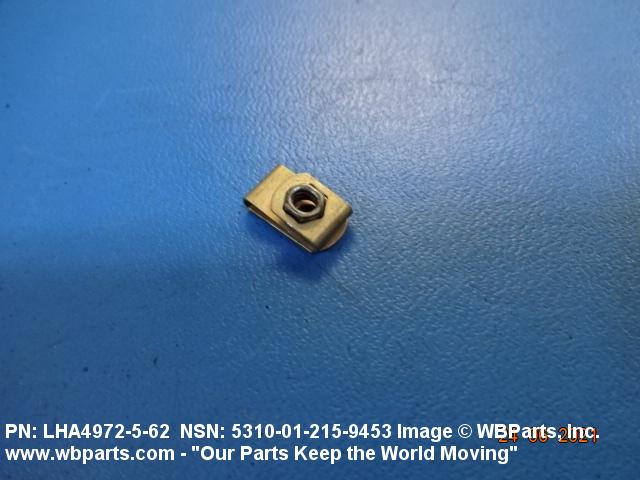

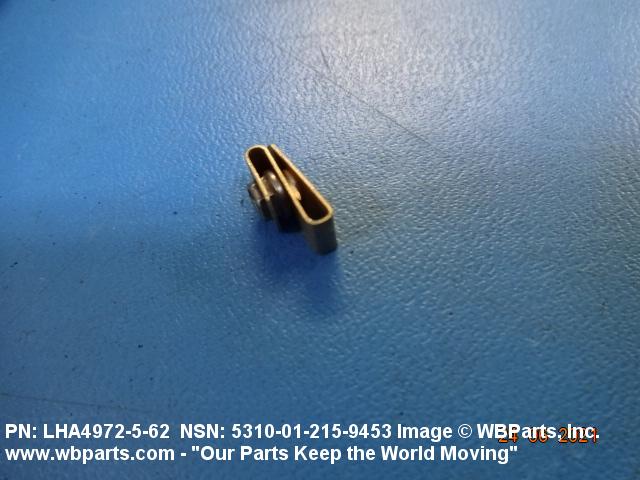

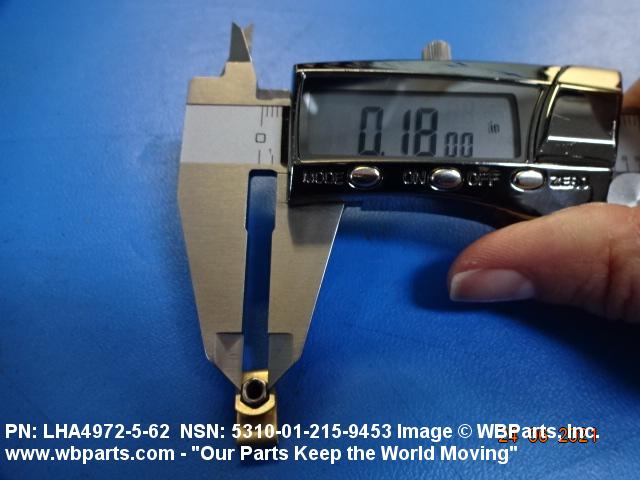

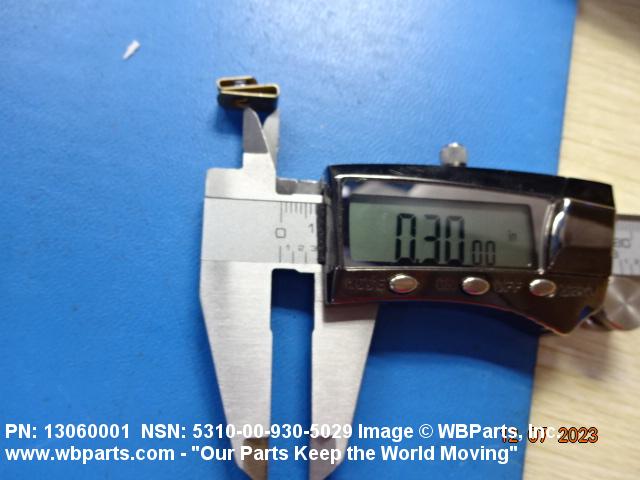

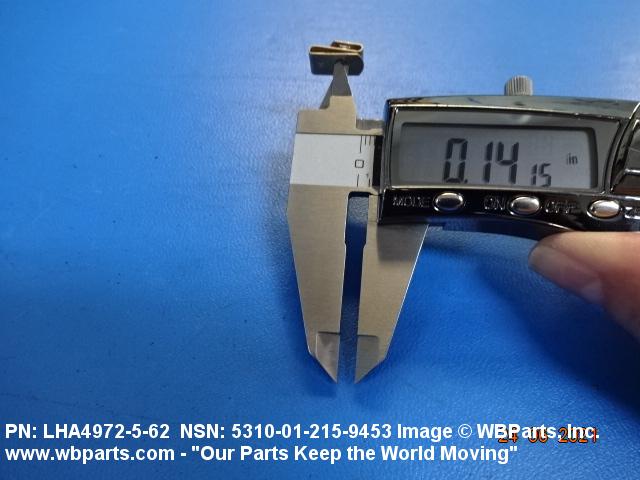

Drawings & Photos | NSN 5310-00-930-5029
Demand History | NSN 5310-00-930-5029
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| BACN10FX61 | 2025-07-205 | 500 | Netherlands |
| BACN10FX61 | 2025-06-160 | 600 | Netherlands |
| BACN10FX61 | 2025-06-160 | 1000 | Netherlands |
| A4972562 | 2025-04-118 | 20 | United States |
| A11330562 | 2025-02-49 | 25 | United States |
| A11330562 | 2023-11-333 | 3 | US |
| 13060001 | 2023-11-312 | 2000 | United States |
| 13060001 | 2023-11-312 | 5500 | United States |
| 13060001 | 2023-11-306 | 2000 | US |
| 5310-00-930-5029 | 2021-10-279 | 50 | United States |
| 5310-00-930-5029 | 2018-12-340 | 80 | US |
| RM52LHA4972562 | 2018-04-103 | 4000 | US |
| A4972562 | 2013-11-305 | 1000 | US |
| 5310-00-930-5029 | 2010-10-288 | 14 | United States |
| 5310-00-930-5029 | 2010-07-200 | 11554 | DIBBS |
| 13060001 | 2009-10-303 | 1000 | France |
| RM52LHA4972562 | 2009-10-303 | 1000 | France |
| 13060001 | 2009-04-96 | 100 | US |
| 3D00393 | 2009-04-96 | 100 | US |
| 5310-00-930-5029 | 2009-02-41 | 2899 | DIBBS |
| A4972562 | 2009-01-14 | 2000 | US |
| BACN10FX61 | 2008-12-343 | 300 | US |
| 3D00393 | 2008-11-312 | 390 | United States |
| 5310-00-930-5029 | 2008-09-247 | 3333 | DIBBS |
| RM52LHA4972562 | 2008-05-129 | 2300 | United States |
| 5310-00-930-5029 | 2008-03-87 | 10 | US |
Cross Reference | NSN 5310-00-930-5029
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 11688476 | 19204 | ARMY UNITED STATES DEPARTMENT OF THE |
| 13060001 | 60119 | MONADNOCK COMPANY THE DBA LISI AEROSPACE |
| 192716-001 | 3B150 | RAYTHEON TECHNICAL SERVICES COMPANY LLC |
| 192716-001 | 49956 | RAYTHEON COMPANY DBA RAYTHEON |
| 1945274-2 | 19315 | HONEYWELL INTL INC DEFENSE AVIONICS SYSTEMS FORMER BENDIX NAVIGATION AND |
| 1945274-2 | 55974 | HONEYWELL INTL INC DEFENSE AVIONICS SYSTEMS |
| 3D0039-3 | 88277 | BOEING COMPANY, THE DBA BOEING |
| A11330-5-62 | 72962 | HARVARD INDUSTRIES INC |
| A4972-5-62 | 72962 | HARVARD INDUSTRIES INC |
| BACN10FX61 | 81205 | THE BOEING COMPANY DBA BOEING |
| BACN10FX61 | 82918 | THE BOEING COMPANY DBA BOEING |
| MDRC500-3-06 | 52828 | REPUBLIC FASTENER MFG. CORP. |
| NS103739-3-62 | 80539 | SPS TECHNOLOGIES, LLC DBA AEROSPACE FASTENERS GROUP |
| NS103739-5-62 | 80539 | SPS TECHNOLOGIES, LLC DBA AEROSPACE FASTENERS GROUP |
| RM52LHA4972-5-6 | 22599 | AMERACE CORP ESNA DIV |
| RM52LHA4972-5-62 | 72962 | HARVARD INDUSTRIES INC |
| SI231-06-1-281 | 97393 | SHUR-LOK CORPORATION DBA SPS FASTENER DIVISION, A PCC |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5310-00-930-5029
Related Products | NSN 5310-00-930-5029
Technical Data | NSN 5310-00-930-5029
| Characteristic | Specifications |
|---|---|
| THREAD SERIES | UNC |
| NOMINAL THREAD SIZE | 0.138 INCHES |
| THREAD QUANTITY PER INCH | 32 |
| THREAD CLASS | 3B |
| THREAD DIRECTION | RIGHT-HAND |
| MATERIAL | STEEL COMP 1040 OR STEEL COMP 1541 OR STEEL COMP 1042 OR STEEL COMP 1043 OR STEEL COMP 1044 OR STEEL COMP 1045 OR STEEL COMP 1046 OR STEEL COMP 1548 OR STEEL COMP 1049 OR STEEL COMP 1050 NUT |
| MATERIAL DOCUMENT AND CLASSIFICATION | AISI ASSN STD ALL MATERIAL RESPONSES NUT |
| HARDNESS RATING | 62.0 ROCKWELL SUPERFICIAL 30-N MINIMUM AND 68.0 ROCKWELL SUPERFICIAL 30-N MAXIMUM |
| NUT STYLE | A395 FLOATING |
| OVERALL WIDTH | 0.270 INCHES MAXIMUM |
| DISTANCE FROM BASE TO CENTER OF APERTURE | 0.300 INCHES NOMINAL |
| PANEL THICKNESS | 0.090 INCHES NOMINAL |
| LOCKING FEATURE | PREVAILING TORQUE ALL METAL DESIGN |
| FEATURES PROVIDED | FLOATING NUT |
| SPECIAL FEATURES | DRY FILM LUBRICANT |
Restrictions/Controls & Freight Information | NSN 5310-00-930-5029
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 093486 | BOLTS,NUTS OR SCREWS, NOI (SUB 3) |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 573 | unknown |
| Originating Activity Code | PA | Marine Corps Logistics Base Albany, GA 31704-1128 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5310-00-930-5029
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Materiel Management Aggregation Code | SX | SX:AF SICA RESIDUAL MMAC-OC-ALC |
| Price Validation | V | The current standard price has been validated.
|
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
Q EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
Q EA : Each |
