NSN 5310-00-943-6609 MS936416, MS9364-16, 00-943-6609
Product Details | HEXAGON SLOTTED PLAIN NUT
5310-00-943-6609 A nut having a flat bearing surface and 6 flat sides with slots in its upper portion. It is designed to provide positive locking when used with a solid or split (cotter) pin. Excludes NUT (1), PLAIN, CASTELLATED, HEXAGON.
Part Alternates: MS936416, MS9364-16, 5310-00-943-6609, 00-943-6609, 5310009436609, 009436609
Hardware and Abrasives | Nuts and Washers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 23 FEB 1966 | 00-943-6609 | 01859 ( NUT, PLAIN, SLOTTED, HEXAGON ) |

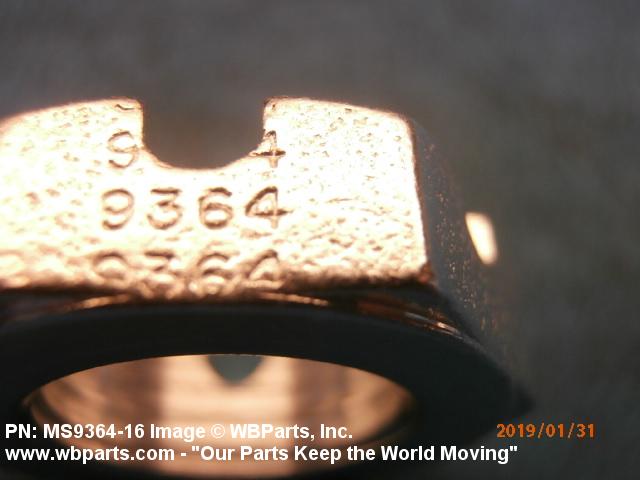

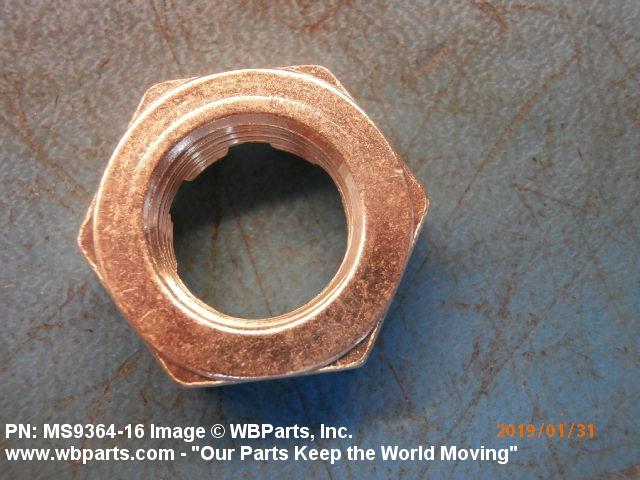

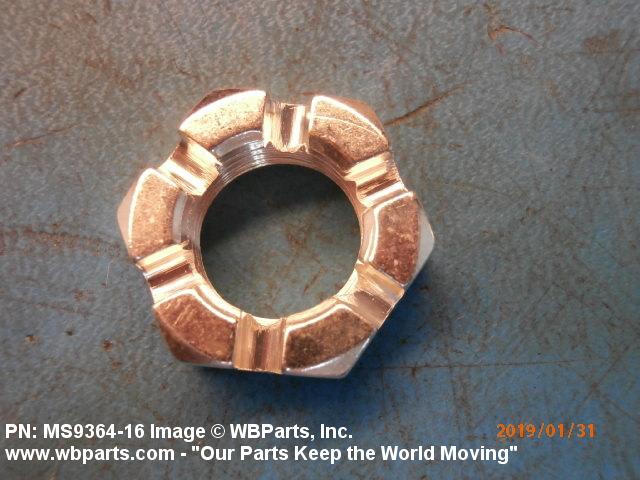

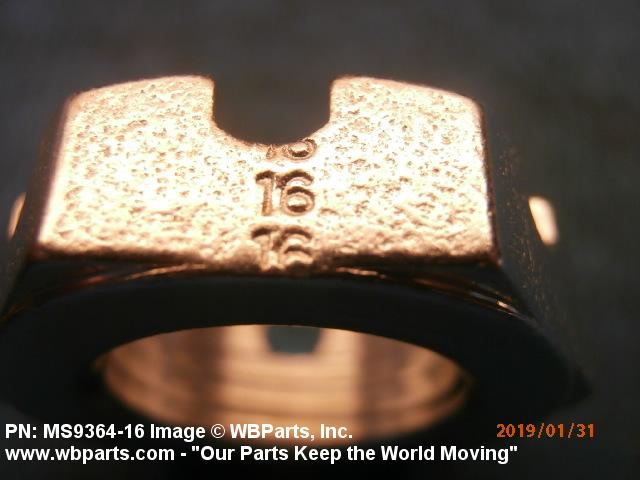

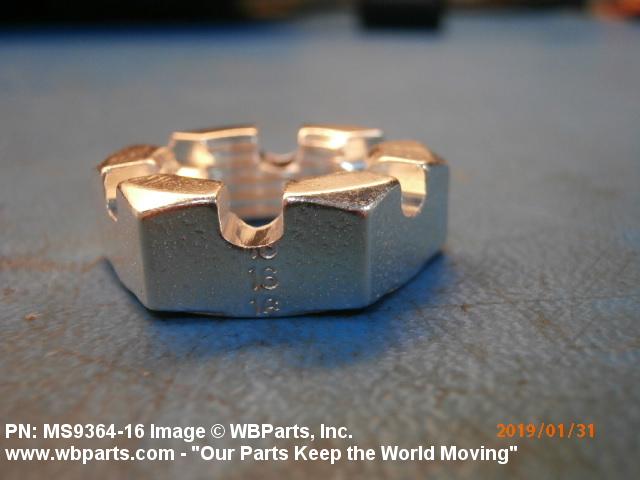

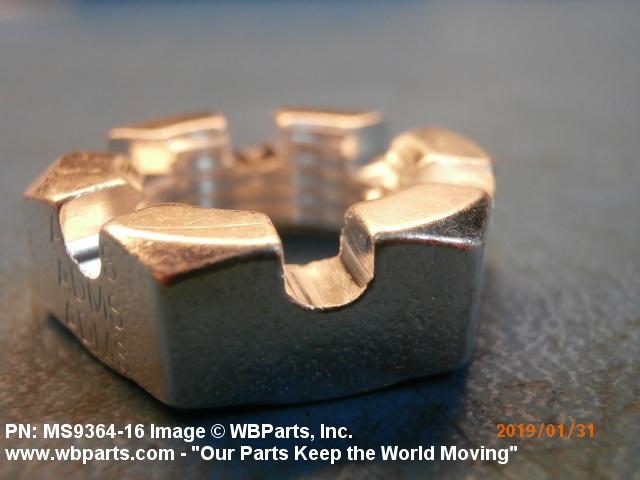

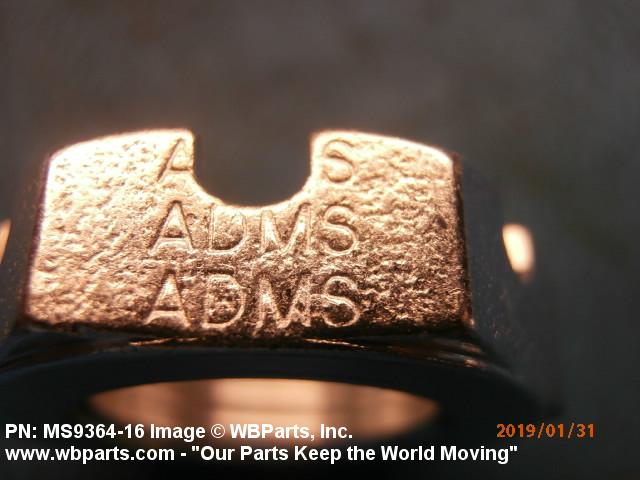

Drawings & Photos | NSN 5310-00-943-6609
Demand History | NSN 5310-00-943-6609
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5310-00-943-6609 | 2025-10-294 | 10 | DIBBS |
| 5310-00-943-6609 | 2025-10-289 | 5 | DIBBS |
| 5310-00-943-6609 | 2025-10-288 | 15 | DIBBS |
| 5310-00-943-6609 | 2025-10-287 | 1 | DIBBS |
| 5310-00-943-6609 | 2025-10-287 | 5 | DIBBS |
| 5310-00-943-6609 | 2025-10-286 | 50 | DIBBS |
| 5310-00-943-6609 | 2025-10-286 | 10 | DIBBS |
| 5310-00-943-6609 | 2023-12-347 | 5 | US |
| 5310-00-943-6609 | 2021-08-228 | 2 | United States |
| MS936416 | 2019-10-290 | 1 | Poland |
| MS936416 | 2019-01-23 | 2 | us |
| MS936416 | 2018-06-155 | 5000 | us |
| 5310-00-943-6609 | 2018-05-130 | 1 | DIBBS-RFPs |
| 5310-00-943-6609 | 2015-07-186 | 1961 | DIBBS |
| 5310-00-943-6609 | 2015-04-110 | 2005 | DIBBS |
| 5310-00-943-6609 | 2015-01-20 | 986 | DIBBS |
| 5310-00-943-6609 | 2013-11-325 | 1 | DIBBS-RFPs |
| MS936416 | 2013-10-301 | 1 | US |
| 5310-00-943-6609 | 2013-10-291 | 1 | DIBBS-RFPs |
| 5310-00-943-6609 | 2013-09-246 | 1 | DIBBS-RFPs |
| 5310-00-943-6609 | 2011-02-53 | 20 | CO |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5310-00-943-6609
Technical Data | NSN 5310-00-943-6609
| Characteristic | Specifications |
|---|---|
| THREAD SERIES | UNJF |

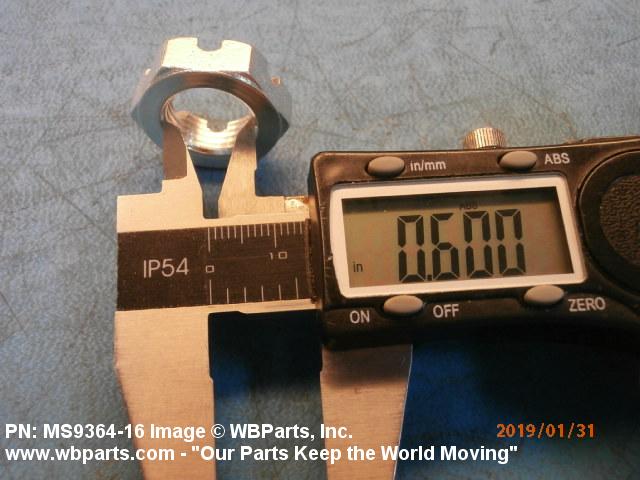

| NOMINAL THREAD SIZE | 0.625 INCHES |

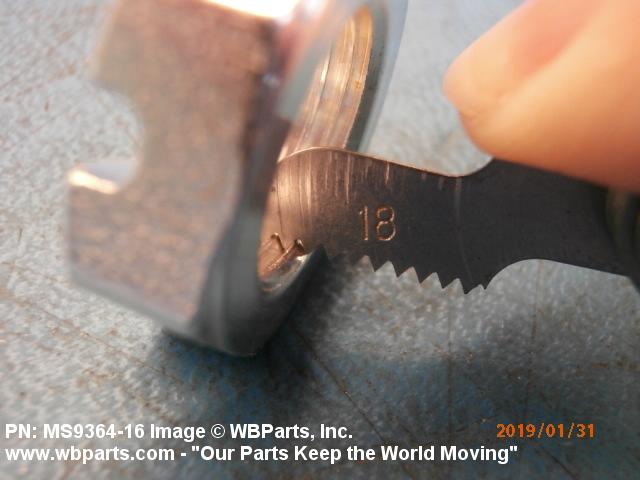

| THREAD QUANTITY PER INCH | 18 |
| THREAD CLASS | 3B |
| THREAD DIRECTION | RIGHT-HAND |
| MATERIAL | IRON ALLOY 660 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | AMS 5732 ASSN STD SINGLE MATERIAL RESPONSE OR AMS 5737 ASSN STD SINGLE MATERIAL RESPONSE OVERALL |
| SURFACE TREATMENT | SILVER OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | AMS 2410 ASSN STD SINGLE TREATMENT RESPONSE OVERALL |
| HARDNESS RATING | NOT RATED |
| NUT STYLE | A17 SLOTTED, HEXAGON |

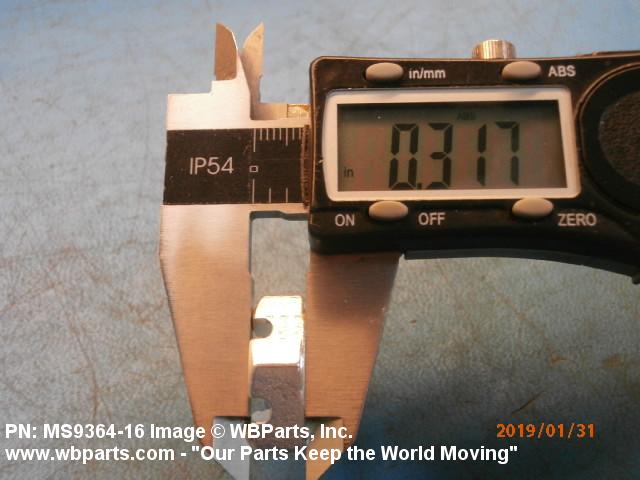

| NUT HEIGHT | 0.302 INCHES MINIMUM AND 0.322 INCHES MAXIMUM |

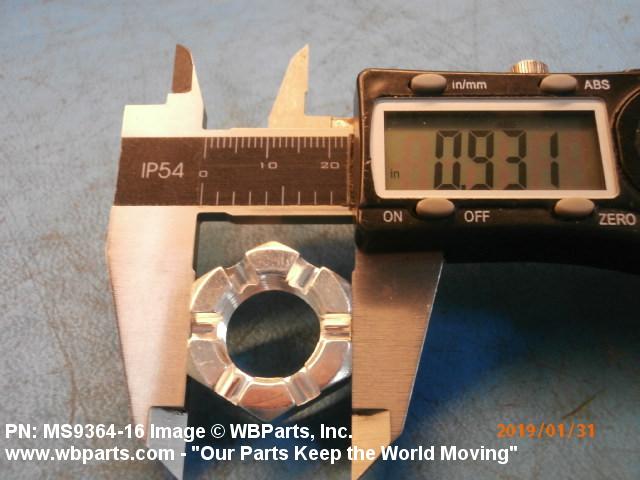

| WIDTH ACROSS FLATS | 0.928 INCHES MINIMUM AND 0.940 INCHES MAXIMUM |
| BEARING SURFACE TYPE | WASHER FACED |
| COUNTERSINK ANGLE | 90.0 DEGREES NOMINAL NUT |
| TEMP RATING | NOT RATED |
| III PRECIOUS MATERIAL | SILVER |
| III BEARING SURFACE FINISH | 63.0 MICROINCHES |
Restrictions/Controls & Freight Information | NSN 5310-00-943-6609
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | S | Item contains silver |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
