NSN 5310-00-974-6642 MS35338148, MS35338-148, MS3533891
Product Details | LOCK WASHER
5310-00-974-6642 A washer which is usually round with a centrally located hole. Its edges and two bearing surfaces are so designed that applied pressure brings into play the spring tension and/or frictional locking principle which materially resists any tendency toward turning. It may be made of one or two pieces
Part Alternates: MS35338148, MS35338-148, MS3533891, MS35338-91, BR105138, BR1051-3-8 , C08838, C088-3-8 , D301088 FIND NO 85, D301088FINDNO85, D305308 FIND NO 115, D305308FINDNO115, D320448 FIND 109, D320448FIND109, E101286 PC NO 66, E101286PCNO66, E102170 PC NO 66, E102170PCNO66, E103972 FIND 66, E103972FIND66, E104459 FIND 66, E104459FIND66, E108609 FIND 129, E108609FIND129, FFW84, FF-W-84, P09238, P092-3-8 , R367538, R3675-3-8 , WG105388, WG107388, X476138, X4761-3-8 , 10121903 , 358084ITEM160, 35808-4ITEM160, 50P001820146, 50P00182-0146, 004003005029, 004-003005-029, 5310-00-974-6642, 00-974-6642, 5310009746642, 009746642
Hardware and Abrasives | Nuts and Washers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 07 OCT 1966 | 00-974-6642 | 14218 ( WASHER, LOCK ) |

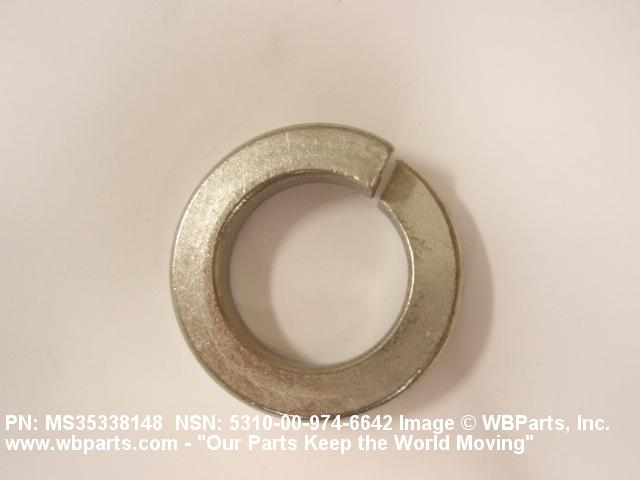

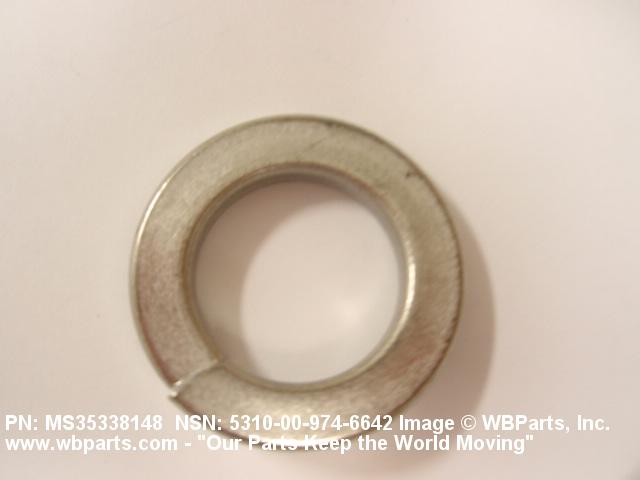

Drawings & Photos | NSN 5310-00-974-6642
Demand History | NSN 5310-00-974-6642
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5310-00-974-6642 | 2025-11-317 | 1120 | DIBBS |
| FFW84 | 2025-03-86 | 1 | US |
| FFW84 | 2025-03-85 | 1 | United States |
| 5310-00-974-6642 | 2024-06-177 | 1263 | DIBBS |
| 5310-00-974-6642 | 2022-10-290 | 1180 | DIBBS |
| 5310-00-974-6642 | 2022-10-277 | 1180 | DIBBS |
| 5310-00-974-6642 | 2020-10-281 | 36 | United States |
| 5310-00-974-6642 | 2020-10-281 | 48 | United States |
| 5310-00-974-6642 | 2018-12-336 | 637 | DIBBS |
| 5310-00-974-6642 | 2018-01-24 | 1840 | DIBBS |
| 5310-00-974-6642 | 2016-08-214 | 257 | DIBBS |
| 5310-00-974-6642 | 2016-03-82 | 1744 | DIBBS |
| 5310-00-974-6642 | 2015-08-221 | 1283 | DIBBS |
| MS35338148 | 2015-06-175 | 1000 | United States |
| 5310-00-974-6642 | 2014-05-149 | 1103 | DIBBS |
| 5310-00-974-6642 | 2011-05-123 | 1129 | DIBBS |
| 5310-00-974-6642 | 2011-03-75 | 1149 | DIBBS |
| MS35338148 | 2010-06-168 | 30 | US |
| MS35338148 | 2010-06-154 | 48 | United States |
| 5310-00-974-6642 | 2009-12-336 | 1715 | DIBBS |
| 5310-00-974-6642 | 2009-06-155 | 1715 | DIBBS |
| 5310-00-974-6642 | 2009-05-125 | 1027 | DIBBS |
| 5310-00-974-6642 | 2008-04-112 | 906 | DIBBS |
Cross Reference | NSN 5310-00-974-6642
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 004-003005-029 | 26916 | NORTHROP GRUMMAN SYSTEMS CORPORATION DIV MULTIPLE |
| 35808-4ITEM160 | 95402 | ELECTRIC BOAT CORP DBA ELECTRO DYNAMIC |
| 50P00182-0146 | D9182 | BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT |
| D301088 FIND NO 85 | 3X894 | CONTROL FLOW, INC. DBA WESTECH HEAVY MACHINERY DIV |
| D305308 FIND NO 115 | 3X894 | CONTROL FLOW, INC. DBA WESTECH HEAVY MACHINERY DIV |
| D320448 FIND 109 | 3X894 | CONTROL FLOW, INC. DBA WESTECH HEAVY MACHINERY DIV |
| E101286 PC NO 66 | 3X894 | CONTROL FLOW, INC. DBA WESTECH HEAVY MACHINERY DIV |
| E102170 PC NO 66 | 3X894 | CONTROL FLOW, INC. DBA WESTECH HEAVY MACHINERY DIV |
| E103972 FIND 66 | 3X894 | CONTROL FLOW, INC. DBA WESTECH HEAVY MACHINERY DIV |
| E104459 FIND 66 | 3X894 | CONTROL FLOW, INC. DBA WESTECH HEAVY MACHINERY DIV |
| E108609 FIND 129 | 3X894 | CONTROL FLOW, INC. DBA WESTECH HEAVY MACHINERY DIV |
| FF-W-84 | 81348 | FEDERAL SPECIFICATIONS PROMULGATED BY GENERAL SERVICES |
| MS35338-148 | 80205 | NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES |
| MS35338-148 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
| MS35338-91 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
| WG105388 | 3X894 | CONTROL FLOW, INC. DBA WESTECH HEAVY MACHINERY DIV |
| WG105388 | D9182 | BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT |
| WG107388 | D9182 | BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5310-00-974-6642
Related Products | NSN 5310-00-974-6642
Technical Data | NSN 5310-00-974-6642
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 301 OR STEEL COMP 302 OR STEEL COMP 303 OR STEEL COMP 303SE OR STEEL COMP 304 OR STEEL COMP 304L OR STEEL COMP 305 OR STEEL COMP 308 OR STEEL COMP 309 OR STEEL COMP 309S OR STEEL COMP 310 OR STEEL COMP 310S OR STEEL COMP 314 OR STEEL COMP 316 OR STEEL COMP 316L OR STEEL COMP 317 OR STEEL COMP 321 OR STEEL COMP 347 OR STEEL COMP 348 OR STEEL COMP 385 OR STEEL COMP 302 OR STEEL COMP 384 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | 66 FED STD ALL MATERIAL RESPONSES OVERALL |
| SURFACE TREATMENT | PASSIVATE OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-35 FED SPEC SINGLE TREATMENT RESPONSE OVERALL |
| HARDNESS RATING | 35.0 ROCKWELL C MINIMUM AND 43.0 ROCKWELL C MAXIMUM |
| STYLE DESIGNATOR | 108 SPLIT HELICAL-RIGHT HAND |
| HOLE DIAMETER | 1.042 INCHES MINIMUM AND 1.071 INCHES MAXIMUM |
| OUTSIDE DIAMETER | 1.661 INCHES MAXIMUM |
| MATERIAL THICKNESS | 0.250 INCHES MINIMUM AND 0.270 INCHES MAXIMUM |
| MANUFACTURERS CODE | 81348 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | FF-W-84 |
Restrictions/Controls & Freight Information | NSN 5310-00-974-6642
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 013630 | ALUM RIVETS |
| Less than car load rating | ||
| Less than truck load rating | Q | 70.0 |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | KZ | Defense Supply Center Philadelphia Philadelphia, PA 19101 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
| NMF Description | 194160 | WASHER OR GASKETS, IRON OR STEEL, |
| Less than car load rating | ||
| Less than truck load rating | U | 50.0 |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | KZ | Defense Supply Center Philadelphia Philadelphia, PA 19101 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5310-00-974-6642
Army
Air Force
Navy
Marines| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | T | Industrial Supplies (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
H EA : Each |
| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Materiel Management Aggregation Code | SX | SX:AF SICA RESIDUAL MMAC-OC-ALC |
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Materiel Management Aggregation Code | SX | SX:AF SICA RESIDUAL MMAC-OC-ALC |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 LB : Pounds |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
H EA : Each |
| Category | Code | Description |
|---|---|---|
| Stores Account Code | 1 | Marine Corps Stock Fund Account Item. |
| Combat Essentiality Code | 2 | Non-Critical Repair Part. Repair parts or major components whose failure in an end item will not render the end item inoperative or reduce its effectiveness below the minimum acceptable level of efficiency, and which do not fit the definition of Code 3 or 4 items. |
| Materiel Management Code | B | All CommoditiesDefense Logistics Agency, (DLA,) |
| Echelon Management Code | 2 | ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DM | U.S. Marine Corps |
| Service Organization | M | U.S. Marine Corps |
| Reparability | Z | Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code. |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
H EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
H EA : Each |
