NSN 5310-00-984-0388 A17481, A57575, BACW10X1A

Product Details | SPLIT WASHER

5310-00-984-0388 A washer, round in shape, and having a centrally located hole. Its two flat parallel bearing surfaces are divided or cut along the radius, leaving a cleft, fissure, or cutaway portion across the rim whch extends from the outer circumference to the washer hole but which is never as large as the washer hole diameter. Excludes WASHER (1), LOCK.

Part Alternates: A17481, A57575, BACW10X1A, C 3747 732 -B, C37477320B, C3747732B, GW500ASWSS, GW500A-SW-SS, 06.43809-0104, 06438090104, 1142721, 3D00662, 3D0066-2 , 4002SWSS, 4002-SW-SS, 0089882078, 6354442, 9976075, 5310-00-984-0388, 00-984-0388, 5310009840388, 009840388

Hardware and Abrasives | Nuts and Washers

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
53	01 JAN 1963	00-984-0388	15937 ( WASHER, SPLIT )

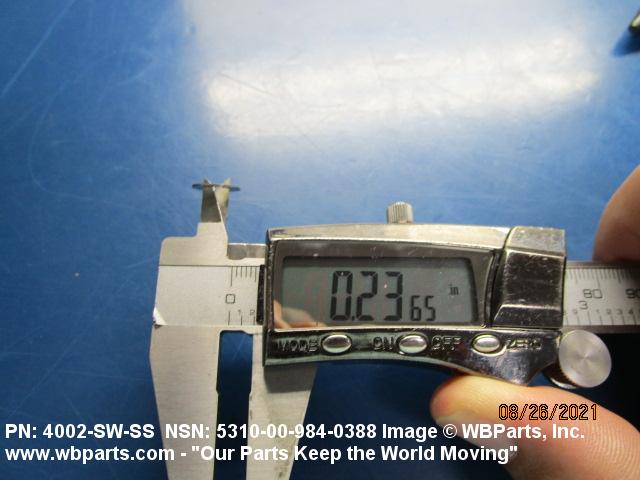

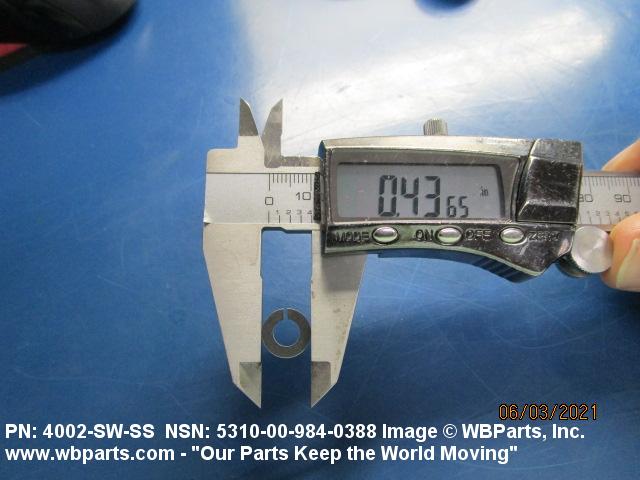

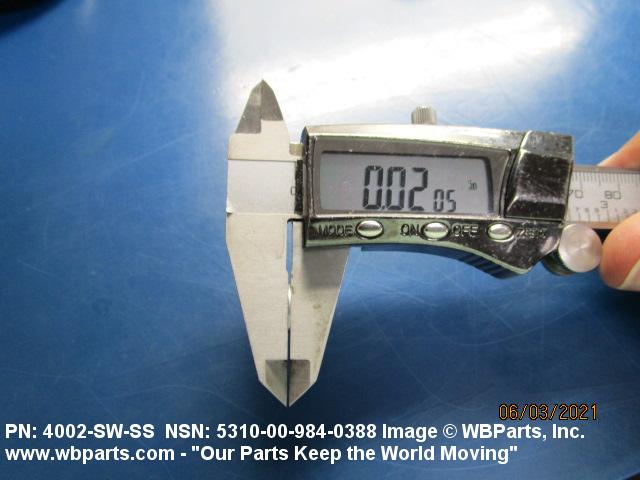

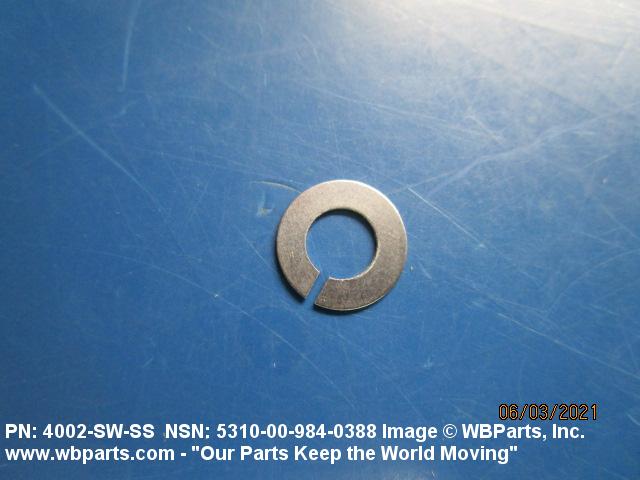

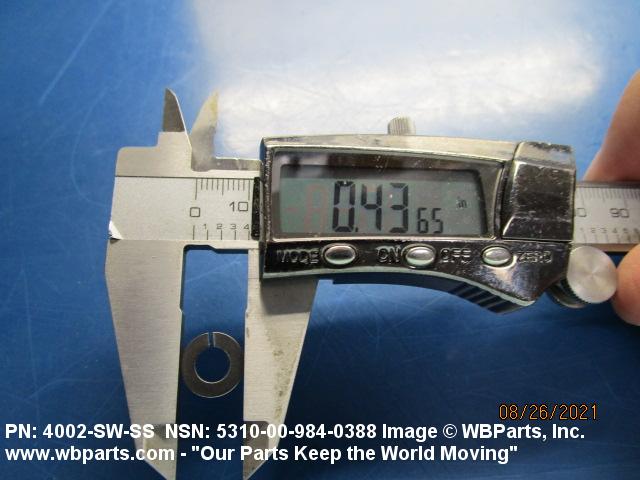

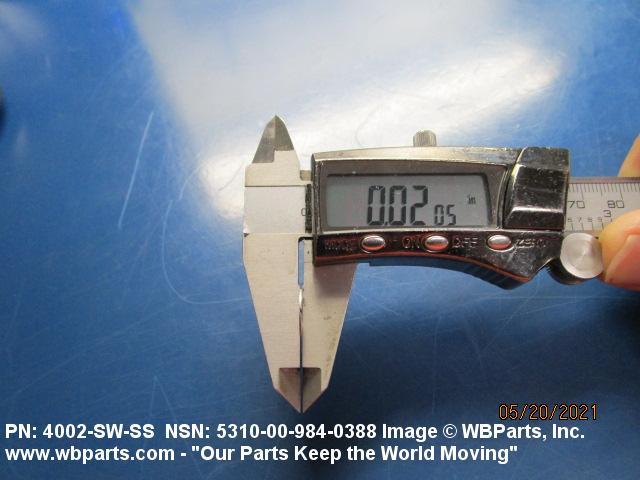

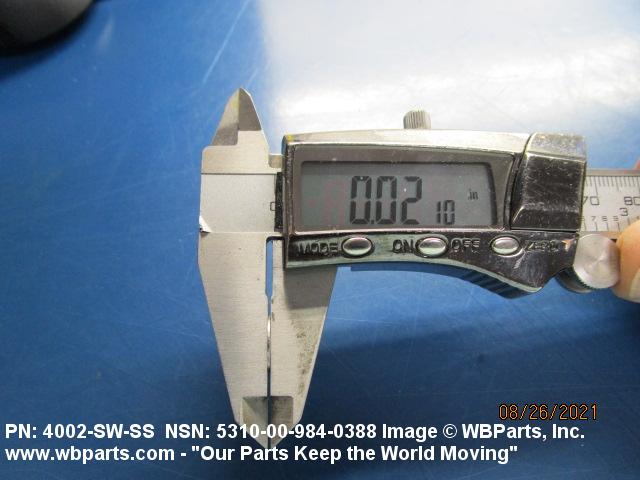

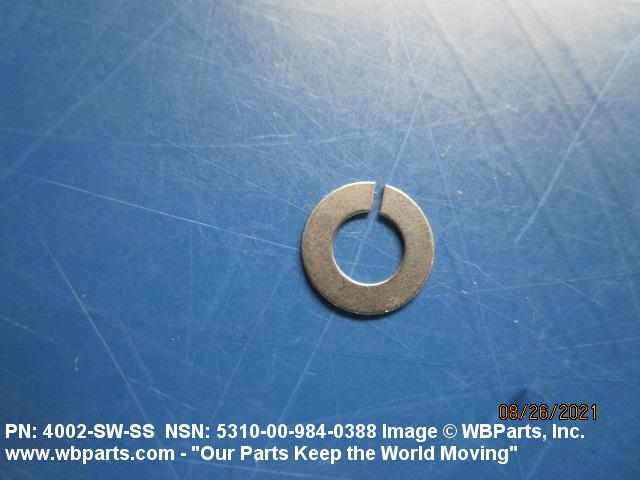

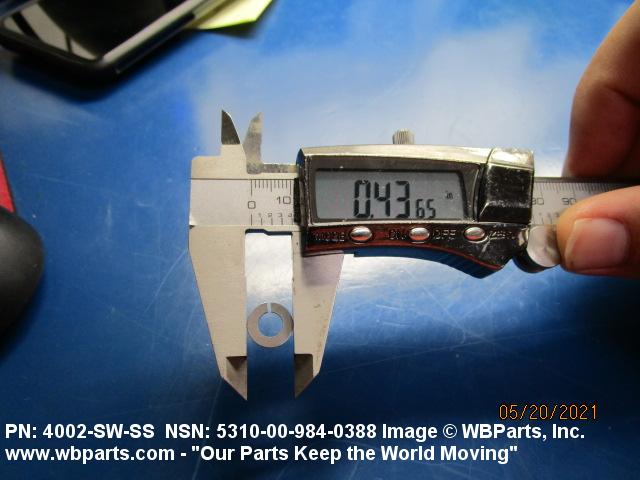

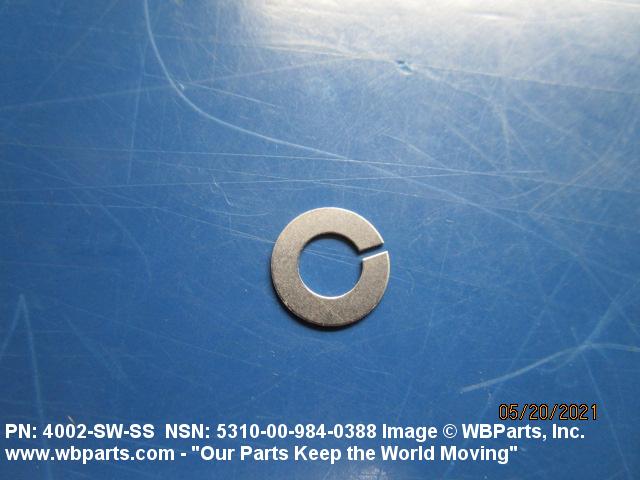

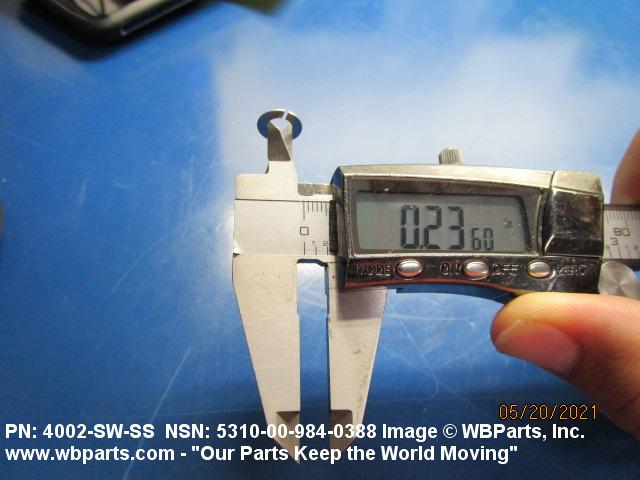

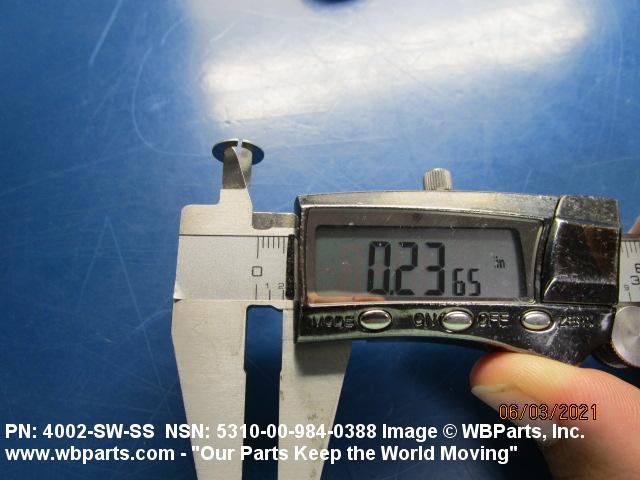

Drawings & Photos | NSN 5310-00-984-0388

Part Number	Request Date	QTY	Origin
4002SWSS	2025-12-338	60	Czech Republic
4002SWSS	2024-02-59	100	ZA
4002SWSS	2011-11-314	300	US
4002SWSS	2011-04-103	40	us
5310-00-984-0388	2009-05-147	10	United States
5310-00-984-0388	2008-11-333	11725	DIBBS
5310-00-984-0388	2008-10-291	12311	DIBBS
5310-00-984-0388	2008-03-87	5557	DIBBS
5310-00-984-0388	2008-02-49	62	China

Cross Reference | NSN 5310-00-984-0388

Part Number	Cage Code	Manufacturer
0089882078	D8046	DAIMLER AG
06.43809-0104	D3273	MAN TRUCK & BUS AG
06438090104	D3273	MAN TRUCK & BUS AG
1142721	60119	MONADNOCK COMPANY THE DBA LISI AEROSPACE
3D0066-2	88277	BOEING COMPANY, THE DBA BOEING
4002-SW-SS	71286	ALCOA GLOBAL FASTENERS, INC. DBA ALCOA FASTENING SYSTEMS
4002-SW-SS	D0680	ALCOA FASTENING SYSTEMS FAIRCHILDFASTENERS EUROPE - CAMLOC
4002-SW-SS	K1678	FAIRCHILD FASTENERS UK LTD
6354442	S3712	BAE SYSTEMS BOFORS AB
6354442	S3715	BOFORS AB
9976075	18876	U S ARMY AVIATION AND MISSILE COMMAND
A17481	K0967	MBDA UK LTD
A57575	U4535	B A E SYSTEMS ELECTRONICS LTD DBA MISSION SYSTEMS
BACW10X1A	77272	THE BOEING COMPANY DBA BOEING
C 3747 732 -B	C2463	RHEINMETALL SOLDIER ELECTRONICS GMB
C 3747 732 -B	S3092	RHEINMETALL AIR DEFENCE AG
C37477320B	C2463	RHEINMETALL SOLDIER ELECTRONICS GMB
C37477320B	S3092	RHEINMETALL AIR DEFENCE AG
GW500A-SW-SS	26512	NORTHROP GRUMMAN SYSTEMS CORPORATION DIV NORTHROP GRUMMAN AEROSPACE

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5310-00-984-0388

Compare

Related Products | NSN 5310-00-984-0388

5310-00-984-0934, 5310-00-984-1042, 5310-00-984-1043, 5310-00-984-1055, 5310-00-984-1064

Technical Data | NSN 5310-00-984-0388

Characteristic	Specifications
MATERIAL	STEEL CORROSION RESISTING OVERALL
STYLE DESIGNATOR	9 SPLIT
HOLE DIAMETER	0.231 INCHES MINIMUM AND 0.237 INCHES MAXIMUM
OUTSIDE DIAMETER	0.441 INCHES MINIMUM AND 0.447 INCHES MAXIMUM
DISTANCE ACROSS SPLIT OPENING	0.028 INCHES MINIMUM AND 0.034 INCHES MAXIMUM
MATERIAL THICKNESS	0.015 INCHES MINIMUM AND 0.025 INCHES MAXIMUM

Restrictions/Controls & Freight Information | NSN 5310-00-984-0388

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	N	There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	U	Precious metal type is unknown
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.

Category	Code	Description
NMF Description	194160	WASHER OR GASKETS, IRON OR STEEL,
Less than car load rating
Less than truck load rating	U	50.0
Water commodity Code	713	unknown
Originating Activity Code	XX
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	B	Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 5310-00-984-0388

Category	Code	Description
Materiel Category and Inventory Manager	T	Industrial Supplies (DLA/GSA Items)
Appropriation and Budget Activity	2	Stock Fund Secondary Items
Management Inventory Segment	2	NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable.
Specific Group/Generic Code	0	Medical Materiel
Weapons Systems/End Item or Homogeneous Group	00	DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
Accounting Requirements Code	X	Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DA	Department of the Army
Service Organization	A	U.S. Army
Reparability	Z	This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	Q EA : Each

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Materiel Management Aggregation Code	SX	SX:AF SICA RESIDUAL MMAC-OC-ALC
Price Validation	V	The current standard price has been validated. The item has been analyzed in conjunction with the Zero Overpricing Program and is in the accepted price range. The item was procured under open competition and under the competitive arena the price is considered fair and reasonable. ZOP or Standard price challenges are permissible but must be supported by adequate justification.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	Q EA : Each

Category	Code	Description
Stores Account Code	1	Marine Corps Stock Fund Account Item.
Combat Essentiality Code	5	Critical Repair Part to a Combat Essential End Item. Those parts or components whose failure in a combat essential end item will render the end item inoperative or reduce its effectiveness below the minimum acceptable level of efficiency.
Materiel Management Code	B	All CommoditiesDefense Logistics Agency, (DLA,)
Echelon Management Code	2	ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled.
Echelon Identification Code	B	Consumable Repair Parts
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DM	U.S. Marine Corps
Service Organization	M	U.S. Marine Corps
Reparability	Z	Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	Q EA : Each

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	Q EA : Each
