NSN 5310-00-989-1778 FF-2-92B TY A CL A, FF292BTYACLA, FFW92B
Product Details | FLAT WASHER
5310-00-989-1778 A washer having a centrally located hole with a solid or laminated cross-section and two flat parallel bearing surfaces. The hole must be 75 percent or less than the largest dimension and the bearing surface finish is greater than 32 microinch (0.8 micrometer). The thickness cannot exceed 25 percent of the largest outside dimension. When the largest outside dimension is less than 1/4 inch or 6mm, the thickness must be 0.006 inches (0.15mm) or greater and for items 1/4 inch (6mm) or larger, the thickness must be 0.016 inches (0.4mm) or greater. The maximum tolerance is applied to dimensions and used as a determining factor. Items with separable lamination use SHIM. For items fabricated from ceramic or electrically rated materials by specification or industry standards use INSULATOR (1), WASHER. Excludes DISK, VALVE, graphite impregnated and lubricated items.
Part Alternates: FF-2-92B TY A CL A, FF292BTYACLA, FFW92B, FF-W-92B, 204011708003, 204-011-708-003, 2040117083, 204-011-708-3, 5310-00-989-1778, 00-989-1778, 5310009891778, 009891778
Hardware and Abrasives | Nuts and Washers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1963 | 00-989-1778 | 13393 ( WASHER, FLAT ) |

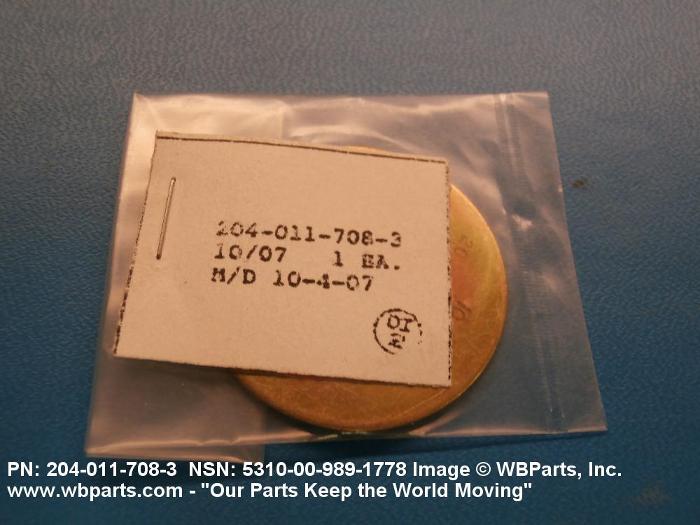

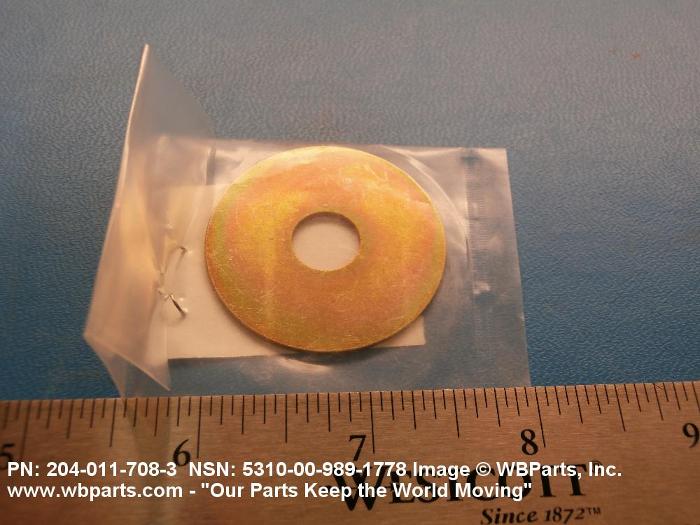

Drawings & Photos | NSN 5310-00-989-1778
Demand History | NSN 5310-00-989-1778
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 204011708003 | 2020-02-36 | 32 | United States |
| FF-W-92B | 2013-08-229 | 180 | Canada |
| 2040117083 | 2012-08-234 | 10 | United States |
| 204-011-708-3 | 2012-08-223 | 10 | United States |
| 5310-00-989-1778 | 2010-04-120 | 500 | DIBBS |
| 5310-00-989-1778 | 2009-11-324 | 30 | US |
| FFW92B | 2009-05-121 | 350 | US |
| FF292BTYACLA | 2007-08-226 | 16 | US |
Cross Reference | NSN 5310-00-989-1778
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 204-011-708-003 | 97499 | BELL HELICOPTER TEXTRON INC. |
| 204-011-708-3 | 97499 | BELL HELICOPTER TEXTRON INC. |
| 204-011-708-3 | D0216 | RUAG AEROSPACE SERVICES GMBH |
| FF-2-92B TY A CL A | 81348 | FEDERAL SPECIFICATIONS PROMULGATED BY GENERAL SERVICES |
| FF-W-92B | 81348 | FEDERAL SPECIFICATIONS PROMULGATED BY GENERAL SERVICES |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5310-00-989-1778
Technical Data | NSN 5310-00-989-1778
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL OVERALL |
| SURFACE TREATMENT | CADMIUM OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-416,TY 1,CL 3 FED SPEC SINGLE TREATMENT RESPONSE OVERALL |
| HOLE DIAMETER | 0.452 INCHES MINIMUM AND 0.457 INCHES MAXIMUM |
| PERIPHERAL SHAPE STYLE | 1 ROUND |
| OVERALL DIAMETER | 1.615 INCHES MINIMUM AND 1.635 INCHES MAXIMUM |
| CENTER HOLE SHAPE STYLE | 1 ROUND |
| CROSS-SECTIONAL SHAPE STYLE | 1 RECTANGULAR |
| THICKNESS | 0.053 INCHES MINIMUM AND 0.073 INCHES MAXIMUM |
| MANUFACTURERS CODE | 81348 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | FF-W-92B |
| MANUFACTURERS CODE | 97499 |
| DESIGN CONTROL REFERENCE | 204-011-708-3 |
Restrictions/Controls & Freight Information | NSN 5310-00-989-1778
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 194120 | WASHERS/GASKETS/PCKG DVCS NOI |
| Less than car load rating | S | 60 |
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
