NSN 5310-01-010-9986 NAS1169T10, 01-010-9986, 010109986

Product Details | FINISHING WASHER

5310-01-010-9986 A washer or cone or disk shape with a centrally located hole, designed to accommodate a flat or oval head screw and provide additional bearing area on the material being fastened. It may or may not have a flush flange feature.

Part Alternates: NAS1169T10, 5310-01-010-9986, 01-010-9986, 5310010109986, 010109986

Hardware and Abrasives | Nuts and Washers

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
53	12 OCT 1975	01-010-9986	15932 ( WASHER, FINISHING )

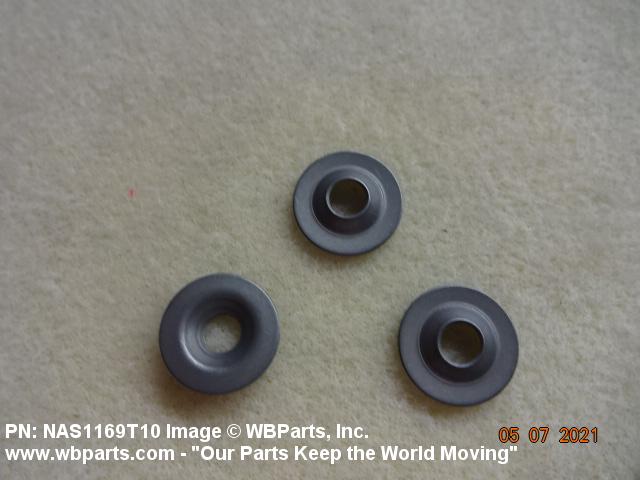

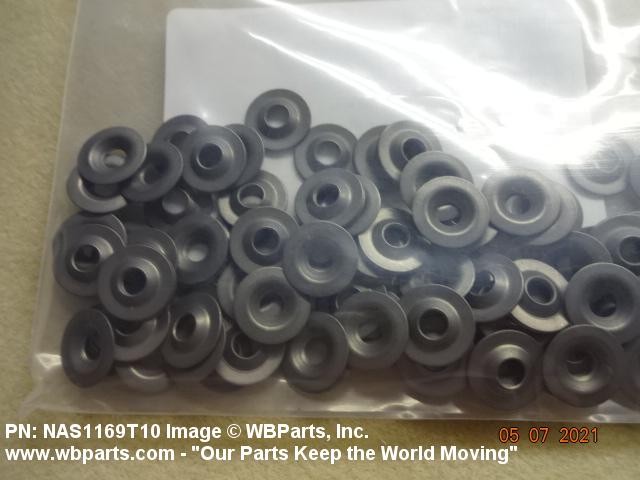

Drawings & Photos | NSN 5310-01-010-9986

Part Number	Request Date	QTY	Origin
5310-01-010-9986	2021-04-118	100	United States
5310-01-010-9986	2018-10-294	300	DIBBS
5310-01-010-9986	2018-08-233	6009	DIBBS
5310-01-010-9986	2014-09-272	6294	DIBBS
5310-01-010-9986	2014-09-261	6294	DIBBS
5310-01-010-9986	2013-01-22	5428	DIBBS
5310-01-010-9986	2009-12-364	8155	DIBBS
5310-01-010-9986	2009-09-244	1010	Brazil
5310-01-010-9986	2009-06-163	5548	DIBBS
5310-01-010-9986	2009-03-76	3031	DIBBS

Cross Reference | NSN 5310-01-010-9986

Part Number	Cage Code	Manufacturer
NAS1169T10	25150	DUPLICATE PARTS CO
NAS1169T10	30889	ERIKS SOUTHWEST INC DBA MONTCLAIR ENTERPRISES
NAS1169T10	60360	AIRCRAFT MISSILE PARTS MFG CORP DBA AMPM
NAS1169T10	80205	NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES
NAS1169T10	86928	SEASTROM MANUFACTURING CO., INC. DBA SEASTROM MANUFACTURING

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5310-01-010-9986

Compare

Related Products | NSN 5310-01-010-9986

5310-01-011-0628, 5310-01-011-0629, 5310-01-011-0747, 5310-01-011-0748, 5310-01-011-0749

Technical Data | NSN 5310-01-010-9986

Characteristic	Specifications
MATERIAL	TITANIUM ALLOY OVERALL
MATERIAL DOCUMENT AND CLASSIFICATION	MIL-T-9046 TY 1 COMP B MIL SPEC SINGLE MATERIAL RESPONSE OVERALL
STYLE DESIGNATOR	5 FINISHING

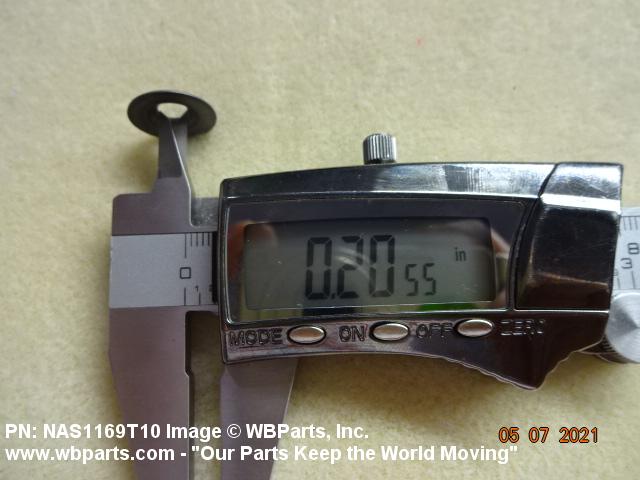

HOLE DIAMETER	0.192 INCHES MINIMUM AND 0.222 INCHES MAXIMUM

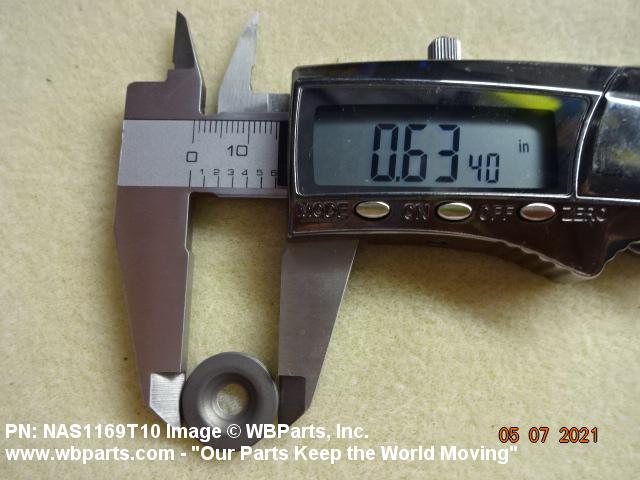

OUTSIDE DIAMETER	0.620 INCHES MINIMUM AND 0.645 INCHES MAXIMUM
OVERALL HEIGHT	0.101 INCHES NOMINAL

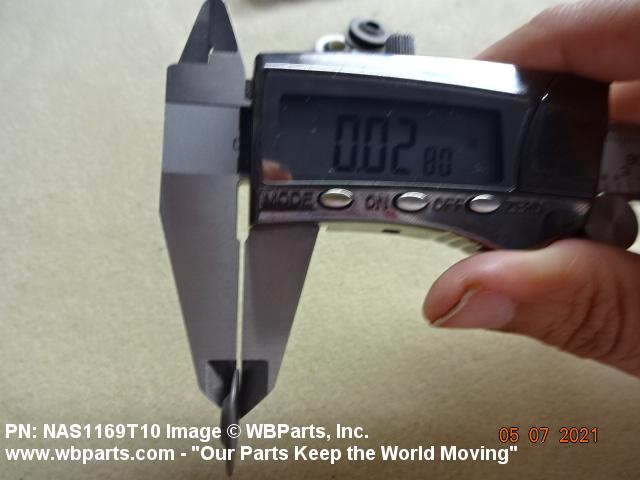

MATERIAL THICKNESS	0.025 INCHES NOMINAL
SPECIFICATION/STANDARD DATA	80205-NAS1169 PROFESSIONAL/INDUSTRIAL ASSOCIATION STANDARD
III END ITEM IDENTIFICATION	W/S:AIRCRAFT, HARRIER AV-8B; HELICOPTER, UH-60A/UH-60D; AIRCRAFT, B-1B; AIRCRAFT, AIRLIFTER C-17A; AIRCRAFT, F-16

Restrictions/Controls & Freight Information | NSN 5310-01-010-9986

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	N	There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	U	Precious metal type is unknown
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.

Category	Code	Description
NMF Description	136500	METAL NOI/METAL ALLOYS NOI
Less than car load rating
Less than truck load rating	W	Rating Variable
Water commodity Code	576	unknown
Originating Activity Code	KZ	Defense Supply Center Philadelphia Philadelphia, PA 19101
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	B	Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 5310-01-010-9986

Air Force
Navy

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Materiel Management Aggregation Code	SX	SX:AF SICA RESIDUAL MMAC-OC-ALC
Price Validation	V	The current standard price has been validated. The item has been analyzed in conjunction with the Zero Overpricing Program and is in the accepted price range. The item was procured under open competition and under the competitive arena the price is considered fair and reasonable. ZOP or Standard price challenges are permissible but must be supported by adequate justification.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	Z	INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	M EA : Each

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	Z	INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	M EA : Each
