NSN 5310-01-013-2998 BGC465C2129P, BGC465C-2-12-9-P, C170SC5212
Product Details | GANG CHANNEL SELF-LOCKING NUT ASSEMBLY
5310-01-013-2998 An item composed of a specially designed channel and a series of nuts having integral self-locking features assembled in predetermined spacing.
Part Alternates: BGC465C2129P, BGC465C-2-12-9-P, C170SC5212, C170SC5-2-12, ST3M465C12A482, ST3M465C12A48-2, ST3M465C12A482P, ST3M465C12A48-2P, G18421L2512, G18421L2-5-12, G492S0E522P, G492S0E5-2-2-P, 10121958 , 3M465C12A482, 3M465C12A48-2, 3M465C12A482P, 3M465C12A48-2P, 5310-01-013-2998, 01-013-2998, 5310010132998, 010132998
Hardware and Abrasives | Nuts and Washers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 28 NOV 1975 | 01-013-2998 | 01864 ( NUT ASSEMBLY, SELF-LOCKING, GANG CHANNEL ) |

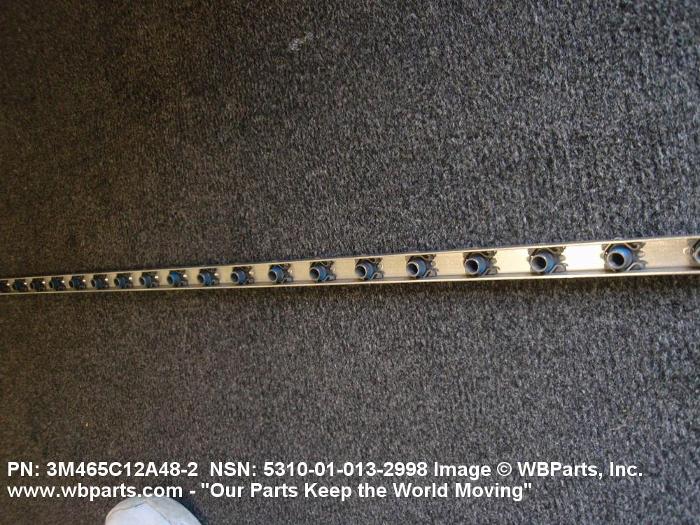

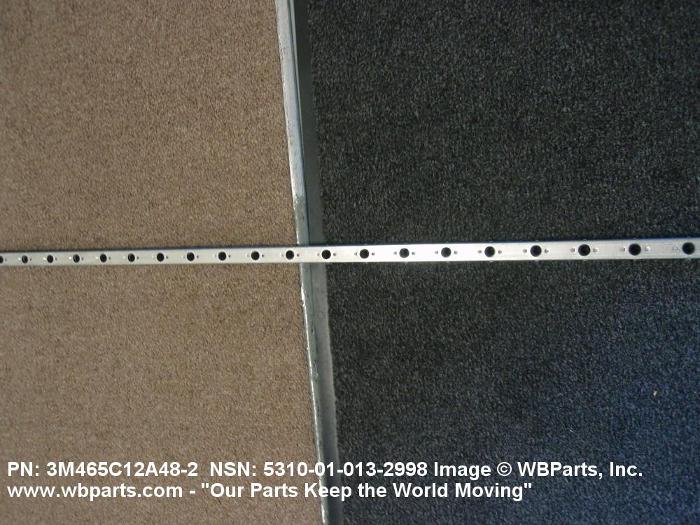

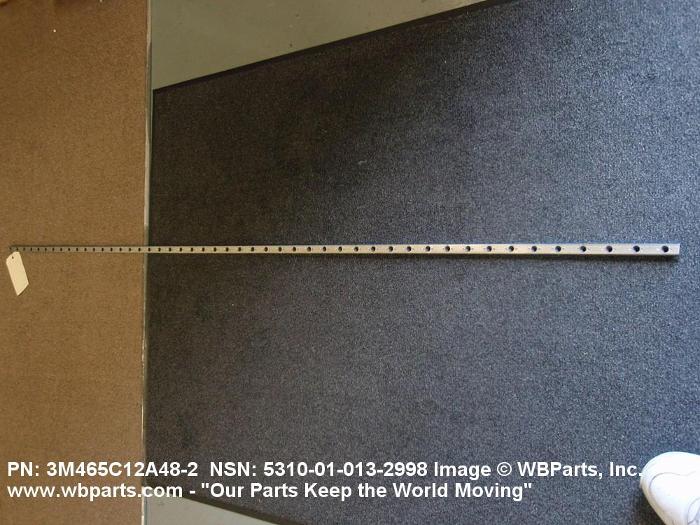

Drawings & Photos | NSN 5310-01-013-2998
Demand History | NSN 5310-01-013-2998
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 3M465C12A48-2P | 2019-09-266 | 2 | DIBBS |
| BGC465C-2-12-9-P | 2019-09-266 | 2 | DIBBS |
| C170SC5-2-12 | 2019-09-266 | 2 | DIBBS |
| G492S0E5-2-2-P | 2019-09-266 | 2 | DIBBS |
| 3M465C12A48-2P | 2019-02-57 | 2 | DIBBS |
| BGC465C-2-12-9-P | 2019-02-57 | 2 | DIBBS |
| C170SC5-2-12 | 2019-02-57 | 2 | DIBBS |
| G492S0E5-2-2-P | 2019-02-57 | 2 | DIBBS |
| 5310-01-013-2998 | 2018-12-361 | 2 | DIBBS |
| 5310-01-013-2998 | 2018-06-161 | 2 | DIBBS |
| 5310-01-013-2998 | 2015-06-152 | 2 | DIBBS |
| 5310-01-013-2998 | 2012-07-184 | 2 | DIBBS |
| 5310-01-013-2998 | 2011-02-38 | 1 | United States |
| 5310-01-013-2998 | 2011-01-13 | 1 | DIBBS |
| 5310-01-013-2998 | 2010-10-293 | 1 | DIBBS |
Cross Reference | NSN 5310-01-013-2998
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 3M465C12A48-2 | 76301 | BOEING COMPANY, THE DBA BOEING |
| 3M465C12A48-2P | 76301 | BOEING COMPANY, THE DBA BOEING |
| BGC465C-2-12-9-P | 27238 | BRISTOL INDUSTRIES |
| C170SC5-2-12 | 80539 | SPS TECHNOLOGIES, LLC DBA AEROSPACE FASTENERS GROUP |
| G18421L2-5-12 | 72962 | HARVARD INDUSTRIES INC |
| G492S0E5-2-2-P | 15653 | ALCOA GLOBAL FASTENERS, INC. |
| ST3M465C12A48-2 | 76301 | BOEING COMPANY, THE DBA BOEING |
| ST3M465C12A48-2P | 76301 | BOEING COMPANY, THE DBA BOEING |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5310-01-013-2998
Related Products | NSN 5310-01-013-2998
Technical Data | NSN 5310-01-013-2998
| Characteristic | Specifications |
|---|---|
| THREAD SERIES | UNJF |
| NOMINAL THREAD SIZE | 0.312 INCHES |
| THREAD QUANTITY PER INCH | 24 |
| THREAD CLASS | 3B |
| THREAD DIRECTION | RIGHT-HAND |
| MATERIAL | IRON ALLOY 660 NUT |
| MATERIAL DOCUMENT AND CLASSIFICATION | AMS5510 ASSN STD SINGLE MATERIAL RESPONSE CHANNEL AMS5525 ASSN STD SINGLE MATERIAL RESPONSE NUT |
| SURFACE TREATMENT | PASSIVATE AND PAINT LUSTERLESS CHANNEL NICKEL AND COPPER ALLOY NUT |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-35 FED SPEC 1ST TREATMENT RESPONSE AND MIL-P-85582, TY 1, CL 2 MIL SPEC 2ND TREATMENT RESPONSE CHANNEL |
| HARDNESS RATING | NOT RATED |
| NUT STYLE | A20 GANG CHANNEL, SELF LOCKING |
| REMOVABLE NUT MANUFACTURER CODE | 72962 |
| REMOVABLE NUT MANUFACTURER PART NUMBER | G18421L2-5 |
| LOCKING FEATURE | PREVAILING TORQUE ALL METAL DESIGN |
| CHANNEL STYLE | C1 STRAIGHT TYPE |
| OVERALL LENGTH | 72.000 INCHES NOMINAL |
| OVERALL WIDTH | 0.652 INCHES MAXIMUM |
| ASSEMBLY OVERALL HEIGHT | 0.388 INCHES MAXIMUM |
| CHANNEL HEIGHT | 0.344 INCHES MAXIMUM |
| NUT SPACING | 1.500 INCHES NOMINAL |
| NUT QUANTITY | 48 |
| NUT COUNTERBORE DEPTH | 0.125 INCHES MINIMUM NUT |
| COUNTERBORE DIAMETER | 0.317 INCHES MINIMUM NUT |
| LUBRICATION | DRY FILM LUBRICANT |
| TEMP RATING | NOT RATED |
| FEATURES PROVIDED | FLOATING NUT |
| SPECIAL FEATURES | COLOR BLUE FED STD 595 NO. 15526 |
| SPECIFICATION/STANDARD DATA | 76301-ST3M465 MANUFACTURERS STANDARD |
Restrictions/Controls & Freight Information | NSN 5310-01-013-2998
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 093486 | BOLTS,NUTS OR SCREWS, NOI (SUB 3) |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 573 | unknown |
| Originating Activity Code | KZ | Defense Supply Center Philadelphia Philadelphia, PA 19101 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5310-01-013-2998
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Materiel Management Aggregation Code | SX | SX:AF SICA RESIDUAL MMAC-OC-ALC |
| Price Validation | V | The current standard price has been validated.
|
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
