NSN 5310-01-040-7177 AN960816, AN960-816, 01-040-7177
Product Details | FLAT WASHER
5310-01-040-7177 A washer having a centrally located hole with a solid or laminated cross-section and two flat parallel bearing surfaces. The hole must be 75 percent or less than the largest dimension and the bearing surface finish is greater than 32 microinch (0.8 micrometer). The thickness cannot exceed 25 percent of the largest outside dimension. When the largest outside dimension is less than 1/4 inch or 6mm, the thickness must be 0.006 inches (0.15mm) or greater and for items 1/4 inch (6mm) or larger, the thickness must be 0.016 inches (0.4mm) or greater. The maximum tolerance is applied to dimensions and used as a determining factor. Items with separable lamination use SHIM. For items fabricated from ceramic or electrically rated materials by specification or industry standards use INSULATOR (1), WASHER. Excludes DISK, VALVE, graphite impregnated and lubricated items.
Part Alternates: AN960816, AN960-816, 5310-01-040-7177, 01-040-7177, 5310010407177, 010407177
Hardware and Abrasives | Nuts and Washers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 13 MAY 1977 | 01-040-7177 | 13393 ( WASHER, FLAT ) |

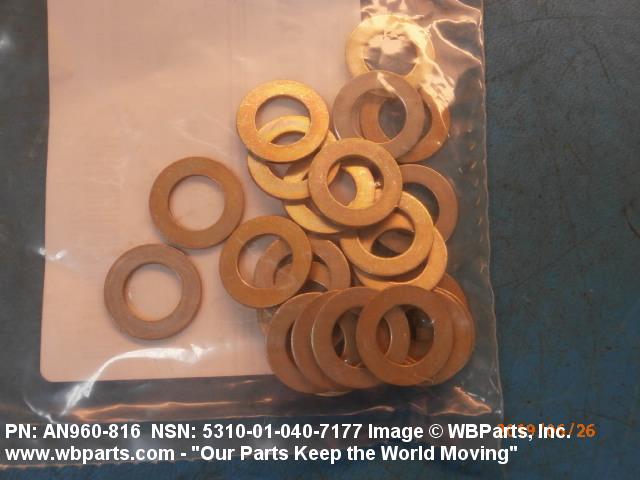

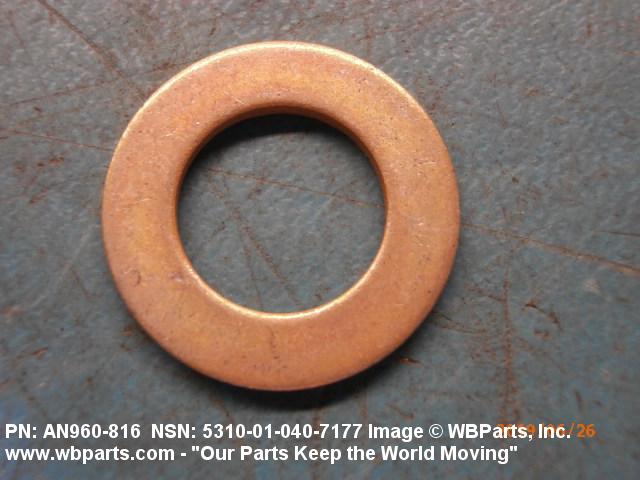

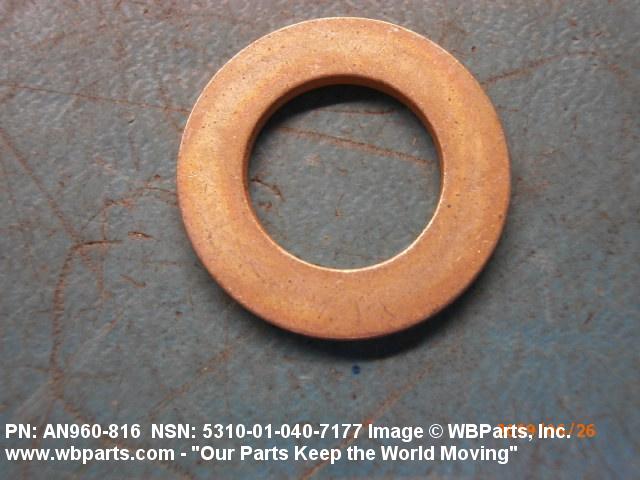

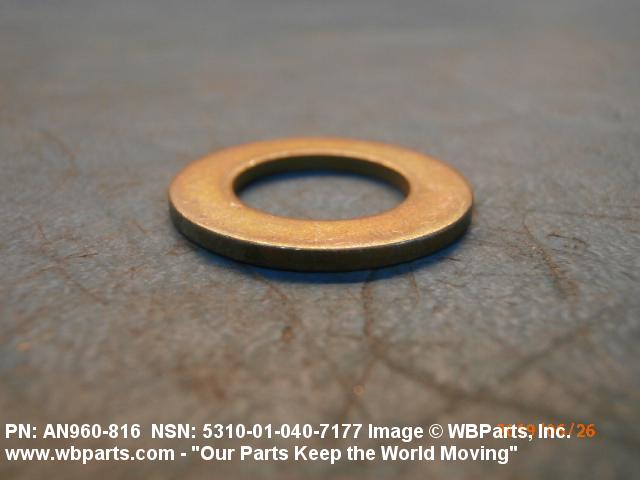

Drawings & Photos | NSN 5310-01-040-7177
Demand History | NSN 5310-01-040-7177
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| AN960816 | 2024-10-299 | 19 | United States |
| AN960816 | 2023-04-115 | 3 | us |
| AN960-816 | 2022-01-06 | 150 | IN |
| AN960816 | 2021-10-292 | 21 | United States |
| AN960816 | 2021-04-104 | 10 | United States |
| AN960816 | 2020-01-16 | 6 | MX |
| AN960816 | 2019-11-309 | 7 | United States |
| 5310-01-040-7177 | 2019-06-163 | 4 | United States |
| AN960816 | 2018-07-197 | 40 | SA |
| AN960816 | 2018-04-102 | 20 | SA |
| AN960816 | 2018-03-78 | 36 | United States |
| AN960816 | 2018-03-73 | 14 | United States |
| AN960816 | 2018-01-16 | 20 | SA |
| AN960816 | 2017-03-61 | 10 | us |
| AN960816 | 2017-01-04 | 132 | United States |
| AN960816 | 2016-11-334 | 6000 | us |
| AN960816 | 2016-06-180 | 20 | South Korea |
| AN960816 | 2016-02-41 | 12 | US |
| AN960-816 | 2015-05-138 | 18 | United States |
| AN960-816 | 2015-05-138 | 6 | United States |
| AN960-816 | 2015-05-138 | 6 | United States |
| AN960-816 | 2015-05-138 | 18 | United States |
| AN960-816 | 2015-05-138 | 6 | United States |
| AN960-816 | 2015-05-138 | 6 | United States |
| AN960816 | 2015-03-79 | 56 | Singapore |
| AN960816 | 2014-08-223 | 170 | US |
| AN960816 | 2014-05-125 | 100 | US |
| AN960816 | 2014-03-78 | 28 | United States |
| AN960-816 | 2014-03-71 | 92 | United States |
| AN960816 | 2014-03-70 | 8000 | US |
| AN960816 | 2014-03-70 | 11000 | US |
| AN960816 | 2014-03-70 | 23000 | US |
| AN960816 | 2014-03-70 | 45000 | US |
| AN960816 | 2013-08-241 | 28 | United States |
| AN960816 | 2013-08-241 | 100 | Ukraine |
| AN960816 | 2013-08-232 | 18 | US |
| AN960816 | 2013-08-232 | 34 | US |
| AN960816 | 2013-07-193 | 16 | United States |
| AN960816 | 2013-06-163 | 200 | Turkey |
| AN960816 | 2013-05-123 | 200 | United States |
| AN960816 | 2013-04-120 | 16 | United States |
| AN960-816 | 2013-04-115 | 20 | United States |
| AN960816 | 2013-04-106 | 25 | United States |
| AN960-816 | 2013-02-38 | 352 | United States |
| AN960-816 | 2013-01-30 | 35200 | United States |
| AN960-816 | 2012-11-310 | 50 | |
| AN960816 | 2012-08-216 | 150 | US |
| AN960816 | 2012-05-131 | 25 | US |
| AN960816 | 2012-05-130 | 2 | US |
| AN960816 | 2012-03-83 | 1 | US |
| AN960-816 | 2012-02-40 | 120 | TR |
| AN960816 | 2011-12-347 | 6 | United States |
| AN960816 | 2011-11-325 | 176 | United States |
| AN960816 | 2011-09-264 | 18 | Malaysia |
| AN960816 | 2011-07-189 | 24 | India |
| AN960816 | 2010-05-139 | 13 | United States |
| 5310-01-040-7177 | 2010-04-111 | 4 | US |
| AN960816 | 2009-11-321 | 110 | US |
| AN960816 | 2009-04-93 | 500 | Italy |
| AN960816 | 2008-10-288 | 6 | HU |
| AN960816 | 2008-07-210 | 80 | US |
| AN960816 | 2006-05-144 | 2 | MX |
Cross Reference | NSN 5310-01-040-7177
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| AN960-816 | 81352 | AIR FORCE-NAVY AERONAUTICAL SPECIFICATIONS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5310-01-040-7177
Technical Data | NSN 5310-01-040-7177
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | QQ-S-698 FED STD SINGLE MATERIAL RESPONSE OVERALL |
| SURFACE TREATMENT | CADMIUM OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-416,TY2,CL3 FED STD SINGLE TREATMENT RESPONSE OVERALL |

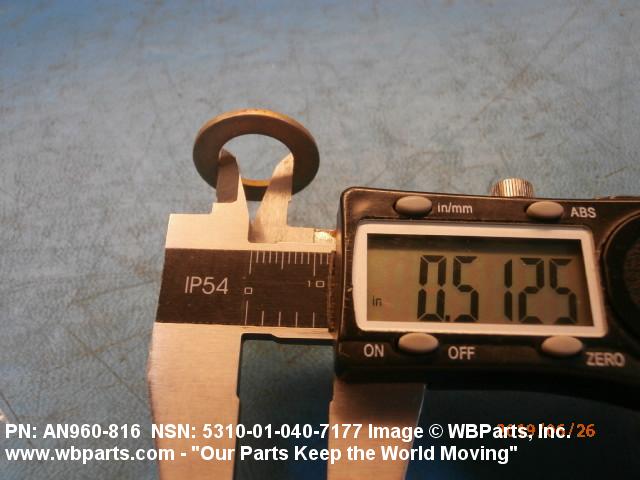

| HOLE DIAMETER | 0.515 INCHES NOMINAL |
| PERIPHERAL SHAPE STYLE | 1 ROUND |

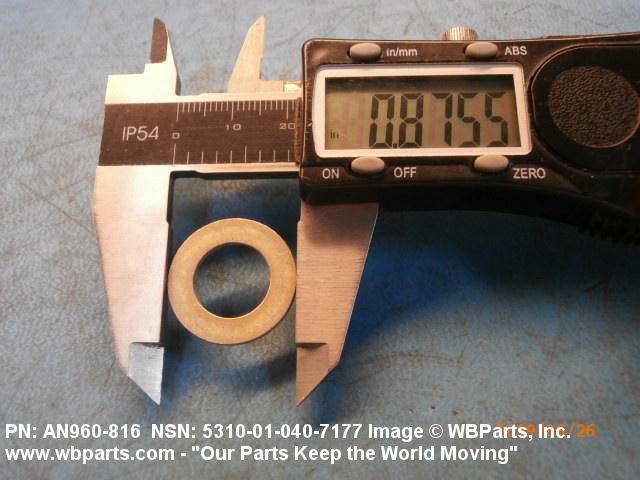

| OVERALL DIAMETER | 0.870 INCHES MINIMUM AND 0.895 INCHES MAXIMUM |
| CENTER HOLE SHAPE STYLE | 1 ROUND |
| CROSS-SECTIONAL SHAPE STYLE | 1 RECTANGULAR |

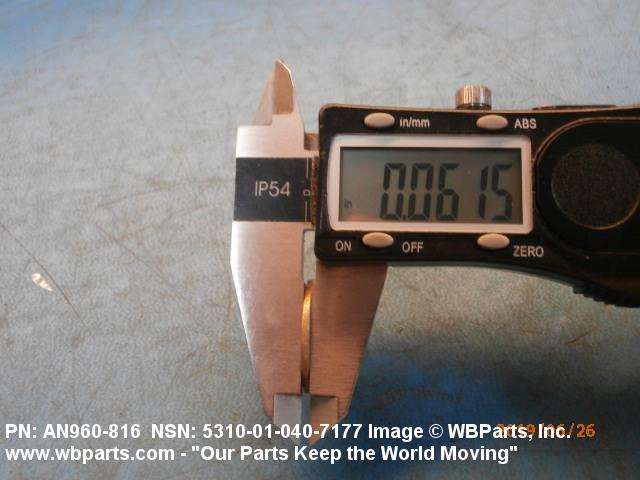

| THICKNESS | 0.063 INCHES NOMINAL |
| DEPARTURE FROM CITED DOCUMENT | MATERIAL WILL BE IN ACCORDANCE WITH SHIPS PARTS CONTROL CENTER ACTIVITY HX QUALITY CONTROL,MANUFACTURING AND TESTING SPECIFICATIONS |
| CRITICALITY CODE JUSTIFICATION | ZZZW |
| MANUFACTURERS CODE | 81352 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | AN960-816 |
Restrictions/Controls & Freight Information | NSN 5310-01-040-7177
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | Y | The item does not have a nuclear hardened feature but does have other critical feature(s) such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
Management | NSN 5310-01-040-7177
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 1H | Consumable material assigned to NAVICP MECH for inventory management Naval Inventory Control Point, Mechanicsburg |
| Special Material ID | X3 | Nuclear Reactor Plant (NRP) material under the technical cognizance of the NAVSEA 08 special designed, manufactured and/or treated for use in a NRP or controls thereof. This category includes all other NRP items which are not coded X2 or X4. |
| Issue Repair, or Requisition | BL | Submit/refer requisitions to NAVICP MECH. Centralized control for issue of repair parts for specific programs/equipments. |
| Source of Supply | N35 | Naval Inventory Control Point Mechanicsburg, PA 17055-0788 |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Reparability | M | Medium Demand Velocity Items (consumables) |
| Acquisition Advice Codes | V | TERMINAL ITEM # Identifies items in stock, but future procurement is not authorized. Requisitions may continue to be submitted until stocks are exhausted. Preferred item National Stock Number is normally provided by application of the phrase: When Exhausted Use (NSN). Requisitions will be submitted in accordance with IMM/Service requisitioning procedures as applicable. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
