NSN 5310-01-041-9170 MS24400D4, AN9244D, AN924-4D
Product Details | HEXAGON PLAIN NUT
5310-01-041-9170 A nut, flat on top and bottom having 6 flat sides. For items which have internal tapered or straight (parallel) pipe threads, specific electrical conduit size designation, and which when installed, provide a method of tightening to lock the connection, see LOCKNUT, ELECTRICAL CONDUIT. See also LOCKNUT, TUBE FITTING. For items having a thickness (or height) exceeding two times the width across the flats, use POST, ELECTRICAL-MECHANICAL EQUIPMENT. (When height or thickness and/or width across the flats is designated as a tolerance dimension, the maximum dimension will be used to determine compliance.
Part Alternates: MS24400D4, AN9244D, AN924-4D, AS5178, AS5178D04, 21C171122, 21C1711-22, 3110292, 477 618, 477618, 7443137003, 946.29.94.020, 9462994020, 5310-01-041-9170, 01-041-9170, 5310010419170, 010419170
Hardware and Abrasives | Nuts and Washers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 04 JUN 1977 | 01-041-9170 | 01857 ( NUT, PLAIN, HEXAGON ) |

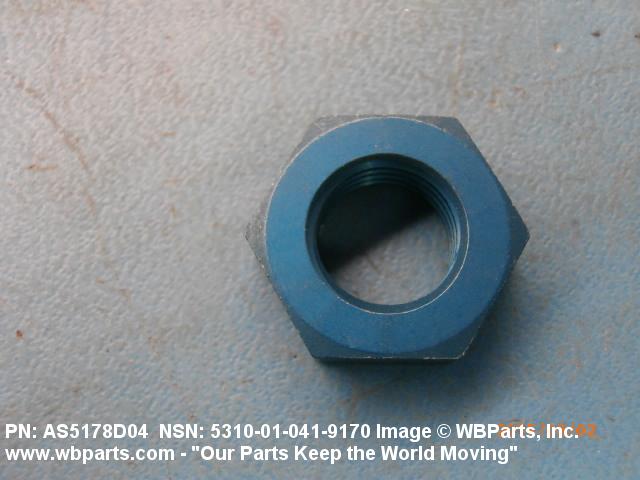

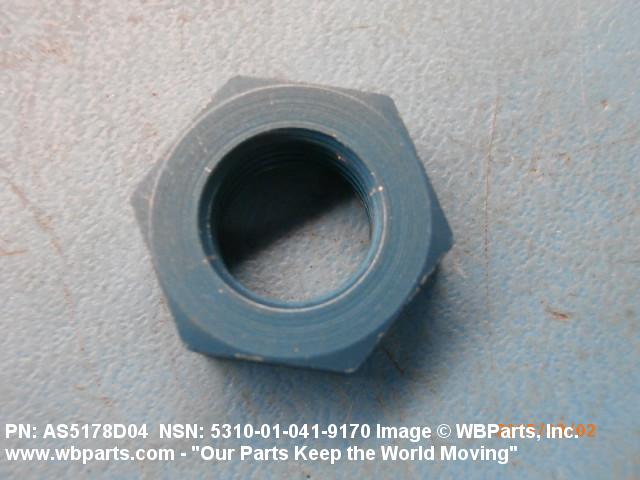

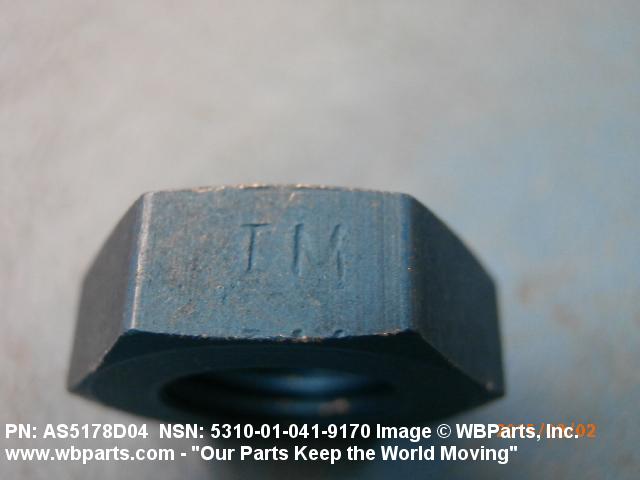

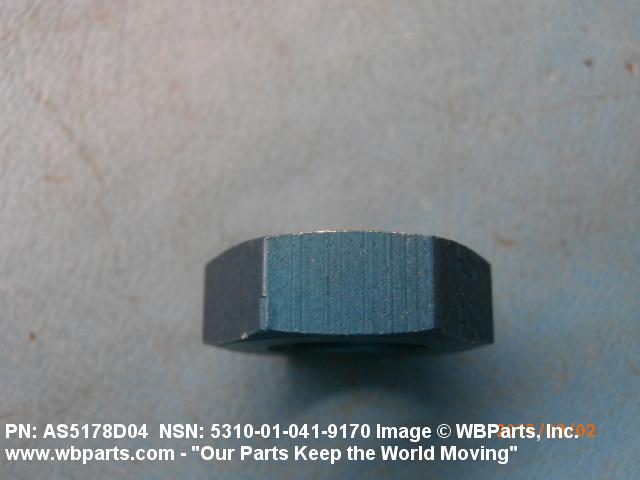

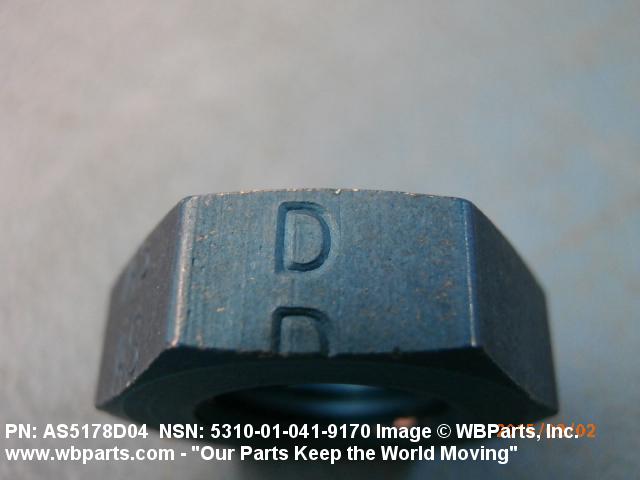

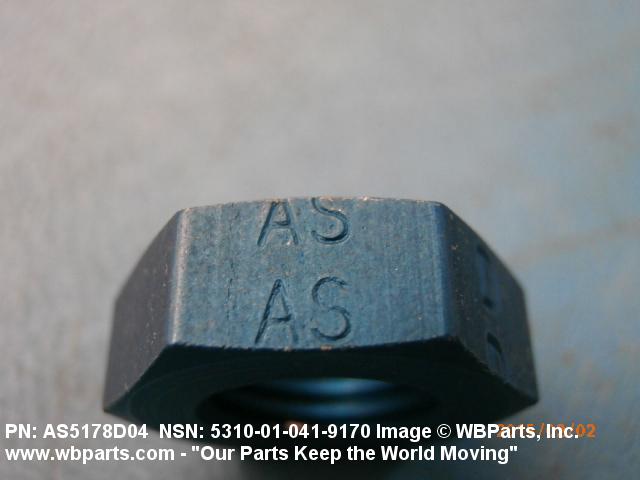

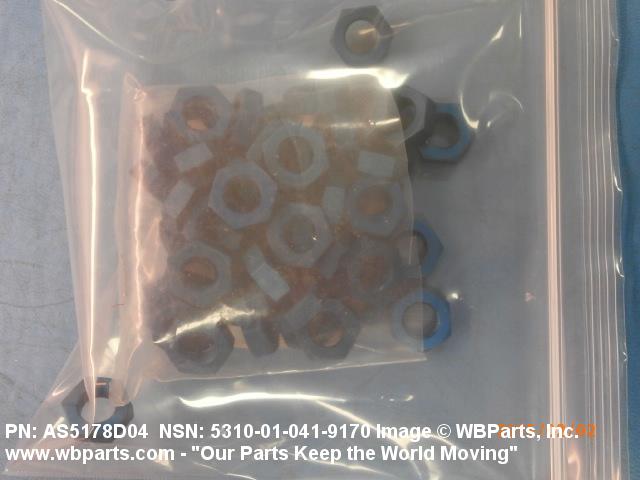

Drawings & Photos | NSN 5310-01-041-9170
Demand History | NSN 5310-01-041-9170
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| AN9244D | 2025-10-304 | 50 | United States |
| 5310-01-041-9170 | 2025-10-293 | 2246 | DIBBS |
| 5310-01-041-9170 | 2025-06-166 | 483 | DIBBS |
| AN9244D | 2025-04-120 | 45 | United States |
| 5310-01-041-9170 | 2025-04-111 | 628 | DIBBS |
| AS5178D04 | 2025-03-69 | 25 | Canada |
| AN9244D | 2024-11-310 | 50 | United States |
| AN9244D | 2024-07-194 | 50 | United States |
| AN9244D | 2024-07-183 | 12 | ES |
| AN9244D | 2024-04-110 | 50 | United States |
| AN9244D | 2024-04-110 | 50 | United States |
| AN9244D | 2023-12-352 | 30 | United States |
| AN9244D | 2023-08-235 | 10 | US |
| AN9244D | 2023-08-222 | 100 | United States |
| AN9244D | 2023-02-48 | 25 | US |
| AN9244D | 2022-04-108 | 40 | United States |
| AN9244D | 2021-02-32 | 10 | BD |
| AN9244D | 2020-05-147 | 8 | US |
| AS5178D04 | 2019-06-170 | 2 | United States |
| AS5178D04 | 2019-02-42 | 20 | Lebanon |
| AN9244D | 2019-02-37 | 50 | United States |
| 5310-01-041-9170 | 2018-08-225 | 7601 | DIBBS |
| 5310-01-041-9170 | 2018-06-154 | 7429 | DIBBS |
| 5310-01-041-9170 | 2018-01-01 | 12959 | DIBBS |
| AS5178D04 | 2017-11-332 | 25 | US |
| AN924-4D | 2017-10-297 | 1 | |
| 5310-01-041-9170 | 2017-09-247 | 4532 | DIBBS |
| 5310-01-041-9170 | 2017-08-233 | 6200 | US |
| 5310-01-041-9170 | 2017-08-227 | 6159 | DIBBS |
| 5310-01-041-9170 | 2017-07-183 | 5915 | DIBBS |
| AN9244D | 2017-03-79 | 10 | United States |
| AN9244D | 2016-08-237 | 40 | United States |
| AN9244D | 2016-06-168 | 4 | China |
| AN9244D | 2015-08-222 | 10 | Egypt |
| 5310-01-041-9170 | 2015-06-161 | 4276 | DIBBS |
| AN924-4D | 2015-03-85 | 1 | US |
| AN924-4D | 2015-03-69 | 500 | US |
| AN9244D | 2015-01-27 | 2 | Canada |
| AS5178D04 | 2014-12-357 | 42 | Australia |
| AS5178D04 | 2014-08-232 | 42 | Australia |
| AS5178D04 | 2014-08-232 | 42 | United States |
| AS5178D04 | 2014-08-232 | 42 | United States |
| AS5178D04 | 2014-08-227 | 42 | Australia |
| AN924-4D | 2012-11-310 | 50 | |
| AS5178D04 | 2012-08-241 | 10 | US |
| AN924-4D | 2011-08-214 | 5 | United States |
| AN9244D | 2011-06-179 | 2 | US |
| 5310-01-041-9170 | 2011-06-175 | 2 | US |
| AN9244D | 2011-04-95 | 1 | US |
| AN9244D | 2011-03-68 | 200 | US |
| AN9244D | 2011-03-68 | 500 | US |
| 5310-01-041-9170 | 2009-09-252 | 10 | US |
| AS5178D04 | 2009-08-236 | 2 | Italy |
| AS5178 | 2009-03-90 | 200 | Canada |
| AN9244D | 2007-10-302 | 100 | US |
Cross Reference | NSN 5310-01-041-9170
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 21C1711-22 | 07482 | GENERAL ELECTRIC COMPANY DBA GE |
| 3110292 | 001JK | EMBRAER S/A |
| 3110292 | S4956 | EMBRAER EMPRESA BRASILEIRA DE AERONAUTICA SA |
| 477 618 | 77294 | PIPER AIRCRAFT INC. |
| 7443137003 | 89944 | KOLLSMAN, INC. |
| 946.29.94.020 | S4080 | PILATUS AIRCRAFT LTD |
| AN924-4D | 88044 | AERONAUTICAL STANDARDS GROUP DEPT OF NAVY AND AIR FORCE |
| AN924-4D | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
| AS5178 | 81343 | SOCIETY OF AUTOMOTIVE ENGINEERS INC |
| AS5178D04 | 81343 | SOCIETY OF AUTOMOTIVE ENGINEERS INC |
| MS24400D4 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5310-01-041-9170
Related Products | NSN 5310-01-041-9170
Technical Data | NSN 5310-01-041-9170
| Characteristic | Specifications |
|---|---|
| THREAD SERIES | UNF |

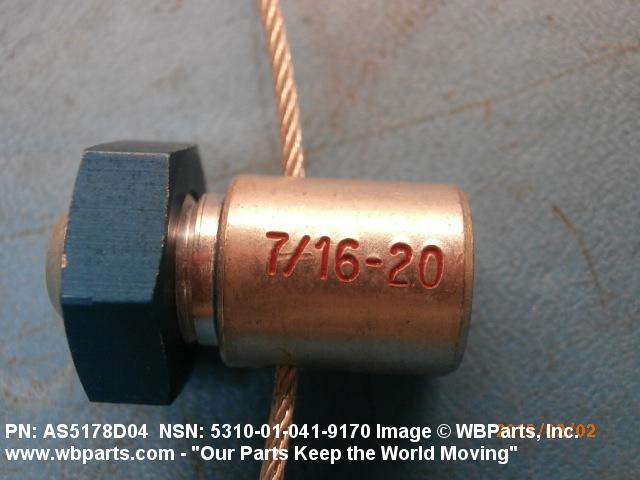

| NOMINAL THREAD SIZE | 0.438 INCHES |
| THREAD QUANTITY PER INCH | 20 |
| THREAD CLASS | 3B |
| THREAD DIRECTION | RIGHT-HAND |
| MATERIAL | ALUMINUM ALLOY 2014 OR ALUMINUM ALLOY 2024 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | QQ-A-225/4 FED SPEC 1ST MATERIAL RESPONSE OR QQ-A-225/6 FED SPEC 2ND MATERIAL RESPONSE OVERALL |
| SURFACE TREATMENT | ANODIZE OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | MIL-A-8625,TYPE 2 MIL SPEC SINGLE TREATMENT RESPONSE OVERALL |
| HARDNESS RATING | NOT RATED |
| NUT STYLE | A12 HEXAGON |

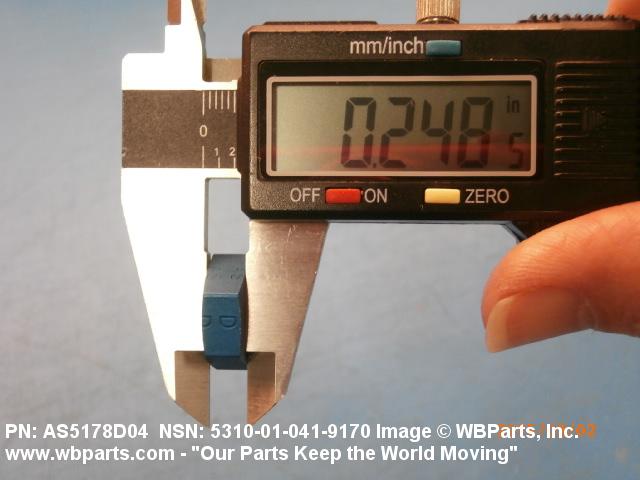

| NUT HEIGHT | 0.250 INCHES NOMINAL |

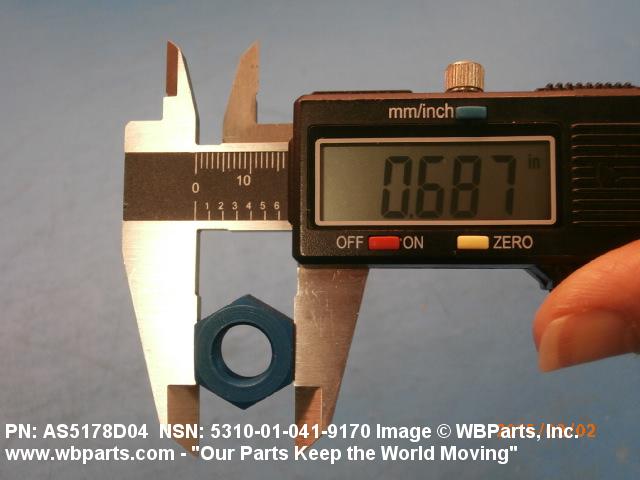

| WIDTH ACROSS FLATS | 0.684 INCHES MINIMUM AND 0.691 INCHES MAXIMUM |
| BEARING SURFACE TYPE | CHAMFERED |
| COUNTERSINK ANGLE | 90.0 DEGREES NOMINAL NUT |
| TEMP RATING | NOT RATED |
Restrictions/Controls & Freight Information | NSN 5310-01-041-9170
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | Y | 180 months |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 194120 | WASHERS/GASKETS/PCKG DVCS NOI |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 596 | unknown |
| Originating Activity Code | CT | U.S. Army Aviation and Missile Command (AIR) Redstone Arsenal, AL 35898-5230 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5310-01-041-9170
Army| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | T | Industrial Supplies (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | Y | 180 months |
| Purchasing | QTY UOM |
1 EA : Each |
