NSN 5310-01-053-8942 ZSP1010011, ZSP10-1001-1, 1153961
Product Details | CLINCH PLAIN NUT
5310-01-053-8942 A nut having a sleeve portion on its under side, which can be crimped or clinched to hold the item in place when inserted in a hole.
Part Alternates: ZSP1010011, ZSP10-1001-1, 1153961, 115396-1, 5310-01-053-8942, 01-053-8942, 5310010538942, 010538942
Hardware and Abrasives | Nuts and Washers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 13 JAN 1978 | 01-053-8942 | 01860 ( NUT, PLAIN, CLINCH ) |

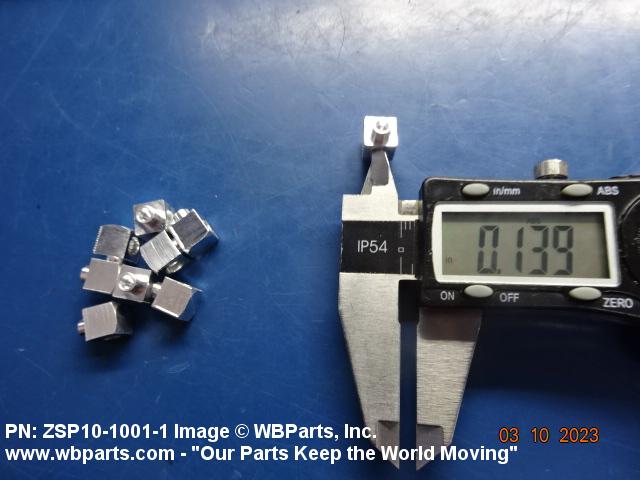

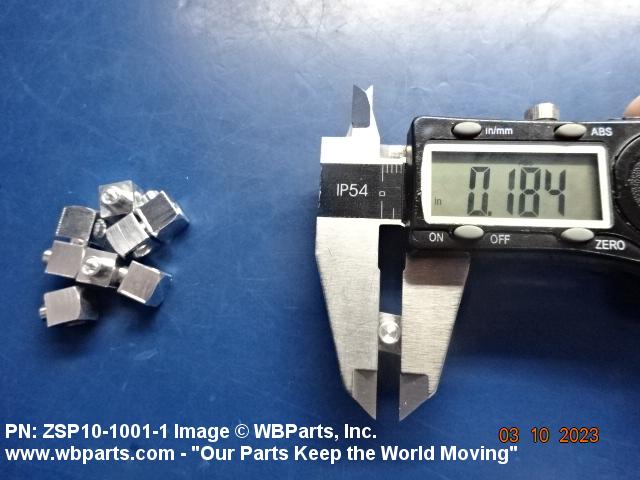

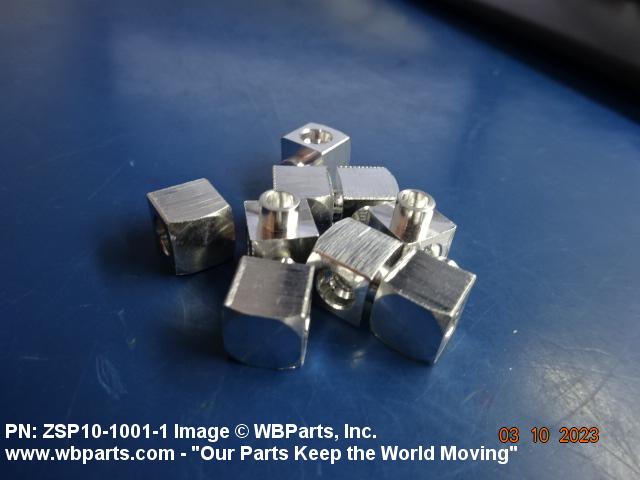

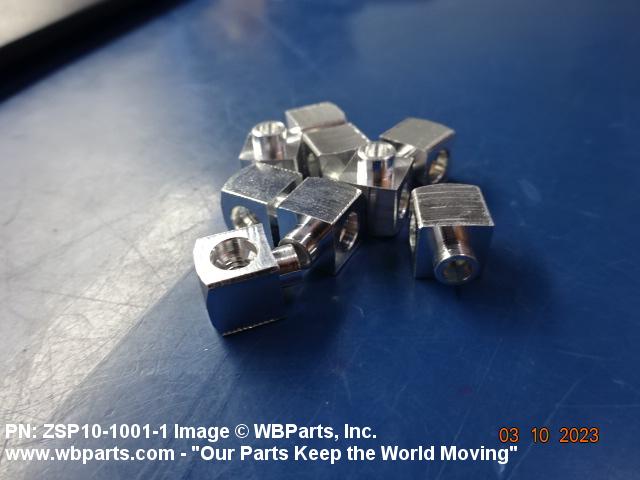

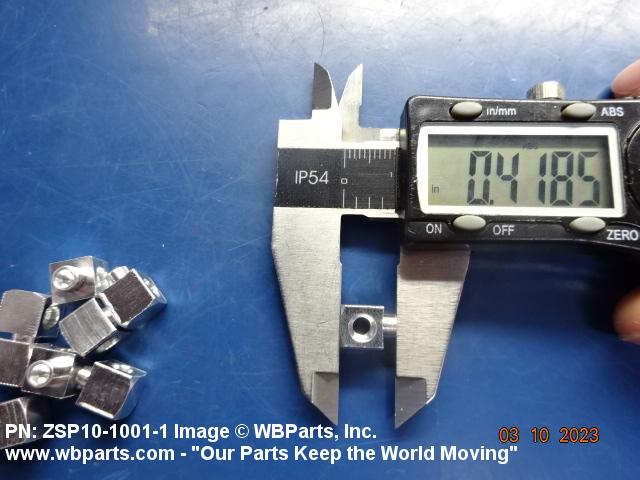

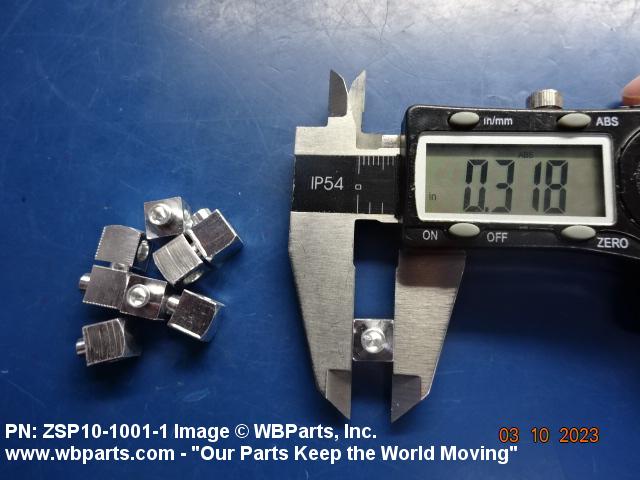

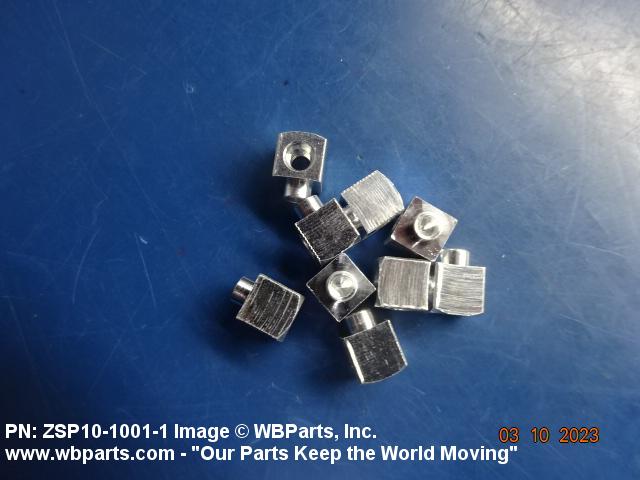

Drawings & Photos | NSN 5310-01-053-8942
Demand History | NSN 5310-01-053-8942
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5310-01-053-8942 | 2025-06-168 | 20 | Denmark |
| ZSP1010011 | 2023-01-03 | 25 | United States |
| ZSP10-1001-1 | 2019-03-80 | 86 | DIBBS |
| 010538942 | 2014-04-93 | 24 | United States |
| ZSP1010011 | 2010-07-197 | 60 | US |
| 5310-01-053-8942 | 2008-03-78 | 1000 | United States |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5310-01-053-8942
Related Products | NSN 5310-01-053-8942
Technical Data | NSN 5310-01-053-8942
| Characteristic | Specifications |
|---|---|
| THREAD SERIES | UNC |
| NOMINAL THREAD SIZE | 0.164 INCHES |
| THREAD QUANTITY PER INCH | 32 |
| THREAD CLASS | 2B |
| THREAD DIRECTION | RIGHT-HAND |
| MATERIAL | ALUMINUM ALLOY 2017 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | QQ-A-225/5,T4 FED SPEC SINGLE MATERIAL RESPONSE OVERALL |
| HARDNESS RATING | NOT RATED |
| PILOT DIAMETER | 0.183 INCHES MINIMUM AND 0.185 INCHES MAXIMUM |
| PILOT LENGTH | 0.088 INCHES MINIMUM AND 0.098 INCHES MAXIMUM |
| COUNTERSINK ANGLE | 110.0 DEGREES NOMINAL NUT |
| TEMP RATING | NOT RATED |
| MANUFACTURERS CODE | 98376 |
| DESIGN CONTROL REFERENCE | ZSP10-1001-1 |
Restrictions/Controls & Freight Information | NSN 5310-01-053-8942
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 013540 | ALUM NUTS |
| Less than car load rating | ||
| Less than truck load rating | Q | 70.0 |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | KZ | Defense Supply Center Philadelphia Philadelphia, PA 19101 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5310-01-053-8942
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Special Material Content | 9 | Non-Hazardous or Non-Sensitive Item, does not require hazardous or special handling, packaging or precautions |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
