NSN 5310-01-063-8515 62780-B RH, 62780BRH, 62780BX

Product Details | HEXAGON SINGLE BALL SEAT PLAIN NUT

5310-01-063-8515 A nut having 1 convex, spherical bearing surface and 6 flat sides. Items may have a removable collar. See also NUT (1), PLAIN, CONE SEAT, HEXAGON.

Part Alternates: 62780-B RH, 62780BRH, 62780BX, 5310-01-063-8515, 01-063-8515, 5310010638515, 010638515

Hardware and Abrasives | Nuts and Washers

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
53	13 AUG 1978	01-063-8515	04892 ( NUT, PLAIN, SINGLE BALL SEAT, HEXAGON )

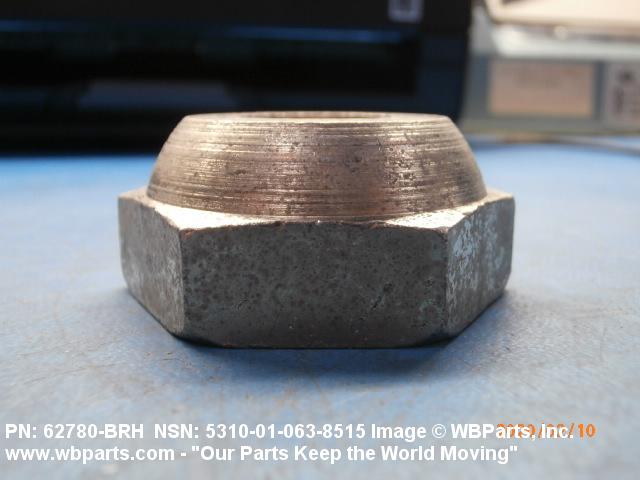

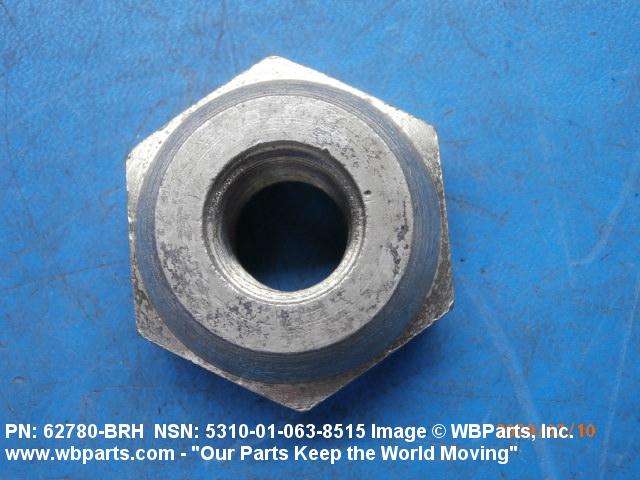

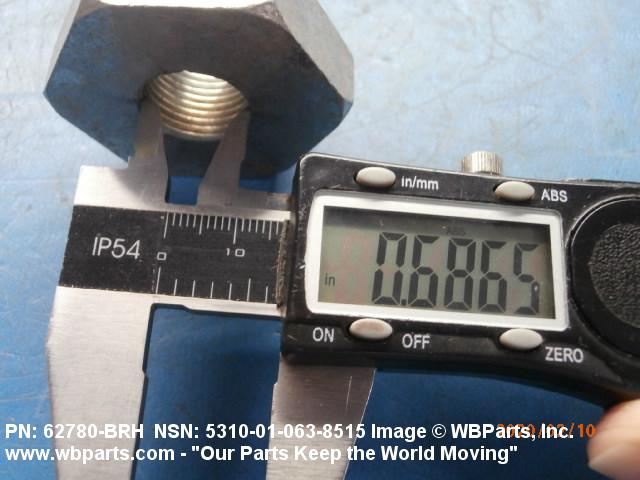

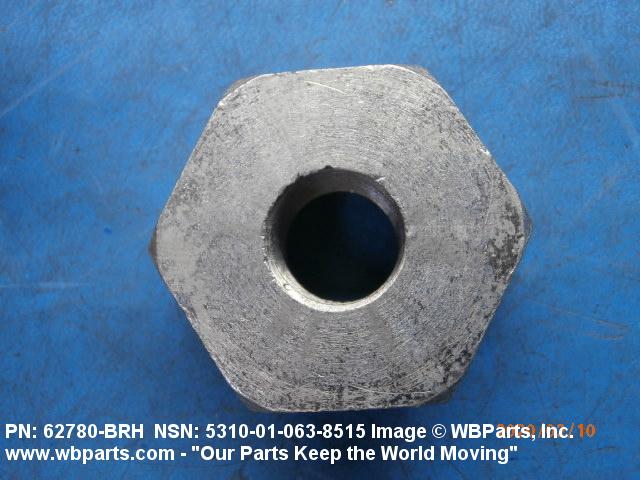

Drawings & Photos | NSN 5310-01-063-8515

Part Number	Request Date	QTY	Origin
62780BX	2024-02-57	329	DIBBS
62780BX	2024-02-46	329	DIBBS
010638515	2023-11-321	1	United States
62780BX	2023-10-288	654	DIBBS
62780BX	2023-06-179	3879	DIBBS
62780BX	2023-05-137	1951	DIBBS
62780BX	2023-05-122	1951	DIBBS
62780BX	2022-06-166	4179	DIBBS
62780BX	2021-01-03	4418	DIBBS
5310-01-063-8515	2020-01-28	40	United States
62780BX	2019-11-325	3593	DIBBS
62780BX	2019-06-178	2743	DIBBS
5310-01-063-8515	2019-01-03	3000	US
5310-01-063-8515	2018-12-354	2987	DIBBS
5310-01-063-8515	2018-12-338	1981	DIBBS
5310-01-063-8515	2018-11-332	2987	DIBBS
5310-01-063-8515	2018-11-322	1981	DIBBS
5310-01-063-8515	2018-07-186	2987	DIBBS
5310-01-063-8515	2018-06-177	2987	DIBBS
5310-01-063-8515	2017-11-305	2987	DIBBS
5310-01-063-8515	2017-09-270	2987	DIBBS
5310-01-063-8515	2017-09-257	1	DIBBS-RFPs
5310-01-063-8515	2017-08-243	2515	DIBBS
5310-01-063-8515	2017-06-180	1910	DIBBS
5310-01-063-8515	2016-10-285	2119	DIBBS
5310-01-063-8515	2016-09-257	1715	DIBBS
5310-01-063-8515	2016-03-90	1715	DIBBS
5310-01-063-8515	2015-12-357	243	DIBBS
5310-01-063-8515	2014-02-38	230	US
5310-01-063-8515	2012-10-292	2666	DIBBS

Cross Reference | NSN 5310-01-063-8515

Part Number	Cage Code	Manufacturer
62780-B RH	45152	OSHKOSH CORPORATION
62780BX	45152	OSHKOSH CORPORATION
62780BX	75Q65	OSHKOSH DEFENSE, LLC

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5310-01-063-8515

Compare

Related Products | NSN 5310-01-063-8515

5310-01-063-8516, 5310-01-063-8517, 5310-01-063-8518, 5310-01-063-8519, 5310-01-063-8520

Technical Data | NSN 5310-01-063-8515

Characteristic	Specifications
THREAD SERIES	UNF
NOMINAL THREAD SIZE	0.750 INCHES

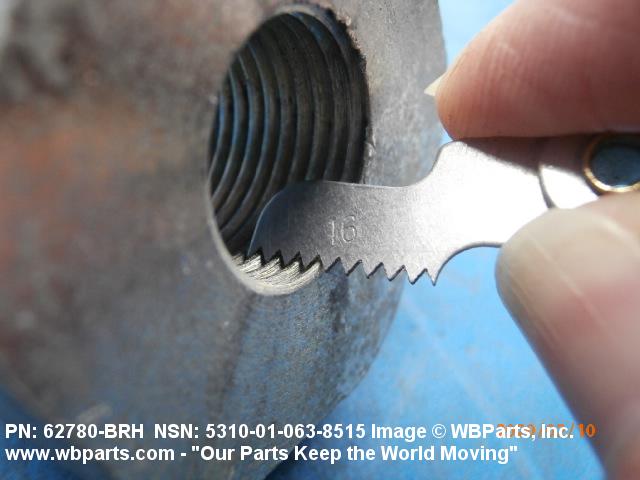

THREAD QUANTITY PER INCH	16
THREAD CLASS	3B
THREAD DIRECTION	RIGHT-HAND
MATERIAL	STEEL COMP 1137 OVERALL
SURFACE TREATMENT	CADMIUM OR ZINC OVERALL
HARDNESS RATING	35.0 ROCKWELL C MINIMUM AND 50.0 ROCKWELL C MAXIMUM
NUT STYLE	A8 SINGLE BALL SEAT, HEXAGON
BALL SEAT RADIUS	0.875 INCHES NOMINAL

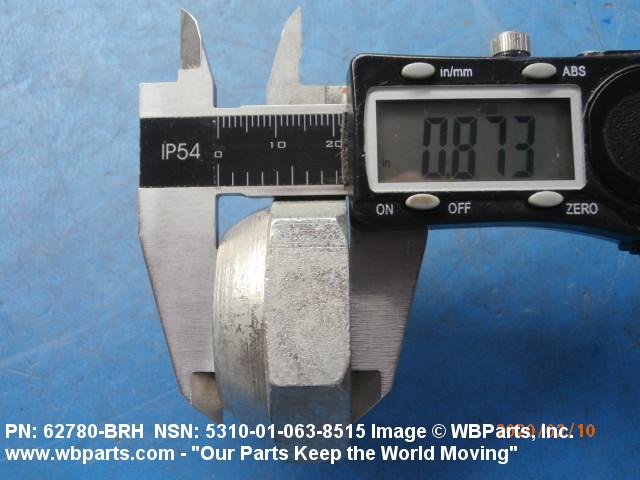

NUT HEIGHT	0.880 INCHES NOMINAL

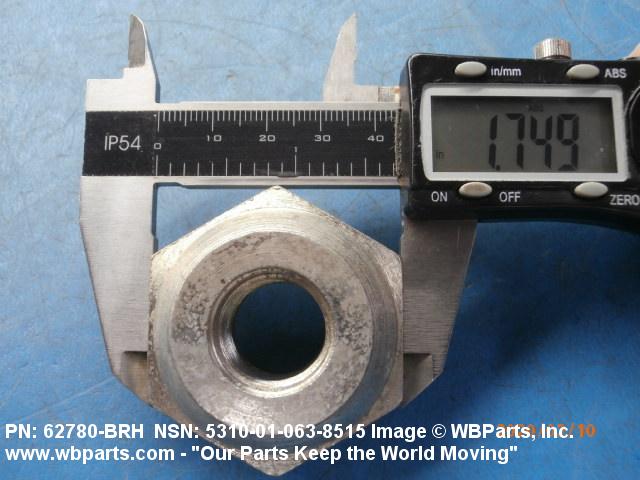

WIDTH ACROSS FLATS	1.750 INCHES NOMINAL
TEMP RATING	NOT RATED
FEATURES PROVIDED	CASEHARDENED
MANUFACTURERS CODE	45152
DESIGN CONTROL REFERENCE	62780-B RH

Restrictions/Controls & Freight Information | NSN 5310-01-063-8515

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	N	There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	U	Precious metal type is unknown
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.

Category	Code	Description
No Freight Information
