NSN 5310-01-087-4850 NAS1169C10, 10122103 , 01-087-4850

Product Details | FINISHING WASHER

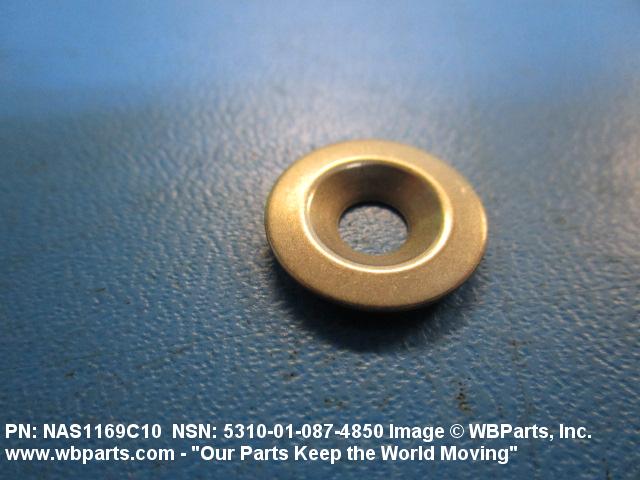

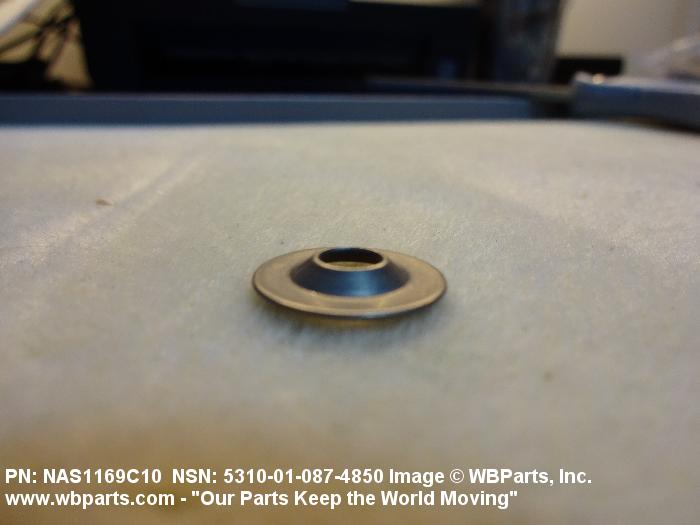

5310-01-087-4850 A washer or cone or disk shape with a centrally located hole, designed to accommodate a flat or oval head screw and provide additional bearing area on the material being fastened. It may or may not have a flush flange feature.

Part Alternates: NAS1169C10, 10122103 , 5310-01-087-4850, 01-087-4850, 5310010874850, 010874850

Hardware and Abrasives | Nuts and Washers

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
53	19 DEC 1979	01-087-4850	15932 ( WASHER, FINISHING )

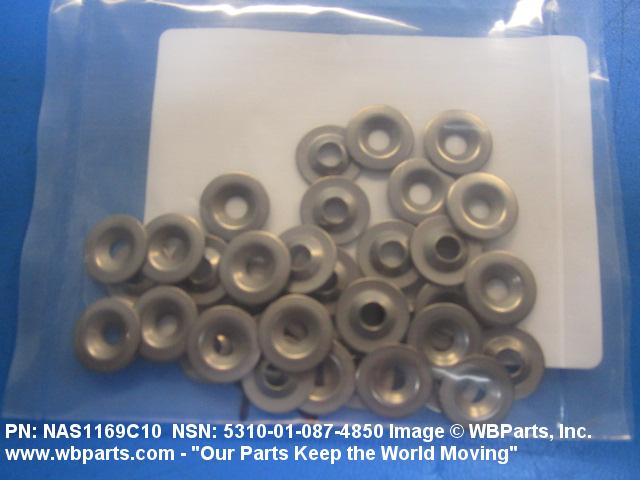

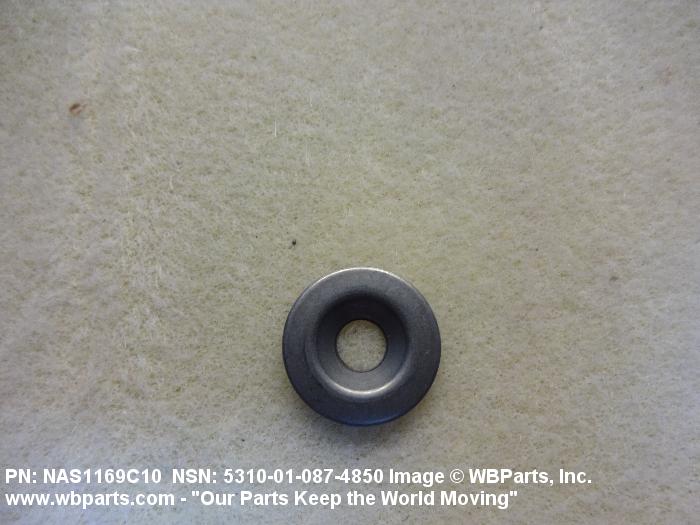

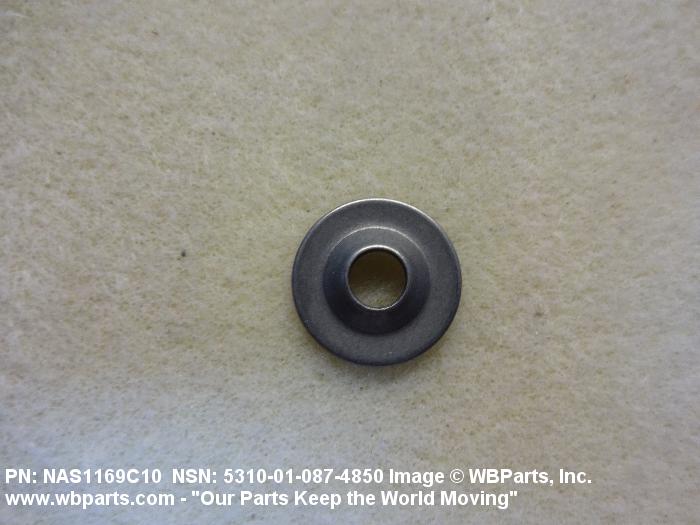

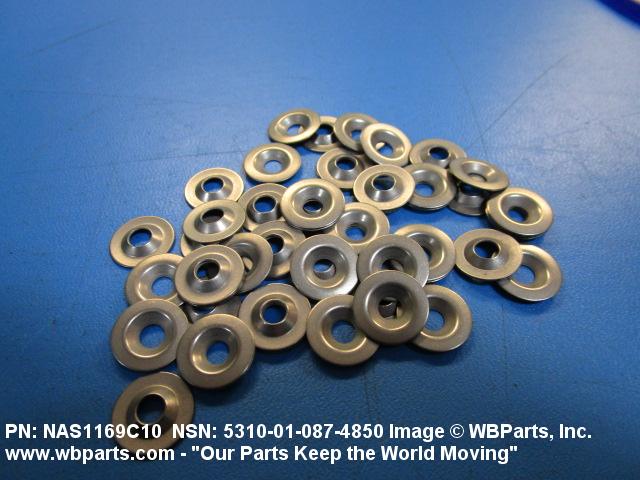

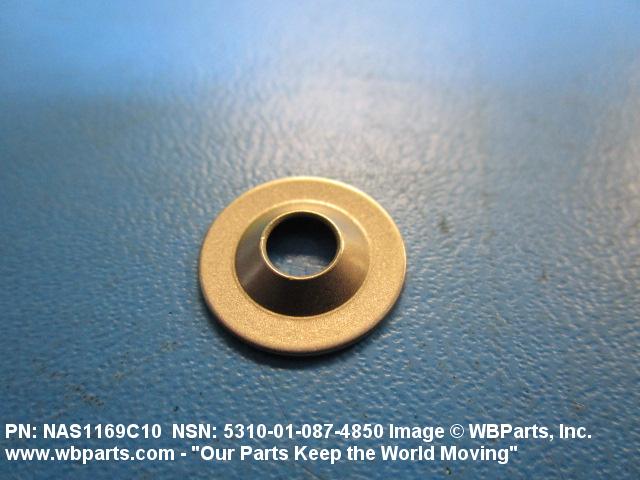

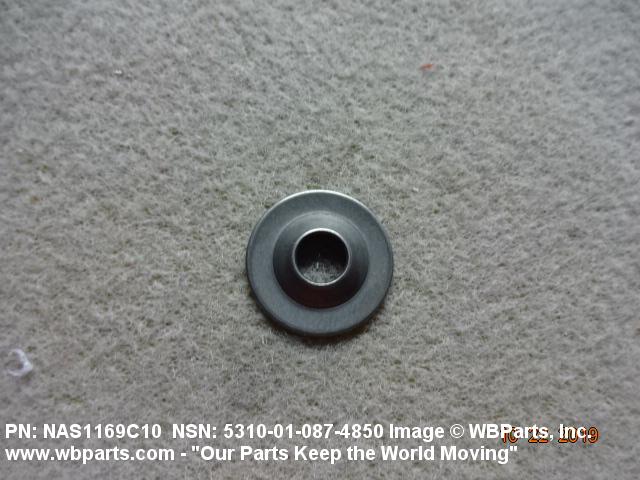

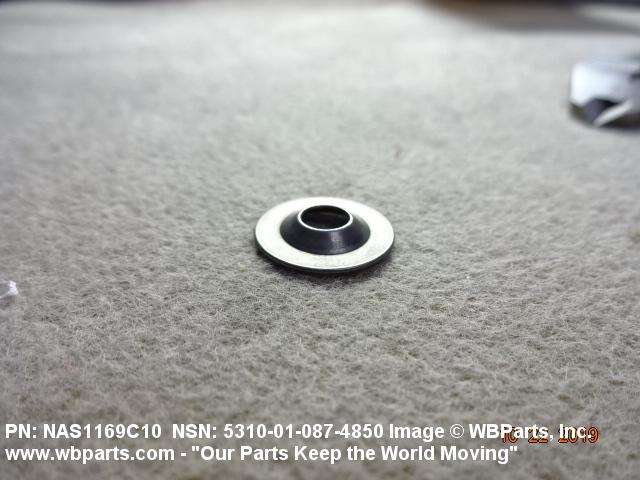

Drawings & Photos | NSN 5310-01-087-4850

Part Number	Request Date	QTY	Origin
5310-01-087-4850	2025-10-292	2277	DIBBS
5310-01-087-4850	2025-06-175	500	FR
5310-01-087-4850	2025-04-111	3606	DIBBS
5310-01-087-4850	2024-10-275	4212	DIBBS
5310-01-087-4850	2024-05-140	3349	DIBBS
5310-01-087-4850	2024-02-46	1004	DIBBS
5310-01-087-4850	2023-09-261	50	DE
5310-01-087-4850	2023-09-260	1510	DIBBS
5310-01-087-4850	2023-05-141	1016	DIBBS
5310-01-087-4850	2022-12-349	7694	DIBBS
5310-01-087-4850	2022-02-48	3572	DIBBS
NAS1169C10	2021-10-300	100	United States
5310-01-087-4850	2021-07-202	3572	DIBBS
NAS1169C10	2020-06-155	270	ES
5310-01-087-4850	2019-04-95	300	India
5310-01-087-4850	2019-03-85	300	Singapore
NAS1169C10	2018-06-159	500	Thailand
NAS1169C10	2017-04-103	12	United States
NAS1169C10	2016-11-328	50	United States
NAS1169C10	2016-11-320	100	United States
NAS1169C10	2016-03-64	4	United States
NAS1169C10	2013-01-24	181	US
NAS1169C10	2012-01-13	100	United States
5310-01-087-4850	2011-09-269	50	US
5310-01-087-4850	2011-09-255	18223	DIBBS
NAS1169C10	2011-06-157	250	Spain
NAS1169C10	2010-03-67	1	PT
5310-01-087-4850	2009-03-89	200	Canada
5310-01-087-4850	2008-11-316	11940	DIBBS
5310-01-087-4850	2008-08-242	12940	DIBBS
5310-01-087-4850	2008-02-38	40000	DIBBS
5310-01-087-4850	2008-01-07	428	US
NAS1169C10	2007-09-267	500	US

Cross Reference | NSN 5310-01-087-4850

Part Number	Cage Code	Manufacturer
NAS1169C10	04348	LAWRENCE ENGINEERING AND SUPPLY INC
NAS1169C10	25150	DUPLICATE PARTS CO
NAS1169C10	30889	ERIKS SOUTHWEST INC DBA MONTCLAIR ENTERPRISES
NAS1169C10	60360	AIRCRAFT MISSILE PARTS MFG CORP DBA AMPM
NAS1169C10	80205	NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES
NAS1169C10	86928	SEASTROM MANUFACTURING CO., INC. DBA SEASTROM MANUFACTURING

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5310-01-087-4850

Compare

Related Products | NSN 5310-01-087-4850

5310-01-087-4976, 5310-01-087-5756, 5310-01-087-5758, 5310-01-087-5759, 5310-01-087-6114

Technical Data | NSN 5310-01-087-4850

Characteristic	Specifications
MATERIAL DOCUMENT AND CLASSIFICATION	AMS5732 ASSN STD SINGLE MATERIAL RESPONSE OVERALL
SURFACE TREATMENT	PASSIVATE OVERALL
SURFACE TREATMENT DOCUMENT AND CLASSIFICATION	QQ-P-35 FED SPEC SINGLE TREATMENT RESPONSE OVERALL
STYLE DESIGNATOR	27 FINISHING

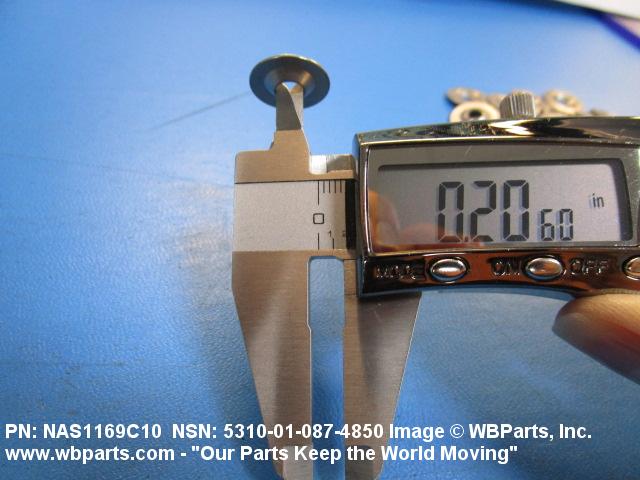

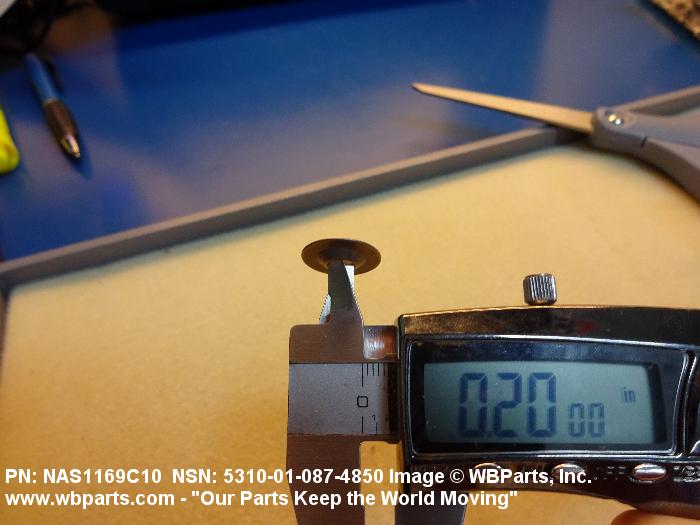

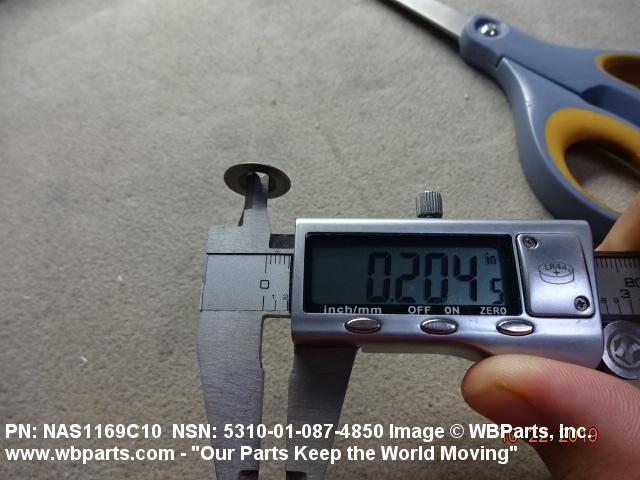

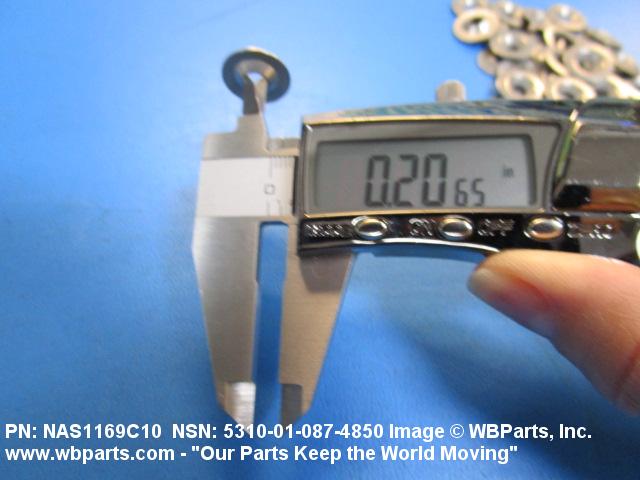

HOLE DIAMETER	0.192 INCHES MINIMUM AND 0.222 INCHES MAXIMUM

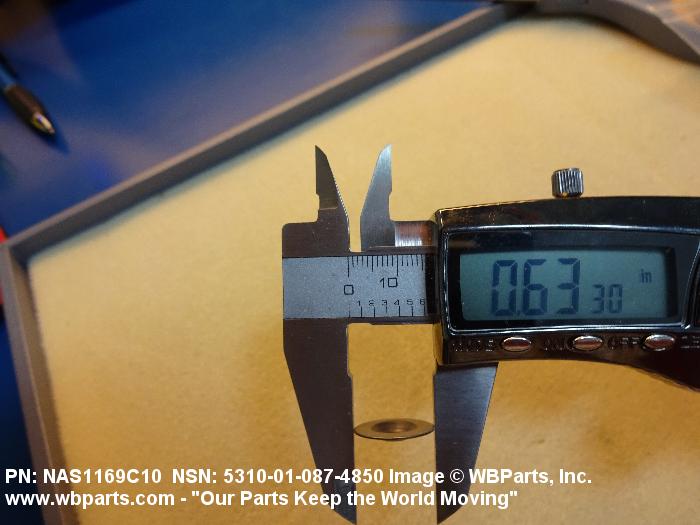

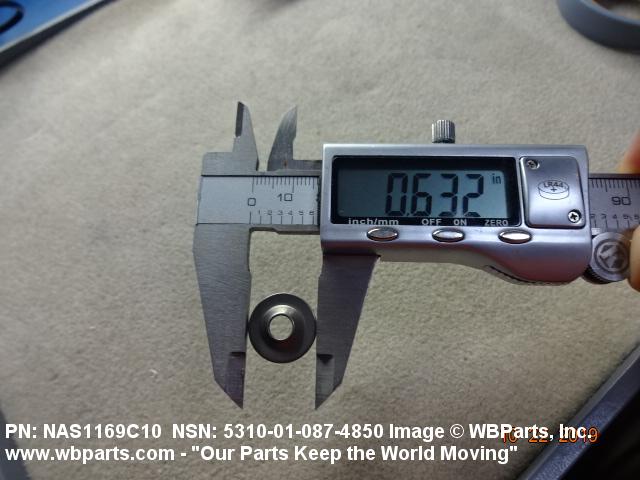

OUTSIDE DIAMETER	0.620 INCHES MINIMUM AND 0.645 INCHES MAXIMUM

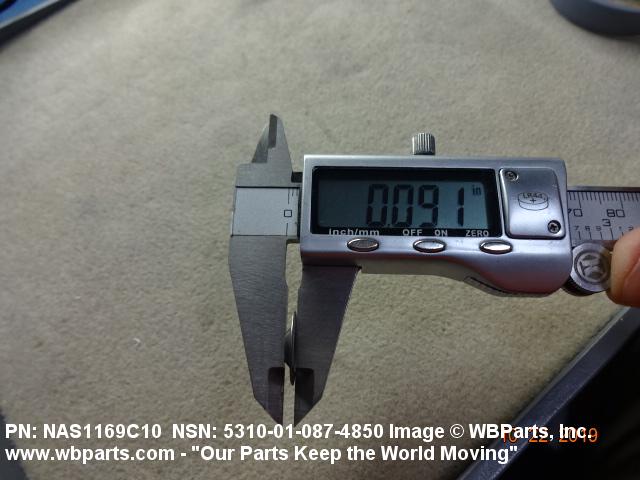

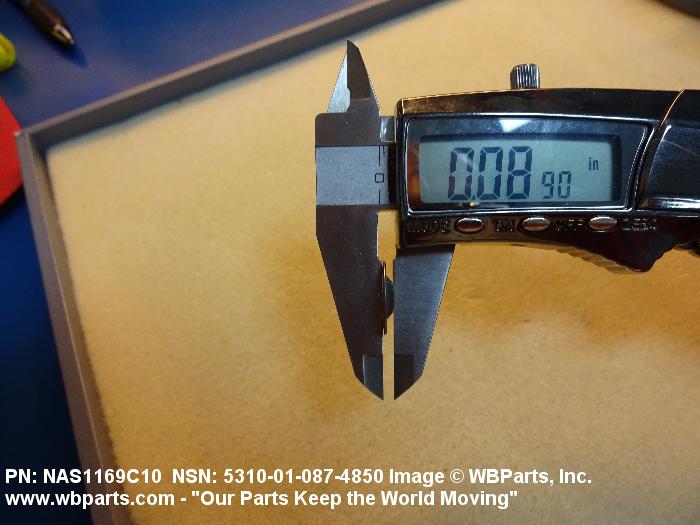

OVERALL HEIGHT	0.101 INCHES NOMINAL

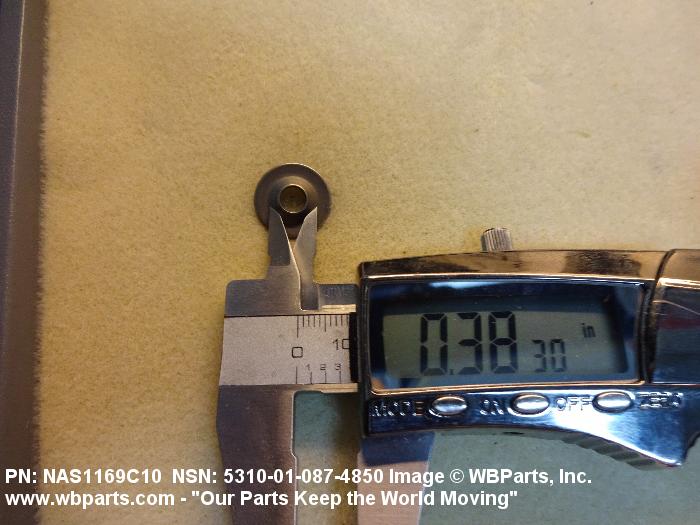

RECESS DIAMETER	0.385 INCHES MINIMUM AND 0.395 INCHES MAXIMUM

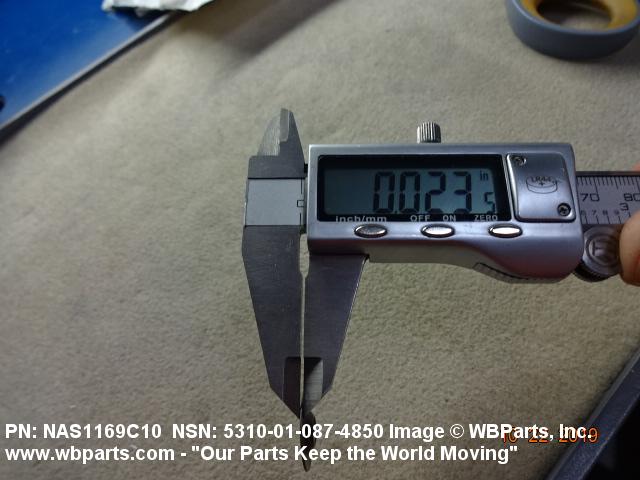

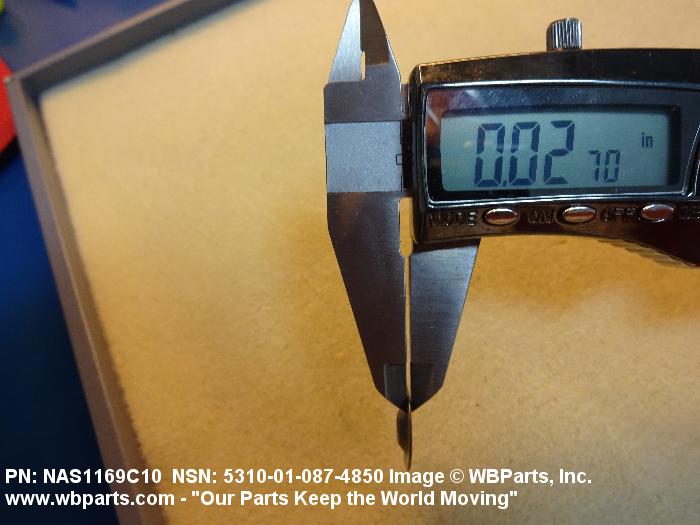

MATERIAL THICKNESS	0.022 INCHES MINIMUM AND 0.028 INCHES MAXIMUM
RECESS ANGLE	99.0 DEGREES MINIMUM AND 103.0 DEGREES MAXIMUM
SPECIFICATION/STANDARD DATA	80205-NAS1169 PROFESSIONAL/INDUSTRIAL ASSOCIATION STANDARD
III MINIMUM TENSILE STRENGTH	160000 POUNDS PER SQUARE INCH

Restrictions/Controls & Freight Information | NSN 5310-01-087-4850

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	N	There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	U	Precious metal type is unknown
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.

Category	Code	Description
NMF Description	194160	WASHER OR GASKETS, IRON OR STEEL,
Less than car load rating
Less than truck load rating	U	50.0
Water commodity Code	713	unknown
Originating Activity Code	KZ	Defense Supply Center Philadelphia Philadelphia, PA 19101
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	B	Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 5310-01-087-4850

Air Force
Navy

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Price Validation	N	The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM. The price has not been analyzed or reviewed for accuracy. ZOP or Standard price challenges are permissible, but must be supported with adequate justification. However, if coded for Local Purchase (LP) or Fabrication/Manufacture as indicated with an (LM) Acquisition Advice Code of ?L? or?F?,the case must be evaluated locally where purchased or fabricated.
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Materiel Management Aggregation Code	SX	SX:AF SICA RESIDUAL MMAC-OC-ALC
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	M EA : Each

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	M EA : Each
