NSN 5310-01-088-6097 SL61WTM60F, 01-088-6097, 010886097
Product Details | LOCK WASHER
5310-01-088-6097 A washer which is usually round with a centrally located hole. Its edges and two bearing surfaces are so designed that applied pressure brings into play the spring tension and/or frictional locking principle which materially resists any tendency toward turning. It may be made of one or two pieces
Part Alternates: SL61WTM60F, 5310-01-088-6097, 01-088-6097, 5310010886097, 010886097
Hardware and Abrasives | Nuts and Washers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 16 JAN 1980 | 01-088-6097 | 14218 ( WASHER, LOCK ) |
Drawings & Photos | NSN 5310-01-088-6097
Cross Reference | NSN 5310-01-088-6097
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| SL61WTM60F | 97393 | SHUR-LOK CORPORATION DBA SPS FASTENER DIVISION, A PCC |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5310-01-088-6097
Technical Data | NSN 5310-01-088-6097
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 4130 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | MIL-S-18729 MIL SPEC SINGLE MATERIAL RESPONSE OVERALL |
| SURFACE TREATMENT | OXIDE FILM OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | MIL-C-13924 CL 1,GR C MIL SPEC SINGLE TREATMENT RESPONSE OVERALL |

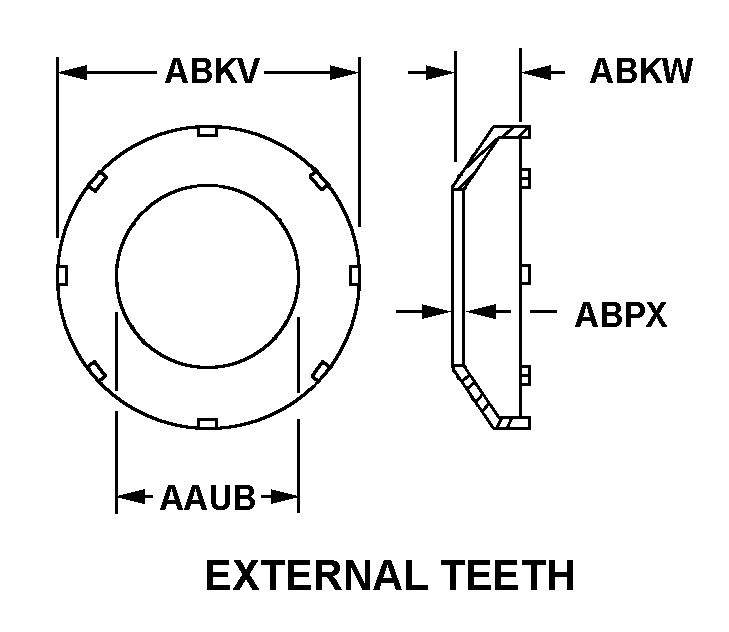

| STYLE DESIGNATOR | 116A EXTERNAL TEETH |
| HOLE DIAMETER | 2.338 MILLIMETERS NOMINAL |
| OUTSIDE DIAMETER | 2.760 MILLIMETERS NOMINAL |
| OVERALL HEIGHT | 0.175 MILLIMETERS NOMINAL |
Restrictions/Controls & Freight Information | NSN 5310-01-088-6097
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
