NSN 5310-01-104-7340 ST9M54950, ST9M549-50, 5115-50.015MD
Product Details | PUSH ON NUT
5310-01-104-7340 An item formed from sheet spring material into varying flat, concave, curved, or nutlike design. It has an aperture with an elliptical-shaped hole or suitable lugs or prongs designed to retain threaded or unthreaded stud like projecting memebers. When pushed on, it grips by imbedding into the material of the projecting memebers, and does not mate with a thread helix. See also RING, RETAINING.
Part Alternates: ST9M54950, ST9M549-50, 5115-50.015MD, 5115-50.015ZD, 511550015MD, 511550015ZD, 5310-01-104-7340, 01-104-7340, 5310011047340, 011047340
Hardware and Abrasives | Nuts and Washers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 10 DEC 1980 | 01-104-7340 | 05281 ( PUSH ON NUT ) |

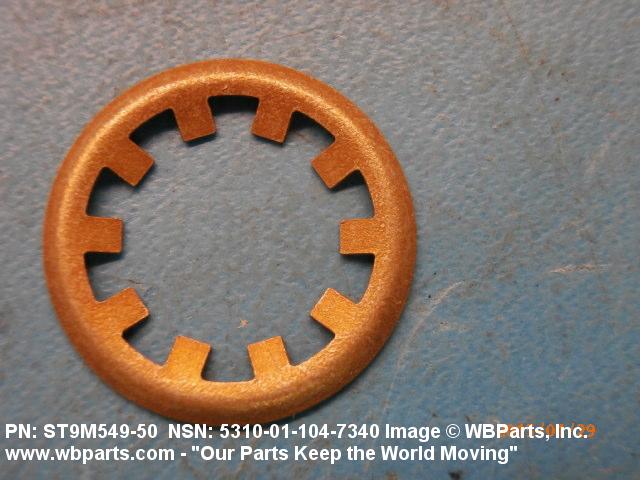

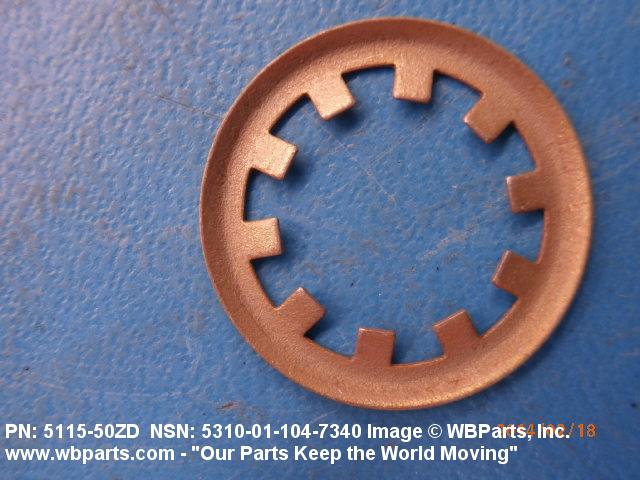

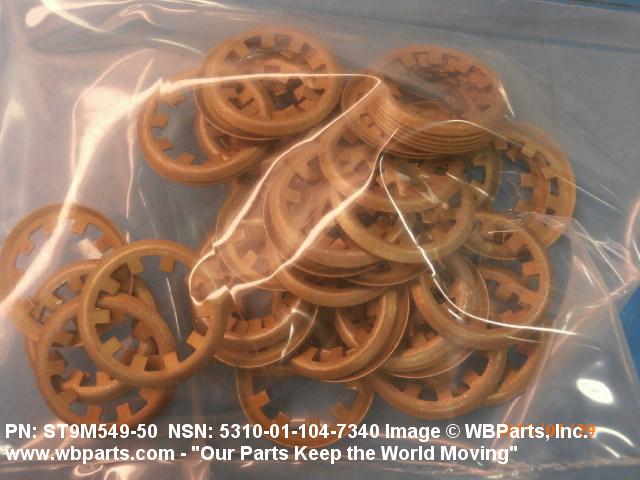

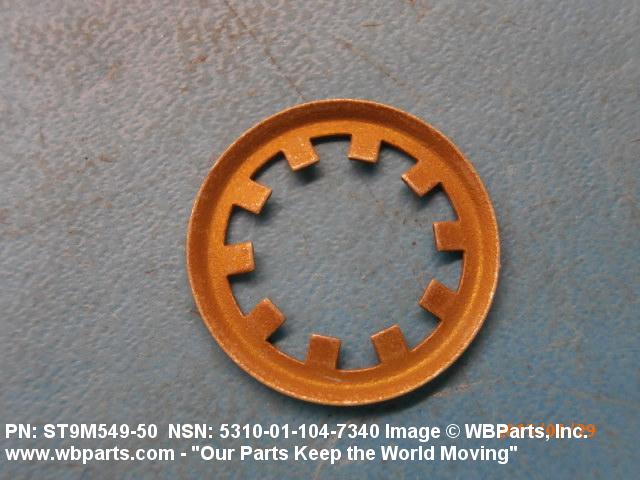

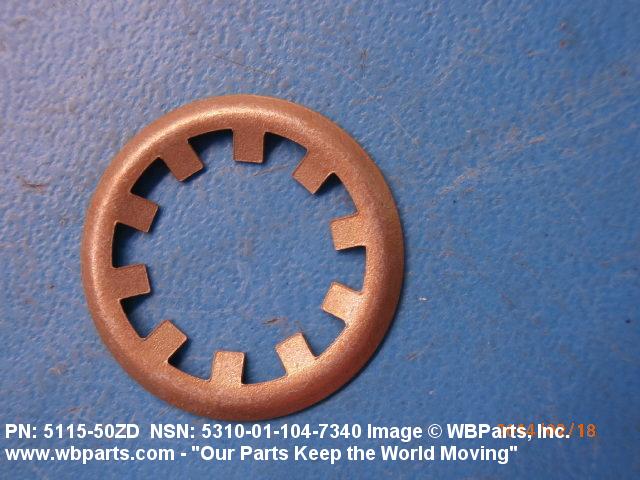

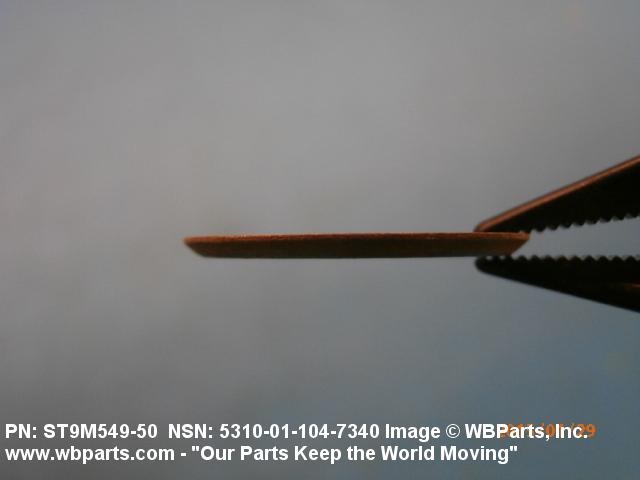

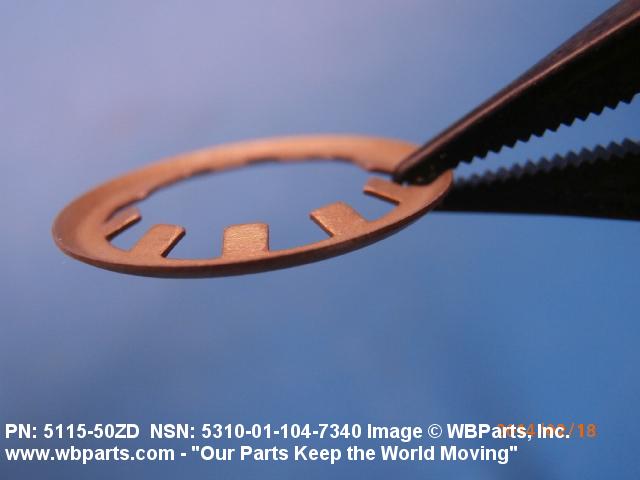

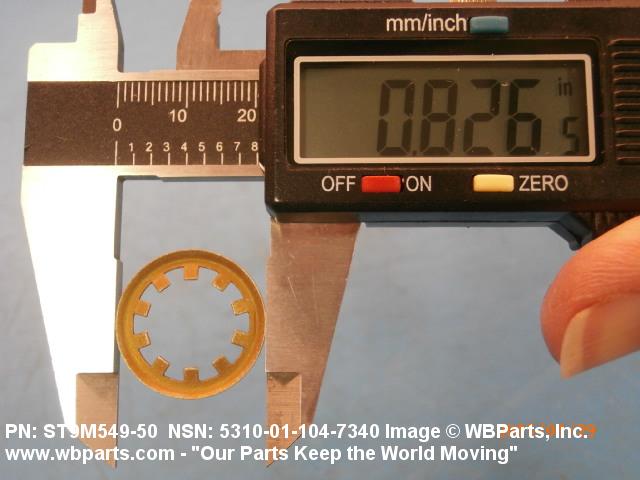

Drawings & Photos | NSN 5310-01-104-7340
Demand History | NSN 5310-01-104-7340
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5115-50.015ZD | 2022-06-177 | 3 | DIBBS |
| ST9M549-50 | 2022-06-177 | 3 | DIBBS |
| 5115-50.015ZD | 2022-04-102 | 2 | DIBBS |
| ST9M549-50 | 2022-04-102 | 2 | DIBBS |
| 5115-50.015ZD | 2022-03-62 | 3 | DIBBS |
| ST9M549-50 | 2022-03-62 | 3 | DIBBS |
| 5115-50.015ZD | 2021-04-96 | 1 | DIBBS |
| ST9M549-50 | 2021-04-96 | 1 | DIBBS |
| 5310-01-104-7340 | 2015-10-287 | 31 | DIBBS |
| 5310-01-104-7340 | 2015-09-273 | 31 | DIBBS |
| ST9M549-50 | 2014-12-357 | 50 | Australia |
| ST9M54950 | 2014-03-71 | 2 | Australia |
| 5310-01-104-7340 | 2014-01-23 | 8 | Australia |
| ST9M54950 | 2014-01-23 | 8 | Australia |
| 5310-01-104-7340 | 2010-12-362 | 715 | DIBBS |
| 5310-01-104-7340 | 2010-01-18 | 12 | United States |
| ST9M54950 | 2009-12-338 | 5 | us |
| 5310-01-104-7340 | 2009-11-307 | 715 | DIBBS |
| 5310-01-104-7340 | 2009-11-307 | 715 | DIBBS |
| ST9M54950 | 2009-07-189 | 6 | US |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5310-01-104-7340
Related Products | NSN 5310-01-104-7340
Technical Data | NSN 5310-01-104-7340
| Characteristic | Specifications |
|---|---|
| MATING MEMBER DIAMETER ACCOMMODATED | 0.495 INCHES MINIMUM AND 0.505 INCHES MAXIMUM |
| MATERIAL | STEEL COMP 1060 OR STEEL COMP 1070 OR STEEL COMP 1078 OR STEEL COMP 1080 OR STEEL COMP 1090 OR STEEL COMP 1561 OR STEEL COMP 1064 OR STEEL COMP 1065 OR STEEL COMP 1566 OR STEEL COMP 1572 OR STEEL COMP 1074 OR STEEL COMP 1075 OR STEEL COMP 1086 OVERALL |
| SURFACE TREATMENT | CADMIUM AND CHROMATE OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-416,TY 2,CL 3 FED SPEC ALL TREATMENT RESPONSES OVERALL |
| NUT STYLE | A213 PUSH ON |

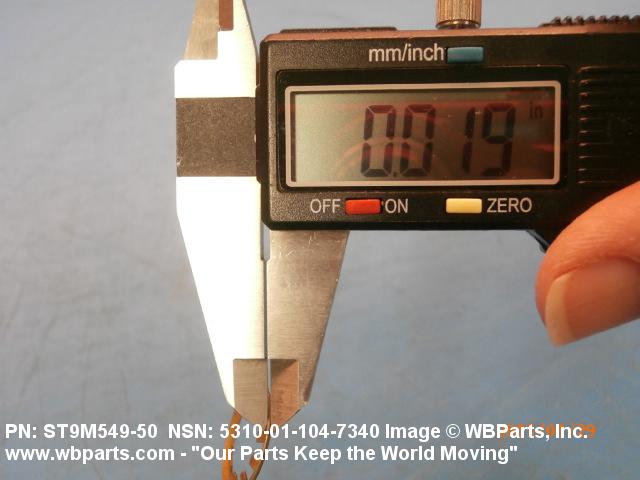

| MATERIAL THICKNESS | 0.015 INCHES MINIMUM AND 0.019 INCHES MAXIMUM |

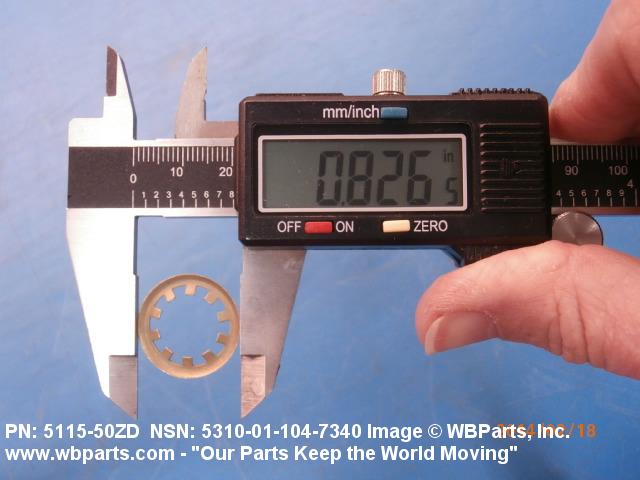

| NUT DIAMETER | 0.818 INCHES MINIMUM AND 0.838 INCHES MAXIMUM |
Restrictions/Controls & Freight Information | NSN 5310-01-104-7340
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 093486 | BOLTS,NUTS OR SCREWS, NOI (SUB 3) |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 573 | unknown |
| Originating Activity Code | KZ | Defense Supply Center Philadelphia Philadelphia, PA 19101 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5310-01-104-7340
Air Force| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Materiel Management Aggregation Code | SX | SX:AF SICA RESIDUAL MMAC-OC-ALC |
| Price Validation | V | The current standard price has been validated.
|
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
M EA : Each |
