NSN 5310-01-106-0212 83876781, 8387678-1, 01-106-0212
Product Details | SPRING TENSION WASHER
5310-01-106-0212 A bent spring metal washer with a centrally located hole. It is designed to exert pressure axially when assembled in place.
Part Alternates: 83876781, 8387678-1, 5310-01-106-0212, 01-106-0212, 5310011060212, 011060212
Hardware and Abrasives | Nuts and Washers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 10 JAN 1981 | 01-106-0212 | 15938 ( WASHER, SPRING TENSION ) |

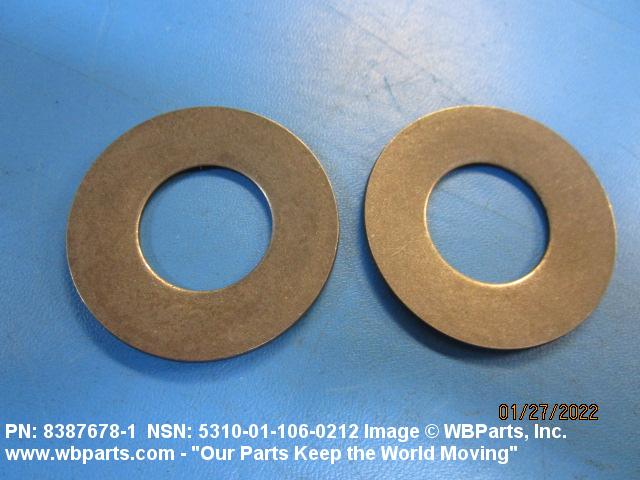

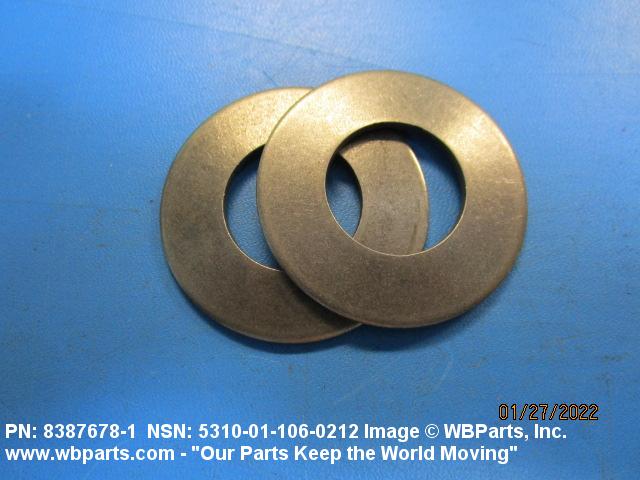

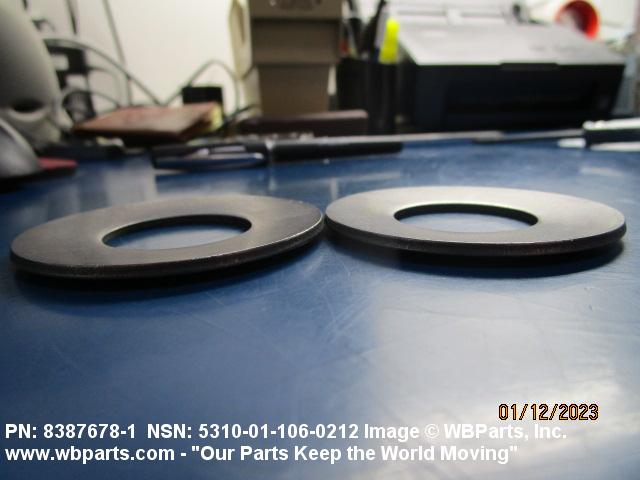

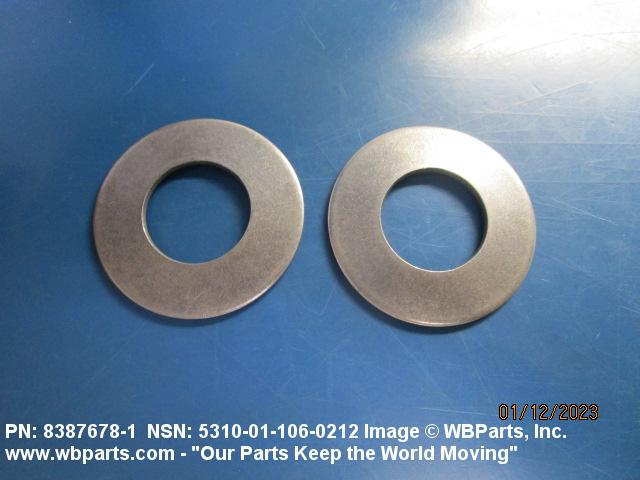

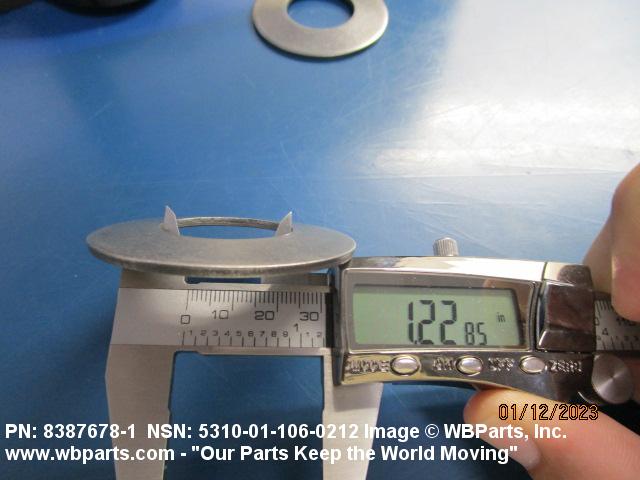

Drawings & Photos | NSN 5310-01-106-0212
Demand History | NSN 5310-01-106-0212
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5310-01-106-0212 | 2025-08-218 | 10 | Germany |
| 5310-01-106-0212 | 2025-05-140 | 269 | DIBBS |
| 5310-01-106-0212 | 2025-05-132 | 269 | DIBBS |
| 5310-01-106-0212 | 2023-01-10 | 2 | Germany |
| 5310-01-106-0212 | 2022-05-144 | 321 | DIBBS |
| 5310-01-106-0212 | 2022-05-130 | 321 | DIBBS |
| 5310-01-106-0212 | 2022-04-97 | 65 | DIBBS |
| 5310-01-106-0212 | 2022-01-21 | 2 | Germany |
| 5310-01-106-0212 | 2021-11-319 | 65 | DIBBS |
| 5310-01-106-0212 | 2021-10-301 | 2 | Germany |
| 5310-01-106-0212 | 2021-09-256 | 65 | DIBBS |
| 5310-01-106-0212 | 2021-08-236 | 102 | DIBBS |
| 5310-01-106-0212 | 2021-08-220 | 102 | DIBBS |
| 5310-01-106-0212 | 2020-10-302 | 199 | DIBBS |
| 5310-01-106-0212 | 2019-01-24 | 249 | DIBBS |
| 5310-01-106-0212 | 2018-08-230 | 200 | DIBBS |
| 5310-01-106-0212 | 2018-08-217 | 200 | DIBBS |
| 5310-01-106-0212 | 2018-06-165 | 200 | DIBBS |
| 5310-01-106-0212 | 2018-06-157 | 200 | DIBBS |
| 5310-01-106-0212 | 2016-03-63 | 449 | DIBBS |
| 5310-01-106-0212 | 2015-12-340 | 286 | DIBBS |
| 5310-01-106-0212 | 2014-08-223 | 1 | DIBBS |
| 5310-01-106-0212 | 2014-07-210 | 2 | DIBBS |
Cross Reference | NSN 5310-01-106-0212
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 8387678-1 | 19207 | U S ARMY TANK AUTOMOTIVE COMMAND AMSTA-IM-MM |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5310-01-106-0212
Related Products | NSN 5310-01-106-0212
Technical Data | NSN 5310-01-106-0212
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL OVERALL |
| STYLE DESIGNATOR | 25A SPRING TENSION |

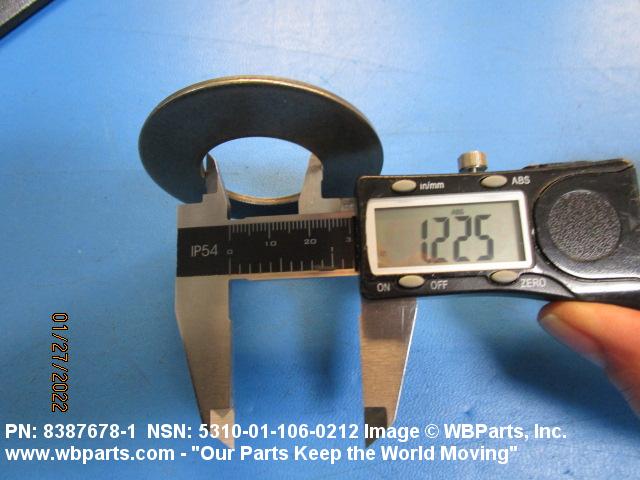

| HOLE DIAMETER | 1.210 INCHES MINIMUM AND 1.230 INCHES MAXIMUM |

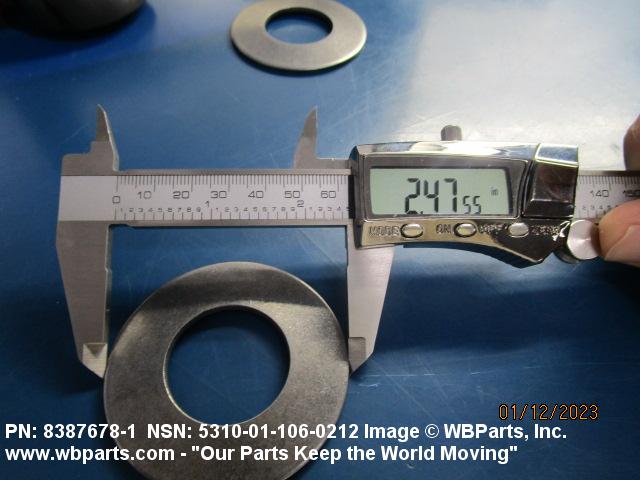

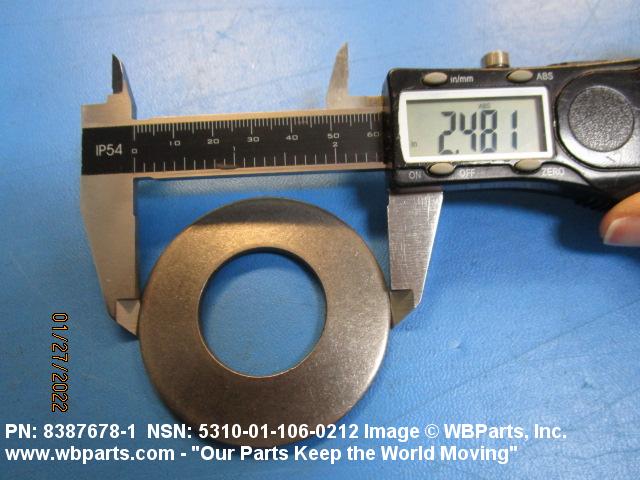

| OUTSIDE DIAMETER | 2.470 INCHES MINIMUM AND 2.490 INCHES MAXIMUM |

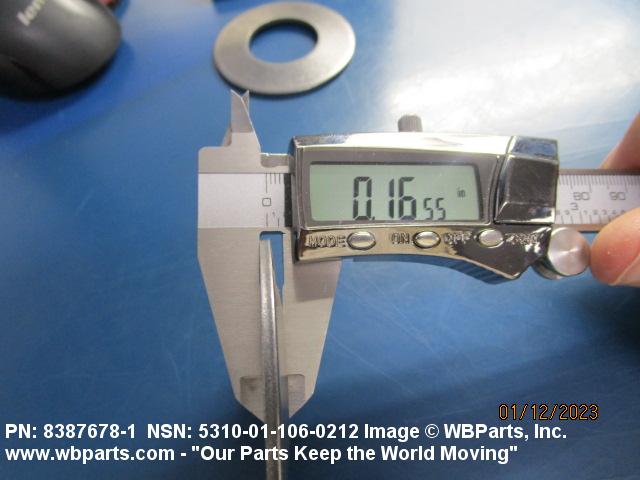

| OVERALL HEIGHT | 0.162 INCHES MINIMUM AND 0.172 INCHES MAXIMUM |

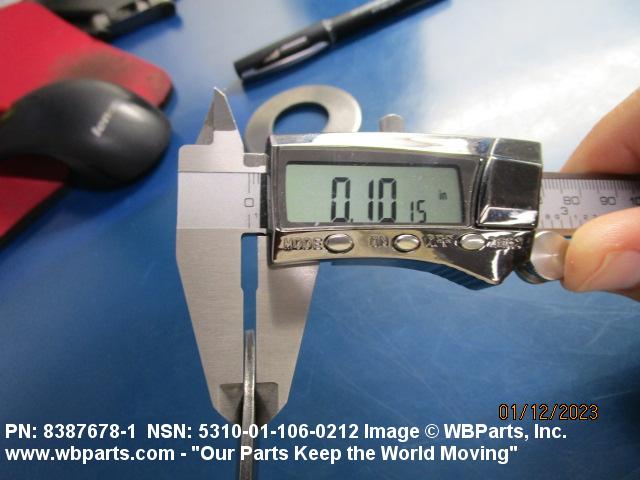

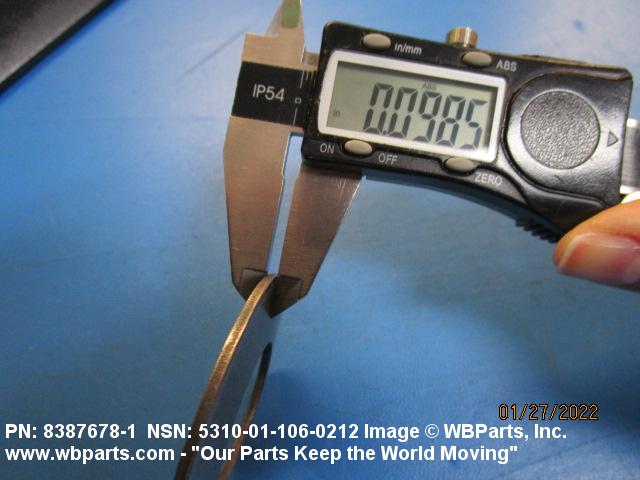

| MATERIAL THICKNESS | 0.097 INCHES MINIMUM AND 0.099 INCHES MAXIMUM |
| SPECIFICATION/STANDARD DATA | 19207-8387678 GOVERNMENT STANDARD |
| III END ITEM IDENTIFICATION | 2350-01-049-2695; FIGHTING VEHICLE,CAVALRY. TM 9-2350-252-24P-1,DATED 19 OCT 90 |
Restrictions/Controls & Freight Information | NSN 5310-01-106-0212
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 194160 | WASHER OR GASKETS, IRON OR STEEL, |
| Less than car load rating | U | 50 |
| Less than truck load rating | U | 50.0 |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | AZ | U.S. Army Tank-Automotive and Armaments Command Warren, MI 48397-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5310-01-106-0212
Army| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | T | Industrial Supplies (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | M | Armored Carriers |
| Weapons Systems/End Item or Homogeneous Group | MM | Infantry Fighting Vehicle (M2, M2A1, M2A2), Cavelry Fighting Vehicle (M3, M3A1, M3A2) |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
