NSN 5310-01-109-6063 10122165 , 1958C519, 74A4509582001
Product Details | SHOULDERED WASHER
5310-01-109-6063 A washer, round in shape, and having a centrally located hole. One bearing surface is flat and unbroken, the other surface is in the form of a raised shoulder (boss) having a flat bearing surface. The thickness of the shoulder (boss) must not exceed 25 percent of the shoulder (boss) diameter. For items having a shoulder (boss) of greater thickness, use BEARING, SLEEVE; BUSHING SLEEVE; or SPACER, SLEEVE. Excludes INSULATOR, WASHER and thrust type washers.
Part Alternates: 10122165 , 1958C519, 74A4509582001, 74A450958-2001, 5310-01-109-6063, 01-109-6063, 5310011096063, 011096063
Hardware and Abrasives | Nuts and Washers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 18 MAR 1981 | 01-109-6063 | 15934 ( WASHER, SHOULDERED ) |

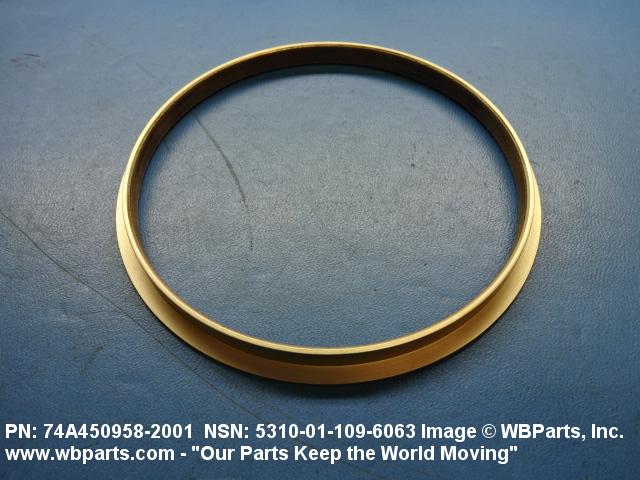

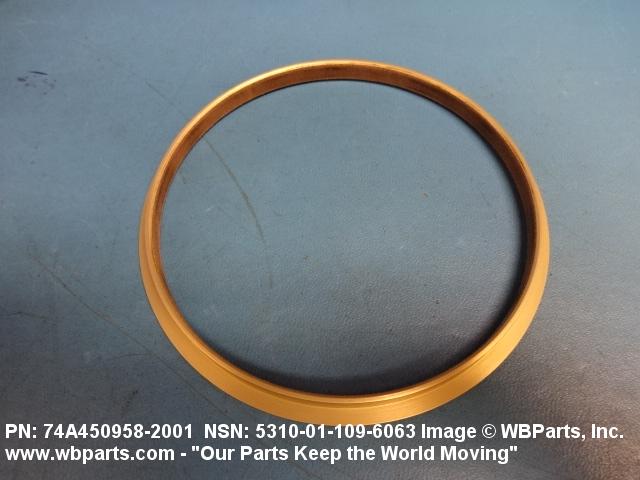

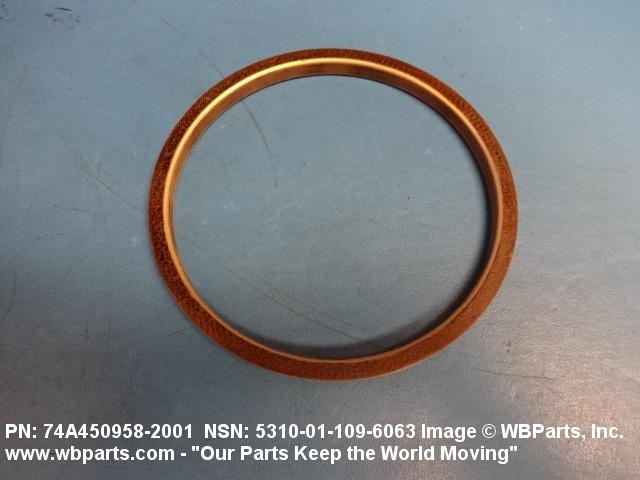

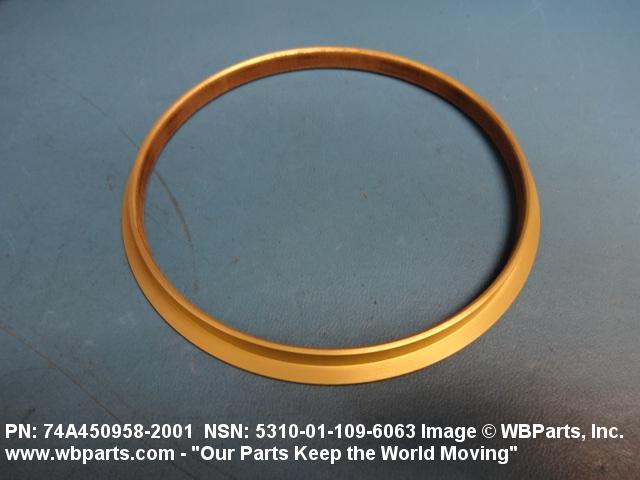

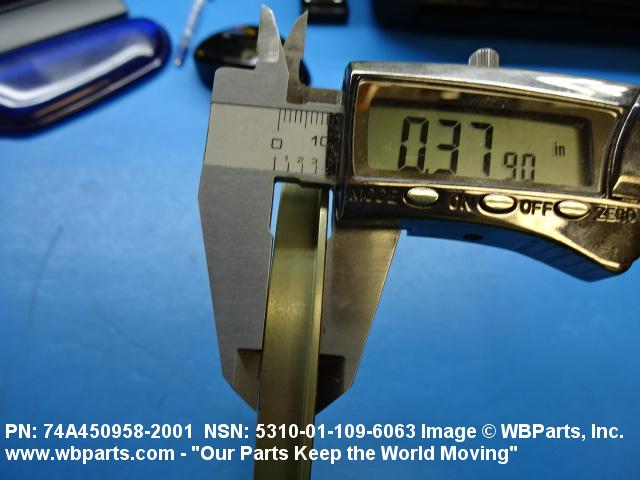

Drawings & Photos | NSN 5310-01-109-6063
Demand History | NSN 5310-01-109-6063
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5310-01-109-6063 | 2019-10-283 | 1 | United States |
| 1958C519 | 2019-07-191 | 2 | DIBBS |
| 74A450958-2001 | 2019-07-191 | 2 | DIBBS |
| 5310-01-109-6063 | 2019-05-127 | 1 | DIBBS-RFPs |
| 5310-01-109-6063 | 2018-12-359 | 4 | DIBBS |
| 5310-01-109-6063 | 2018-11-309 | 80 | DIBBS |
| 5310-01-109-6063 | 2018-09-246 | 4 | DIBBS |
| 5310-01-109-6063 | 2018-08-235 | 2 | DIBBS |
| 5310-01-109-6063 | 2018-04-110 | 2 | DIBBS |
| 5310-01-109-6063 | 2018-04-101 | 20 | DIBBS |
| 5310-01-109-6063 | 2017-12-362 | 20 | DIBBS |
| 5310-01-109-6063 | 2017-11-325 | 4 | DIBBS |
| 5310-01-109-6063 | 2017-11-324 | 20 | DIBBS |
| 5310-01-109-6063 | 2017-11-309 | 2 | DIBBS |
| 5310-01-109-6063 | 2017-10-276 | 2 | DIBBS |
| 5310-01-109-6063 | 2017-10-274 | 1 | DIBBS |
| 5310-01-109-6063 | 2017-07-207 | 11 | DIBBS |
| 5310-01-109-6063 | 2017-06-158 | 3 | DIBBS |
| 5310-01-109-6063 | 2017-04-93 | 4 | DIBBS |
| 5310-01-109-6063 | 2017-03-88 | 6 | DIBBS |
| 5310-01-109-6063 | 2017-03-85 | 6 | DIBBS |
| 5310-01-109-6063 | 2015-10-277 | 5 | DIBBS |
| 5310-01-109-6063 | 2015-05-140 | 4 | DIBBS |
| 5310-01-109-6063 | 2014-12-343 | 3 | DIBBS |
| 5310-01-109-6063 | 2014-08-216 | 6 | DIBBS |
| 5310-01-109-6063 | 2012-04-110 | 9 | DIBBS |
Cross Reference | NSN 5310-01-109-6063
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 1958C519 | 13002 | GOODRICH CORPORATION DBA GOODRICH LANDING GEAR DIVISION |
| 74A450958-2001 | 13002 | GOODRICH CORPORATION DBA GOODRICH LANDING GEAR DIVISION |
| 74A450958-2001 | 17576 | GOODRICH CORP DBA GOODRICH CORP |
| 74A450958-2001 | 32168 | ALL TOOLS INC. DBA E2 PRECISION PRODUCTS |
| 74A450958-2001 | 36164 | HEROUX-DEVTEK INC |
| 74A450958-2001 | 76301 | BOEING COMPANY, THE DBA BOEING |
| 74A450958-2001 | 9K006 | CIRCOR AEROSPACE, INC. DBA CIRCOR AEROSPACE MACHINING |
| 74A450958-2001 | S5495 | ISRAEL AEROSPACE INDUSTRIES LTD. SHL - AERO ASSEMBLIES DIVISION |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5310-01-109-6063
Related Products | NSN 5310-01-109-6063
Technical Data | NSN 5310-01-109-6063
| Characteristic | Specifications |
|---|---|
| MATERIAL | ALUMINUM ALLOY 7075 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | QQ-A-225/9,TEMPER T73 FED SPEC SINGLE MATERIAL RESPONSE OVERALL |
| STYLE DESIGNATOR | 8 SHOULDERED |

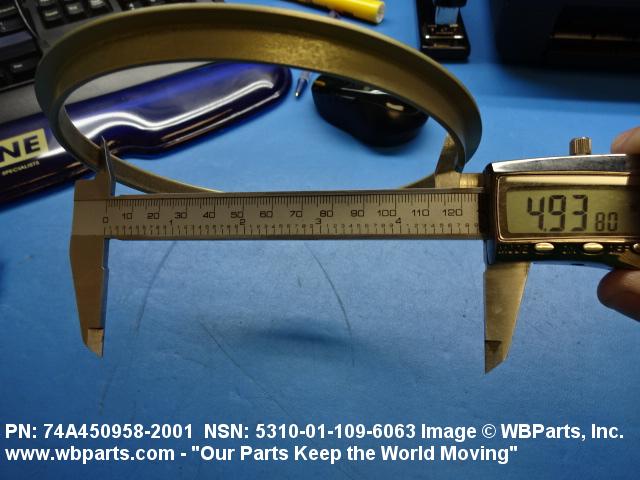

| HOLE DIAMETER | 4.9380 INCHES MINIMUM AND 4.9395 INCHES MAXIMUM |

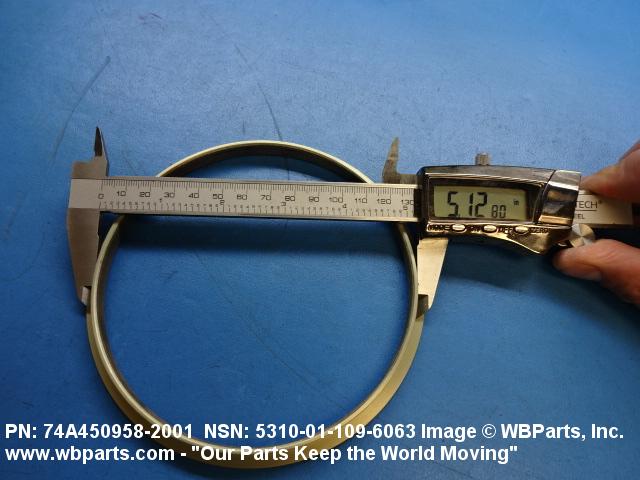

| SHOULDER DIAMETER | 5.1275 INCHES MINIMUM AND 5.1290 INCHES MAXIMUM |

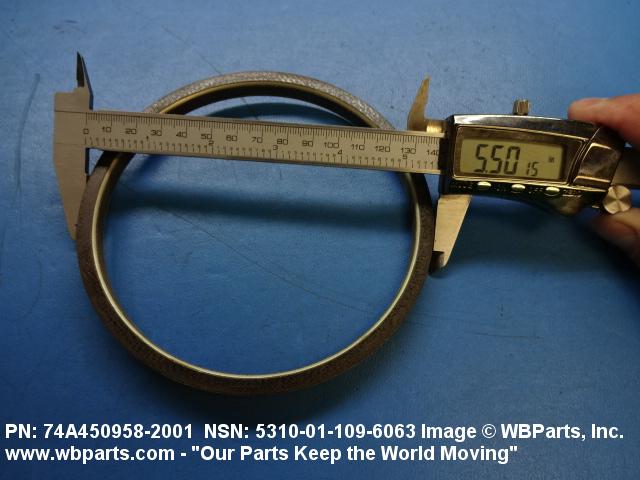

| OUTSIDE DIAMETER | 5.500 INCHES NOMINAL |
| SHOULDER HEIGHT | 0.320 INCHES NOMINAL |

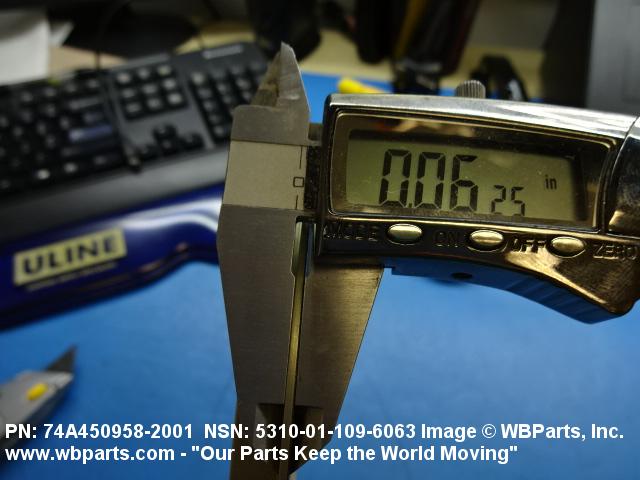

| MATERIAL THICKNESS | 0.061 INCHES MINIMUM AND 0.062 INCHES MAXIMUM |
| MANUFACTURERS CODE | 76301 |
| DESIGN CONTROL REFERENCE | 74A450958-2001 |
Restrictions/Controls & Freight Information | NSN 5310-01-109-6063
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 194120 | WASHERS/GASKETS/PCKG DVCS NOI |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | KZ | Defense Supply Center Philadelphia Philadelphia, PA 19101 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5310-01-109-6063
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
