NSN 5310-01-113-4048 L318003556, 01-113-4048, 011134048
Product Details | PLATE NUT SPACER
5310-01-113-4048 An item having two flat bearing surfaces, conforming to the same shape as the base of a NUT (1), PLAIN, PLATE and NUT (1), SELF-LOCKING, PLATE. It is used to provide better alignment in assembly.
Part Alternates: L318003556, 5310-01-113-4048, 01-113-4048, 5310011134048, 011134048
Hardware and Abrasives | Nuts and Washers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 22 MAY 1981 | 01-113-4048 | 17667 ( NUT SPACER, PLATE ) |
Drawings & Photos | NSN 5310-01-113-4048
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5310-01-113-4048
Technical Data | NSN 5310-01-113-4048
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 303 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | ASTM A-582 CONDITION A ASSN STD SINGLE MATERIAL RESPONSE OVERALL |
| SURFACE TREATMENT | PASSIVATE OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-35 FED SPEC SINGLE TREATMENT RESPONSE OVERALL |
| HOLE TYPE AND QUANTITY | 1 DRILLED |
| DRILLED HOLE DIAMETER | 0.388 INCHES MINIMUM AND 0.396 INCHES MAXIMUM |

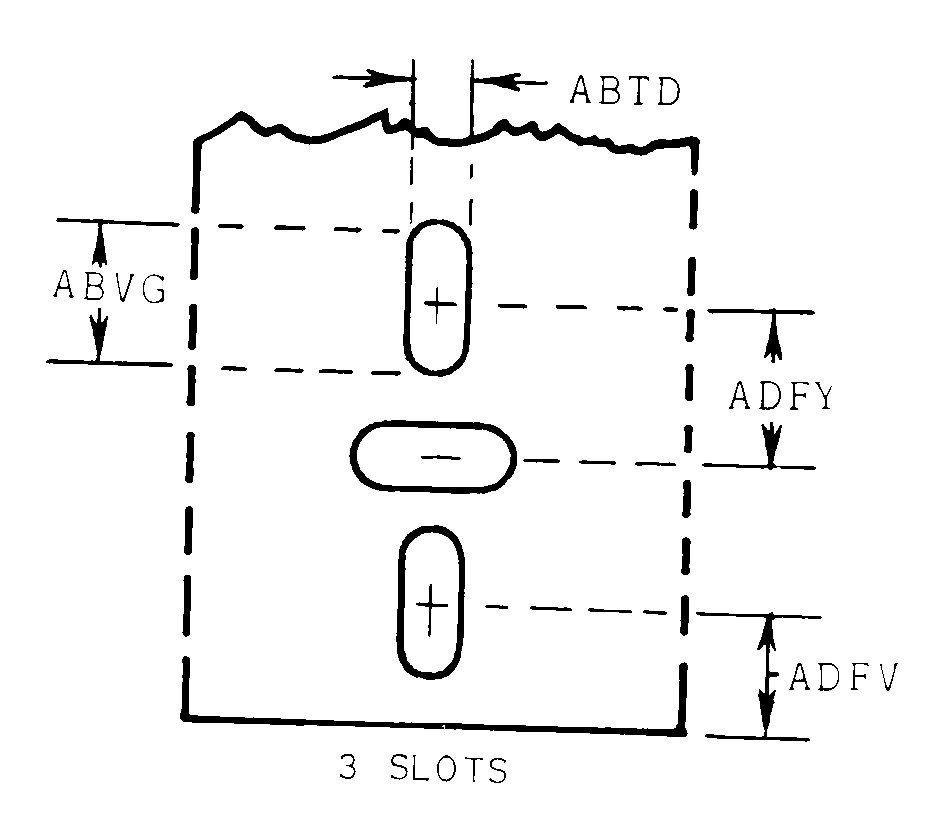

| MOUNTING HOLE ARRANGEMENT STYLE | F35 3 SLOTS |
| MOUNTING SLOT WIDTH | 0.187 INCHES NOMINAL |
| MOUNTING SLOT LENGTH | 0.375 INCHES NOMINAL |
Restrictions/Controls & Freight Information | NSN 5310-01-113-4048
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
