NSN 5310-01-135-2422 KFS2-M2.5, KFS2M25, 999/4/38424/004
Product Details | SPLINE PLAIN NUT
5310-01-135-2422 A nut having an externally splined sleeve which holds it in position when forced into a hole of slightly smaller diameter.
Part Alternates: KFS2-M2.5, KFS2M25, 999/4/38424/004, 999438424004, 227721, 22772-1, 5310-01-135-2422, 01-135-2422, 5310011352422, 011352422
Hardware and Abrasives | Nuts and Washers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 20 JUL 1982 | 01-135-2422 | 01861 ( NUT, PLAIN, SPLINE ) |

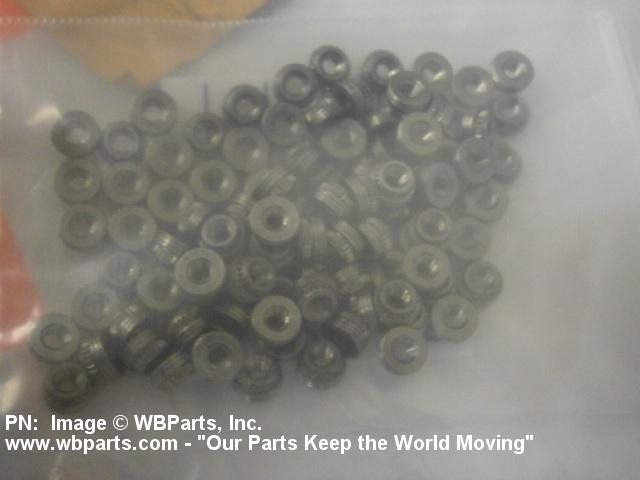

Drawings & Photos | NSN 5310-01-135-2422
Demand History | NSN 5310-01-135-2422
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5310-01-135-2422 | 2012-01-26 | 100 | United States |
| 5310-01-135-2422 | 2008-05-130 | 16 | US |
| 5310-01-135-2422 | 2008-05-130 | 50 | US |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5310-01-135-2422
Technical Data | NSN 5310-01-135-2422
| Characteristic | Specifications |
|---|---|
| THREAD SERIES | ISO M |
| NOMINAL THREAD SIZE | 2.5 MILLIMETERS |
| THREAD PITCH IN MILLIMETERS | 0.50 |
| THREAD TOLERANCE CLASS | 6H INTERNAL |
| THREAD DIRECTION | RIGHT-HAND |
| MATERIAL | STEEL COMP 303 OVERALL |
| HARDNESS RATING | NOT RATED |
| NUT STYLE | A52 SPLINE |
| PILOT DIAMETER | 4.47 MILLIMETERS MINIMUM AND 4.63 MILLIMETERS MAXIMUM |
| PILOT LENGTH | 1.50 MILLIMETERS MAXIMUM |
| NUT DIAMETER | 5.43 MILLIMETERS MINIMUM AND 5.69 MILLIMETERS MAXIMUM |
| NUT HEIGHT | 1.43 MILLIMETERS MINIMUM AND 1.63 MILLIMETERS MAXIMUM |
| TEMP RATING | NOT RATED |
Restrictions/Controls & Freight Information | NSN 5310-01-135-2422
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
