NSN 5310-01-150-4002 NAS1423C10, 10109823 , 01-150-4002

Product Details | HEXAGON PLAIN NUT

5310-01-150-4002 A nut, flat on top and bottom having 6 flat sides. For items which have internal tapered or straight (parallel) pipe threads, specific electrical conduit size designation, and which when installed, provide a method of tightening to lock the connection, see LOCKNUT, ELECTRICAL CONDUIT. See also LOCKNUT, TUBE FITTING. For items having a thickness (or height) exceeding two times the width across the flats, use POST, ELECTRICAL-MECHANICAL EQUIPMENT. (When height or thickness and/or width across the flats is designated as a tolerance dimension, the maximum dimension will be used to determine compliance.

Part Alternates: NAS1423C10, 10109823 , 5310-01-150-4002, 01-150-4002, 5310011504002, 011504002

Hardware and Abrasives | Nuts and Washers

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
53	04 APR 1983	01-150-4002	01857 ( NUT, PLAIN, HEXAGON )

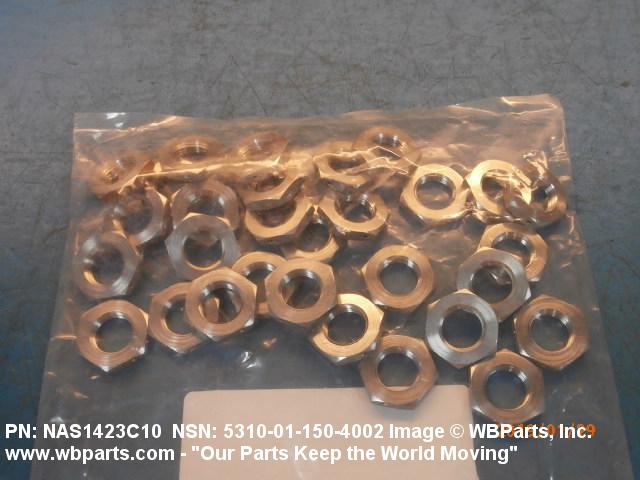

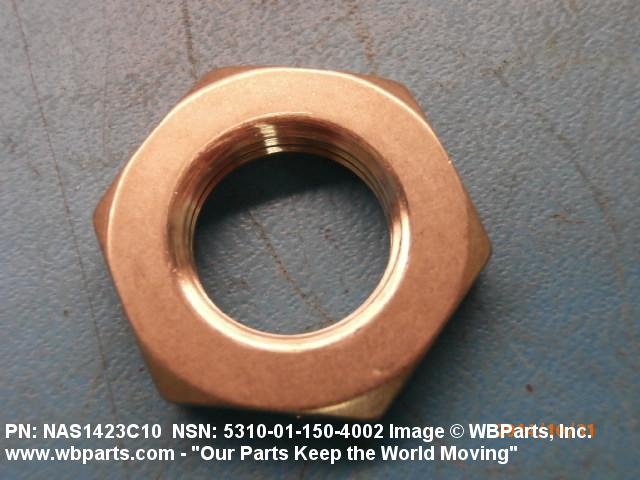

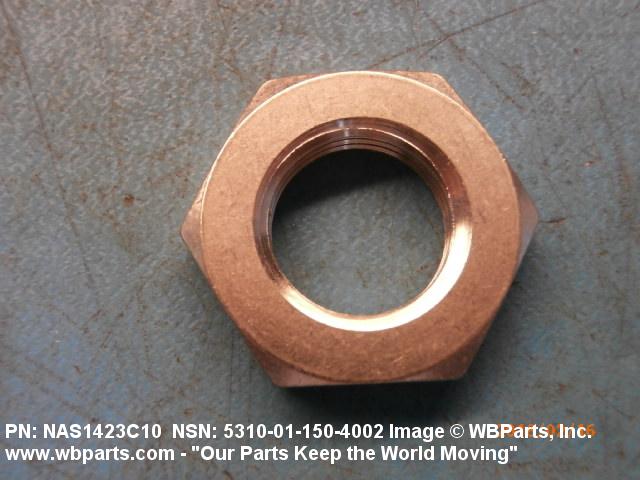

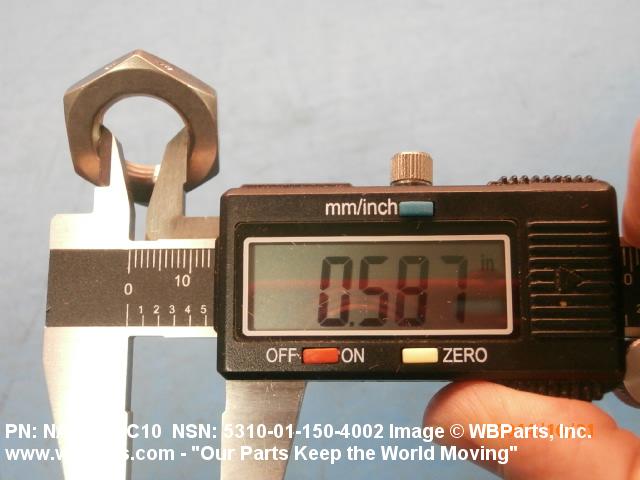

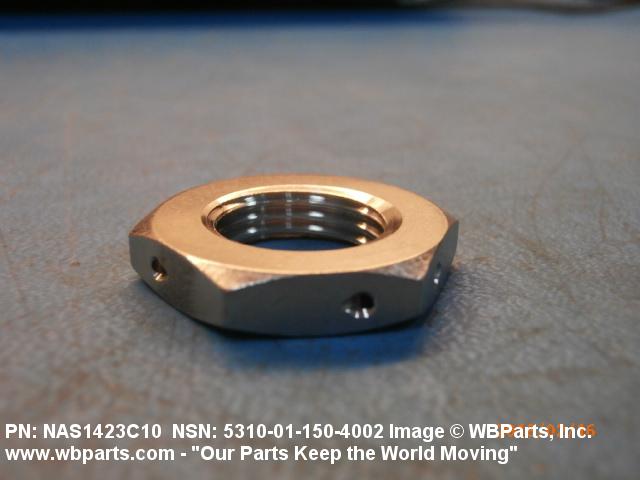

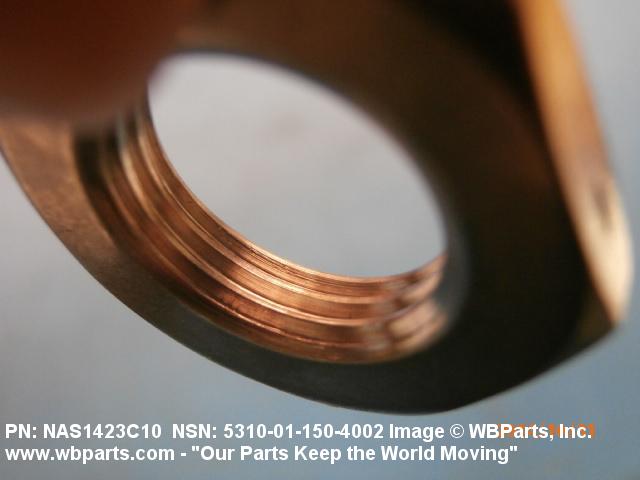

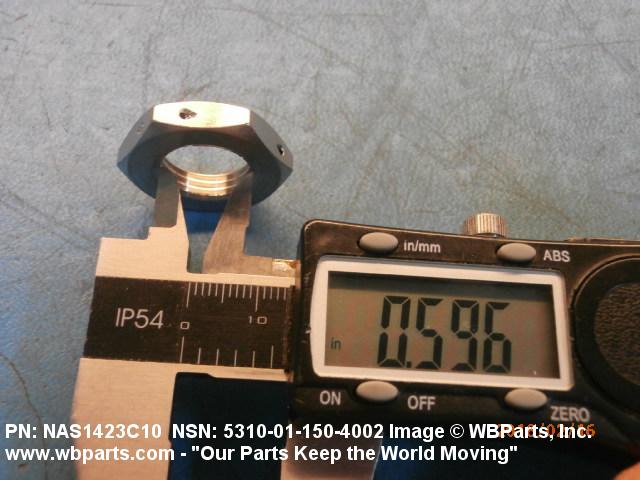

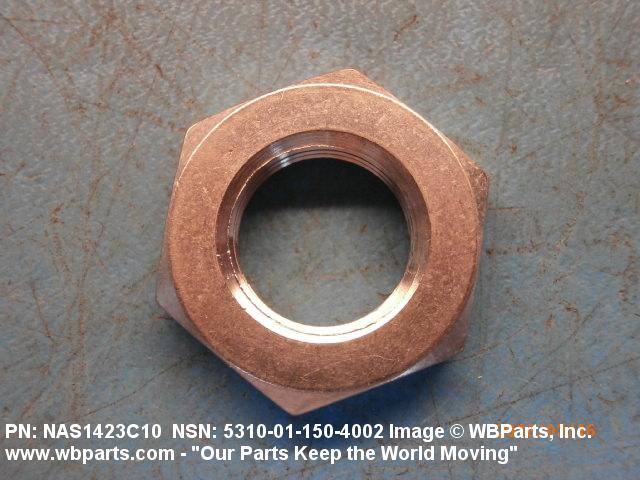

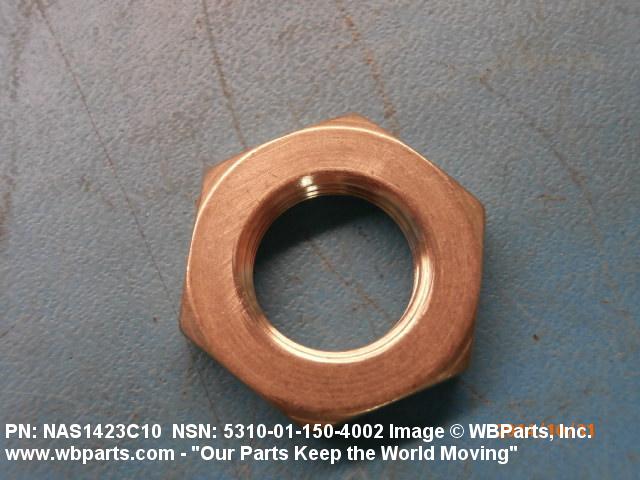

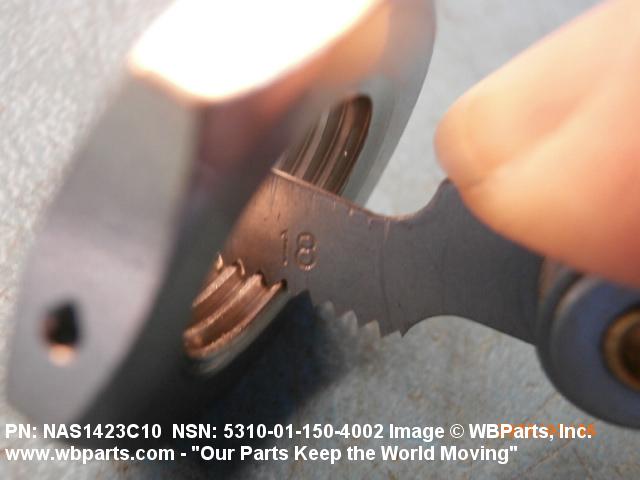

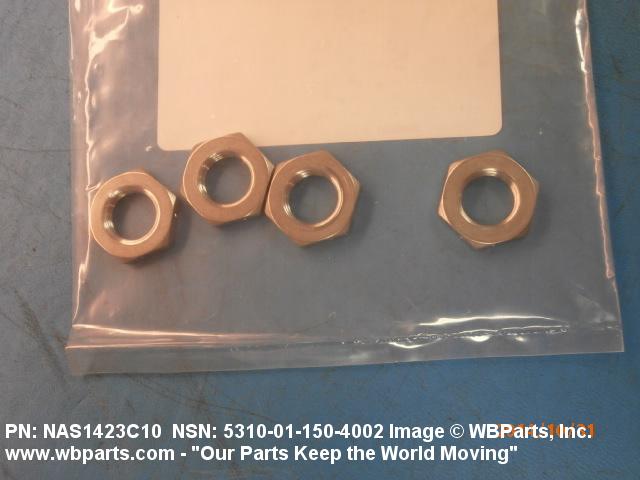

Drawings & Photos | NSN 5310-01-150-4002

Part Number	Request Date	QTY	Origin
NAS1423C10	2025-10-300	60	United States
5310-01-150-4002	2024-05-138	75	us
NAS1423C10	2023-05-143	1500	United States
NAS1423C10	2022-05-130	350	United States
NAS1423C10	2021-07-203	350	United States
NAS1423C10	2021-05-145	250	United States
NAS1423C10	2021-01-11	250	United States
NAS1423C10	2020-08-244	250	United States
NAS1423C10	2020-05-142	250	United States
NAS1423C10	2020-01-15	500	United States
NAS1423C10	2019-07-193	250	United States
NAS1423C10	2019-01-18	30	United States
5310-01-150-4002	2018-05-130	1	DIBBS-RFPs
NAS1423C10	2018-02-44	20	United States
NAS1423C10	2018-01-23	100	United States
NAS1423C10	2018-01-23	200	United States
5310-01-150-4002	2017-06-152	1576	DIBBS
5310-01-150-4002	2016-03-73	719	DIBBS
5310-01-150-4002	2015-12-348	545	DIBBS
NAS1423C10	2015-07-210	6	United States
5310-01-150-4002	2014-12-343	6	United States
5310-01-150-4002	2014-10-297	4	United States
NAS1423C10	2013-01-14	1	United States
5310-01-150-4002	2010-01-04	100	US
5310-01-150-4002	2009-05-148	2000	US
5310-01-150-4002	2009-01-23	50	Sweden
5310-01-150-4002	2007-12-345	60	United States
5310-01-150-4002	2007-12-345	30	US
5310-01-150-4002	2007-12-345	60	US

Cross Reference | NSN 5310-01-150-4002

Part Number	Cage Code	Manufacturer
NAS1423C10	80205	NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5310-01-150-4002

Compare

Related Products | NSN 5310-01-150-4002

5310-01-150-4003, 5310-01-150-4007, 5310-01-150-4010, 5310-01-150-4224, 5310-01-150-4385

Technical Data | NSN 5310-01-150-4002

Characteristic	Specifications
THREAD SERIES	UNJF
NOMINAL THREAD SIZE	0.625 INCHES
THREAD QUANTITY PER INCH	18
THREAD CLASS	3B
THREAD DIRECTION	RIGHT-HAND
MATERIAL	IRON ALLOY 660 OVERALL
MATERIAL DOCUMENT AND CLASSIFICATION	AMS 5525 ASSN STD SINGLE MATERIAL RESPONSE OR AMS 5732 ASSN STD SINGLE MATERIAL RESPONSE OR AMS 5737 ASSN STD SINGLE MATERIAL RESPONSE OVERALL
SURFACE TREATMENT	PASSIVATE OVERALL
SURFACE TREATMENT DOCUMENT AND CLASSIFICATION	QQ-P-35 FED SPEC SINGLE TREATMENT RESPONSE OVERALL
HARDNESS RATING	NOT RATED
NUT STYLE	A12 HEXAGON

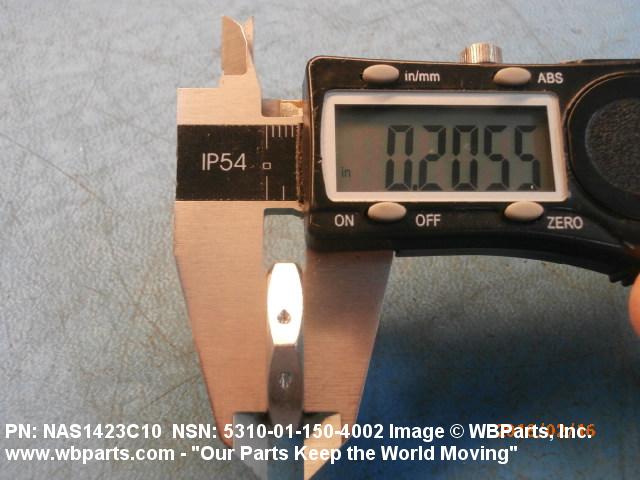

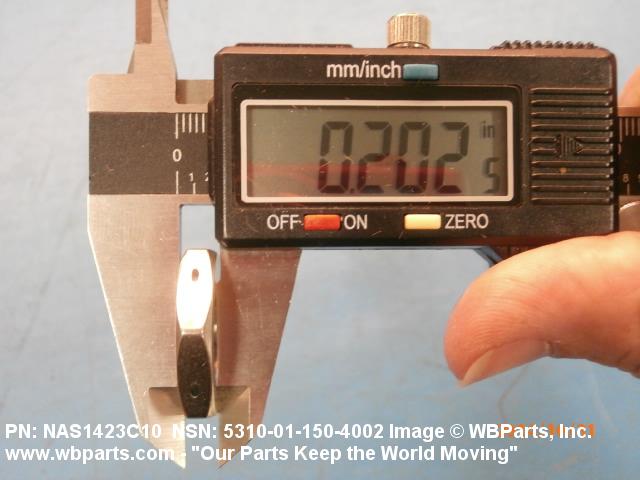

NUT HEIGHT	0.193 INCHES MINIMUM AND 0.213 INCHES MAXIMUM

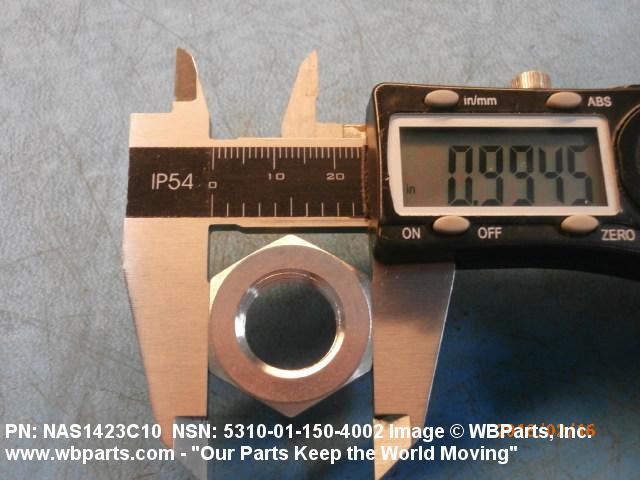

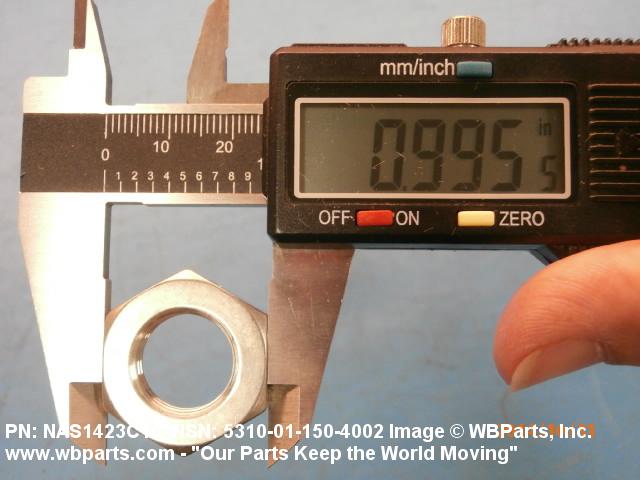

WIDTH ACROSS FLATS	0.986 INCHES MINIMUM AND 1.002 INCHES MAXIMUM
HOLE CONFIGURATION STYLE	H2 CONFIGURATION B

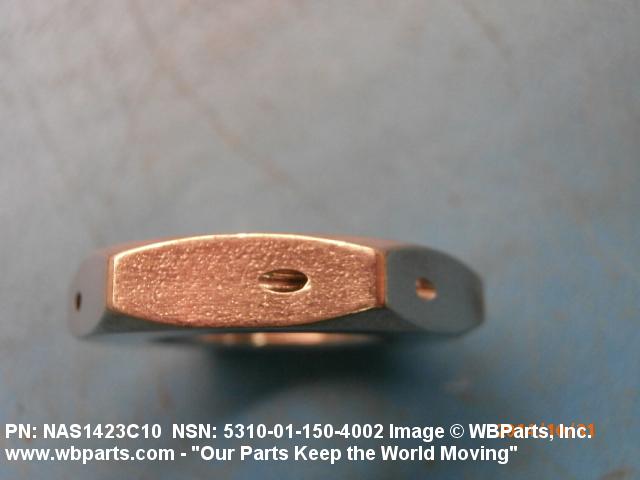

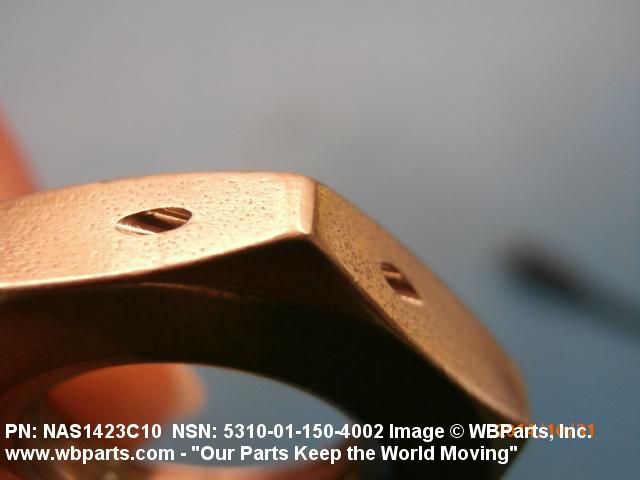

HOLE TYPE AND QUANTITY	3 DRILLED

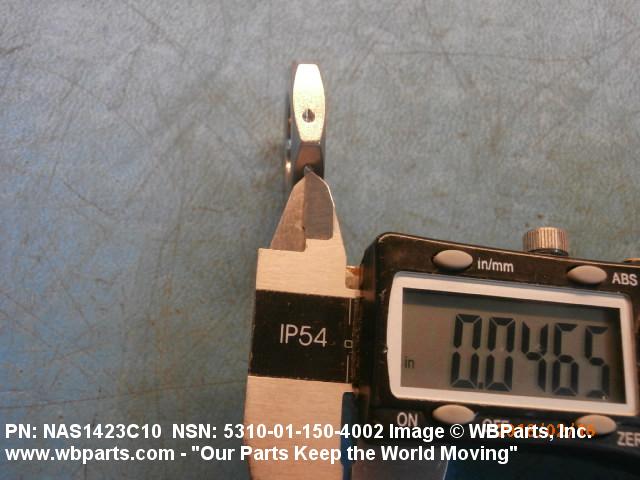

DRILLED HOLE DIAMETER	0.045 INCHES MINIMUM AND 0.050 INCHES MAXIMUM
BEARING SURFACE TYPE	CHAMFERED
TEMP RATING	NOT RATED
SPECIFICATION/STANDARD DATA	80205-NAS1423 PROFESSIONAL/INDUSTRIAL ASSOCIATION STANDARD

Restrictions/Controls & Freight Information | NSN 5310-01-150-4002

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	N	There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	A	Item does not contain precious metal
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.

Category	Code	Description
NMF Description	093486	BOLTS,NUTS OR SCREWS, NOI (SUB 3)
Less than car load rating
Less than truck load rating	W	Rating Variable
Water commodity Code	573	unknown
Originating Activity Code	KZ	Defense Supply Center Philadelphia Philadelphia, PA 19101
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	B	Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 5310-01-150-4002

Category	Code	Description
Materiel Category and Inventory Manager	T	Industrial Supplies (DLA/GSA Items)
Appropriation and Budget Activity	2	Stock Fund Secondary Items
Management Inventory Segment	2	NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable.
Specific Group/Generic Code	0	Medical Materiel
Weapons Systems/End Item or Homogeneous Group	00	DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
Accounting Requirements Code	X	Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DA	Department of the Army
Service Organization	A	U.S. Army
Reparability	Z	This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Price Validation	N	The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM. The price has not been analyzed or reviewed for accuracy. ZOP or Standard price challenges are permissible, but must be supported with adequate justification. However, if coded for Local Purchase (LP) or Fabrication/Manufacture as indicated with an (LM) Acquisition Advice Code of ?L? or?F?,the case must be evaluated locally where purchased or fabricated.
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Materiel Management Aggregation Code	SX	SX:AF SICA RESIDUAL MMAC-OC-ALC
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each
