Product Details | HEXAGON EXTENDED WASHER PLAIN NUT

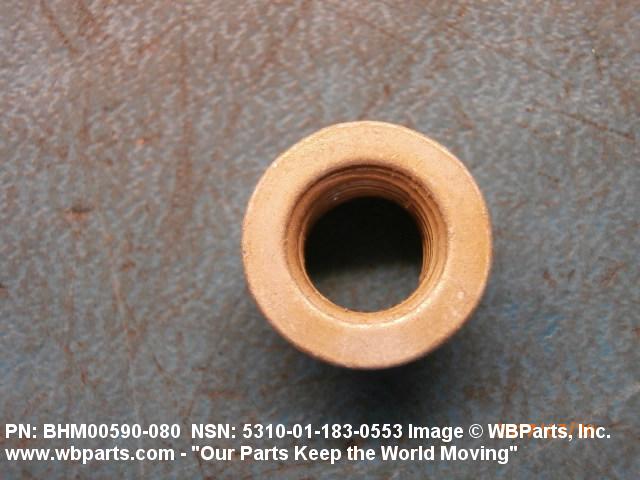

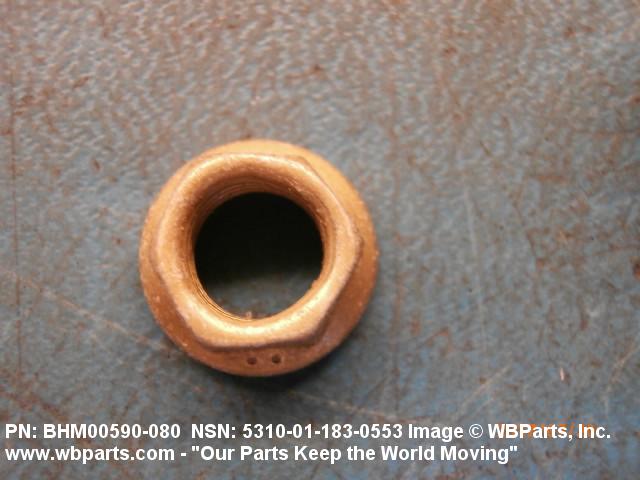

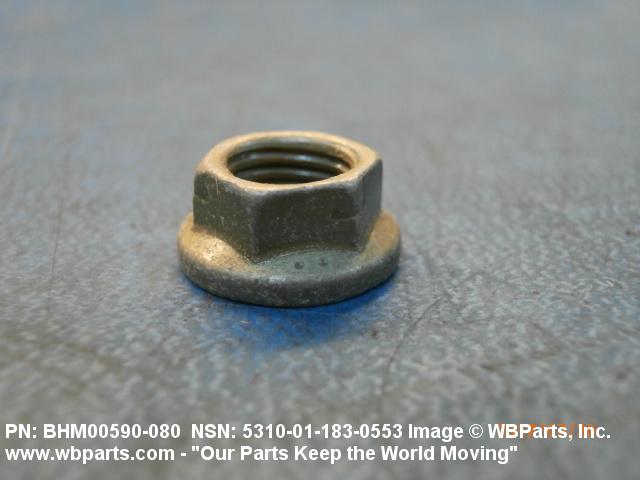

5310-01-183-0553 A nut having 6 flat sides and an integral washer which extends beyond the flats or periphery.
Part Alternates: BHM00590080, BHM00590-080, HS7045M810, OSS7045M810, 75594M810, 5310-01-183-0553, 01-183-0553, 5310011830553, 011830553
Hardware and Abrasives | Nuts and Washers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JUL 1984 | 01-183-0553 | 04889 ( NUT, PLAIN, EXTENDED WASHER, HEXAGON ) |
Drawings & Photos | NSN 5310-01-183-0553
Demand History | NSN 5310-01-183-0553
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 75594M810 | 2024-01-07 | 3933 | DIBBS |
| BHM00590-080 | 2024-01-07 | 3933 | DIBBS |
| HS7045M810 | 2024-01-07 | 3933 | DIBBS |
| 75594M810 | 2023-03-08 | 3143 | DIBBS |
| BHM00590-080 | 2023-03-08 | 3143 | DIBBS |
| HS7045M810 | 2023-03-08 | 3143 | DIBBS |
| 75594M810 | 2022-03-14 | 3493 | DIBBS |
| BHM00590-080 | 2022-03-14 | 3493 | DIBBS |
| HS7045M810 | 2022-03-14 | 3493 | DIBBS |
| 75594M810 | 2019-12-01 | 3872 | DIBBS |
| BHM00590-080 | 2019-12-01 | 3872 | DIBBS |
| HS7045M810 | 2019-12-01 | 3872 | DIBBS |
| OSS7045M810 | 2019-12-01 | 3872 | DIBBS |
| 5310-01-183-0553 | 2018-12-25 | 1216 | DIBBS |
| 5310-01-183-0553 | 2018-09-16 | 6000 | DIBBS |
| 5310-01-183-0553 | 2018-03-05 | 2893 | DIBBS |
| 5310-01-183-0553 | 2017-09-04 | 878 | DIBBS |
| 5310-01-183-0553 | 2017-06-28 | 15 | United States |
| 5310-01-183-0553 | 2017-02-12 | 1187 | DIBBS |
| 5310-01-183-0553 | 2016-11-07 | 3978 | DIBBS |
| 5310-01-183-0553 | 2016-05-02 | 1943 | DIBBS |
| 5310-01-183-0553 | 2015-11-15 | 3532 | DIBBS |
| 5310-01-183-0553 | 2015-06-18 | 129 | Seychelles |
| 5310-01-183-0553 | 2015-06-15 | 2788 | DIBBS |
| 5310-01-183-0553 | 2010-11-24 | 10 | US |
| 5310-01-183-0553 | 2009-03-02 | 2885 | DIBBS |
| 5310-01-183-0553 | 2009-01-05 | 891 | DIBBS |
| 5310-01-183-0553 | 2009-01-05 | 1067 | DIBBS |
| 5310-01-183-0553 | 2008-12-22 | 127 | DIBBS |
| 5310-01-183-0553 | 2008-10-08 | 2133 | DIBBS |
| 5310-01-183-0553 | 2008-08-25 | 42 | DIBBS |
| 5310-01-183-0553 | 2008-08-22 | 213 | DIBBS |
| 5310-01-183-0553 | 2008-06-09 | 2628 | DIBBS |
| 5310-01-183-0553 | 2008-02-05 | 607 | DIBBS |
Cross Reference | NSN 5310-01-183-0553
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 75594M810 | 56878 | SPS TECHNOLOGIES, LLC DBA AEROSPACE DIVISION |
| BHM00590-080 | 27238 | BRISTOL INDUSTRIES |
| HS7045M810 | 02731 | MCDONNELL DOUGLAS HELICOPTER CO INC |
| HS7045M810 | 8V613 | BOEING COMPANY, THE DBA BOEING |
| OSS7045M810 | 1YQE8 | ALLIANT TECHSYSTEMS OPERATIONS LLC |
Request a Quote
Comments | What our customers are saying...
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
NSNs for Compare ( up to 4 ): Add 5310-01-183-0553
Related Products | NSN 5310-01-183-0553
5310-01-183-0560, 5310-01-183-0594, 5310-01-183-0595, 5310-01-183-0997, 5310-01-183-1005
Technical Data | NSN 5310-01-183-0553
| Characteristic | Specifications |
|---|---|
| THREAD SERIES | MJ |
| NOMINAL THREAD SIZE | 8.0 MILLIMETERS |
| THREAD PITCH IN MILLIMETERS | 1.00 |
| THREAD TOLERANCE CLASS | 4H6H EXTERNAL |
| THREAD DIRECTION | LEFT-HAND |
| MATERIAL | STEEL OVERALL |
| HARDNESS RATING | 43.0 ROCKWELL C MINIMUM AND 45.0 ROCKWELL C MAXIMUM |
| NUT STYLE | A294 HEXAGON |

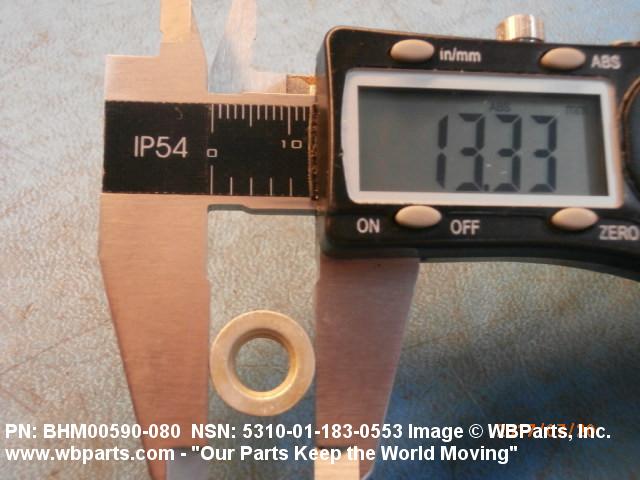

| WASHER OUTSIDE DIAMETER | 12.73 MILLIMETERS MAXIMUM |

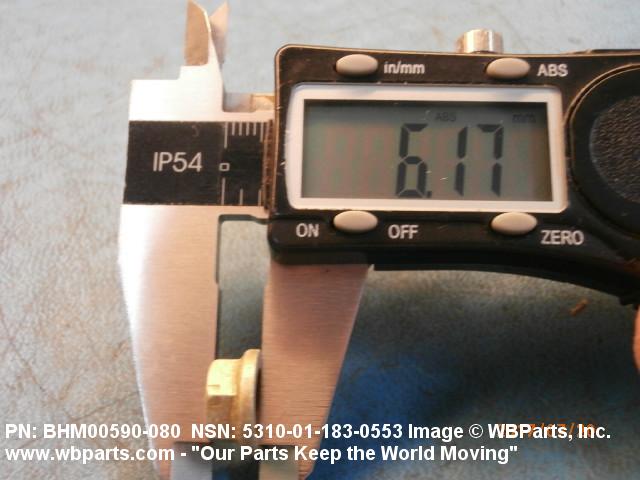

| OVERALL HEIGHT | 6.35 MILLIMETERS MAXIMUM |
| WASHER THICKNESS | 1.49 MILLIMETERS MAXIMUM |

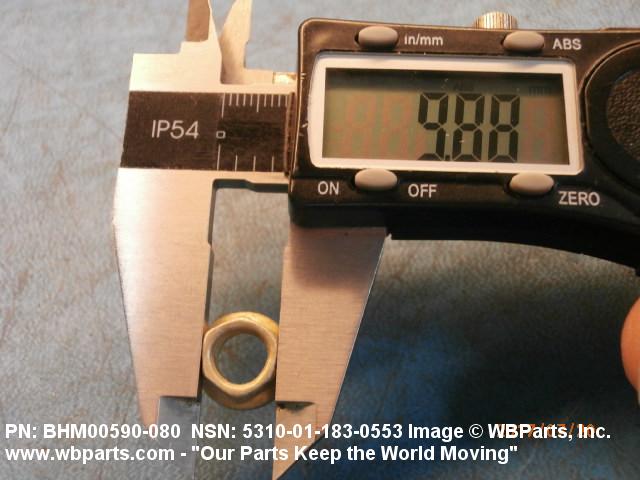

| WIDTH ACROSS FLATS | 10.0 MILLIMETERS MAXIMUM |
| TEMP RATING | NOT RATED |
Restrictions/Controls & Freight Information | NSN 5310-01-183-0553
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 093470 | BOLTS/NUTS I/S |
| Less than car load rating | Q | 70 |
| Less than truck load rating | Q | 70.0 |
| Water commodity Code | 573 | unknown |
| Originating Activity Code | BF | U.S. Army Armament and Chemical Acquisition and Logistics Activity Rock Island, IL 61299-6000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5310-01-183-0553
Army| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | T | Industrial Supplies (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative | Purchasing | QTY UOM |
Q EA : Each |
