NSN 5310-01-202-2694 M45938/3-8C, M4593838C, MIL-N-45938/3
Product Details | CLINCH PLAIN NUT
5310-01-202-2694 A nut having a sleeve portion on its under side, which can be crimped or clinched to hold the item in place when inserted in a hole.
Part Alternates: M45938/3-8C, M4593838C, MIL-N-45938/3, MILN459383, 5310-01-202-2694, 01-202-2694, 5310012022694, 012022694
Hardware and Abrasives | Nuts and Washers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 28 FEB 1985 | 01-202-2694 | 01860 ( NUT, PLAIN, CLINCH ) |

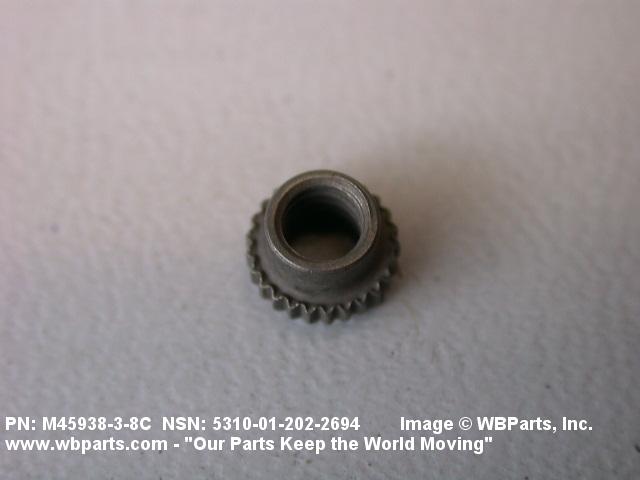

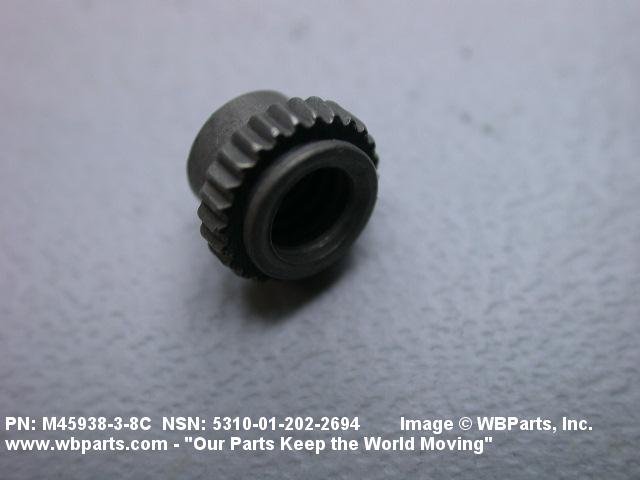

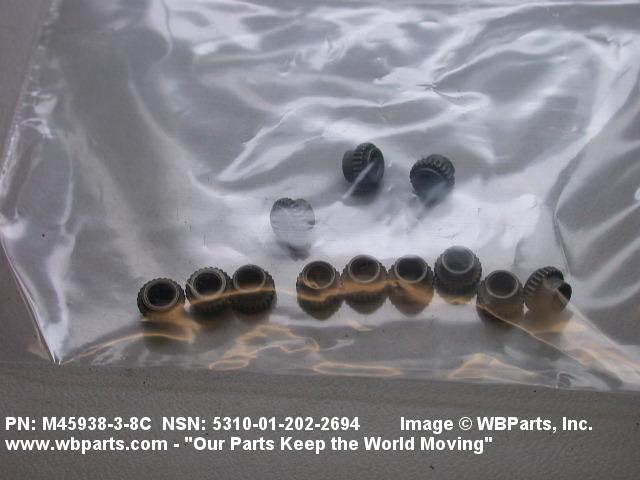

Drawings & Photos | NSN 5310-01-202-2694
Demand History | NSN 5310-01-202-2694
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5310-01-202-2694 | 2021-02-54 | 50 | United States |
| MILN459383 | 2010-04-118 | 130 | US |
| M4593838C | 2009-12-337 | 620 | Australia |
| M4593838C | 2008-12-357 | 400 | US |
| M4593838C | 2007-06-181 | 12 | United States |
| M4593838C | 2007-06-171 | 150 | United States |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5310-01-202-2694
Technical Data | NSN 5310-01-202-2694
| Characteristic | Specifications |
|---|---|
| THREAD SERIES | UNJC |
| NOMINAL THREAD SIZE | 0.164 INCHES |
| THREAD QUANTITY PER INCH | 32 |
| THREAD CLASS | 3B |
| THREAD DIRECTION | RIGHT-HAND |
| MATERIAL | IRON ALLOY 660 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | AMS 5734 ASSN STD SINGLE MATERIAL RESPONSE OVERALL |
| HARDNESS RATING | NOT RATED |
| NUT STYLE | A64 CLINCH |
| PILOT DIAMETER | 0.213 INCHES MINIMUM AND 0.218 INCHES MAXIMUM |
| PILOT LENGTH | 0.083 INCHES MINIMUM AND 0.093 INCHES MAXIMUM |
| NUT DIAMETER | 0.265 INCHES MINIMUM AND 0.295 INCHES MAXIMUM |
| NUT HEIGHT | 0.173 INCHES MINIMUM AND 0.203 INCHES MAXIMUM |
| TEMP RATING | 600.0 DEG FAHRENHEIT NOMINAL |
| SPECIFICATION/STANDARD DATA | 81349-MIL-N-45938/3 GOVERNMENT SPECIFICATION |
| MANUFACTURERS CODE | 81349 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MIL-N-45938/3 |
| MANUFACTURERS CODE | 81349 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | M45938/3-8C |
Restrictions/Controls & Freight Information | NSN 5310-01-202-2694
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 093486 | BOLTS,NUTS OR SCREWS, NOI (SUB 3) |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 573 | unknown |
| Originating Activity Code | KH | Defense Industrial Supply Center Philadelphia, PA 19111 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
