NSN 5310-01-204-3346 10110152 , 4M11603019, 4M116-03019
Product Details | FLAT WASHER
5310-01-204-3346 A washer having a centrally located hole with a solid or laminated cross-section and two flat parallel bearing surfaces. The hole must be 75 percent or less than the largest dimension and the bearing surface finish is greater than 32 microinch (0.8 micrometer). The thickness cannot exceed 25 percent of the largest outside dimension. When the largest outside dimension is less than 1/4 inch or 6mm, the thickness must be 0.006 inches (0.15mm) or greater and for items 1/4 inch (6mm) or larger, the thickness must be 0.016 inches (0.4mm) or greater. The maximum tolerance is applied to dimensions and used as a determining factor. Items with separable lamination use SHIM. For items fabricated from ceramic or electrically rated materials by specification or industry standards use INSULATOR (1), WASHER. Excludes DISK, VALVE, graphite impregnated and lubricated items.
Part Alternates: 10110152 , 4M11603019, 4M116-03019, 5310-01-204-3346, 01-204-3346, 5310012043346, 012043346
Hardware and Abrasives | Nuts and Washers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 26 MAR 1985 | 01-204-3346 | 13393 ( WASHER, FLAT ) |

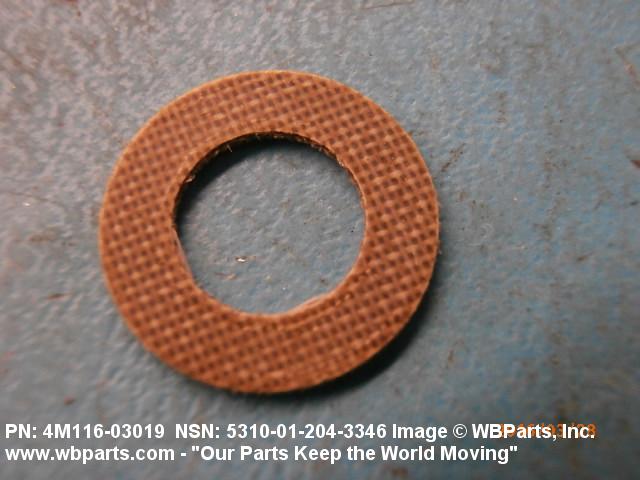

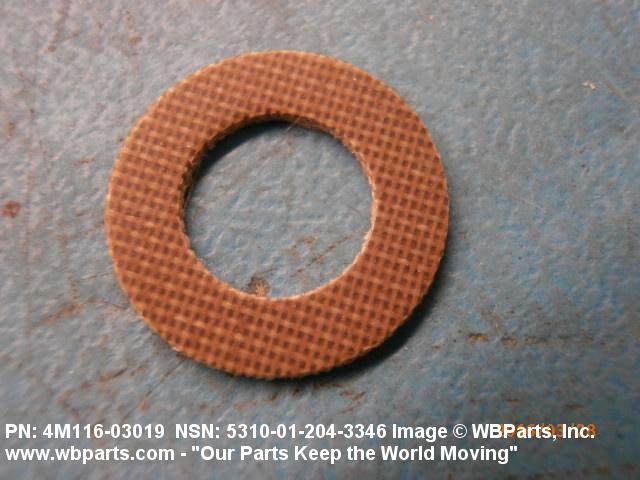

Drawings & Photos | NSN 5310-01-204-3346
Demand History | NSN 5310-01-204-3346
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5310-01-204-3346 | 2016-09-249 | 1298 | DIBBS |
| 5310-01-204-3346 | 2016-03-68 | 10 | United States |
| 5310-01-204-3346 | 2015-10-277 | 2174 | DIBBS |
| 5310-01-204-3346 | 2015-08-243 | 2174 | DIBBS |
| 5310-01-204-3346 | 2015-08-232 | 2174 | DIBBS |
Cross Reference | NSN 5310-01-204-3346
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 4M116-03019 | 03033 | PLASTIFAB INCORPORATED |
| 4M116-03019 | 10630 | ANILLO INDUSTRIES, INC. DBA ANILLO INDUSTRIES |
| 4M116-03019 | 18986 | JETRON INC |
| 4M116-03019 | 21215 | AERO-PLASTICS, INC. |
| 4M116-03019 | 3E613 | K & L PRECISION PLASTICS INC |
| 4M116-03019 | 58009 | MOELLER MANUFACTURING & SUPPLY INC. |
| 4M116-03019 | 58870 | PLASTIFAB INC DBA PLASTIFAB/LEED PLASTICS |
| 4M116-03019 | 5N319 | INDIANA AIRCRAFT HARDWARE INC |
| 4M116-03019 | 76301 | BOEING COMPANY, THE DBA BOEING |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5310-01-204-3346
Technical Data | NSN 5310-01-204-3346
| Characteristic | Specifications |
|---|---|
| MATERIAL | PLASTIC TETRAFLUOROETHYLENE OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | OAK M651/3-31,FSCM 07512 MFR REF SINGLE MATERIAL RESPONSE OVERALL |

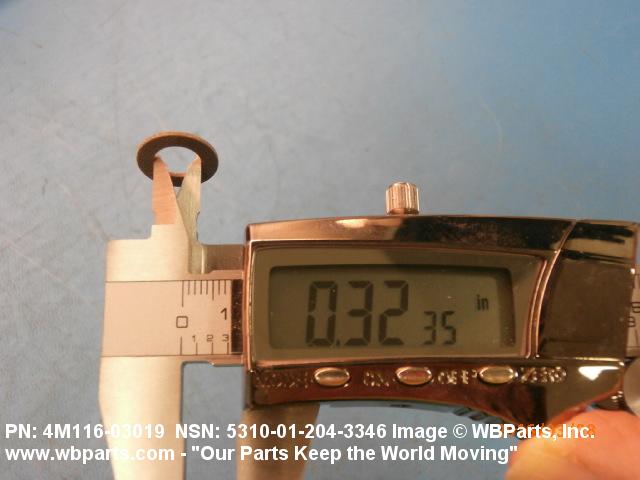

| HOLE DIAMETER | 0.318 INCHES MINIMUM AND 0.338 INCHES MAXIMUM |
| PERIPHERAL SHAPE STYLE | 1 ROUND |

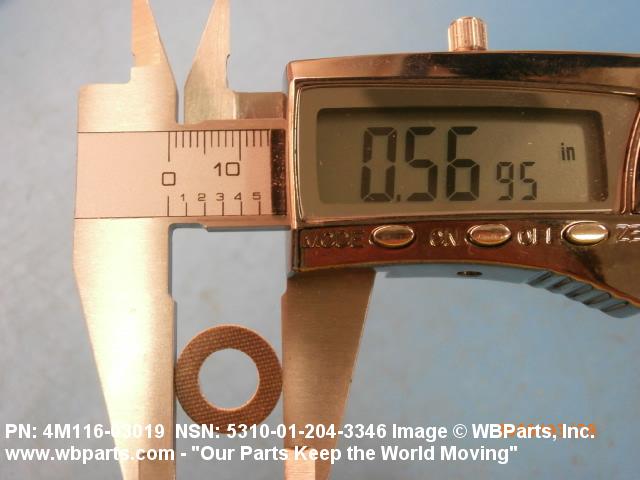

| OVERALL DIAMETER | 0.552 INCHES MINIMUM AND 0.582 INCHES MAXIMUM |
| CENTER HOLE SHAPE STYLE | 1 ROUND |
| CROSS-SECTIONAL SHAPE STYLE | 1 RECTANGULAR |

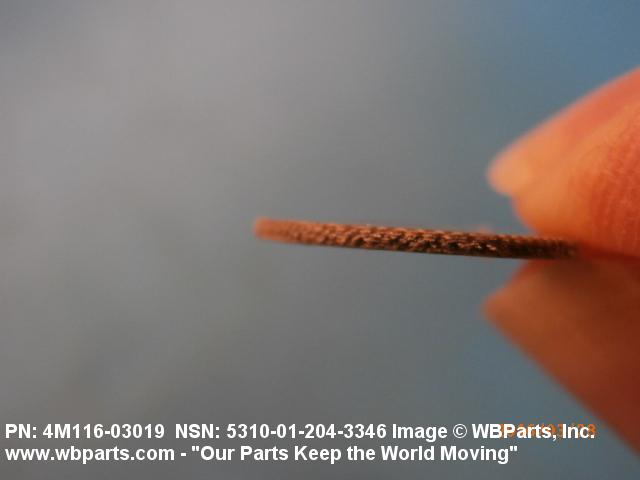

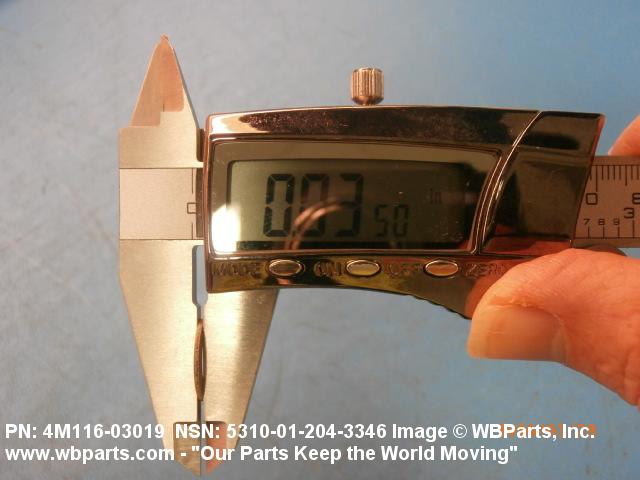

| THICKNESS | 0.031 INCHES NOMINAL |
Restrictions/Controls & Freight Information | NSN 5310-01-204-3346
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 194120 | WASHERS/GASKETS/PCKG DVCS NOI |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 772 | unknown |
| Originating Activity Code | KZ | Defense Supply Center Philadelphia Philadelphia, PA 19101 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5310-01-204-3346
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
