NSN 5310-01-212-4593 MS5186512, MS51865-12, MILN45913
Product Details | CAP SELF-LOCKING NUT
5310-01-212-4593 A nut internally threaded from one end, and completely enclosed on the opposite end. The outer periphery parallel to the threaded axis may be square, cylindrical, hexagonal, octagonal, dodecagonal or the like and taper to a cone or dome shape on the closed end. An integral feature is incorporated for locking on the threads of a mating memeber. Excludes NUT (1), STAMPED.
Part Alternates: MS5186512, MS51865-12, MILN45913, MIL-N-45913, 5310-01-212-4593, 01-212-4593, 5310012124593, 012124593
Hardware and Abrasives | Nuts and Washers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 12 JUL 1985 | 01-212-4593 | 05275 ( NUT, SELF-LOCKING, CAP ) |

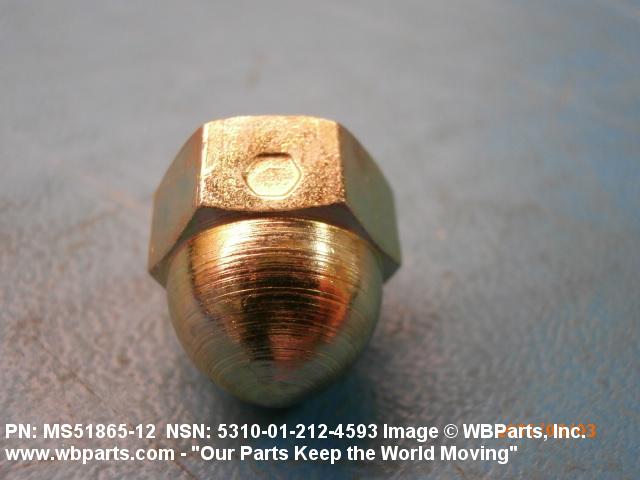

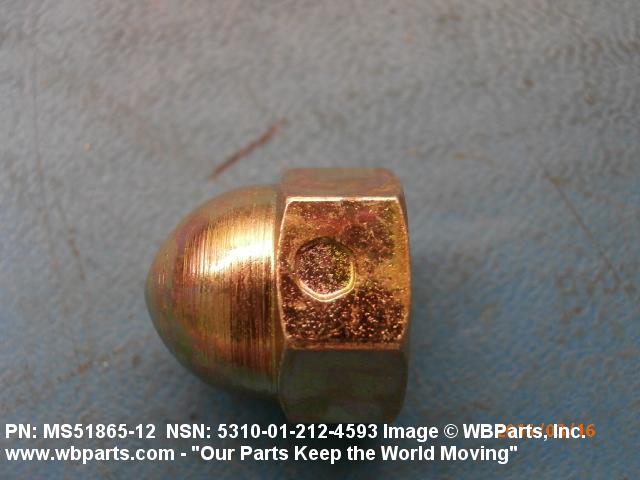

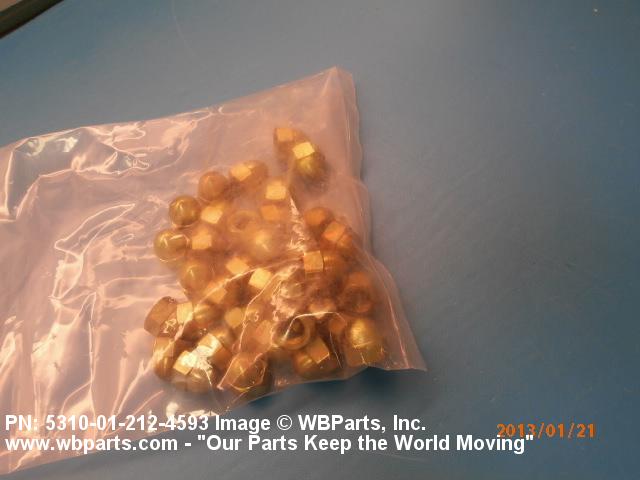

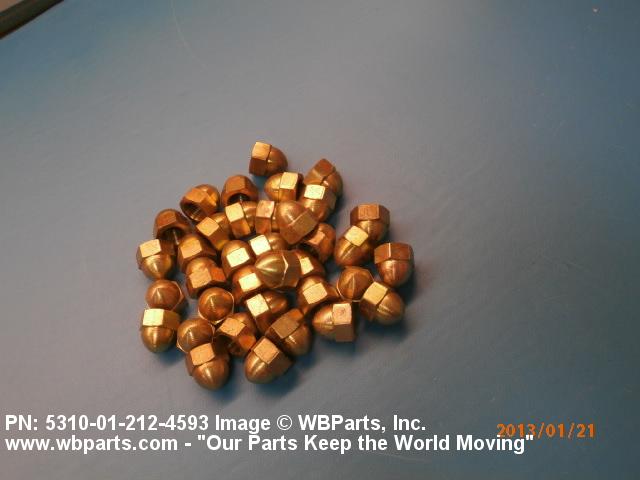

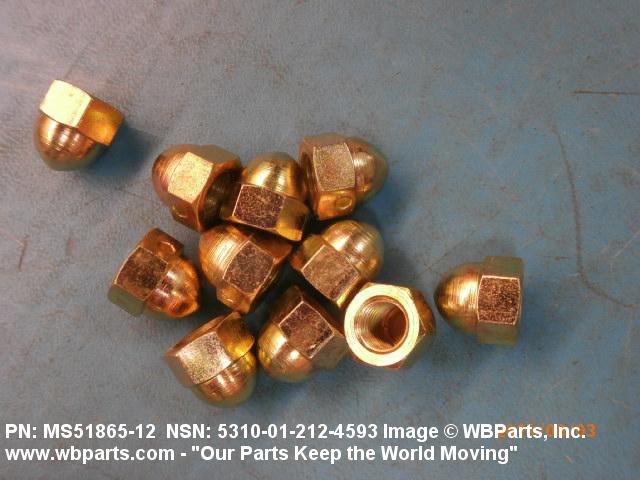

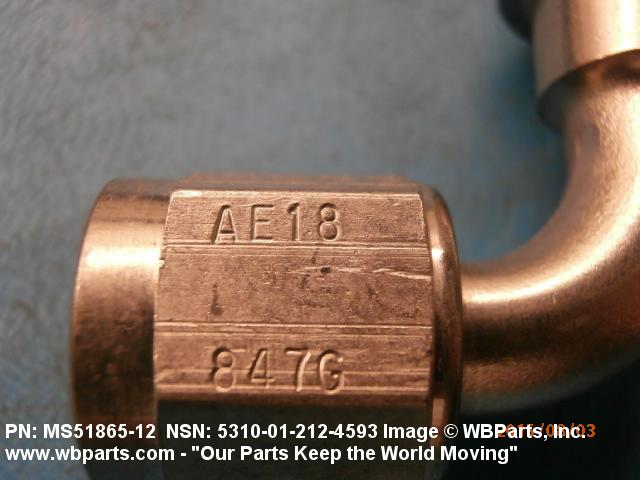

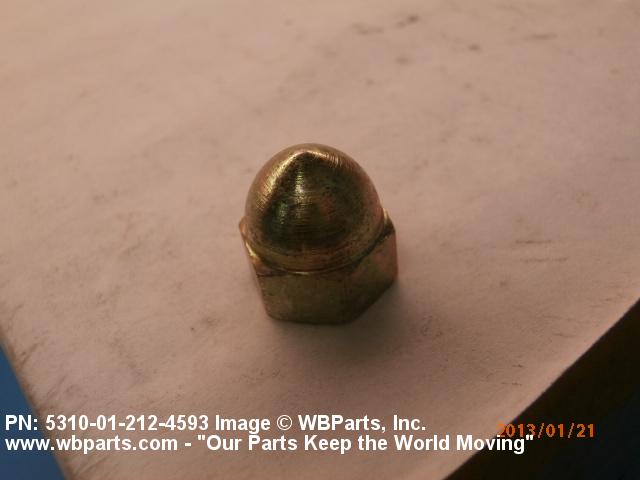

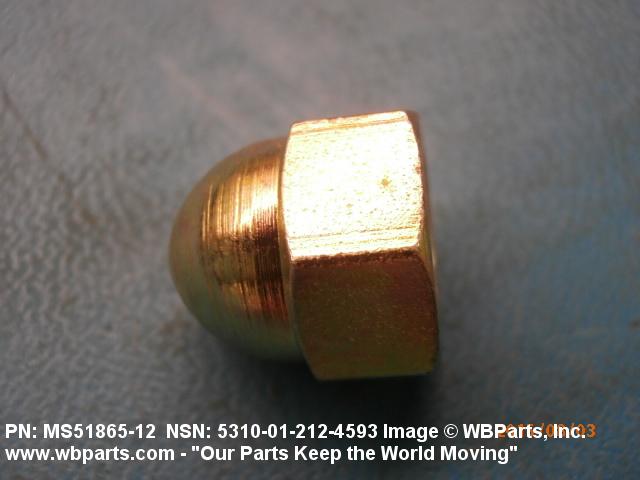

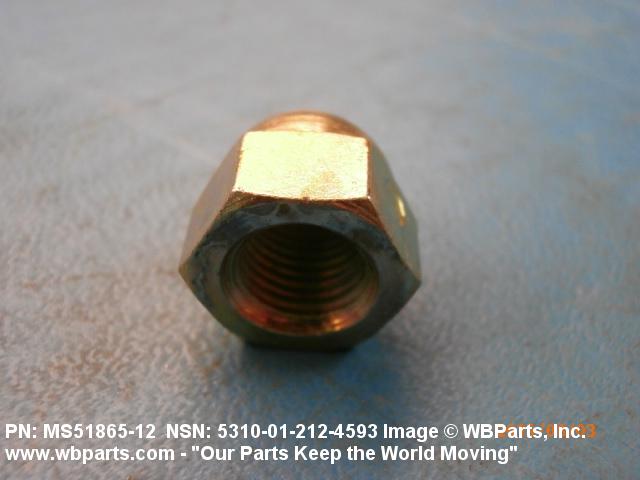

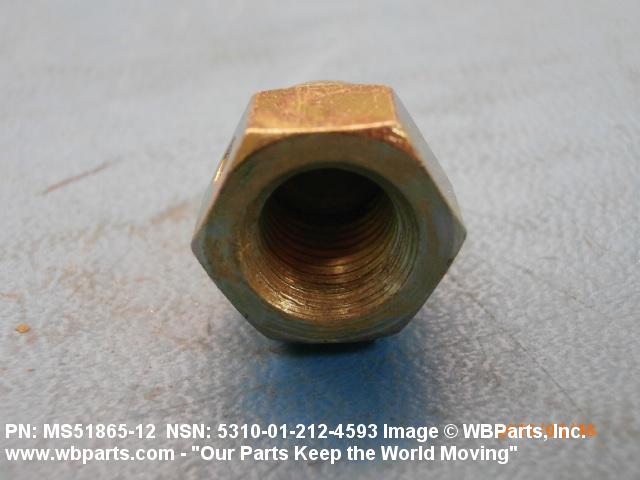

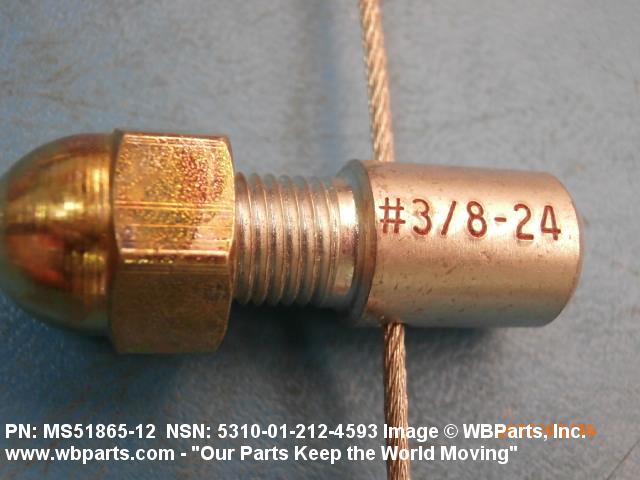

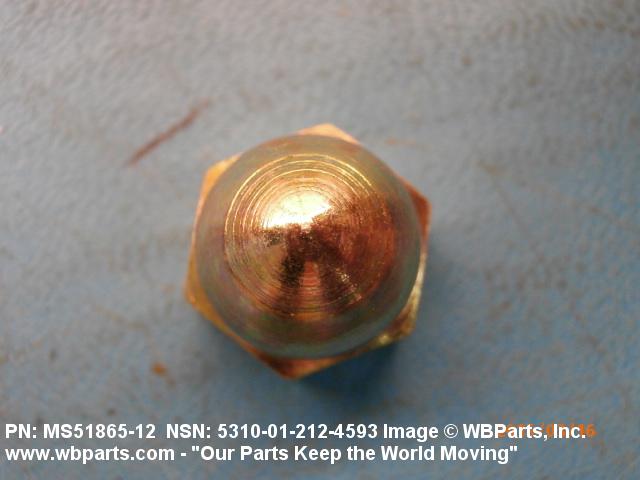

Drawings & Photos | NSN 5310-01-212-4593
Demand History | NSN 5310-01-212-4593
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5310-01-212-4593 | 2018-08-221 | 10 | United States |
| MS5186512 | 2018-03-64 | 150 | us |
| MS5186512 | 2018-03-64 | 1500 | us |
| MS5186512 | 2018-02-46 | 1 | us |
| MS5186512 | 2018-01-12 | 50 | us |
| MS5186512 | 2017-10-276 | 20 | United States |
| MS5186512 | 2017-07-206 | 6 | United States |
| MS5186512 | 2016-10-298 | 20 | United States |
| MS5186512 | 2016-08-235 | 118 | United States |
| MS5186512 | 2015-07-205 | 12 | United States |
| MS5186512 | 2015-07-203 | 21 | United States |
| MS5186512 | 2015-07-203 | 50 | United States |
| MS5186512 | 2015-04-110 | 219 | United States |
| MS5186512 | 2015-02-36 | 50 | United States |
| MS5186512 | 2014-12-356 | 11 | United States |
| MS5186512 | 2013-01-23 | 20 | United States |
| MS5186512 | 2013-01-23 | 50 | United States |
| MS5186512 | 2013-01-23 | 100 | United States |
| MS5186512 | 2012-11-333 | 100 | United States |
| MS5186512 | 2012-10-298 | 100 | United States |
| MS5186512 | 2012-09-255 | 75 | United States |
| MS5186512 | 2012-09-255 | 100 | United States |
| MS5186512 | 2012-09-255 | 200 | United States |
| MS5186512 | 2012-09-255 | 300 | United States |
| MS5186512 | 2012-09-255 | 400 | United States |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5310-01-212-4593
Related Products | NSN 5310-01-212-4593
Technical Data | NSN 5310-01-212-4593
| Characteristic | Specifications |
|---|---|
| THREAD SERIES | UNF |
| NOMINAL THREAD SIZE | 0.375 INCHES |
| THREAD QUANTITY PER INCH | 24 |
| THREAD CLASS | 2B |
| THREAD DIRECTION | RIGHT-HAND |
| MATERIAL | PLASTIC LOCKING INSERT STEEL OVERALL EXCEPT INSERT |
| SURFACE TREATMENT | CADMIUM AND CHROMATE OVERALL EXCEPT INSERT |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-416,TY 2,CL 3 FED SPEC SINGLE TREATMENT RESPONSE OVERALL EXCEPT INSERT |
| HARDNESS RATING | NOT RATED |
| NUT STYLE | A10 CAP |

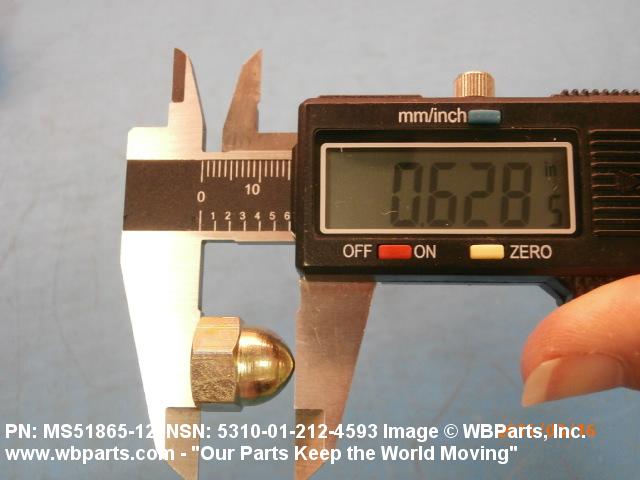

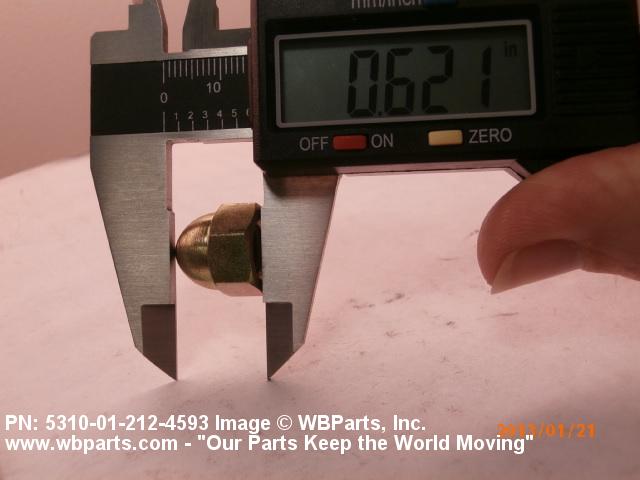

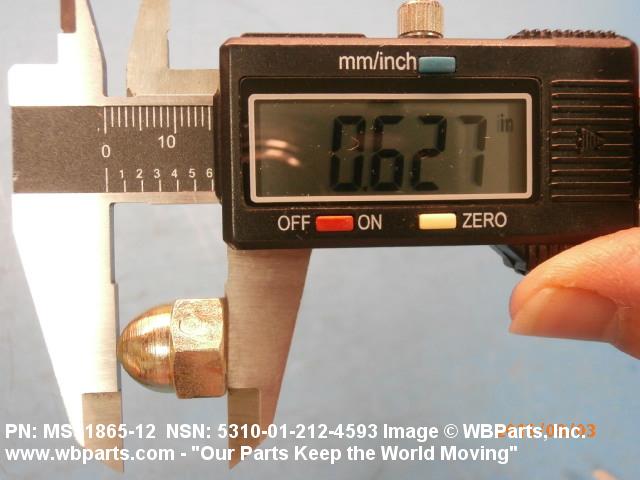

| NUT HEIGHT | 0.620 INCHES NOMINAL |

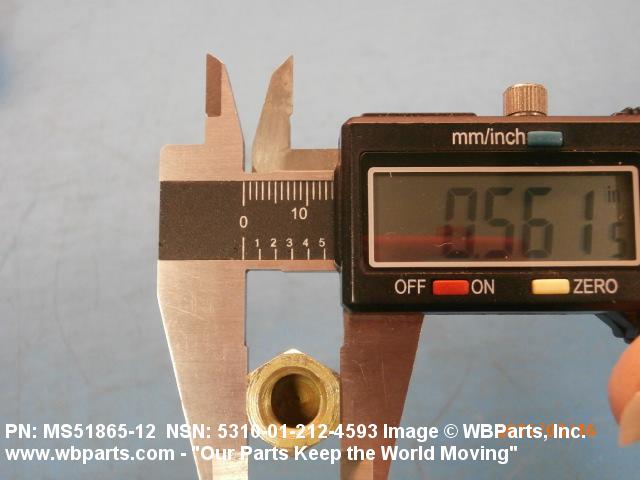

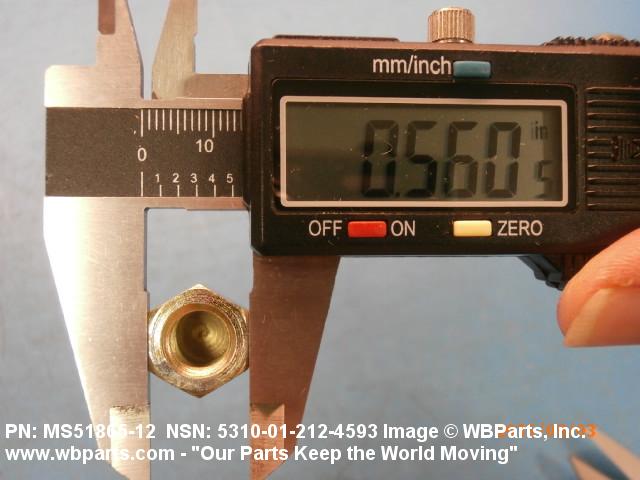

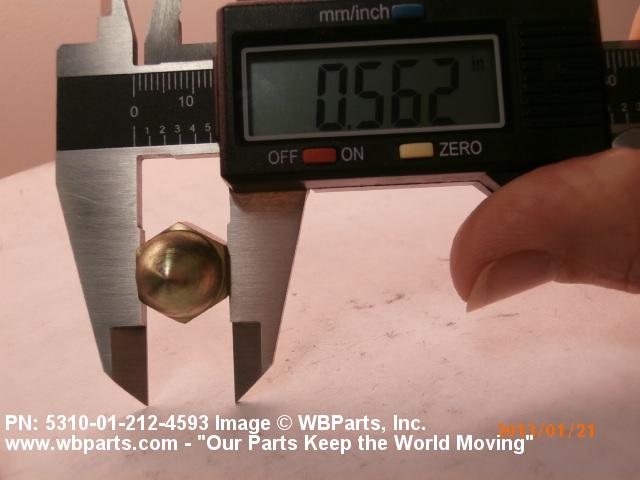

| WIDTH ACROSS FLATS | 0.5510 INCHES MINIMUM AND 0.5625 INCHES MAXIMUM |
| BEARING SURFACE TYPE | CHAMFERED |
| LOCKING FEATURE | PREVAILING TORQUE WITH NONMETALLIC INSERT OR PREVAILING TORQUE ALL METAL DESIGN |
| LUBRICATION | DRY FILM LUBRICANT |
| TEMP RATING | 250.0 DEG FAHRENHEIT NOMINAL |
| III BEARING SURFACE FINISH | 110.0 MICROINCHES |
| MANUFACTURERS CODE | 81349 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MIL-N-45913 |
| MANUFACTURERS CODE | 96906 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MS51865-12 |
Restrictions/Controls & Freight Information | NSN 5310-01-212-4593
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 093486 | BOLTS,NUTS OR SCREWS, NOI (SUB 3) |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 573 | unknown |
| Originating Activity Code | KH | Defense Industrial Supply Center Philadelphia, PA 19111 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5310-01-212-4593
Army| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | T | Industrial Supplies (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
M EA : Each |
