NSN 5310-01-241-7209 MS936418, MS9364-18, 01-241-7209
Product Details | HEXAGON SLOTTED PLAIN NUT

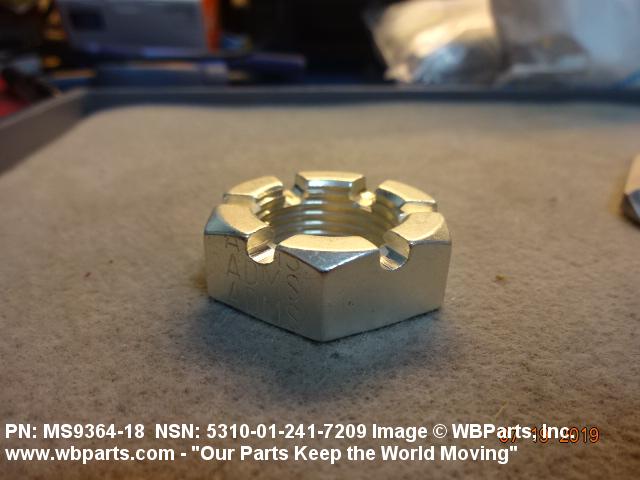

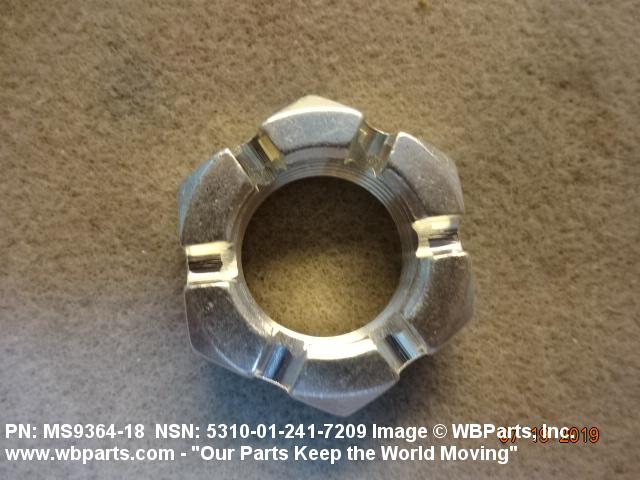

5310-01-241-7209 A nut having a flat bearing surface and 6 flat sides with slots in its upper portion. It is designed to provide positive locking when used with a solid or split (cotter) pin. Excludes NUT (1), PLAIN, CASTELLATED, HEXAGON.
Part Alternates: MS936418, MS9364-18, 5310-01-241-7209, 01-241-7209, 5310012417209, 012417209
Hardware and Abrasives | Nuts and Washers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 OCT 1986 | 01-241-7209 | 01859 ( NUT, PLAIN, SLOTTED, HEXAGON ) |
Drawings & Photos | NSN 5310-01-241-7209
Demand History | NSN 5310-01-241-7209
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| MS936418 | 2019-07-183 | 36 | United States |
| MS936418 | 2019-05-122 | 12 | United States |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5310-01-241-7209
Technical Data | NSN 5310-01-241-7209
| Characteristic | Specifications |
|---|---|
| THREAD SERIES | UNF |
| NOMINAL THREAD SIZE | 0.875 INCHES |

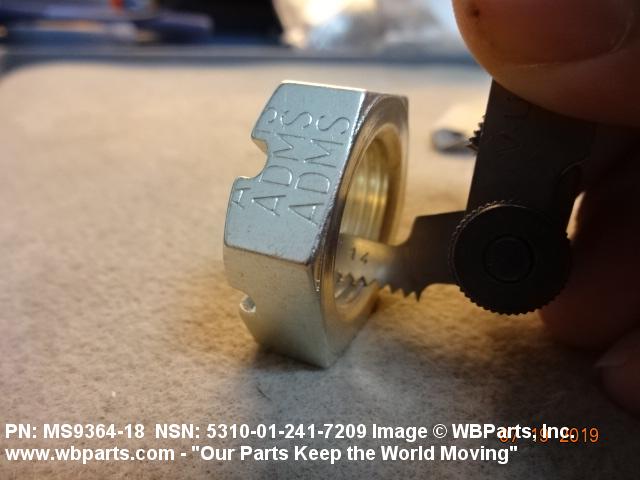

| THREAD QUANTITY PER INCH | 14 |
| THREAD CLASS | 3B |
| THREAD DIRECTION | RIGHT-HAND |
| MATERIAL | STEEL CORROSION RESISTING OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | AMS5735 ASSN STD SINGLE MATERIAL RESPONSE OR AMS5737 ASSN STD SINGLE MATERIAL RESPONSE OVERALL |
| SURFACE TREATMENT | SILVER OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | AMS2410 ASSN STD SINGLE TREATMENT RESPONSE OVERALL |
| HARDNESS RATING | NOT RATED |
| NUT STYLE | A17 SLOTTED, HEXAGON |

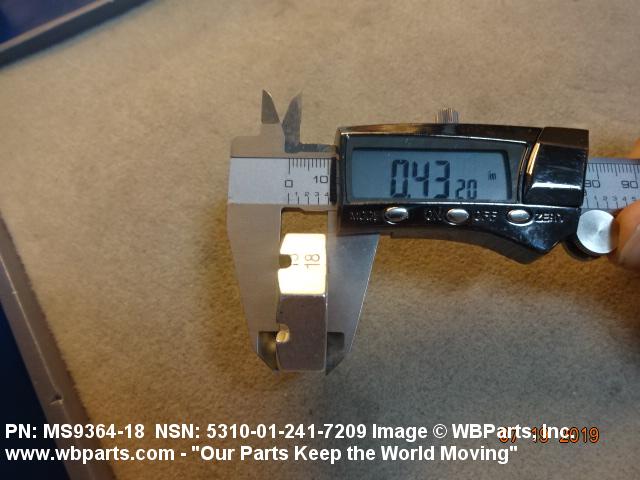

| NUT HEIGHT | 0.438 INCHES NOMINAL |

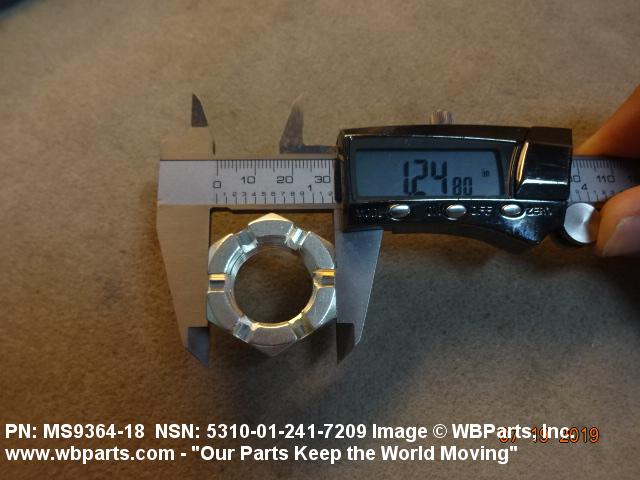

| WIDTH ACROSS FLATS | 1.239 INCHES MINIMUM AND 1.252 INCHES MAXIMUM |
| BEARING SURFACE TYPE | WASHER FACED |
| COUNTERSINK ANGLE | 90.0 DEGREES NOMINAL NUT |
| TEMP RATING | NOT RATED |
| III PRECIOUS MATERIAL | SILVER |
Restrictions/Controls & Freight Information | NSN 5310-01-241-7209
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | S | Item contains silver |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
