NSN 5310-01-294-5981 H111F4B65200M, H111F4B65-200M, 5262699001
Product Details | BLIND RIVET SELF-LOCKING NUT
5310-01-294-5981 A metallic headed fastener having internal threads for a portion of the full length. It may have a smooth, hexagon or splined shank with an open or closed end. It is designed to be expanded tightly against the material it is being installed in by means of a special tool. The item must have a specified grip range. The grip range is the thickness of the material the item is being installed in. An integral feature is incorporated for locking on the threads of a mating member.
Part Alternates: H111F4B65200M, H111F4B65-200M, 5262699001, 5262699-001, 5310-01-294-5981, 01-294-5981, 5310012945981, 012945981
Hardware and Abrasives | Nuts and Washers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 18 FEB 1989 | 01-294-5981 | 29724 ( NUT, SELF-LOCKING, BLIND RIVET ) |

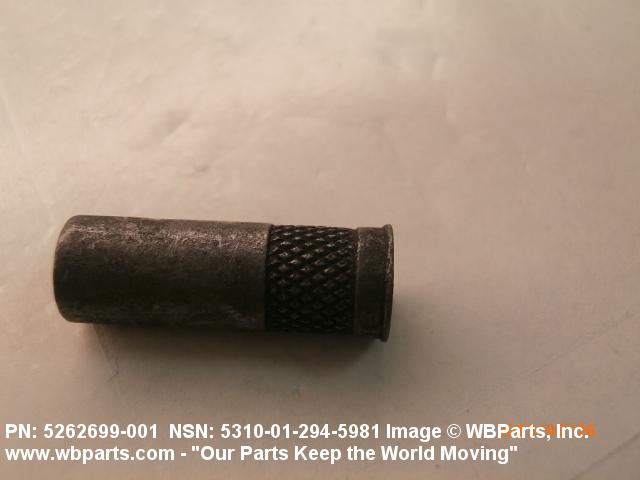

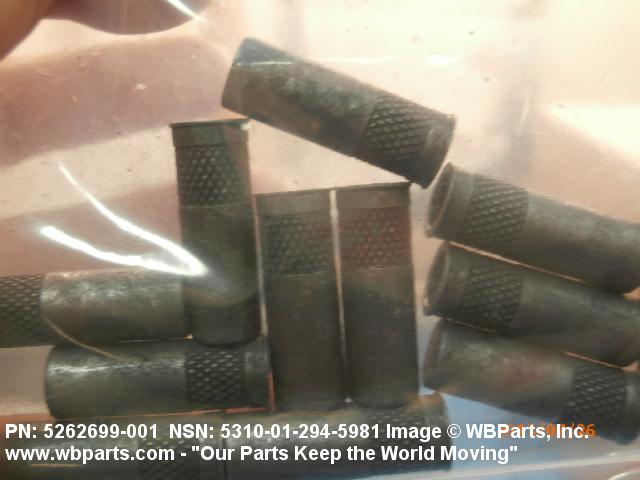

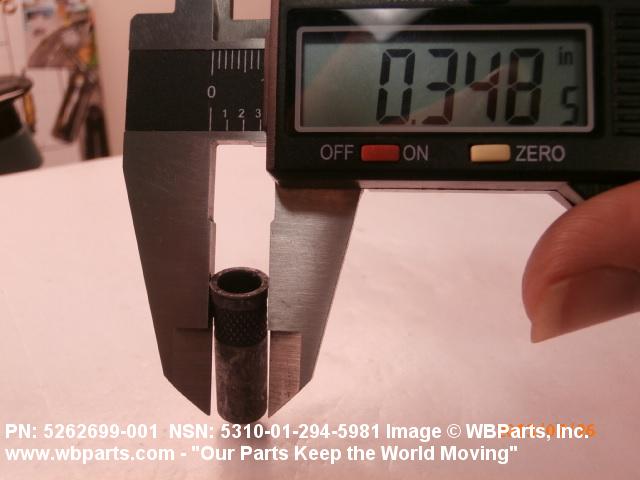

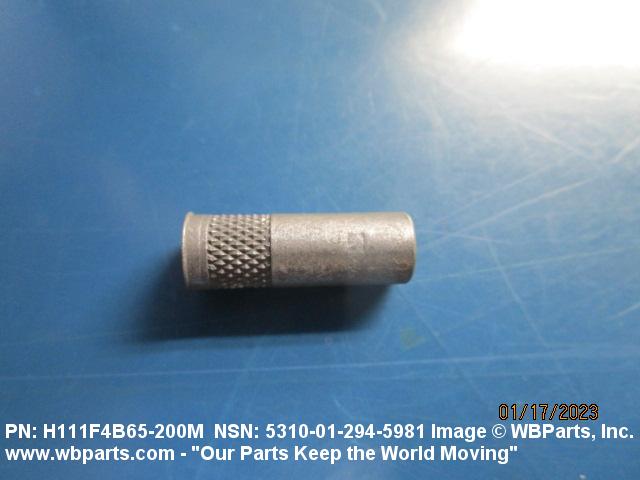

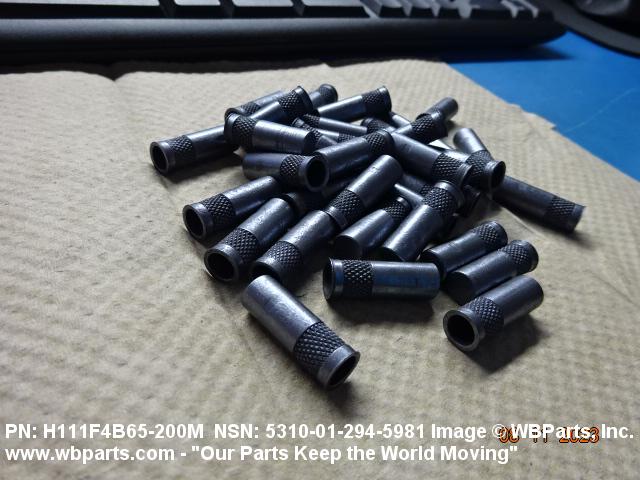

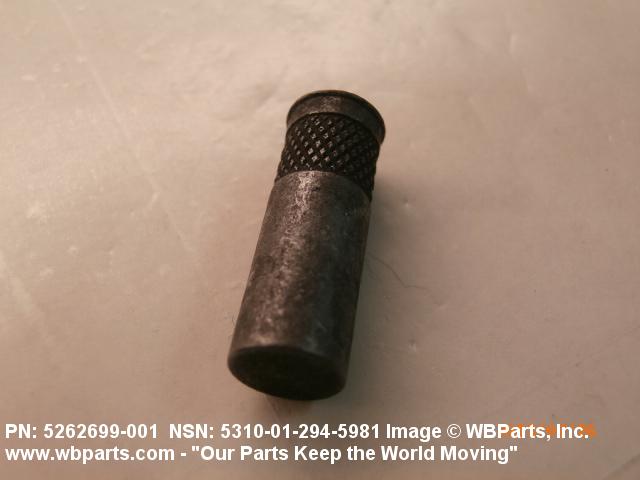

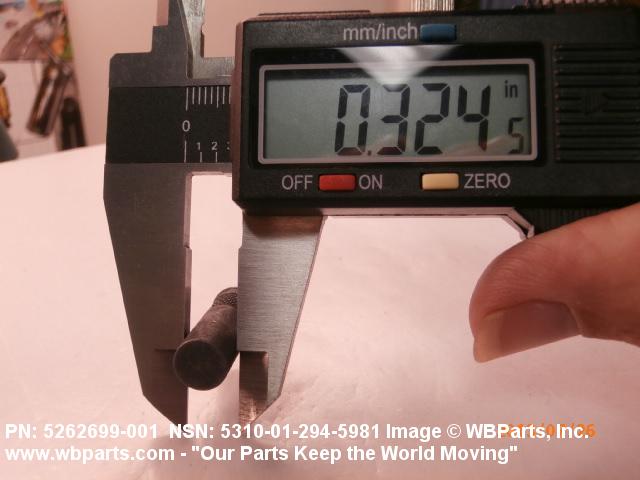

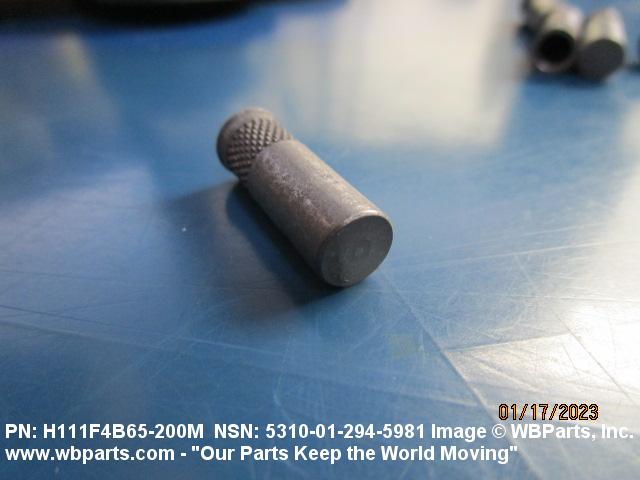

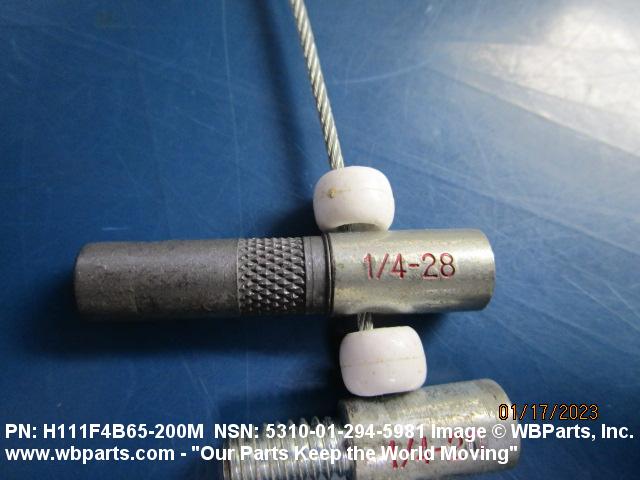

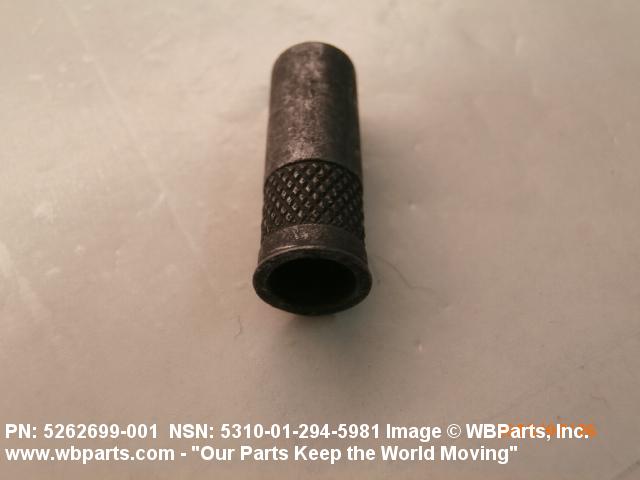

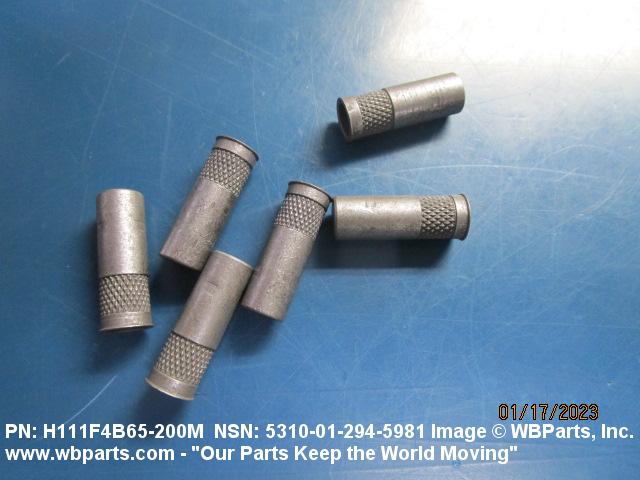

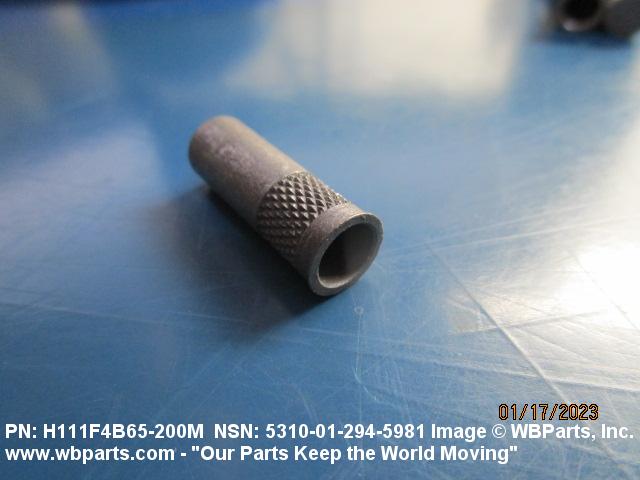

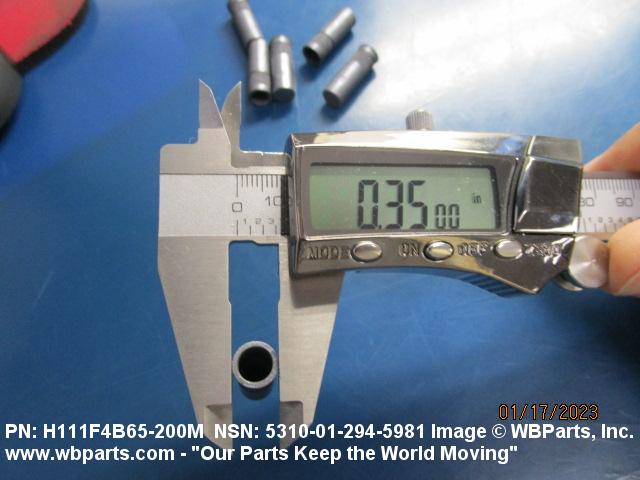

Drawings & Photos | NSN 5310-01-294-5981
Demand History | NSN 5310-01-294-5981
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| H111F4B65-200M | 2025-09-251 | 7 | DIBBS |
| H111F4B65200M | 2025-08-233 | 50 | US |
| H111F4B65200M | 2025-08-233 | 100 | US |
| H111F4B65200M | 2025-08-224 | 425 | United States |
| H111F4B65-200M | 2025-08-224 | 7 | DIBBS |
| H111F4B65-200M | 2025-08-217 | 1 | DIBBS |
| H111F4B65-200M | 2025-07-188 | 1 | DIBBS |
| H111F4B65-200M | 2025-05-127 | 3 | DIBBS |
| H111F4B65-200M | 2025-04-96 | 1 | DIBBS |
| 5310-01-294-5981 | 2023-01-19 | 650 | United States |
| 5310-01-294-5981 | 2022-10-298 | 150 | United States |
| 5262699001 | 2019-03-77 | 50 | United Kingdom |
| 5262699001 | 2017-05-131 | 5 | United Kingdom |
| H111F4B65200M | 2015-01-21 | 20 | United Kingdom |
| 5262699001 | 2013-07-190 | 12 | United Kingdom |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5310-01-294-5981
Related Products | NSN 5310-01-294-5981
Technical Data | NSN 5310-01-294-5981
| Characteristic | Specifications |
|---|---|
| THREAD SERIES | UNJF |
| NOMINAL THREAD SIZE | 0.250 INCHES |
| THREAD QUANTITY PER INCH | 28 |
| THREAD CLASS | 3B |
| THREAD DIRECTION | RIGHT-HAND |
| MATERIAL | STEEL COMP 303 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | AMS 5630 ASSN STD SINGLE MATERIAL RESPONSE OVERALL |
| SURFACE TREATMENT | PASSIVATE OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-35 FED SPEC SINGLE TREATMENT RESPONSE OVERALL |
| HARDNESS RATING | NOT RATED |
| NUT STYLE | A22 BLIND RIVET W/SMOOTH ROUND SHANK |

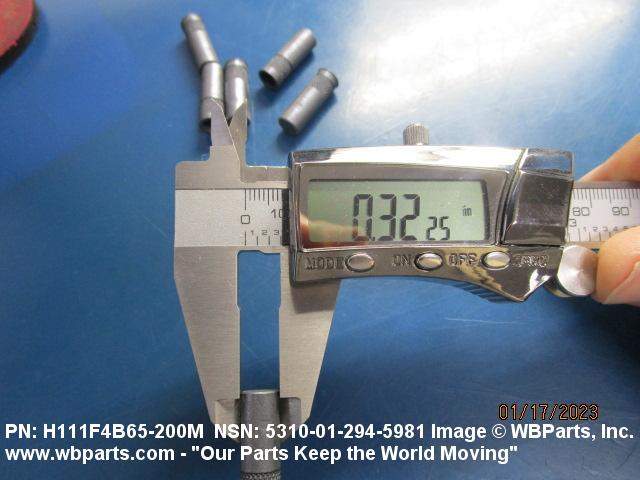

| NUT DIAMETER | 0.326 INCHES MAXIMUM |

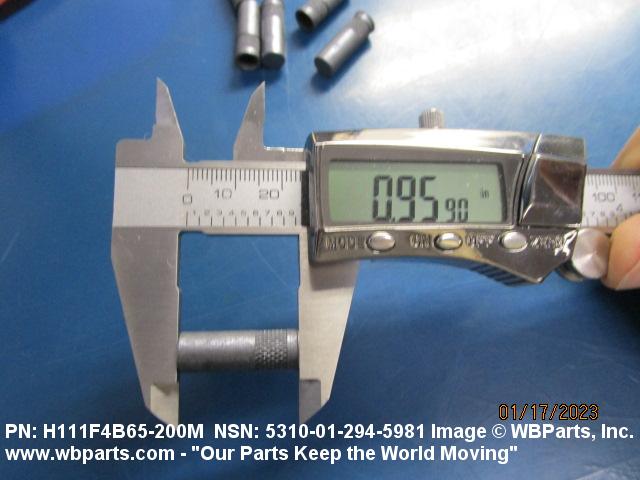

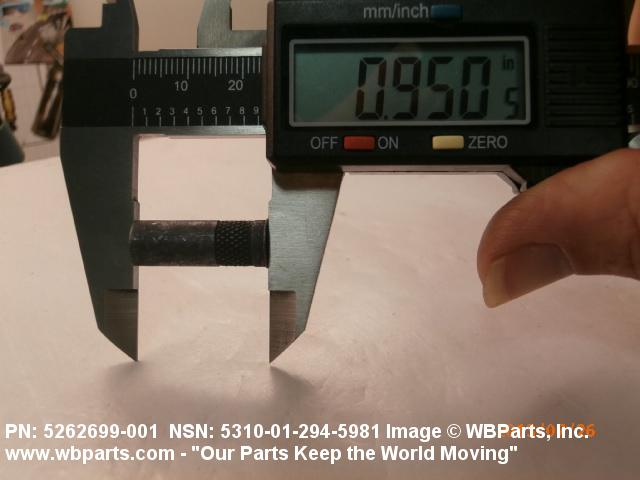

| NUT LENGTH | 0.935 INCHES MINIMUM AND 0.965 INCHES MAXIMUM |
| NUT GRIP RANGE | 0.140 TO 0.200 INCHES |
| LOCKING FEATURE | PREVAILING TORQUE ALL METAL DESIGN |
| NUT COUNTERBORE DEPTH | 0.350 INCHES NOMINAL NUT |
| LUBRICATION | DRY FILM LUBRICANT |
| HEAD STYLE | D11 FLAT COUNTERSUNK |
| HEAD DIAMETER | 0.345 INCHES MINIMUM AND 0.359 INCHES MAXIMUM |
| HEAD COUNTERSINK ANGLE | 100.0 DEGREES NOMINAL |
| SHANK END TYPE | CLOSED |
| TEMP RATING | NOT RATED |

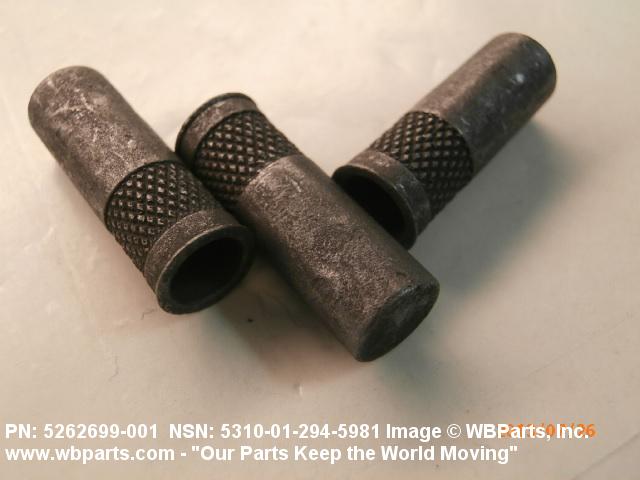

| SPECIAL FEATURES | THREAD LENGTH 0.411 IN.; DIAMOND PATTERN KNURLED SHANK |
Restrictions/Controls & Freight Information | NSN 5310-01-294-5981
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 093486 | BOLTS,NUTS OR SCREWS, NOI (SUB 3) |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 573 | unknown |
| Originating Activity Code | KZ | Defense Supply Center Philadelphia Philadelphia, PA 19101 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5310-01-294-5981
Army
Navy| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | T | Industrial Supplies (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
