NSN 5310-01-296-2880 54976711, 5497671-1, 01-296-2880
Product Details | FLAT WASHER
5310-01-296-2880 A washer having a centrally located hole with a solid or laminated cross-section and two flat parallel bearing surfaces. The hole must be 75 percent or less than the largest dimension and the bearing surface finish is greater than 32 microinch (0.8 micrometer). The thickness cannot exceed 25 percent of the largest outside dimension. When the largest outside dimension is less than 1/4 inch or 6mm, the thickness must be 0.006 inches (0.15mm) or greater and for items 1/4 inch (6mm) or larger, the thickness must be 0.016 inches (0.4mm) or greater. The maximum tolerance is applied to dimensions and used as a determining factor. Items with separable lamination use SHIM. For items fabricated from ceramic or electrically rated materials by specification or industry standards use INSULATOR (1), WASHER. Excludes DISK, VALVE, graphite impregnated and lubricated items.
Part Alternates: 54976711, 5497671-1, 5310-01-296-2880, 01-296-2880, 5310012962880, 012962880
Hardware and Abrasives | Nuts and Washers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 17 MAR 1989 | 01-296-2880 | 13393 ( WASHER, FLAT ) |

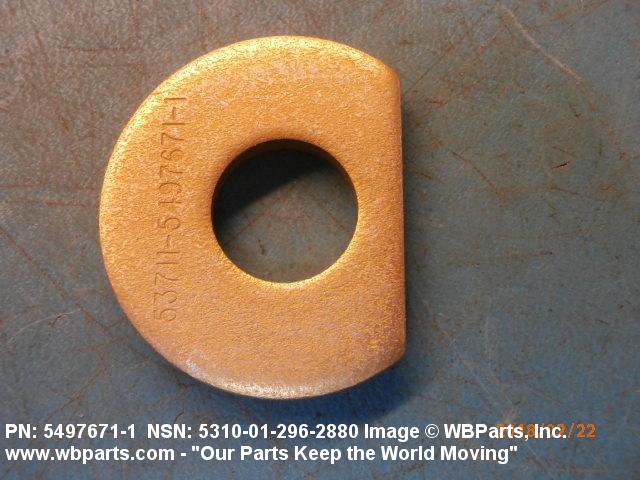

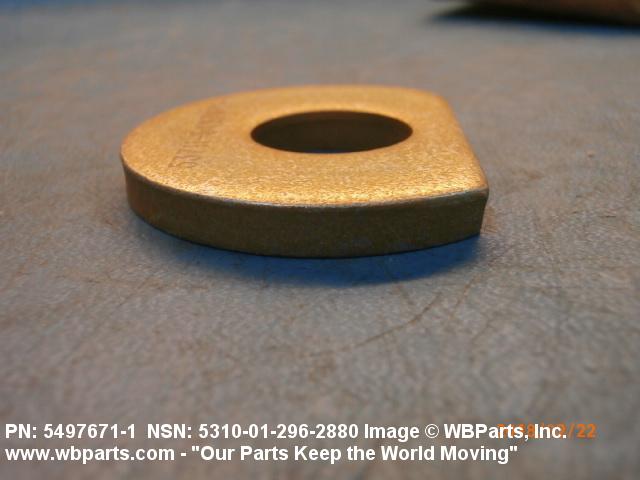

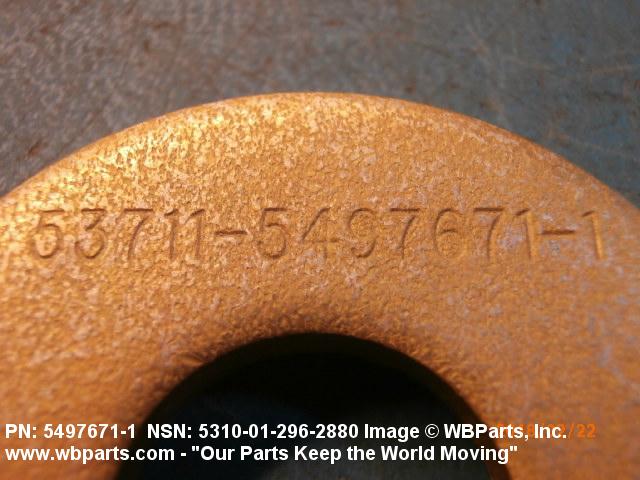

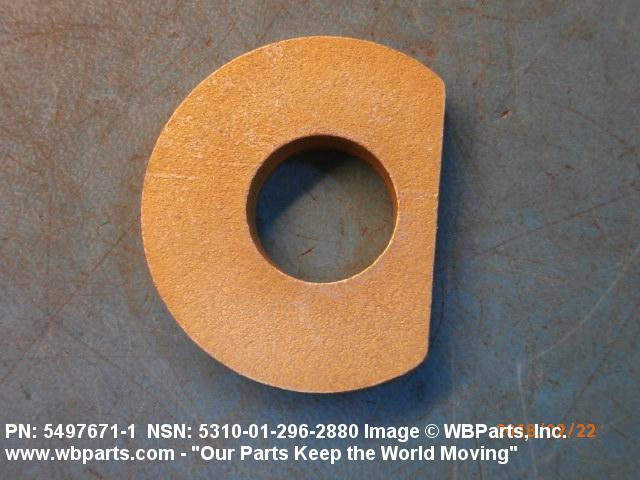

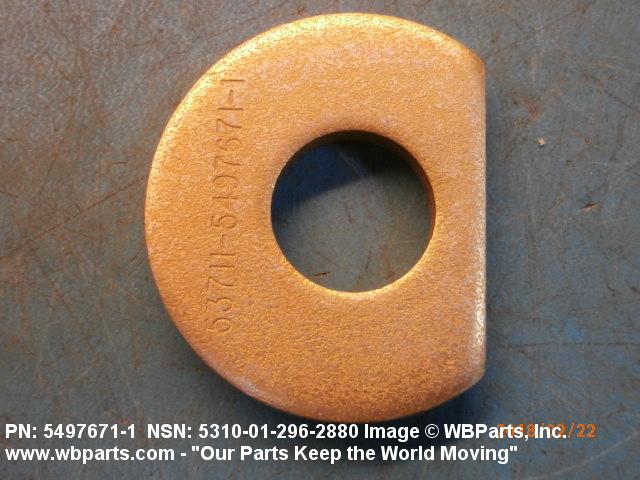

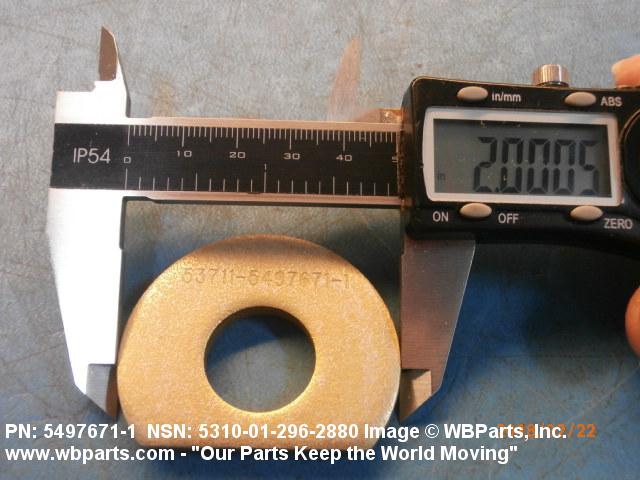

Drawings & Photos | NSN 5310-01-296-2880
Demand History | NSN 5310-01-296-2880
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5497671-1 | 2023-04-101 | 45 | United States |
| 5310-01-296-2880 | 2022-09-261 | 191 | DIBBS |
| 5310-01-296-2880 | 2022-06-158 | 361 | DIBBS |
| 5310-01-296-2880 | 2022-03-75 | 229 | DIBBS |
| 5310-01-296-2880 | 2021-08-220 | 37 | DIBBS |
| 5310-01-296-2880 | 2018-09-249 | 226 | DIBBS |
| 5310-01-296-2880 | 2018-08-241 | 226 | DIBBS |
| 5310-01-296-2880 | 2018-02-44 | 80 | United States |
| 5310-01-296-2880 | 2018-02-40 | 73 | United States |
| 5310-01-296-2880 | 2018-02-32 | 80 | United States |
| 5310-01-296-2880 | 2014-04-110 | 813 | DIBBS |
| 5310-01-296-2880 | 2014-04-91 | 782 | DIBBS |
| 5310-01-296-2880 | 2013-06-179 | 782 | DIBBS |
| 5310-01-296-2880 | 2012-11-313 | 374 | DIBBS |
| 5310-01-296-2880 | 2012-09-268 | 60 | DIBBS |
| 5310-01-296-2880 | 2012-09-249 | 40 | DIBBS |
| 5310-01-296-2880 | 2012-08-226 | 6 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5310-01-296-2880
Technical Data | NSN 5310-01-296-2880
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL OR STEEL COMP 1026 OR STEEL COMP 1029 OR STEEL COMP 1030 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | ASTM A36 ASSN STD ALL MATERIAL RESPONSES OVERALL |
| SURFACE TREATMENT | CADMIUM AND CHROMATE OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-416,TY 2,CL 2 FED SPEC SINGLE TREATMENT RESPONSE OVERALL |

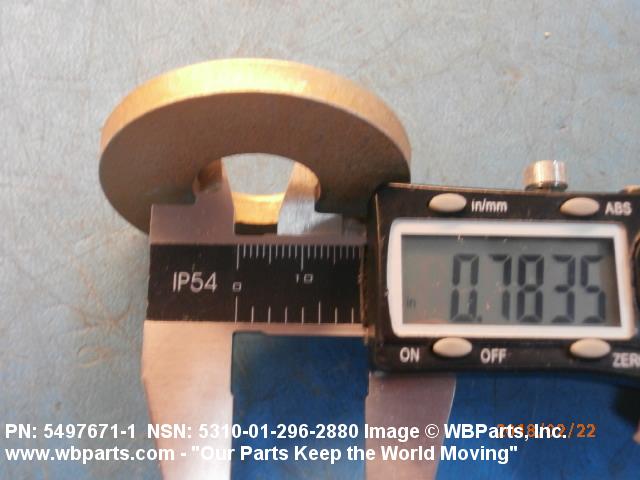

| HOLE DIAMETER | 0.780 INCHES MINIMUM AND 0.789 INCHES MAXIMUM |
| PERIPHERAL SHAPE STYLE | 4 DEE |

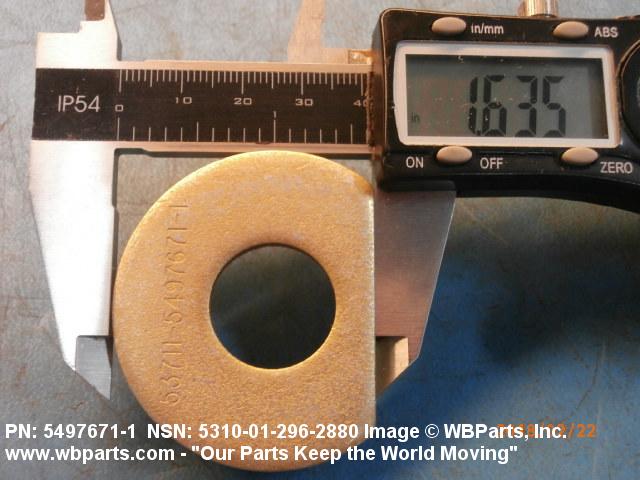

| WIDTH | 1.640 INCHES NOMINAL |
| OVERALL DIAMETER | 2.000 INCHES NOMINAL |
| CENTER HOLE SHAPE STYLE | 1 ROUND |
| CROSS-SECTIONAL SHAPE STYLE | 1 RECTANGULAR |

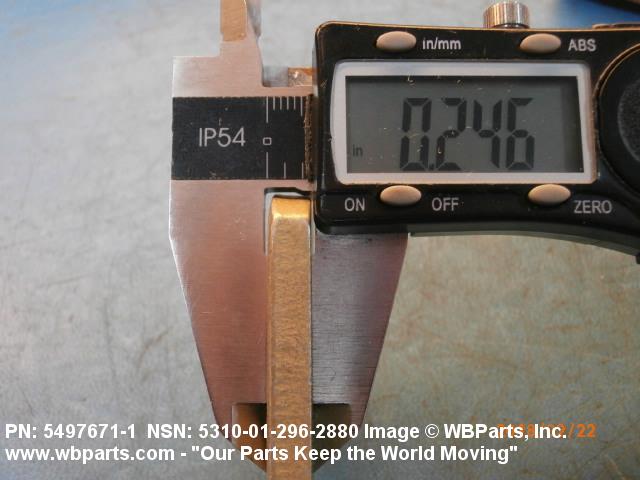

| THICKNESS | 0.250 INCHES NOMINAL |
Restrictions/Controls & Freight Information | NSN 5310-01-296-2880
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 194160 | WASHER OR GASKETS, IRON OR STEEL, |
| Less than car load rating | ||
| Less than truck load rating | U | 50.0 |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | KZ | Defense Supply Center Philadelphia Philadelphia, PA 19101 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5310-01-296-2880
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
