NSN 5310-01-306-2351 MS2468027, MS24680-27, AA5562827
Product Details | CAP PLAIN NUT
5310-01-306-2351 An item internally threaded from one end, and completely inclosed on the opposite end. The outer periphery parallel to the threaded axis may be square, cylindrical, hexagonal, octagonal, or dodecagonal and taper to a cone or dome shape on the closed end. For like items which are stamped or formed from sheet stock, see NUT (1), STAMPED. For similar items which are flat on top and bottom see NUT (1), SLEEVE or POST, ELECTRICAL-MECHANICAL EQUIPMENT.
Part Alternates: MS2468027, MS24680-27, AA5562827, AA55628-27, 8230750007, 82-3075-0007, 5310-01-306-2351, 01-306-2351, 5310013062351, 013062351
Hardware and Abrasives | Nuts and Washers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 19 AUG 1989 | 01-306-2351 | 01855 ( NUT, PLAIN, CAP ) |

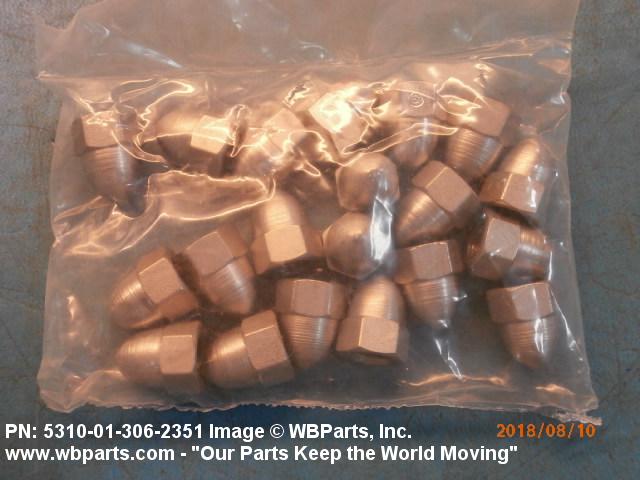

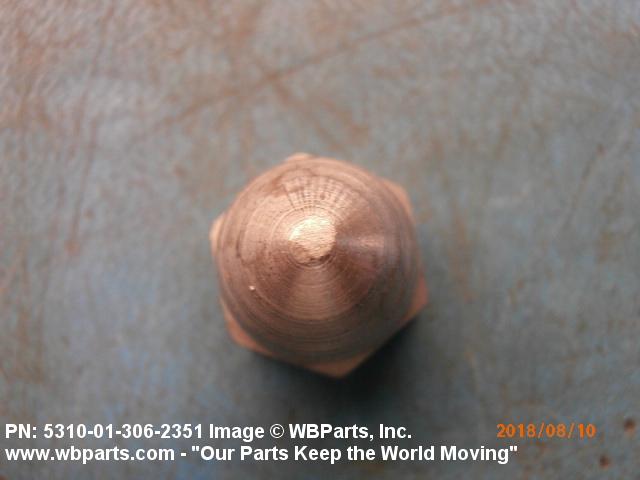

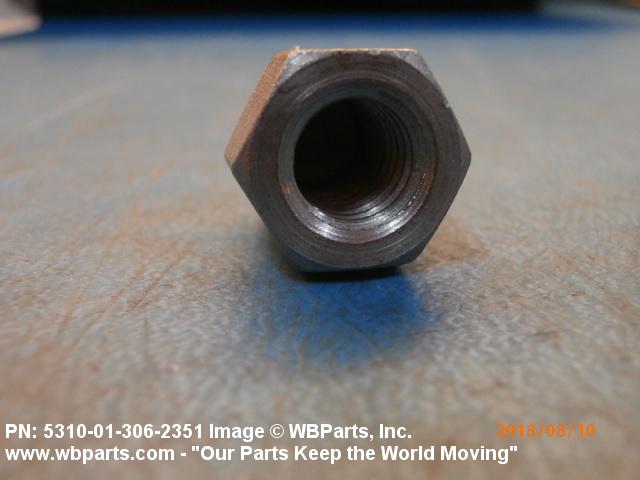

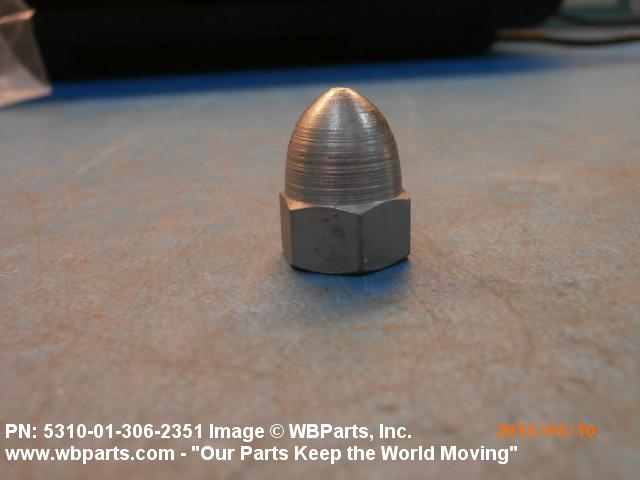

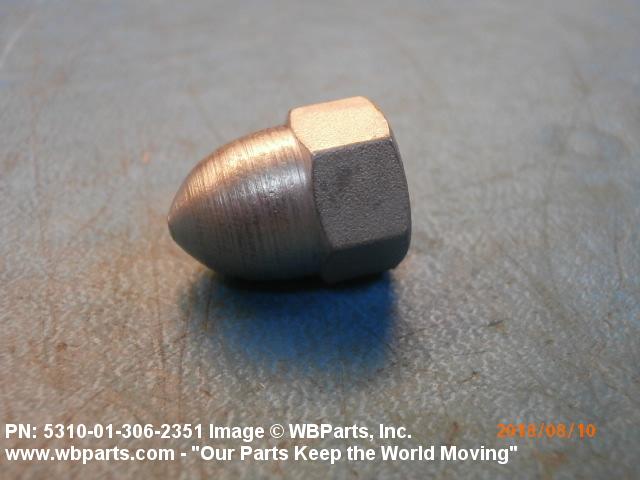

Drawings & Photos | NSN 5310-01-306-2351
Demand History | NSN 5310-01-306-2351
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| AA5562827 | 2020-02-38 | 6 | US |
| 5310-01-306-2351 | 2019-06-158 | 32 | US |
| 5310-01-306-2351 | 2018-07-200 | 20 | us |
| 5310-01-306-2351 | 2016-06-181 | 60 | DIBBS |
| 5310-01-306-2351 | 2015-02-33 | 34 | DIBBS |
| 5310-01-306-2351 | 2014-02-46 | 4 | US |
| MS2468027 | 2011-09-252 | 10 | United States |
| MS2468027 | 2011-09-252 | 10 | United States |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5310-01-306-2351
Related Products | NSN 5310-01-306-2351
Technical Data | NSN 5310-01-306-2351
| Characteristic | Specifications |
|---|---|
| THREAD SERIES | UNC |

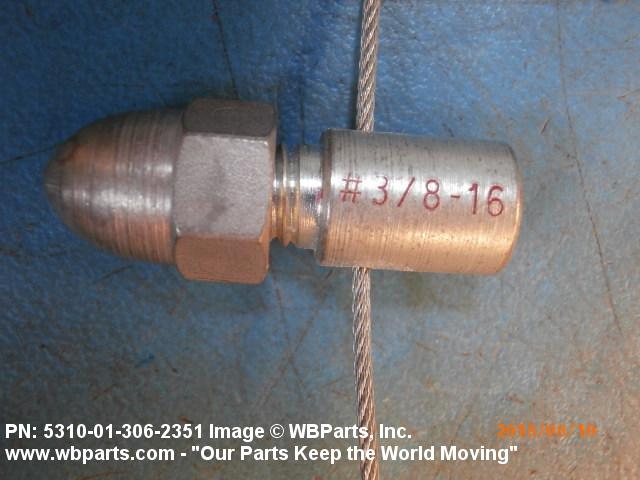

| NOMINAL THREAD SIZE | 0.375 INCHES |
| THREAD QUANTITY PER INCH | 16 |
| THREAD CLASS | 2B |
| THREAD DIRECTION | RIGHT-HAND |
| MATERIAL | STEEL COMP 416 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | 66 FED STD SINGLE MATERIAL RESPONSE OVERALL |
| SURFACE TREATMENT | PASSIVATE OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-35 FED SPEC SINGLE TREATMENT RESPONSE OVERALL |
| HARDNESS RATING | NOT RATED |
| NUT STYLE | A10 CAP |

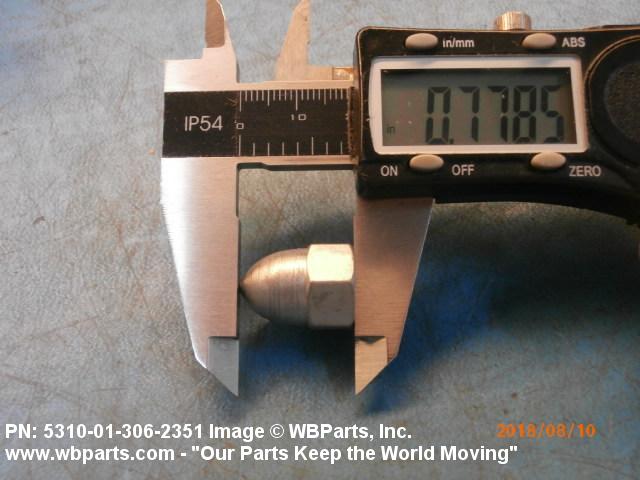

| NUT HEIGHT | 0.780 INCHES NOMINAL |

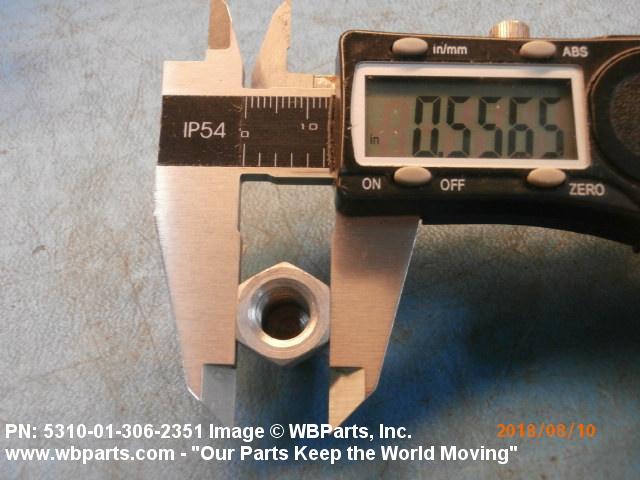

| WIDTH ACROSS FLATS | 0.551 INCHES MINIMUM AND 0.562 INCHES MAXIMUM |
| BEARING SURFACE TYPE | CHAMFERED |
| TEMP RATING | NOT RATED |
| III END ITEM IDENTIFICATION | NSN 4210-01-486-1035 TFFT (TACTICAL FIRE FIGHTING TRUCK) |
| MANUFACTURERS CODE | 58536 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | AA55628-27 |
Restrictions/Controls & Freight Information | NSN 5310-01-306-2351
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 093486 | BOLTS,NUTS OR SCREWS, NOI (SUB 3) |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 573 | unknown |
| Originating Activity Code | KZ | Defense Supply Center Philadelphia Philadelphia, PA 19101 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5310-01-306-2351
Army
Navy| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | T | Industrial Supplies (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
