NSN 5310-01-307-7904 MS1620326, MS16203-26, 01-307-7904
Product Details | HEXAGON PLAIN NUT
5310-01-307-7904 A nut, flat on top and bottom having 6 flat sides. For items which have internal tapered or straight (parallel) pipe threads, specific electrical conduit size designation, and which when installed, provide a method of tightening to lock the connection, see LOCKNUT, ELECTRICAL CONDUIT. See also LOCKNUT, TUBE FITTING. For items having a thickness (or height) exceeding two times the width across the flats, use POST, ELECTRICAL-MECHANICAL EQUIPMENT. (When height or thickness and/or width across the flats is designated as a tolerance dimension, the maximum dimension will be used to determine compliance.
Part Alternates: MS1620326, MS16203-26, 5310-01-307-7904, 01-307-7904, 5310013077904, 013077904
Hardware and Abrasives | Nuts and Washers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 16 SEP 1989 | 01-307-7904 | 01857 ( NUT, PLAIN, HEXAGON ) |

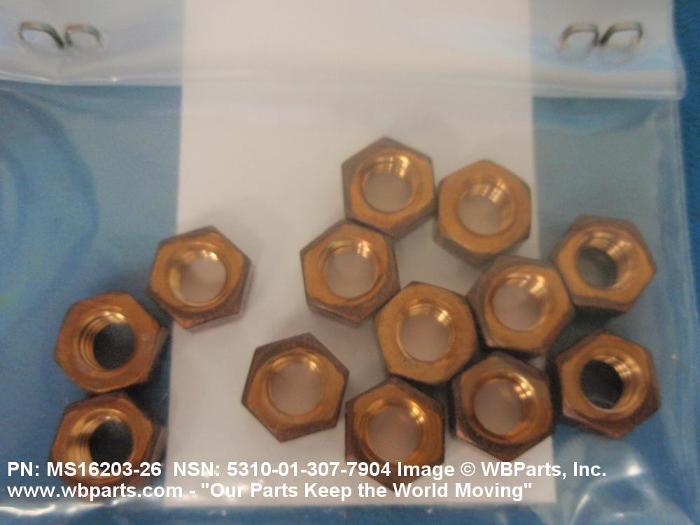

Drawings & Photos | NSN 5310-01-307-7904
Demand History | NSN 5310-01-307-7904
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| MS1620326 | 2017-01-19 | 3 | us |
| 5310-01-307-7904 | 2014-08-224 | 10 | United States |
| MS1620326 | 2012-02-44 | 13 | United States |
| MS1620326 | 2011-04-111 | 13 | United States |
| 5310-01-307-7904 | 2010-06-180 | 12 | US |
Cross Reference | NSN 5310-01-307-7904
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| MS16203-26 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5310-01-307-7904
Technical Data | NSN 5310-01-307-7904
| Characteristic | Specifications |
|---|---|
| THREAD SERIES | UNC |
| NOMINAL THREAD SIZE | 0.3125 INCHES |
| THREAD QUANTITY PER INCH | 18 |
| THREAD CLASS | 2B |
| THREAD DIRECTION | RIGHT-HAND |
| MATERIAL | COPPER ALLOY 651 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | QQ-C-591,NO.651 FED SPEC SINGLE MATERIAL RESPONSE OVERALL |
| HARDNESS RATING | NOT RATED |
| NUT STYLE | A12 HEXAGON |
| NUT HEIGHT | 0.258 INCHES MINIMUM AND 0.273 INCHES MAXIMUM |
| WIDTH ACROSS FLATS | 0.489 INCHES MINIMUM AND 0.500 INCHES MAXIMUM |
| BEARING SURFACE TYPE | FLAT |
| TEMP RATING | NOT RATED |
| SPECIFICATION/STANDARD DATA | 96906-MS16203 GOVERNMENT STANDARD |
| MANUFACTURERS CODE | 96906 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MS16203-26 |
Restrictions/Controls & Freight Information | NSN 5310-01-307-7904
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 093460 | BOLTS/NUTS NOI BBC/ZINC |
| Less than car load rating | ||
| Less than truck load rating | Q | 70.0 |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | ZC | Canada ZD ZE |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5310-01-307-7904
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9Z | Navy-owned stocks of defense industrial material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | S9I | Defense Industrial Supply Center Philadelphia, PA 19111 |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Y | TERMINAL ITEM #(NON-STOCKED ITEMS) Future procurement is not authorized. No wholesale stock is available for issue. 1. Requisitions will not be processed to the wholesale manager. 2. Internal Service/agency requisitioning may be continued in accordance with the Service/agency requisitioning policies. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
