NSN 5310-01-321-8753 MS5184817, MS51848-17, 803-1197260 PC 110
Product Details | LOCK WASHER
5310-01-321-8753 A washer which is usually round with a centrally located hole. Its edges and two bearing surfaces are so designed that applied pressure brings into play the spring tension and/or frictional locking principle which materially resists any tendency toward turning. It may be made of one or two pieces
Part Alternates: MS5184817, MS51848-17, 803-1197260 PC 110 , 8031197260PC110, 5310-01-321-8753, 01-321-8753, 5310013218753, 013218753
Hardware and Abrasives | Nuts and Washers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 25 JUN 1990 | 01-321-8753 | 14218 ( WASHER, LOCK ) |

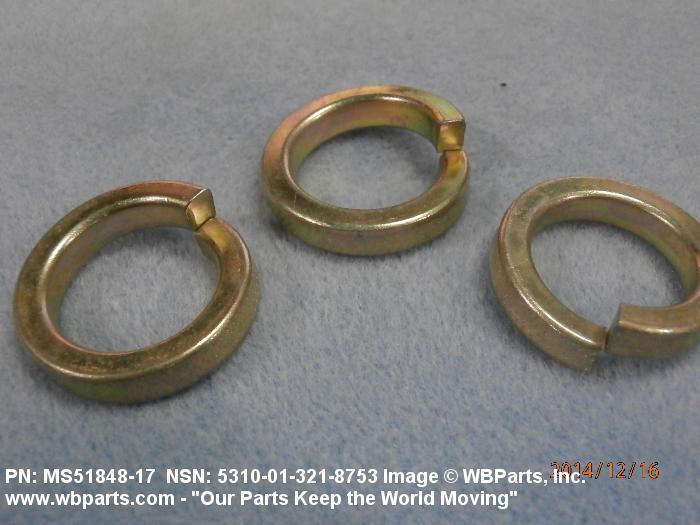

Drawings & Photos | NSN 5310-01-321-8753
Demand History | NSN 5310-01-321-8753
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5310-01-321-8753 | 2016-10-299 | 9 | US |
| 5310-01-321-8753 | 2016-10-279 | 9 | DIBBS |
| 5310-01-321-8753 | 2016-09-273 | 9 | United States |
| 5310-01-321-8753 | 2016-09-271 | 9 | DIBBS |
| 5310-01-321-8753 | 2016-09-270 | 300 | DIBBS |
| 5310-01-321-8753 | 2014-07-191 | 187 | DIBBS |
| 5310-01-321-8753 | 2012-08-215 | 195 | DIBBS |
| 5310-01-321-8753 | 2011-12-363 | 112 | DIBBS |
| 5310-01-321-8753 | 2011-12-344 | 120 | DIBBS |
| MS5184817 | 2006-12-347 | 110 | United States |
| MS5184817 | 2006-10-303 | 18 | United States |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5310-01-321-8753
Related Products | NSN 5310-01-321-8753
Technical Data | NSN 5310-01-321-8753
| Characteristic | Specifications |
|---|---|
| MATERIAL | NICKEL ALLOY K-500 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | QQ-N-286,CLASS A FED SPEC SINGLE MATERIAL RESPONSE OVERALL |
| STYLE DESIGNATOR | 108 SPLIT HELICAL-RIGHT HAND |

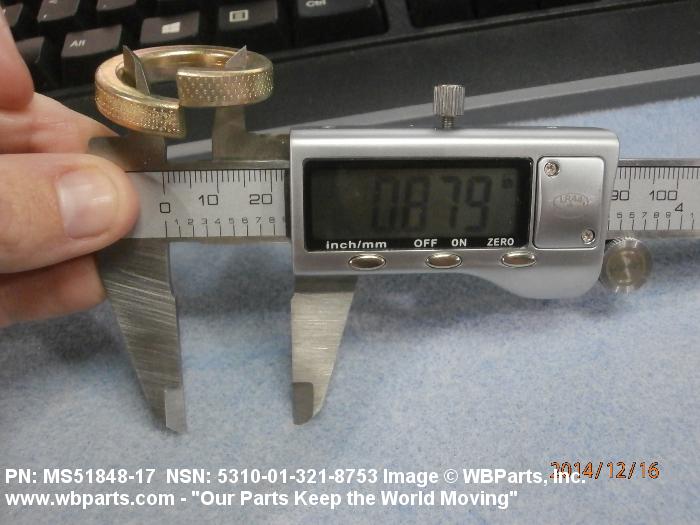

| HOLE DIAMETER | 0.887 INCHES MINIMUM AND 0.905 INCHES MAXIMUM |

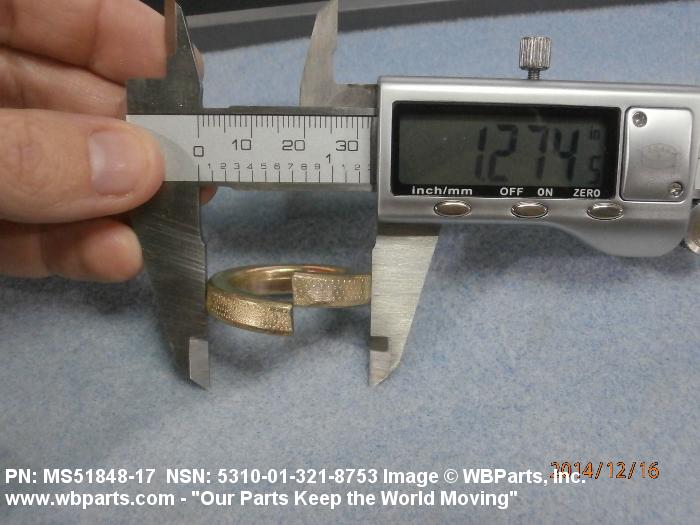

| OUTSIDE DIAMETER | 1.296 INCHES MAXIMUM |

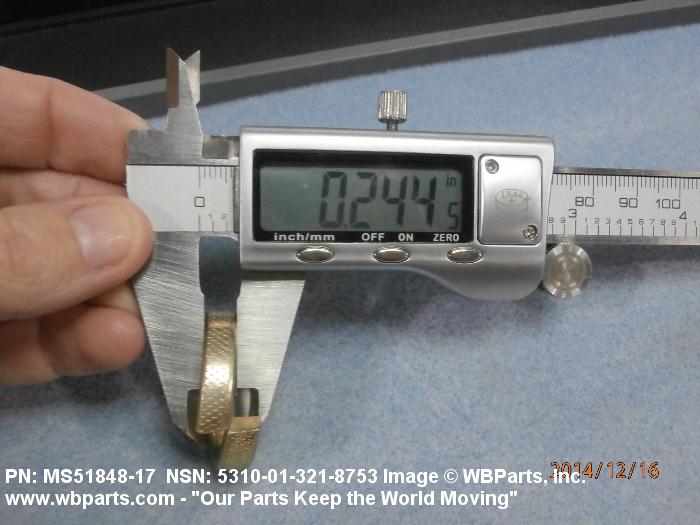

| MATERIAL THICKNESS | 0.234 INCHES NOMINAL |
| DEPARTURE FROM CITED DOCUMENT | AS DIFFERENTIATED BY MATERIAL |
| MANUFACTURERS CODE | 96906 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MS51848-17 |
Restrictions/Controls & Freight Information | NSN 5310-01-321-8753
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 093486 | BOLTS,NUTS OR SCREWS, NOI (SUB 3) |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 576 | unknown |
| Originating Activity Code | KZ | Defense Supply Center Philadelphia Philadelphia, PA 19101 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5310-01-321-8753
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | H | DIRECT DELIVERY UNDER A CENTRAL CONTRACT # (VENDOR STOCKED) Issue, transfer or shipment is not subject to specialized controls other than those imposed by IMM/Service/Agency supply policy. 1. The item is centrally managed and procured. 2. Normal issue is by direct shipment from the vendor to the user at the order of the ICP or IMM. However, orders may be shipped from stock by ICP or IMM distribution facilities when the vendor's minimum order quantity is not met, or when stocks are being drawn down. 3. Requisitions and fund citations will be submitted in accordance with IMM/Service/Agency Requisitioning Procedures. 4. Generally delivery will be made within applicable Service/Agency guidelines addressing customer required timeframe. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
