NSN 5310-01-329-0037 WNS032, WNS-032, WNS0320
Product Details | WELDING PLAIN NUT
5310-01-329-0037 A nut with projection(s) that is/are designed to localize heating, during welding, at predetermined points and to fuse with the metal to which the nut is mounted.
Part Alternates: WNS032, WNS-032, WNS0320, WNS-032-0, 5310-01-329-0037, 01-329-0037, 5310013290037, 013290037
Hardware and Abrasives | Nuts and Washers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 11 NOV 1990 | 01-329-0037 | 15885 ( NUT, PLAIN, WELDING ) |

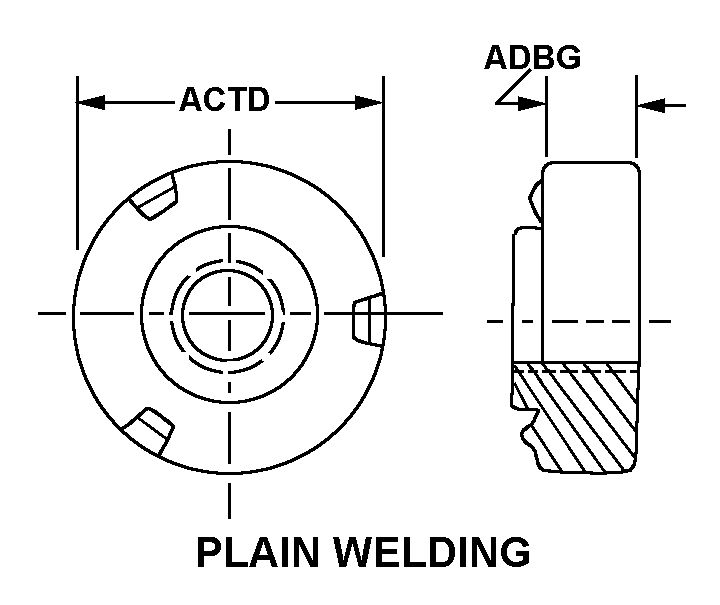

Drawings & Photos | NSN 5310-01-329-0037
Demand History | NSN 5310-01-329-0037
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| WNS0320 | 2008-07-200 | 100 | US |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5310-01-329-0037
Technical Data | NSN 5310-01-329-0037
| Characteristic | Specifications |
|---|---|
| THREAD SERIES | UNF |
| NOMINAL THREAD SIZE | 0.190 INCHES |
| THREAD QUANTITY PER INCH | 56 |
| THREAD CLASS | 2B |
| THREAD DIRECTION | RIGHT-HAND |
| MATERIAL | STEEL CORROSION RESISTING OVERALL |
| HARDNESS RATING | NOT RATED |
| NUT STYLE | A244 PLAIN WELDING |
| NUT DIAMETER | 0.440 INCHES NOMINAL |
| NUT THICKNESS | 0.185 INCHES NOMINAL |
| TEMP RATING | NOT RATED |
Restrictions/Controls & Freight Information | NSN 5310-01-329-0037
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
