NSN 5310-01-352-9568 NAS1149D0316K, 01-352-9568, 013529568

Product Details | FLAT WASHER

5310-01-352-9568 A washer having a centrally located hole with a solid or laminated cross-section and two flat parallel bearing surfaces. The hole must be 75 percent or less than the largest dimension and the bearing surface finish is greater than 32 microinch (0.8 micrometer). The thickness cannot exceed 25 percent of the largest outside dimension. When the largest outside dimension is less than 1/4 inch or 6mm, the thickness must be 0.006 inches (0.15mm) or greater and for items 1/4 inch (6mm) or larger, the thickness must be 0.016 inches (0.4mm) or greater. The maximum tolerance is applied to dimensions and used as a determining factor. Items with separable lamination use SHIM. For items fabricated from ceramic or electrically rated materials by specification or industry standards use INSULATOR (1), WASHER. Excludes DISK, VALVE, graphite impregnated and lubricated items.

Part Alternates: NAS1149D0316K, 5310-01-352-9568, 01-352-9568, 5310013529568, 013529568

Hardware and Abrasives | Nuts and Washers

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
53	04 FEB 1992	01-352-9568	13393 ( WASHER, FLAT )

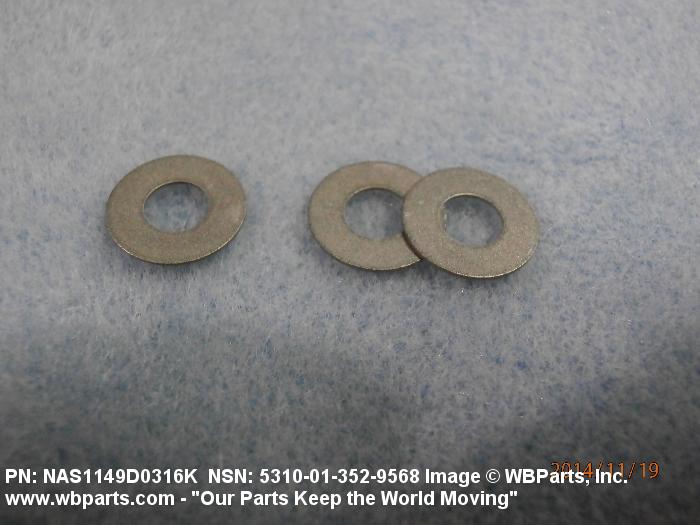

Drawings & Photos | NSN 5310-01-352-9568

Part Number	Request Date	QTY	Origin
NAS1149D0316K	2025-11-318	2	DK
5310-01-352-9568	2025-11-314	8	US
5310-01-352-9568	2025-06-181	400	US
NAS1149D0316K	2025-05-132	8	United States
NAS1149D0316K	2025-02-44	200	United States
5310-01-352-9568	2024-07-201	131	United States
NAS1149D0316K	2024-06-171	168	US
NAS1149D0316K	2024-04-121	350	us
NAS1149D0316K	2024-03-65	40	us
5310-01-352-9568	2024-02-44	28	Croatia
NAS1149D0316K	2023-11-319	20	US
NAS1149D0316K	2023-09-269	100	US
NAS1149D0316K	2023-09-248	20	US
NAS1149D0316K	2023-07-202	20	CA
NAS1149D0316K	2023-06-157	50	us
NAS1149D0316K	2022-12-347	80	United States
5310-01-352-9568	2022-12-343	1052	DIBBS
5310-01-352-9568	2022-12-335	1052	DIBBS
5310-01-352-9568	2022-11-318	1388	DIBBS
5310-01-352-9568	2022-11-306	1388	DIBBS
5310-01-352-9568	2022-07-209	4095	DIBBS
5310-01-352-9568	2022-07-198	4095	DIBBS
NAS1149D0316K	2022-07-189	16000	United States
5310-01-352-9568	2022-07-188	1604	DIBBS
5310-01-352-9568	2022-05-144	1446	DIBBS
5310-01-352-9568	2022-05-130	1446	DIBBS
NAS1149D0316K	2022-04-105	6000	United States
NAS1149D0316K	2022-04-104	6000	United States
5310-01-352-9568	2022-04-94	1690	DIBBS
5310-01-352-9568	2022-03-83	1690	DIBBS
5310-01-352-9568	2021-10-291	898	DIBBS
5310-01-352-9568	2021-08-213	3391	DIBBS
NAS1149D0316K	2021-04-116	6	United States
5310-01-352-9568	2021-04-98	2863	DIBBS
5310-01-352-9568	2021-03-90	2863	DIBBS
NAS1149D0316K	2020-10-276	10000	US
NAS1149D0316K	2020-05-147	1000	US
5310-01-352-9568	2020-01-16	1340	us
NAS1149D0316K	2020-01-06	50	United States
NAS1149D0316K	2020-01-06	50	United States
NAS1149D0316K	2019-05-136	300	United States
NAS1149D0316K	2019-02-42	550	Lebanon
5310-01-352-9568	2018-12-365	3730	US
5310-01-352-9568	2018-12-336	3730	DIBBS
5310-01-352-9568	2018-09-264	1000	US
5310-01-352-9568	2018-09-260	1000	Singapore
5310-01-352-9568	2018-08-219	30	United States
5310-01-352-9568	2018-06-173	1	DIBBS-RFPs
5310-01-352-9568	2018-02-46	10	us
NAS1149D0316K	2017-09-269	100	ES
NAS1149D0316K	2017-05-146	21	United States
NAS1149D0316K	2017-05-124	1	United States
NAS1149D0316K	2017-03-82	100	United States
NAS1149D0316K	2017-02-46	20	Lebanon
NAS1149D0316K	2016-05-152	8	BD
NAS1149D0316K	2016-05-147	8	US
5310-01-352-9568	2016-01-05	25	United States
5310-01-352-9568	2015-09-260	500	US
NAS1149D0316K	2015-03-61	72	US
NAS1149D0316K	2014-10-280	1	US
NAS1149D0316K	2014-10-276	675	US
NAS1149D0316K	2014-06-178	1648	United States
NAS1149D0316K	2014-06-160	70	United States
NAS1149D0316K	2014-06-155	4	United States
NAS1149D0316K	2014-03-76	600	US
NAS1149D0316K	2014-02-59	25	us
5310-01-352-9568	2014-02-59	20	MANUAL
NAS1149D0316K	2014-02-59	20	TR
NAS1149D0316K	2014-02-56	36	United States
NAS1149D0316K	2014-01-20	40	US
NAS1149D0316K	2013-12-350	20	Lebanon
NAS1149D0316K	2013-03-79	42	United States
NAS1149D0316K	2013-02-35	24	US
5310-01-352-9568	2011-11-308	10	IT
NAS1149D0316K	2011-08-238	700	Australia
5310-01-352-9568	2011-05-132	12	US
NAS1149D0316K	2011-05-126	2	US
NAS1149D0316K	2011-03-87	10	US
5310-01-352-9568	2010-09-264	325000	US
NAS1149D0316K	2010-01-21	100	US
5310-01-352-9568	2009-08-223	5240	DIBBS
5310-01-352-9568	2009-05-146	3099	DIBBS
5310-01-352-9568	2009-05-134	488	DIBBS
5310-01-352-9568	2009-04-119	13000	US
5310-01-352-9568	2009-04-110	1000	US
5310-01-352-9568	2009-02-33	488	DIBBS
5310-01-352-9568	2008-11-316	388	DIBBS
NAS1149D0316K	2008-07-193	5	US
5310-01-352-9568	2008-05-133	8	US
5310-01-352-9568	2008-02-52	10	US
5310-01-352-9568	2008-02-44	600	US

Cross Reference | NSN 5310-01-352-9568

Part Number	Cage Code	Manufacturer
NAS1149D0316K	80205	NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES
NAS1149D0316K	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5310-01-352-9568

Compare

Related Products | NSN 5310-01-352-9568

5310-01-352-9569, 5310-01-352-9570, 5310-01-352-9571, 5310-01-352-9572, 5310-01-352-9573

Technical Data | NSN 5310-01-352-9568

Characteristic	Specifications
MATERIAL	ALUMINUM ALLOY 2024 AND ALUMINUM ALLOY 1230 OVERALL
MATERIAL DOCUMENT AND CLASSIFICATION	QQ-A-250/5,T3 FED SPEC SINGLE MATERIAL RESPONSE OVERALL
SURFACE TREATMENT	ANODIZE OVERALL
SURFACE TREATMENT DOCUMENT AND CLASSIFICATION	MIL-A-8625,CLASS 3 MIL SPEC SINGLE TREATMENT RESPONSE OVERALL

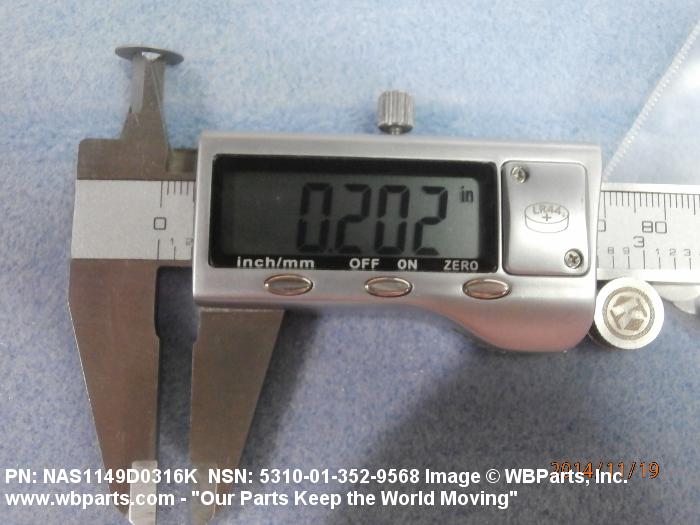

HOLE DIAMETER	0.193 INCHES MINIMUM AND 0.213 INCHES MAXIMUM
PERIPHERAL SHAPE STYLE	1 ROUND

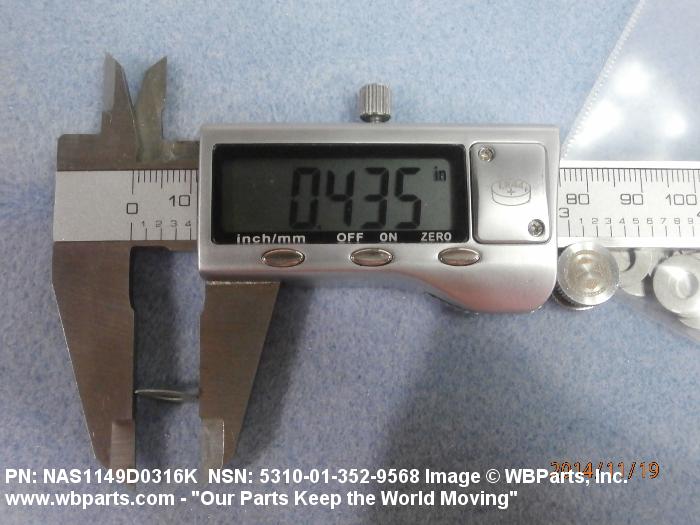

OVERALL DIAMETER	0.433 INCHES MINIMUM AND 0.458 INCHES MAXIMUM
CENTER HOLE SHAPE STYLE	1 ROUND
CROSS-SECTIONAL SHAPE STYLE	1 RECTANGULAR

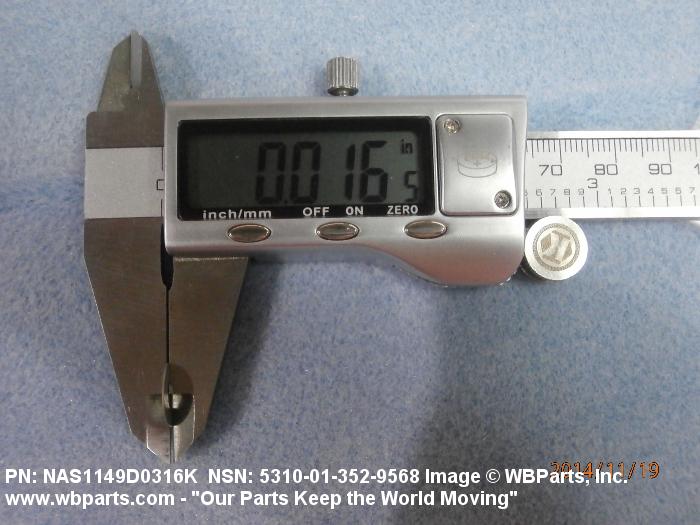

THICKNESS	0.013 INCHES MINIMUM AND 0.019 INCHES MAXIMUM
SPECIFICATION/STANDARD DATA	80205-NAS1149 PROFESSIONAL/INDUSTRIAL ASSOCIATION STANDARD

Restrictions/Controls & Freight Information | NSN 5310-01-352-9568

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	N	There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	A	Item does not contain precious metal
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.

Category	Code	Description
NMF Description	194160	WASHER OR GASKETS, IRON OR STEEL,
Less than car load rating	U	50
Less than truck load rating	U	50.0
Water commodity Code	713	unknown
Originating Activity Code	KZ	Defense Supply Center Philadelphia Philadelphia, PA 19101
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	V	Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 5310-01-352-9568

Category	Code	Description
Materiel Category and Inventory Manager	T	Industrial Supplies (DLA/GSA Items)
Appropriation and Budget Activity	2	Stock Fund Secondary Items
Management Inventory Segment	2	NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable.
Specific Group/Generic Code	0	Medical Materiel
Weapons Systems/End Item or Homogeneous Group	00	DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
Accounting Requirements Code	X	Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DA	Department of the Army
Service Organization	A	U.S. Army
Reparability	Z	This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 HD : Each

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Price Validation	N	The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM. The price has not been analyzed or reviewed for accuracy. ZOP or Standard price challenges are permissible, but must be supported with adequate justification. However, if coded for Local Purchase (LP) or Fabrication/Manufacture as indicated with an (LM) Acquisition Advice Code of ?L? or?F?,the case must be evaluated locally where purchased or fabricated.
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Materiel Management Aggregation Code	SX	SX:AF SICA RESIDUAL MMAC-OC-ALC
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 HD : Each

Category	Code	Description
Stores Account Code	1	Marine Corps Stock Fund Account Item.
Combat Essentiality Code	5	Critical Repair Part to a Combat Essential End Item. Those parts or components whose failure in a combat essential end item will render the end item inoperative or reduce its effectiveness below the minimum acceptable level of efficiency.
Materiel Management Code	B	All CommoditiesDefense Logistics Agency, (DLA,)
Echelon Management Code	2	ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DM	U.S. Marine Corps
Service Organization	M	U.S. Marine Corps
Reparability	Z	Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 HD : Each

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 HD : Each
