NSN 5310-01-353-3641 744487, 01-353-3641, 013533641

5310-01-353-3641 A nut having five flat sides and a flat surface on both ends.

Part Alternates: 744487, 5310-01-353-3641, 01-353-3641, 5310013533641, 013533641

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
53	10 FEB 1992	01-353-3641	34775 ( NUT, PLAIN, PENTAGON )

Part Number	Cage Code	Manufacturer
744487	99167	HAMILTON SUNDSTRAND CORPORATION

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

NSNs for Compare ( up to 4 ): Add 5310-01-353-3641

Compare

5310-01-353-3642, 5310-01-353-3643, 5310-01-353-3644, 5310-01-353-3645, 5310-01-353-3646

Characteristic	Specifications
THREAD SERIES	UNJF
NOMINAL THREAD SIZE	0.250 INCHES
THREAD QUANTITY PER INCH	28
THREAD CLASS	3B
THREAD DIRECTION	RIGHT-HAND
MATERIAL	STEEL COMP XM-12 OVERALL
MATERIAL DOCUMENT AND CLASSIFICATION	AMS 5659 ASSN STD SINGLE MATERIAL RESPONSE OVERALL
SURFACE TREATMENT	PASSIVATE OVERALL
SURFACE TREATMENT DOCUMENT AND CLASSIFICATION	QQ-P-35 FED SPEC SINGLE TREATMENT RESPONSE OVERALL
HARDNESS RATING	35.0 ROCKWELL C MINIMUM AND 39.0 ROCKWELL C MAXIMUM

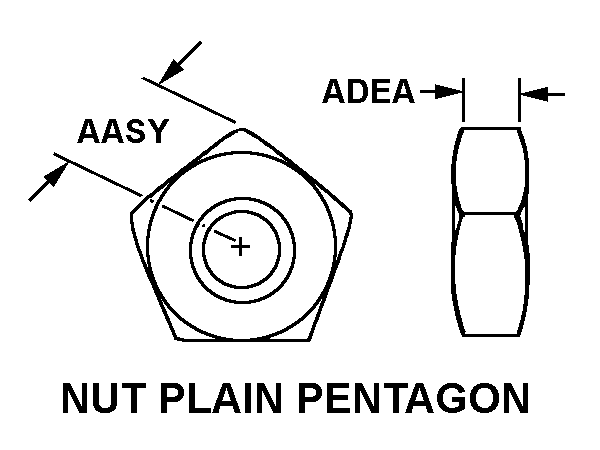

NUT STYLE	A11A NUT PLAIN PENTAGON
DISTANCE FROM CENTERLINE TO FLAT	0.216 INCHES MINIMUM AND 0.222 INCHES MAXIMUM
NUT HEIGHT	0.178 INCHES MINIMUM AND 0.198 INCHES MAXIMUM
BEARING SURFACE TYPE	FLAT
TEMP RATING	NOT RATED

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	N	There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	A	Item does not contain precious metal
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.

Category	Code	Description
No Freight Information

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Price Validation	N	The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM. The price has not been analyzed or reviewed for accuracy. ZOP or Standard price challenges are permissible, but must be supported with adequate justification. However, if coded for Local Purchase (LP) or Fabrication/Manufacture as indicated with an (LM) Acquisition Advice Code of ?L? or?F?,the case must be evaluated locally where purchased or fabricated.
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Materiel Management Aggregation Code	SX	SX:AF SICA RESIDUAL MMAC-OC-ALC
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	J	NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
