NSN 5310-01-353-3851 MS141446, MS14144-6, 01-353-3851
Product Details | HEXAGON EXTENDED WASHER SELF-LOCKING NUT
5310-01-353-3851 A nut having 6 flat sides and an integral washer which extends beyond the flats or periphery. An integral feature is incorporated for locking on the threads of a mating member.
Part Alternates: MS141446, MS14144-6, 5310-01-353-3851, 01-353-3851, 5310013533851, 013533851
Hardware and Abrasives | Nuts and Washers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 10 FEB 1992 | 01-353-3851 | 29730 ( NUT, SELF-LOCKING, EXTENDED WASHER, HEXAGON ) |

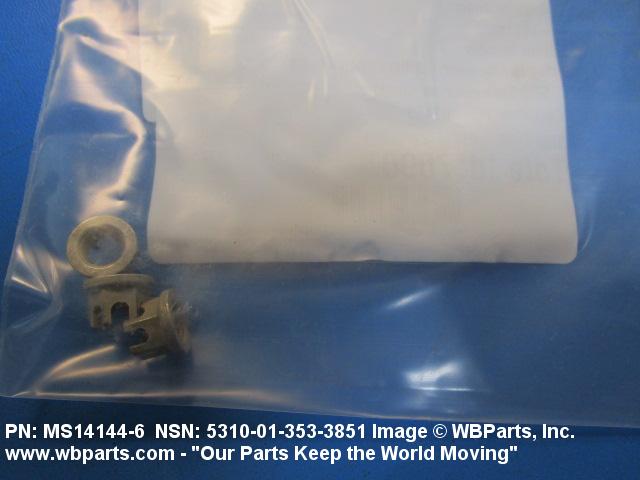

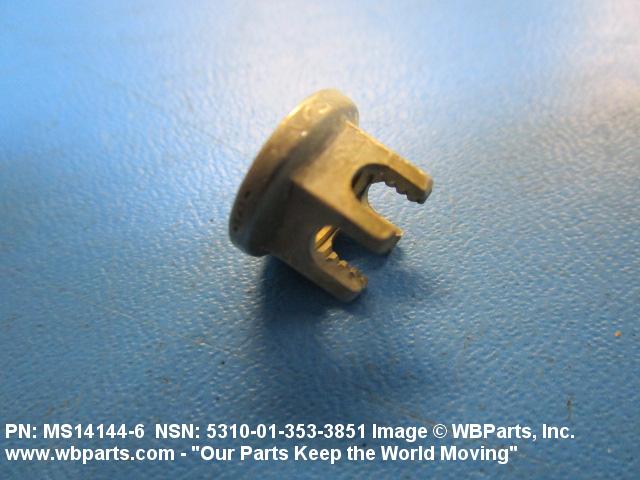

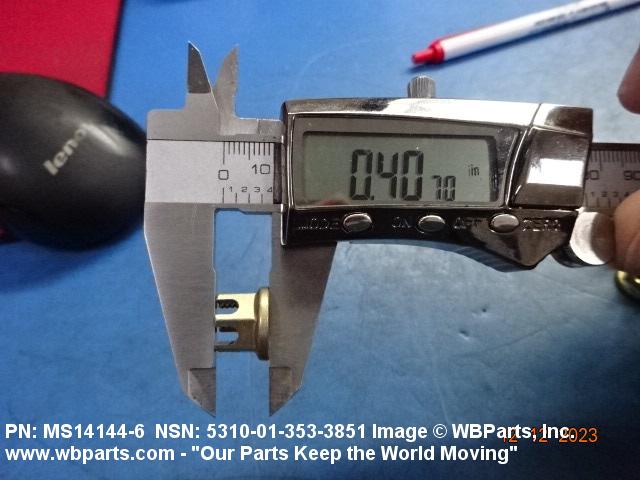

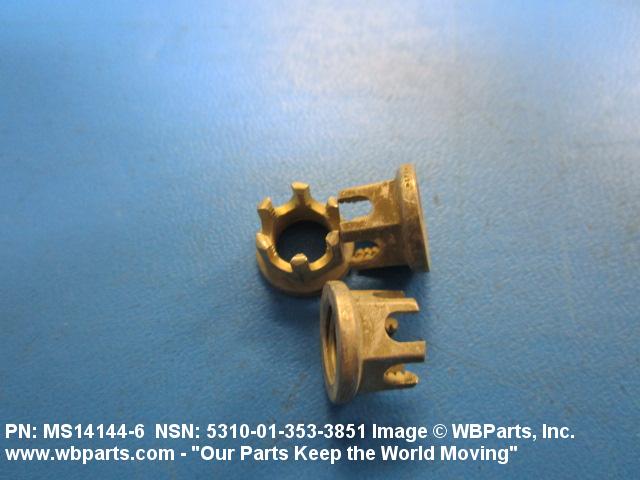

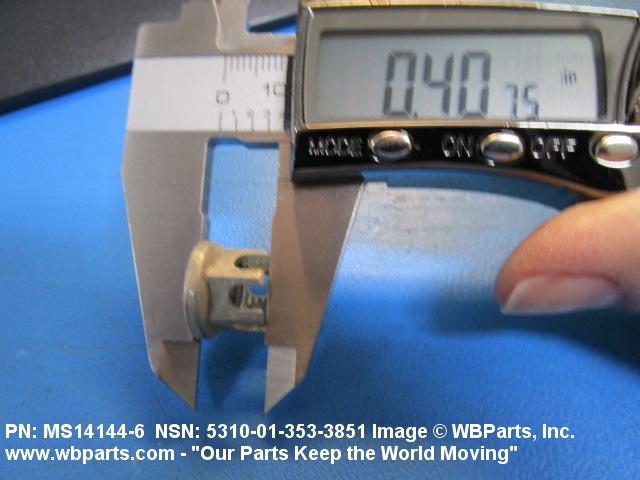

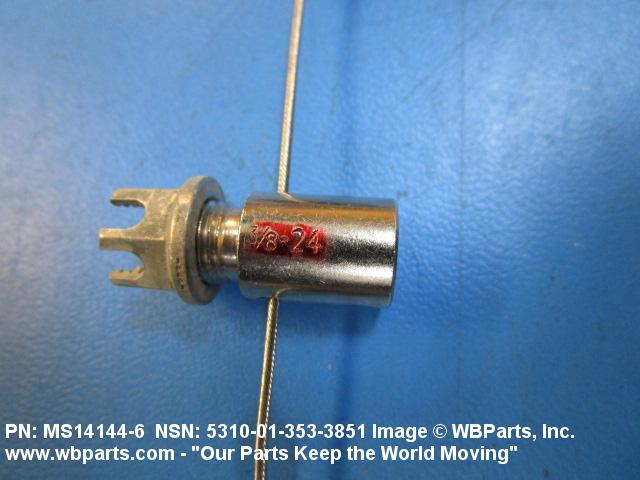

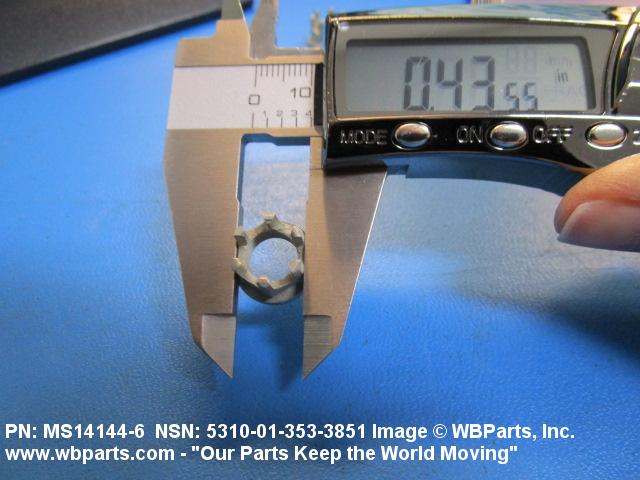

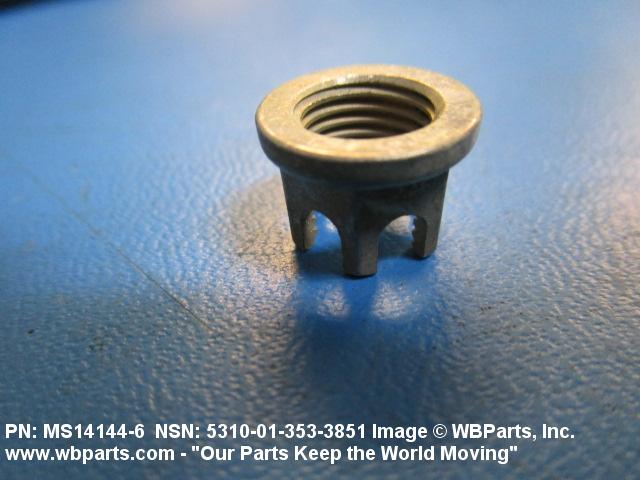

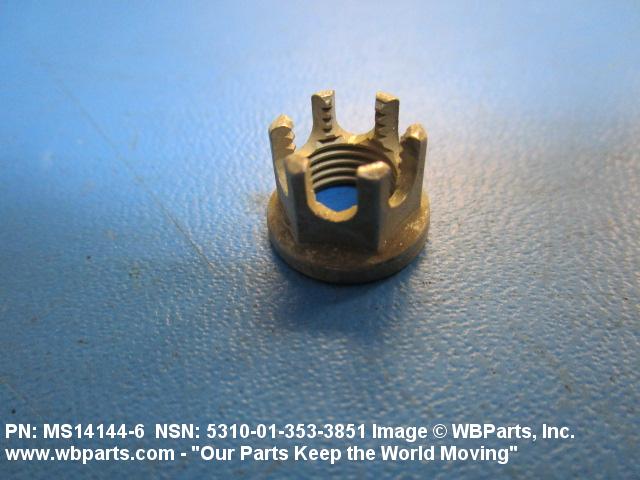

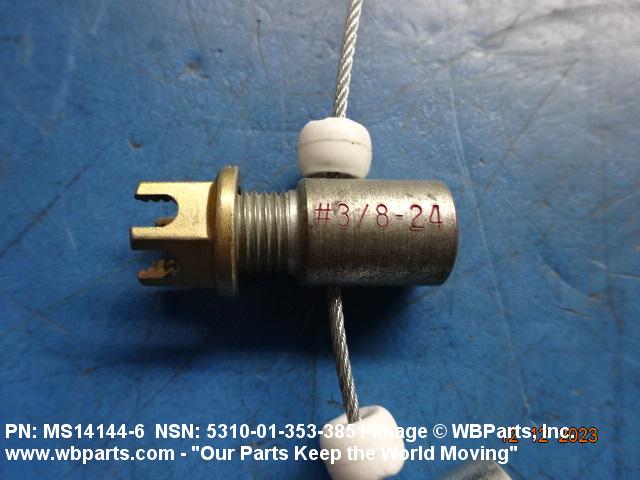

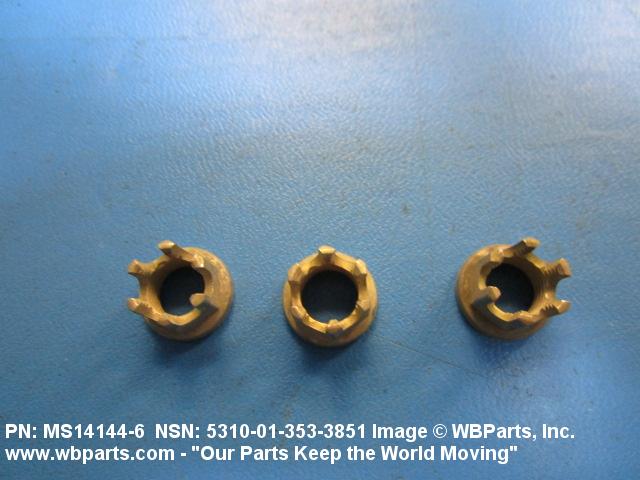

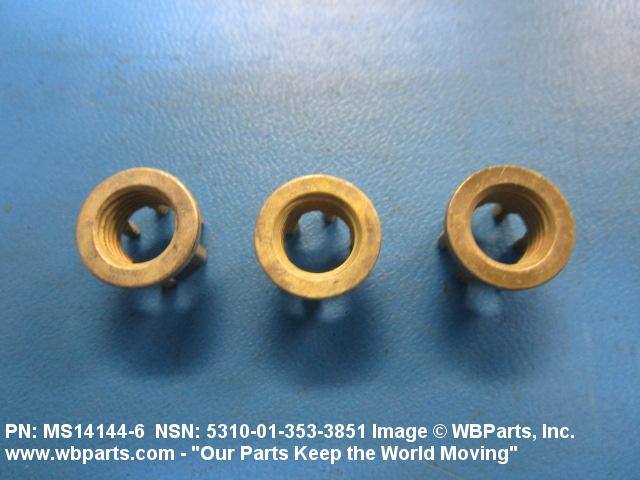

Drawings & Photos | NSN 5310-01-353-3851
Demand History | NSN 5310-01-353-3851
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| MS141446 | 2025-09-248 | 10 | us |
| MS141446 | 2023-11-313 | 2 | Czech Republic |
| 5310-01-353-3851 | 2023-04-115 | 100 | DIBBS |
| MS141446 | 2022-09-255 | 4 | Czech Republic |
| MS141446 | 2022-05-146 | 1 | Czech Republic |
| MS141446 | 2021-09-244 | 3 | Czech Republic |
| MS141446 | 2021-08-239 | 11 | Czech Republic |
| 5310-01-353-3851 | 2016-06-159 | 1 | United States |
| 5310-01-353-3851 | 2016-06-157 | 1 | DIBBS |
| 5310-01-353-3851 | 2016-03-83 | 2 | DIBBS |
| 5310-01-353-3851 | 2016-03-75 | 2 | DIBBS |
| 5310-01-353-3851 | 2015-04-97 | 140 | DIBBS |
| MS141446 | 2014-04-120 | 32 | US |
| 5310-01-353-3851 | 2013-07-196 | 100 | Israel |
| 5310-01-353-3851 | 2008-07-199 | 300 | DIBBS |
| 5310-01-353-3851 | 2008-04-112 | 300 | US |
Cross Reference | NSN 5310-01-353-3851
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| MS14144-6 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5310-01-353-3851
Related Products | NSN 5310-01-353-3851
Technical Data | NSN 5310-01-353-3851
| Characteristic | Specifications |
|---|---|
| THREAD SERIES | UNJF |
| NOMINAL THREAD SIZE | 0.375 INCHES |
| THREAD QUANTITY PER INCH | 24 |
| THREAD CLASS | 3B |
| THREAD DIRECTION | RIGHT-HAND |
| MATERIAL | STEEL OVERALL |
| SURFACE TREATMENT | CADMIUM OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-416,TY 2,CL 3 FED SPEC SINGLE TREATMENT RESPONSE OVERALL |
| HARDNESS RATING | NOT RATED |
| NUT STYLE | A294 HEXAGON |

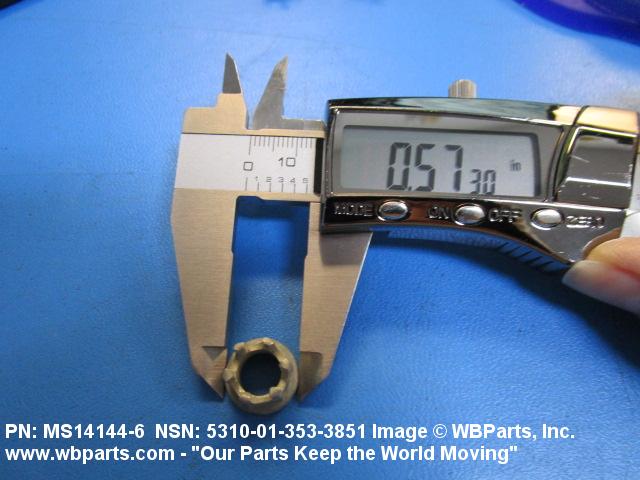

| WASHER OUTSIDE DIAMETER | 0.579 INCHES MAXIMUM |
| OVERALL HEIGHT | 0.391 INCHES MINIMUM AND 0.421 INCHES MAXIMUM |
| WASHER THICKNESS | 0.070 INCHES NOMINAL |
| WIDTH ACROSS FLATS | 0.429 INCHES MINIMUM AND 0.440 INCHES MAXIMUM |
| LOCKING FEATURE | PREVAILING TORQUE ALL METAL DESIGN |
| COUNTERSINK ANGLE | ANY ACCEPTABLE NUT |
| LUBRICATION | DRY FILM LUBRICANT |
| TEMP RATING | 450.0 DEG FAHRENHEIT NOMINAL |
| MANUFACTURERS CODE | 96906 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MS14144-6 |
Restrictions/Controls & Freight Information | NSN 5310-01-353-3851
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 093486 | BOLTS,NUTS OR SCREWS, NOI (SUB 3) |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 573 | unknown |
| Originating Activity Code | ||
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5310-01-353-3851
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
F EA : Each |
