Product Details | HEXAGON EXTENDED WASHER SELF-LOCKING NUT

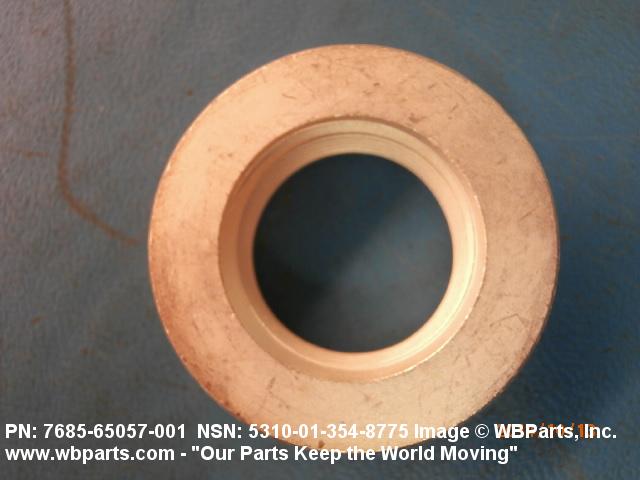

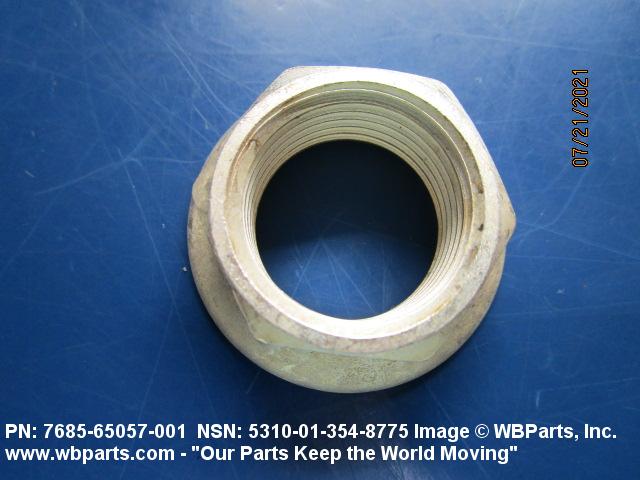

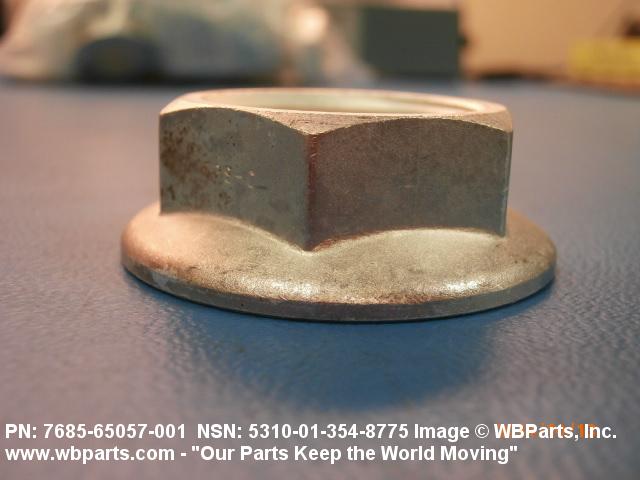

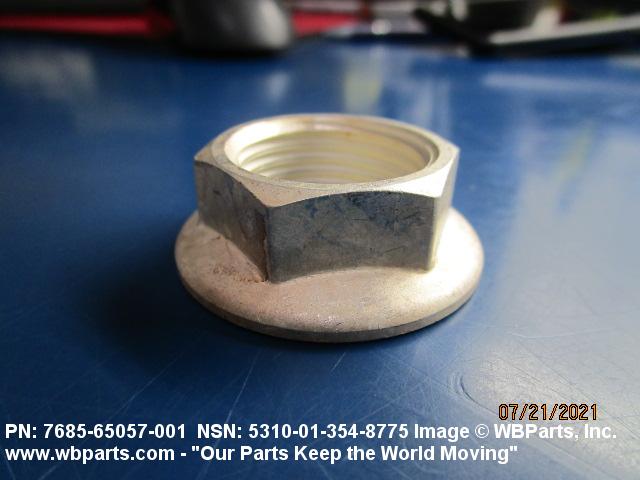

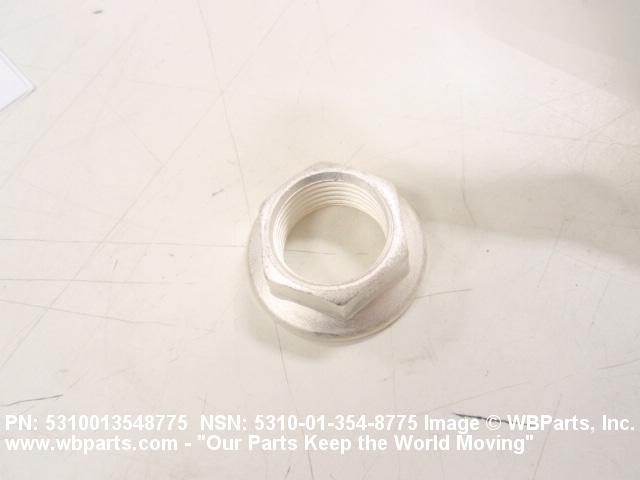

5310-01-354-8775 A nut having 6 flat sides and an integral washer which extends beyond the flats or periphery. An integral feature is incorporated for locking on the threads of a mating member.

Part Alternates: VN324B162, 768565057001, 7685-65057-001, 5310-01-354-8775, 01-354-8775, 5310013548775, 013548775

Hardware and Abrasives | Nuts and Washers

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
53	06 MAR 1992	01-354-8775	29730 ( NUT, SELF-LOCKING, EXTENDED WASHER, HEXAGON )

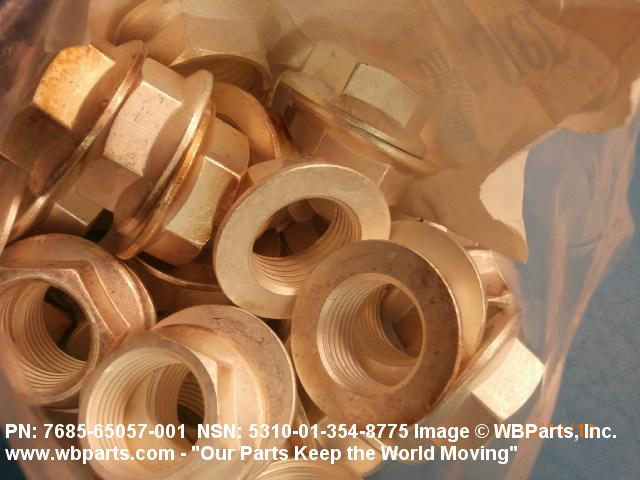

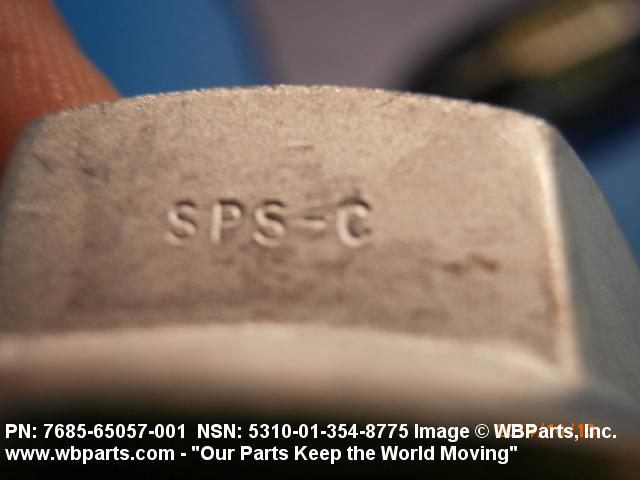

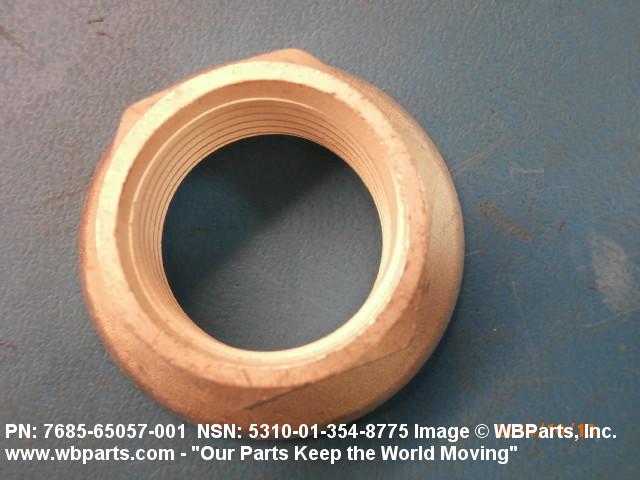

Drawings & Photos | NSN 5310-01-354-8775

Part Number	Request Date	QTY	Origin
768565057001	2021-06-175	10	United States
5310-01-354-8775	2020-03-64	10	United States
5310-01-354-8775	2014-12-348	2	DIBBS
5310-01-354-8775	2014-11-320	1	DIBBS
5310-01-354-8775	2014-10-274	4	United States
5310-01-354-8775	2014-10-274	16	United States
5310-01-354-8775	2014-10-274	20	United States
5310-01-354-8775	2014-10-274	50	United States
5310-01-354-8775	2014-10-274	100	United States
5310-01-354-8775	2014-10-274	150	United States
768565057001	2014-03-69	4	United States
768565057001	2014-03-69	20	United States
768565057001	2014-03-69	44	United States
5310-01-354-8775	2012-07-212	8	United States
768565057001	2010-10-285	20	United States
5310-01-354-8775	2010-05-133	24	United States
5310-01-354-8775	2009-05-135	16	United States
VN324B162	2009-05-134	16	United States
5310-01-354-8775	2009-05-134	16	US
5310-01-354-8775	2009-02-57	92	United States

Cross Reference | NSN 5310-01-354-8775

Part Number	Cage Code	Manufacturer
7685-65057-001	14170	HUGHES MISSILE SYSTEMS CO SAN DIEGO
7685-65057-001	15090	RAYTHEON COMPANY DBA RAYTHEON
VN324B162	92215	ALCOA GLOBAL FASTENERS, INC. DBA ALCOA FASTENING SYSTEMS

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5310-01-354-8775

Compare

Related Products | NSN 5310-01-354-8775

5310-01-354-8776, 5310-01-354-8777, 5310-01-354-8930, 5310-01-354-9331, 5310-01-354-9431

Technical Data | NSN 5310-01-354-8775

Characteristic	Specifications
THREAD SERIES	UNJF
NOMINAL THREAD SIZE	1.000 INCHES
THREAD QUANTITY PER INCH	12
THREAD CLASS	3B
THREAD DIRECTION	RIGHT-HAND
MATERIAL	IRON ALLOY 660 OVERALL
MATERIAL DOCUMENT AND CLASSIFICATION	AMS5732 ASSN STD SINGLE MATERIAL RESPONSE OR AMS5737 ASSN STD SINGLE MATERIAL RESPONSE OVERALL
SURFACE TREATMENT	SILVER OVERALL
SURFACE TREATMENT DOCUMENT AND CLASSIFICATION	AMS2410 ASSN STD SINGLE TREATMENT RESPONSE OVERALL
HARDNESS RATING	NOT RATED
NUT STYLE	A294 HEXAGON

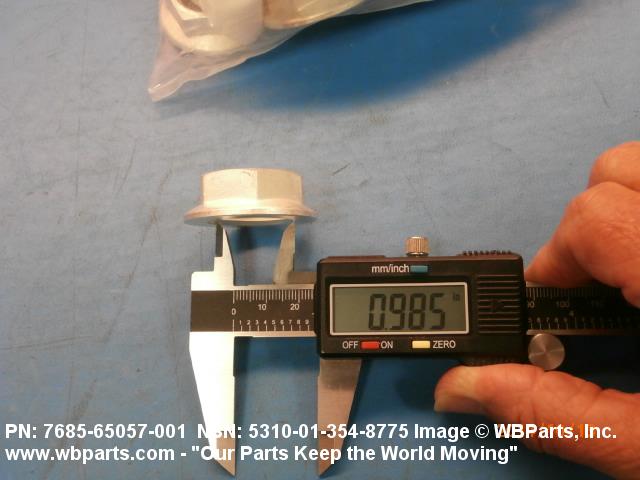

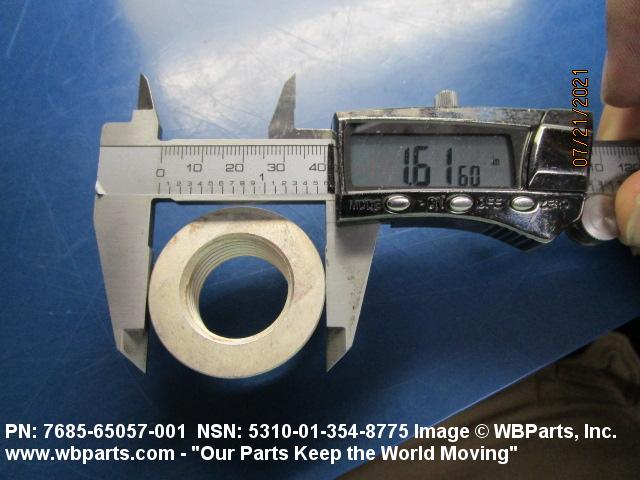

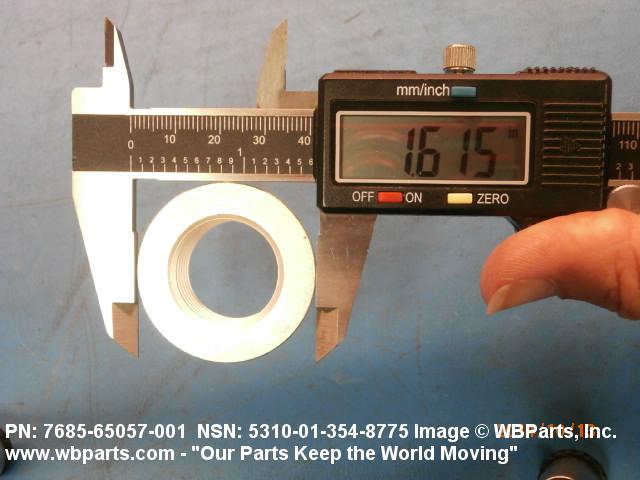

WASHER OUTSIDE DIAMETER	1.625 INCHES MAXIMUM

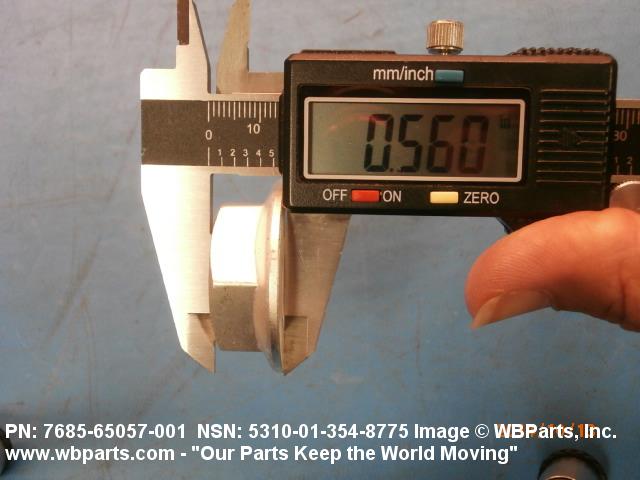

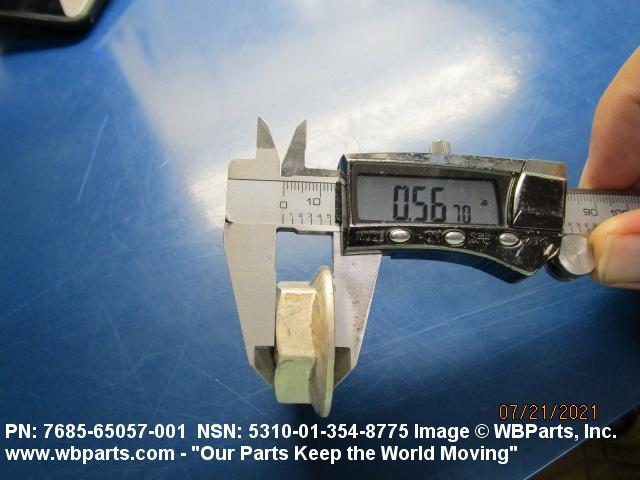

OVERALL HEIGHT	0.578 INCHES MAXIMUM

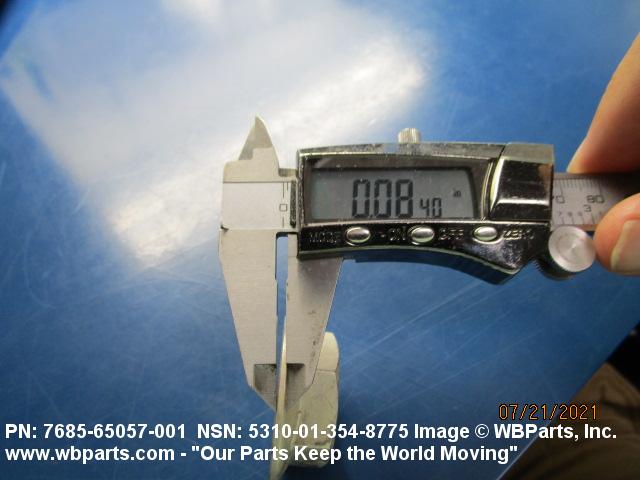

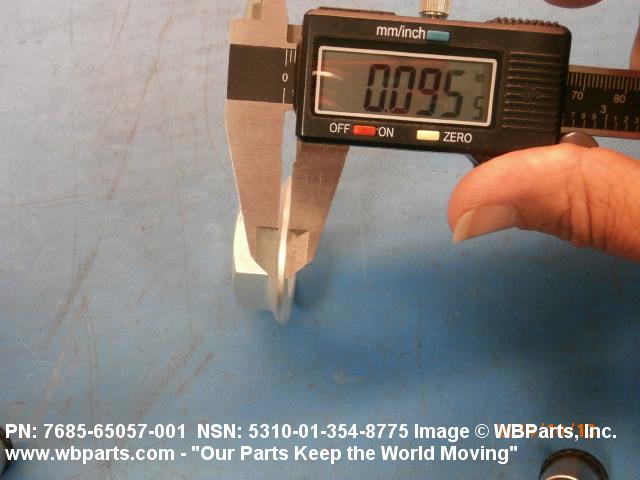

WASHER THICKNESS	0.080 INCHES MINIMUM

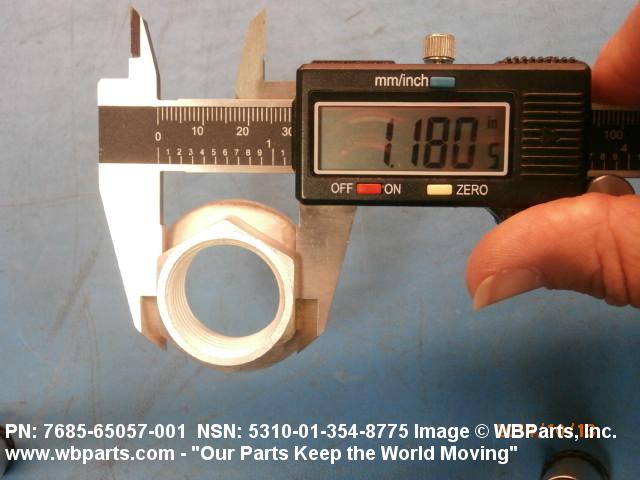

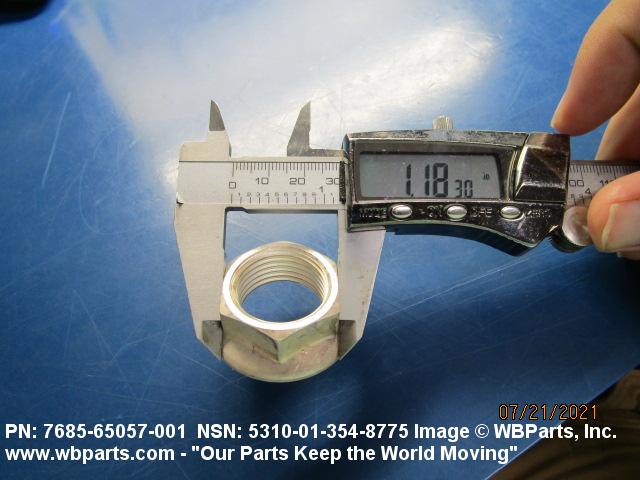

WIDTH ACROSS FLATS	1.177 INCHES MINIMUM AND 1.195 INCHES MAXIMUM
LOCKING FEATURE	PREVAILING TORQUE ALL METAL DESIGN
TEMP RATING	NOT RATED
III PRECIOUS MATERIAL	SILVER
III PRECIOUS MATERIAL AND LOCATION	OVERALL SILVER
