NSN 5310-01-365-7236 DIN980VM10X1510A3D, 12414315 , 12414315009
Product Details | HEXAGON SELF-LOCKING NUT
5310-01-365-7236 A nut, flat on top and bottom having 6 flat sides. For items which have internal tapered or straight (parallel) pipe threads, specific electrical conduit size designation, and which when installed, provide a method of tightening to lock the connection, see LOCKNUT, ELECTRICAL CONDUIT. See also LOCKNUT, TUBE FITTING. For items having a thickness (or height) exceeding two times the width across the flats, use POST, ELECTRICAL-MECHANICAL EQUIPMENT. (When height or thickness and/or width across the flats is designated as a tolerance dimension, the maximum dimension will be used to determine compliance.
Part Alternates: DIN980VM10X1510A3D, 12414315 , 12414315009, 12414315-009 , 5310-01-365-7236, 01-365-7236, 5310013657236, 013657236
Hardware and Abrasives | Nuts and Washers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 12 OCT 1992 | 01-365-7236 | 01857 ( NUT, PLAIN, HEXAGON ) |

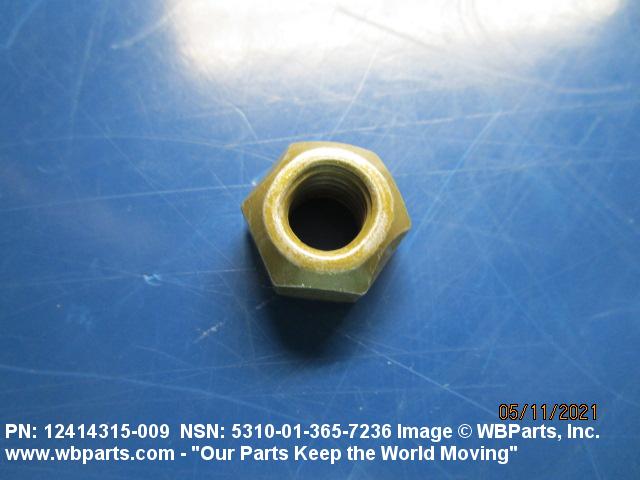

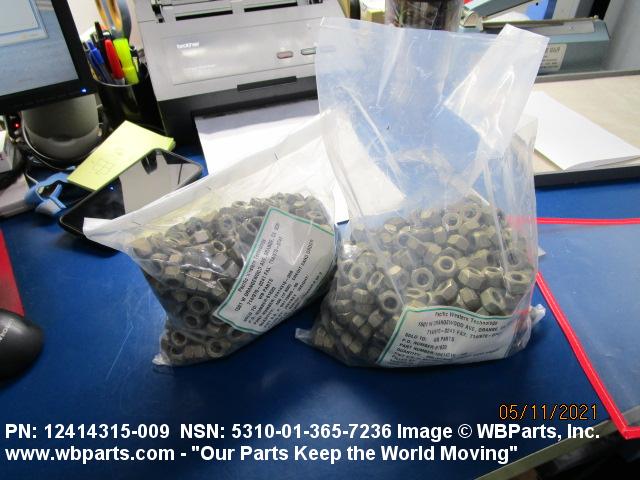

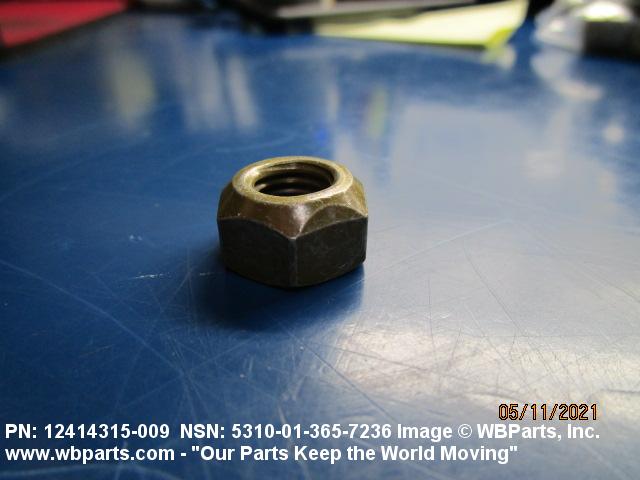

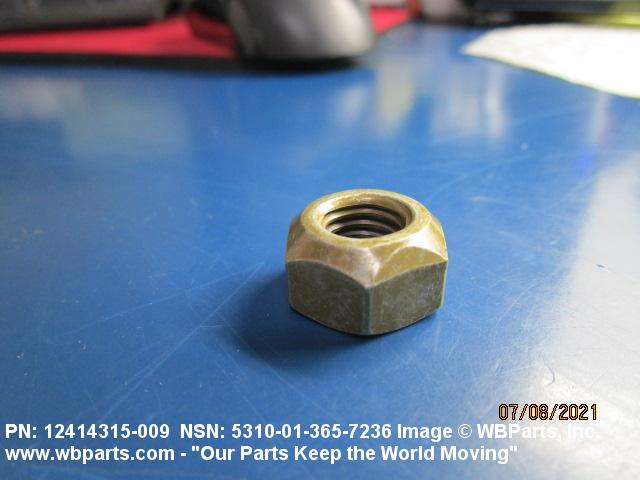

Drawings & Photos | NSN 5310-01-365-7236
Demand History | NSN 5310-01-365-7236
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5310-01-365-7236 | 2025-07-205 | 1 | us |
| 5310-01-365-7236 | 2025-07-202 | 1 | us |
| 5310-01-365-7236 | 2025-06-163 | 3675 | DIBBS |
| 5310-01-365-7236 | 2025-06-155 | 3675 | DIBBS |
| 5310-01-365-7236 | 2025-05-150 | 50 | us |
| 5310-01-365-7236 | 2025-04-98 | 2898 | DIBBS |
| 5310-01-365-7236 | 2025-01-29 | 777 | DIBBS |
| 5310-01-365-7236 | 2024-02-60 | 777 | DIBBS |
| 5310-01-365-7236 | 2024-02-52 | 777 | DIBBS |
| 5310-01-365-7236 | 2024-02-44 | 39 | DIBBS |
| 5310-01-365-7236 | 2023-11-328 | 139 | DIBBS |
| 5310-01-365-7236 | 2023-11-320 | 139 | DIBBS |
| 5310-01-365-7236 | 2022-07-199 | 214 | DIBBS |
| 5310-01-365-7236 | 2022-07-188 | 214 | DIBBS |
| 013657236 | 2021-06-168 | 380 | South Korea |
| 5310-01-365-7236 | 2021-04-105 | 800 | South Korea |
| 5310-01-365-7236 | 2021-03-77 | 200 | United States |
| 5310-01-365-7236 | 2020-11-317 | 1500 | DIBBS |
| 12414315009 | 2020-06-164 | 1000 | United States |
| 12414315009 | 2020-04-113 | 1000 | United States |
| 5310-01-365-7236 | 2020-03-83 | 3862 | DIBBS |
| 5310-01-365-7236 | 2020-03-75 | 3862 | DIBBS |
| 5310-01-365-7236 | 2019-10-288 | 2165 | DIBBS |
| 5310-01-365-7236 | 2019-10-279 | 2165 | DIBBS |
| 5310-01-365-7236 | 2019-03-80 | 2109 | DIBBS |
| 5310-01-365-7236 | 2019-03-72 | 2109 | DIBBS |
| 5310-01-365-7236 | 2015-04-118 | 525 | United States |
| 12414315009 | 2015-04-96 | 600 | US |
| 12414315009 | 2013-04-101 | 616 | United States |
| 5310-01-365-7236 | 2012-04-117 | 12829 | DIBBS |
| 5310-01-365-7236 | 2010-04-93 | 7290 | DIBBS |
| 5310-01-365-7236 | 2008-12-343 | 7666 | DIBBS |
| 5310-01-365-7236 | 2008-10-282 | 2622 | DIBBS |
| 5310-01-365-7236 | 2007-11-306 | 314 | US |
Cross Reference | NSN 5310-01-365-7236
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 12414315 | 19207 | U S ARMY TANK AUTOMOTIVE COMMAND AMSTA-IM-MM |
| 12414315-009 | 0FW39 | BAE SYSTEMS TACTICAL VEHICLE SYSTEMS LP |
| 12414315-009 | 19207 | U S ARMY TANK AUTOMOTIVE COMMAND AMSTA-IM-MM |
| 12414315-009 | 65459 | LANDOLL CORPORATION |
| DIN980 VM10X1,5 10-A3D | D8286 | DIN DEUTSCHES INSTITUT FUER NORMUNGEV |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5310-01-365-7236
Related Products | NSN 5310-01-365-7236
Technical Data | NSN 5310-01-365-7236
| Characteristic | Specifications |
|---|---|
| THREAD SERIES | ISO M |
| NOMINAL THREAD SIZE | 10.0 MILLIMETERS |

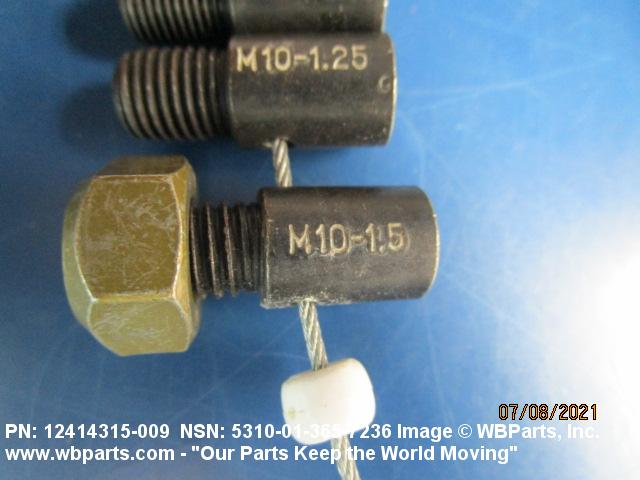

| THREAD PITCH IN MILLIMETERS | 1.50 |
| THREAD TOLERANCE CLASS | 6H INTERNAL |
| THREAD DIRECTION | RIGHT-HAND |
| MATERIAL | STEEL PROPERTY CLASS 8.8 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | DIN 980 CL 8.8 NATIONAL SPEC SINGLE MATERIAL RESPONSE OVERALL |
| SURFACE TREATMENT | ZINC OVERALL |
| HARDNESS RATING | NOT RATED |
| NUT STYLE | A12 HEXAGON |

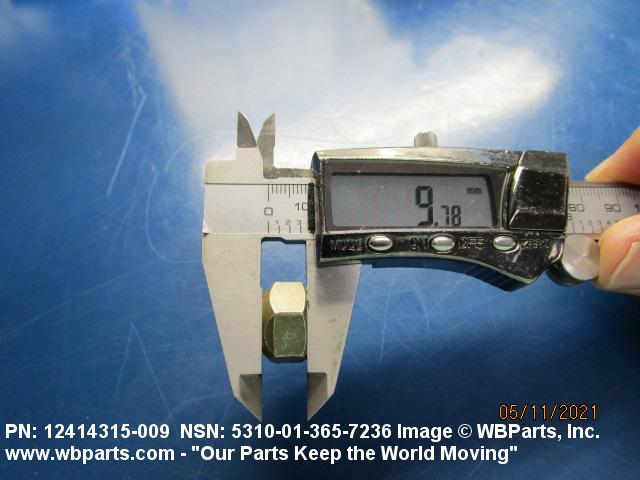

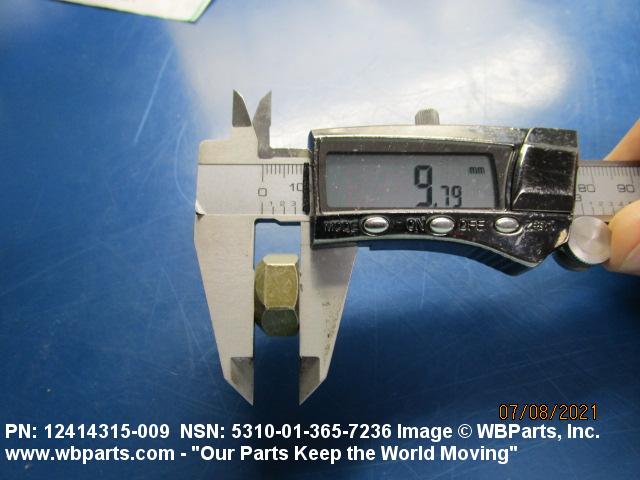

| NUT HEIGHT | 9.0 MILLIMETERS MINIMUM AND 10.0 MILLIMETERS MAXIMUM |

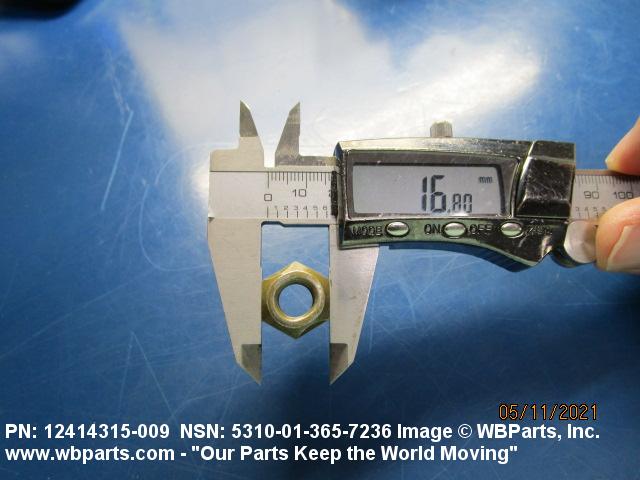

| WIDTH ACROSS FLATS | 16.73 MILLIMETERS MINIMUM AND 17.00 MILLIMETERS MAXIMUM |
| BEARING SURFACE TYPE | CHAMFERED |
| LOCKING FEATURE | PREVAILING TORQUE ALL METAL DESIGN |
| TEMP RATING | NOT RATED |
Restrictions/Controls & Freight Information | NSN 5310-01-365-7236
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 093486 | BOLTS,NUTS OR SCREWS, NOI (SUB 3) |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 573 | unknown |
| Originating Activity Code | KH | Defense Industrial Supply Center Philadelphia, PA 19111 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5310-01-365-7236
Army
Marines| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | T | Industrial Supplies (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
H EA : Each |
| Category | Code | Description |
|---|---|---|
| Stores Account Code | 1 | Marine Corps Stock Fund Account Item. |
| Combat Essentiality Code | 2 | Non-Critical Repair Part. Repair parts or major components whose failure in an end item will not render the end item inoperative or reduce its effectiveness below the minimum acceptable level of efficiency, and which do not fit the definition of Code 3 or 4 items. |
| Materiel Management Code | B | All CommoditiesDefense Logistics Agency, (DLA,) |
| Echelon Management Code | 2 | ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DM | U.S. Marine Corps |
| Service Organization | M | U.S. Marine Corps |
| Reparability | Z | Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code. |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
H EA : Each |
