NSN 5310-01-389-7976 MS15795814, MS15795-814, MS15795-814 CRE S 316

Product Details | FLAT WASHER

5310-01-389-7976 A washer having a centrally located hole with a solid or laminated cross-section and two flat parallel bearing surfaces. The hole must be 75 percent or less than the largest dimension and the bearing surface finish is greater than 32 microinch (0.8 micrometer). The thickness cannot exceed 25 percent of the largest outside dimension. When the largest outside dimension is less than 1/4 inch or 6mm, the thickness must be 0.006 inches (0.15mm) or greater and for items 1/4 inch (6mm) or larger, the thickness must be 0.016 inches (0.4mm) or greater. The maximum tolerance is applied to dimensions and used as a determining factor. Items with separable lamination use SHIM. For items fabricated from ceramic or electrically rated materials by specification or industry standards use INSULATOR (1), WASHER. Excludes DISK, VALVE, graphite impregnated and lubricated items.

Part Alternates: MS15795814, MS15795-814, MS15795-814 CRE S 316, MS15795814CRES316, FFW92, FF-W-92, 0.812ODX0.406ID X0.65THK CRES31, 0812ODX0406IDX065THKCRES31, 5310-01-389-7976, 01-389-7976, 5310013897976, 013897976

Hardware and Abrasives | Nuts and Washers

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
53	04 MAY 1994	01-389-7976	13393 ( WASHER, FLAT )

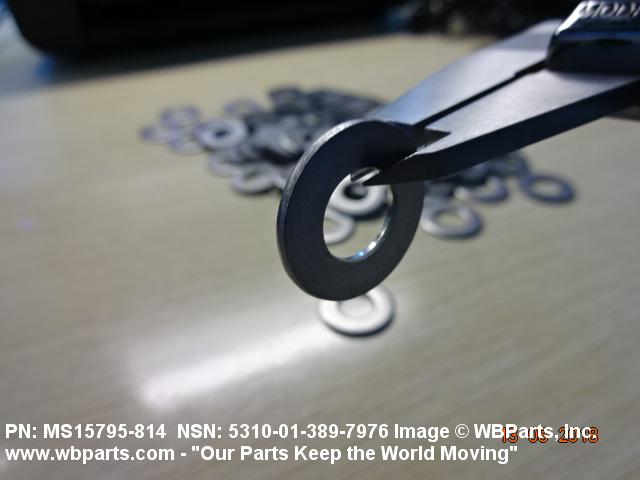

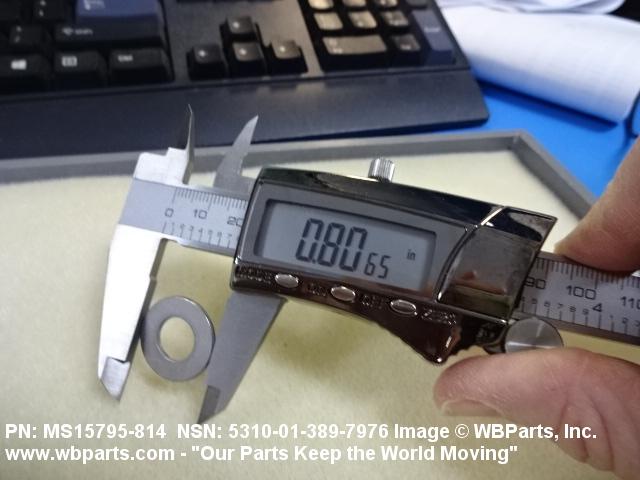

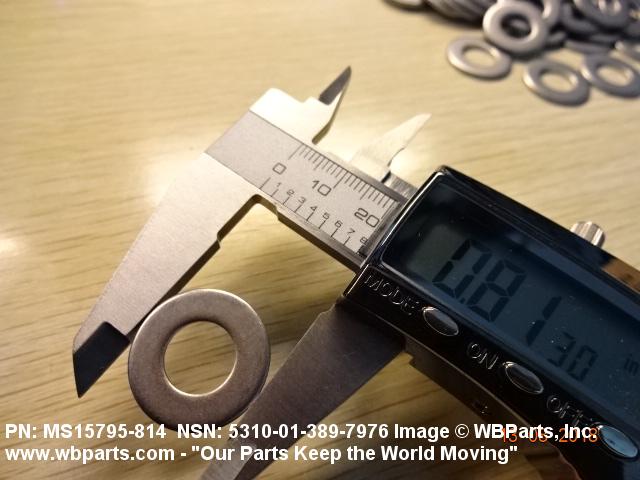

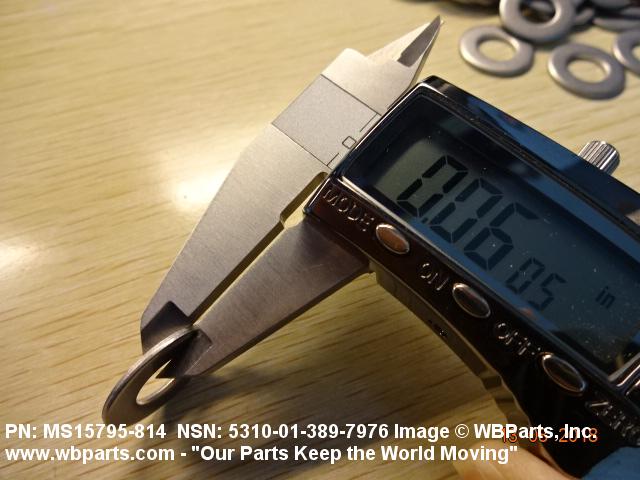

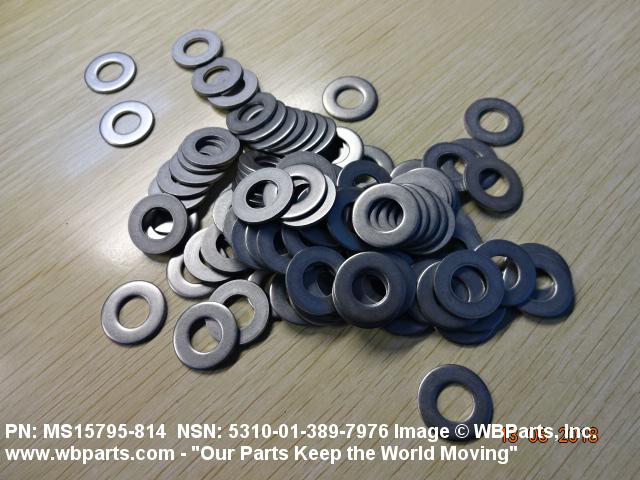

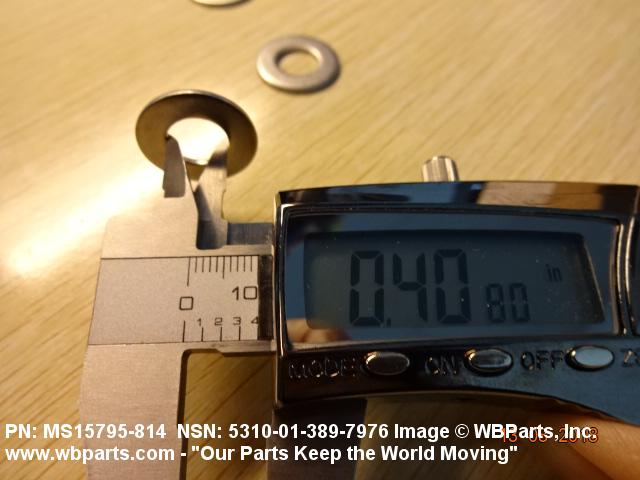

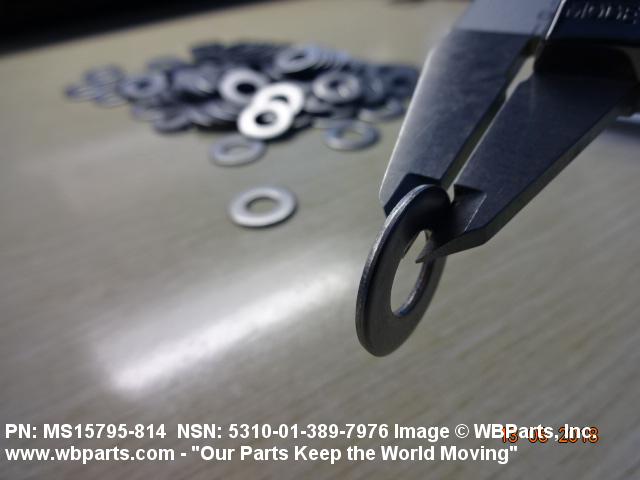

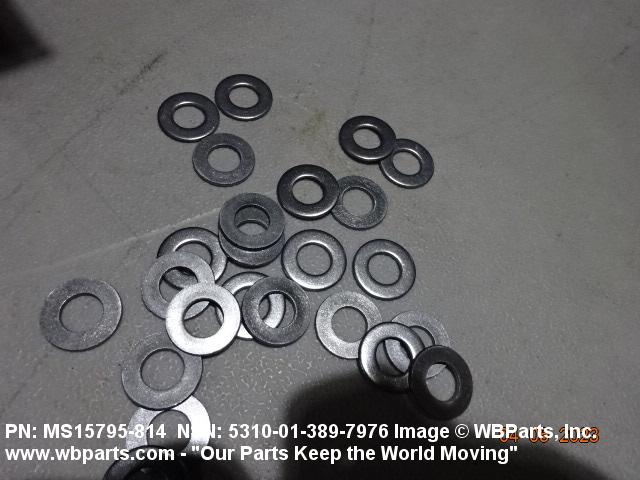

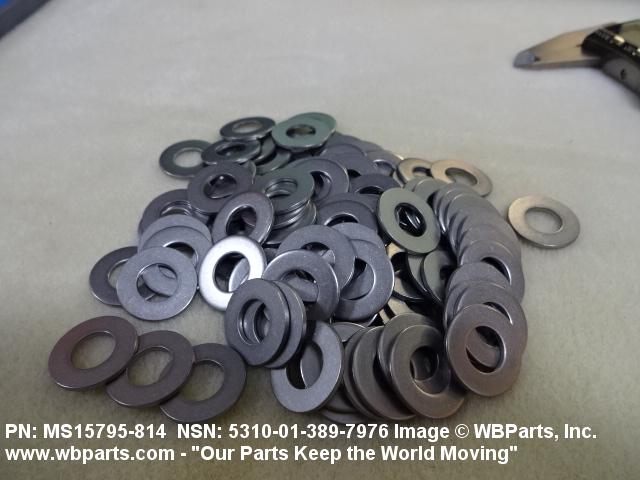

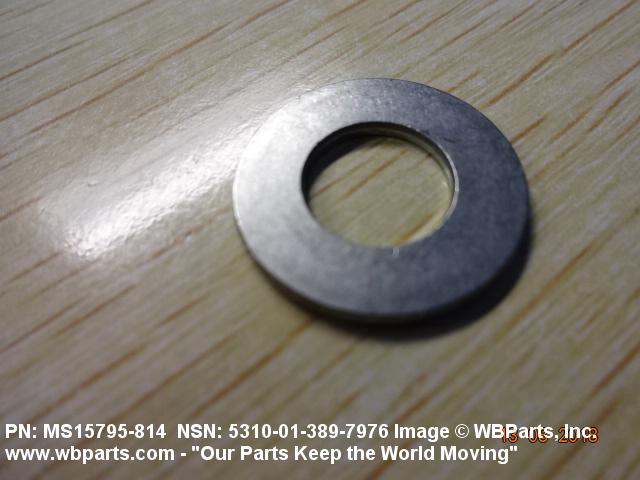

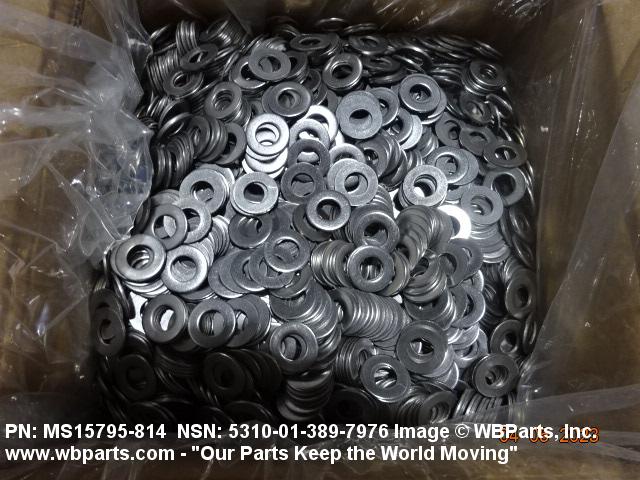

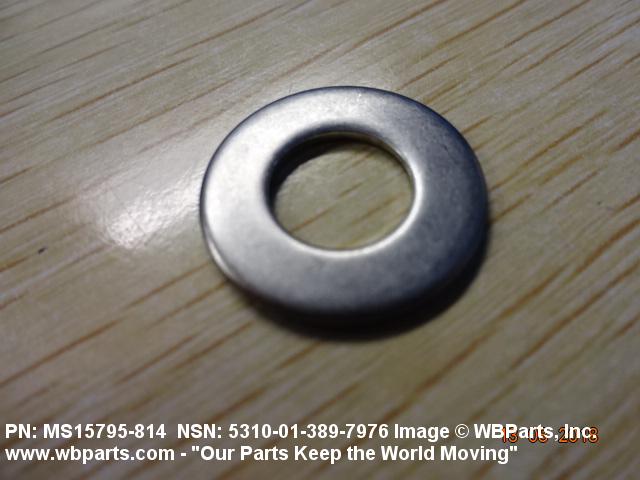

Drawings & Photos | NSN 5310-01-389-7976

Part Number	Request Date	QTY	Origin
MS15795814	2025-11-316	32	US
FFW92	2025-06-161	16	United States
5310-01-389-7976	2025-05-150	59928	DIBBS
5310-01-389-7976	2025-05-139	59928	DIBBS
MS15795814	2024-08-239	11289	US
MS15795814	2023-11-306	10	US
MS15795814	2023-10-304	2770	United States
MS15795-814	2023-06-170	95	US
5310-01-389-7976	2023-03-79	35000	United States
5310-01-389-7976	2023-03-73	35000	United States
MS15795814	2023-03-69	35000	United States
FF-W-92	2023-01-18	60	Saudi Arabia
MS15795814	2022-07-189	100	United States
MS15795814	2022-04-108	100	United States
5310-01-389-7976	2021-08-216	100	United States
5310-01-389-7976	2021-04-120	3	United States
5310-01-389-7976	2021-03-71	180	US
5310-01-389-7976	2021-02-46	3	United States
5310-01-389-7976	2020-11-310	2100	DIBBS
5310-01-389-7976	2020-10-302	12969	DIBBS
MS15795814	2020-09-254	128	us
MS15795-814	2020-07-206	30	Taiwan
5310-01-389-7976	2020-01-14	6	United States
MS15795814	2019-06-155	100	United States
MS15795814	2019-04-101	10	United States
MS15795814	2019-04-91	4	India
MS15795814	2019-01-23	100	United States
5310-01-389-7976	2018-12-344	150398	DIBBS
MS15795-814	2018-12-338	6
FFW92	2018-07-207	2	United States
MS15795814	2018-05-138	8	United States
MS15795814	2018-01-25	114	United States
MS15795814	2018-01-25	114	United States
MS15795814	2018-01-25	192	United States
MS15795814	2018-01-17	114	United States
MS15795814	2018-01-17	192	United States
MS15795814	2017-11-305	6	us
MS15795814	2017-08-221	600	US
MS15795-814	2017-07-192	20	Australia
FFW92	2016-08-217	21	US
MS15795-814	2016-05-137	2
MS15795-814	2016-02-48	32400	United States
MS15795814	2015-10-294	2	United States
MS15795814	2015-09-260	100	United States
MS15795814	2015-04-91	352	United States
MS15795814	2014-06-170	4	United States
MS15795-814	2014-03-71	900	United States
MS15795814	2014-02-43	13	United States
MS15795814	2014-02-37	150	United States
MS15795814	2013-04-119	30	United States
MS15795814	2012-11-335	12	United States
MS15795814	2012-11-331	90	United States
MS15795814	2012-09-258	50	US
MS15795-814	2012-07-195	60	United States
MS15795814	2012-06-177	232	United States
MS15795-814	2012-06-163	1232	India
MS15795814	2012-05-143	15	United States
5310-01-389-7976	2012-02-59	925000	DIBBS
MS15795814	2012-01-10	32	US
MS15795814	2011-11-333	50	United States
MS15795814	2011-11-318	200	US
FFW92	2011-10-304	495	United States
5310-01-389-7976	2011-10-298	190	US
MS15795814	2011-09-258	4	United Kingdom
MS15795814	2011-07-210	448	US
MS15795814	2011-07-206	448	US
MS15795814	2011-06-178	528	United States
5310-01-389-7976	2011-05-131	6600	Pakistan
5310-01-389-7976	2011-03-61	25	US
MS15795814	2011-02-41	100	United States
MS15795814	2011-01-17	1200	India
5310-01-389-7976	2011-01-10	20	US
MS15795814	2010-12-356	1	Italy
MS15795814	2010-10-300	34	United States
5310-01-389-7976	2010-10-294	60	US
5310-01-389-7976	2010-04-105	24	US
5310-01-389-7976	2010-03-63	305143	DIBBS
MS15795814	2010-02-53	180	United States
MS15795814	2010-02-35	33	US
MS15795814	2010-01-07	50	United States
5310-01-389-7976	2009-12-364	10	United States
5310-01-389-7976	2009-12-343	16	US
5310-01-389-7976	2009-11-328	6	US
5310-01-389-7976	2009-10-295	3	us
MS15795814	2009-08-225	300000	United States
MS15795814	2009-08-219	100	us
5310-01-389-7976	2009-08-219	24	US
5310-01-389-7976	2009-05-146	103201	DIBBS
5310-01-389-7976	2009-04-105	18722	DIBBS
MS15795814	2009-03-77	2	Canada
5310-01-389-7976	2008-09-262	300	Canada
MS15795814	2008-05-150	308	United States
MS15795814	2008-03-70	50	US
MS15795814	2006-07-195	100	US

Cross Reference | NSN 5310-01-389-7976

Part Number	Cage Code	Manufacturer
0.812ODX0.406ID X0.65THK CRES31	D9182	BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT
FF-W-92	81348	FEDERAL SPECIFICATIONS PROMULGATED BY GENERAL SERVICES
MS15795-814	80205	NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES
MS15795-814	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS
MS15795-814 CRE S 316	D9182	BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5310-01-389-7976

Compare

Related Products | NSN 5310-01-389-7976

5310-01-389-7978, 5310-01-389-7982, 5310-01-389-7985, 5310-01-389-7988, 5310-01-389-7992

Technical Data | NSN 5310-01-389-7976

Characteristic	Specifications
MATERIAL	STEEL COMP 316 OVERALL
SURFACE TREATMENT	PASSIVATE OVERALL
SURFACE TREATMENT DOCUMENT AND CLASSIFICATION	QQ-P-35 FED SPEC SINGLE TREATMENT RESPONSE OVERALL

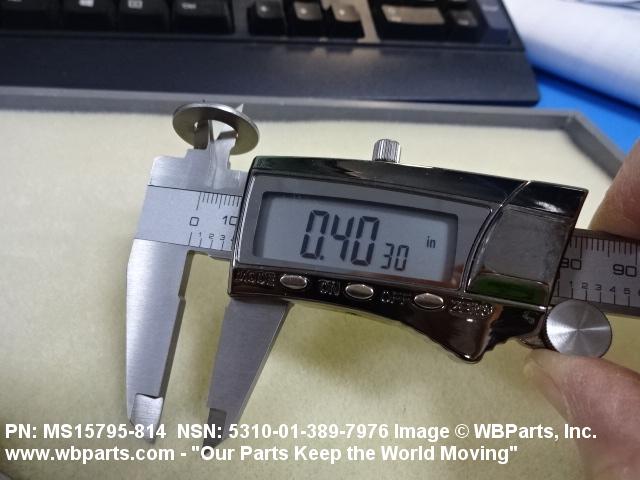

HOLE DIAMETER	0.401 INCHES MINIMUM AND 0.421 INCHES MAXIMUM
PERIPHERAL SHAPE STYLE	1 ROUND
OVERALL DIAMETER	0.805 INCHES MINIMUM AND 0.827 INCHES MAXIMUM
CENTER HOLE SHAPE STYLE	1 ROUND
CROSS-SECTIONAL SHAPE STYLE	1 RECTANGULAR

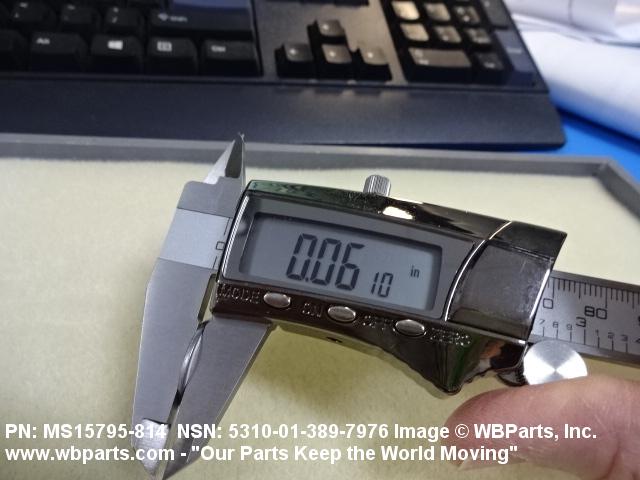

THICKNESS	0.051 INCHES MINIMUM AND 0.080 INCHES MAXIMUM
DEPARTURE FROM CITED DOCUMENT	ASMODIFIED BY MATERIAL

Restrictions/Controls & Freight Information | NSN 5310-01-389-7976

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	N	There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	A	Item does not contain precious metal
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
Automatic Data Processing Equipment:	0	Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9)

Category	Code	Description
NMF Description	194160	WASHER OR GASKETS, IRON OR STEEL,
Less than car load rating
Less than truck load rating	U	50.0
Water commodity Code	573	unknown
Originating Activity Code	KZ	Defense Supply Center Philadelphia Philadelphia, PA 19101
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	V	Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 5310-01-389-7976

Category	Code	Description
Materiel Category and Inventory Manager	T	Industrial Supplies (DLA/GSA Items)
Appropriation and Budget Activity	2	Stock Fund Secondary Items
Management Inventory Segment	2	NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable.
Specific Group/Generic Code	0	Medical Materiel
Weapons Systems/End Item or Homogeneous Group	00	DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
Accounting Requirements Code	X	Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DA	Department of the Army
Service Organization	A	U.S. Army
Reparability	Z	This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	Q EA : Each

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Price Validation	N	The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM. The price has not been analyzed or reviewed for accuracy. ZOP or Standard price challenges are permissible, but must be supported with adequate justification. However, if coded for Local Purchase (LP) or Fabrication/Manufacture as indicated with an (LM) Acquisition Advice Code of ?L? or?F?,the case must be evaluated locally where purchased or fabricated.
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Materiel Management Aggregation Code	SX	SX:AF SICA RESIDUAL MMAC-OC-ALC
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	Q EA : Each

Category	Code	Description
Stores Account Code	1	Marine Corps Stock Fund Account Item.
Combat Essentiality Code	2	Non-Critical Repair Part. Repair parts or major components whose failure in an end item will not render the end item inoperative or reduce its effectiveness below the minimum acceptable level of efficiency, and which do not fit the definition of Code 3 or 4 items.
Materiel Management Code	B	All CommoditiesDefense Logistics Agency, (DLA,)
Echelon Management Code	2	ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DM	U.S. Marine Corps
Service Organization	M	U.S. Marine Corps
Reparability	Z	Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	Q EA : Each

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	Q EA : Each
