NSN 5310-01-389-8001 MS35649264, MS35649-264, 01-389-8001

Product Details | HEXAGON PLAIN NUT

5310-01-389-8001 A nut, flat on top and bottom having 6 flat sides. For items which have internal tapered or straight (parallel) pipe threads, specific electrical conduit size designation, and which when installed, provide a method of tightening to lock the connection, see LOCKNUT, ELECTRICAL CONDUIT. See also LOCKNUT, TUBE FITTING. For items having a thickness (or height) exceeding two times the width across the flats, use POST, ELECTRICAL-MECHANICAL EQUIPMENT. (When height or thickness and/or width across the flats is designated as a tolerance dimension, the maximum dimension will be used to determine compliance.

Part Alternates: MS35649264, MS35649-264, 5310-01-389-8001, 01-389-8001, 5310013898001, 013898001

Hardware and Abrasives | Nuts and Washers

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
53	04 MAY 1994	01-389-8001	01857 ( NUT, PLAIN, HEXAGON )

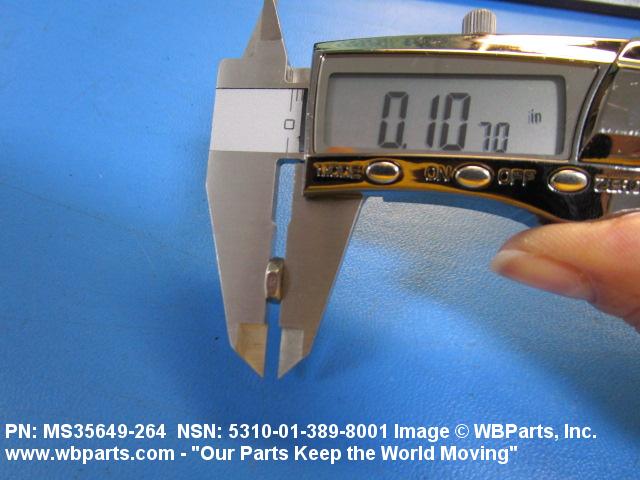

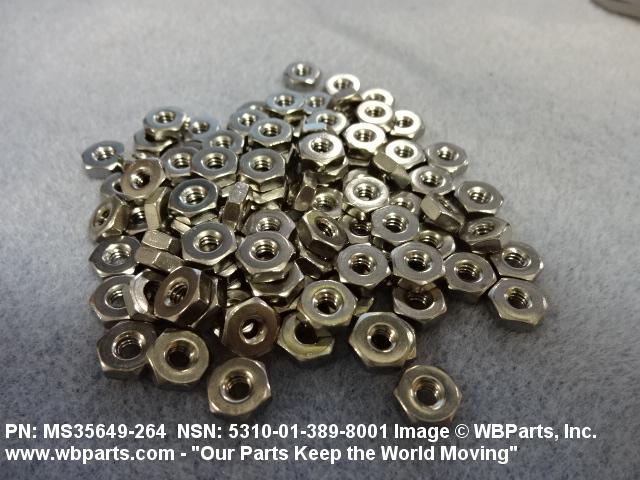

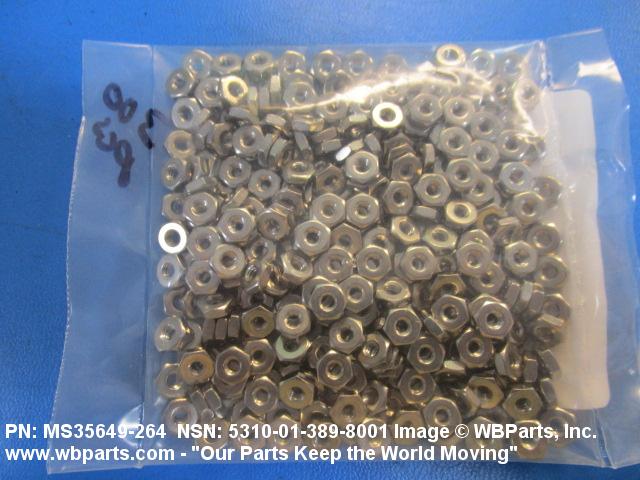

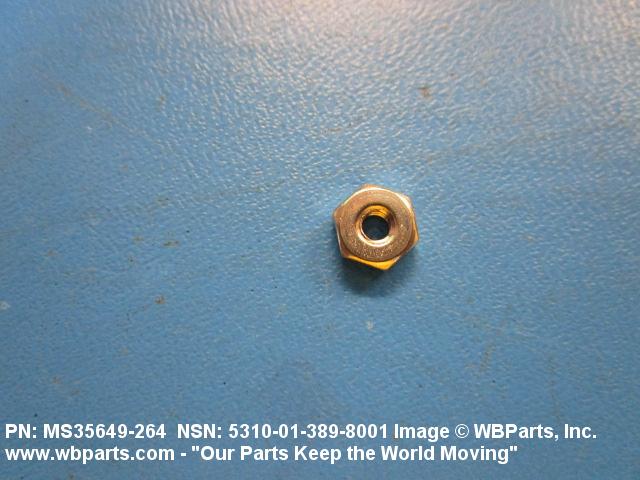

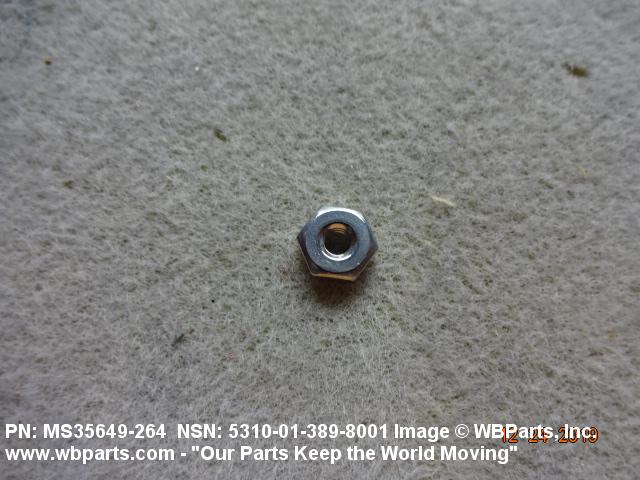

Drawings & Photos | NSN 5310-01-389-8001

Part Number	Request Date	QTY	Origin
MS35649264	2025-11-311	3723	Israel
MS35649264	2025-07-199	1000	Hong Kong
MS35649264	2025-02-51	52	US
MS35649264	2024-10-295	52	us
MS35649264	2024-08-220	16	Japan
MS35649264	2024-05-123	7	United States
MS35649264	2023-11-332	40	TW
MS35649264	2022-10-284	400	US
MS35649-264	2022-04-95	4
MS35649264	2022-01-25	5000	India
MS35649-264	2020-02-59	1000	US
MS35649-264	2020-02-59	1000	US
5310-01-389-8001	2019-12-338	6	United States
MS35649264	2018-04-93	50	US
5310-01-389-8001	2016-09-272	6528	DIBBS
MS35649264	2016-09-245	6	United States
MS35649264	2015-08-237	8320	CA
MS35649264	2015-08-232	825	US
MS35649264	2015-01-20	2744	US
MS35649264	2014-09-272	1	United States
MS35649264	2014-09-259	96	United States
MS35649264	2014-07-212	2000	US
MS35649-264	2014-04-104	200	Brazil
MS35649264	2014-02-43	4	United States
MS35649264	2013-08-238	1520	South Korea
MS35649264	2013-03-67	368	US
MS35649-264	2012-07-195	135	United States
MS35649264	2012-06-180	500	TW
MS35649-264	2012-06-177	11	US
MS35649264	2012-06-157	350	Mexico
MS35649264	2011-12-361	14	United States
5310-01-389-8001	2011-07-188	135	US
MS35649264	2011-04-115	80	US
5310-01-389-8001	2011-04-111	1	United States
MS35649264	2011-03-75	1	United States
MS35649264	2011-01-17	200	India
MS35649264	2010-12-356	1	Italy
MS35649264	2010-10-278	360	Saudi Arabia
MS35649264	2010-10-278	360	Saudi Arabia
MS35649264	2010-05-130	6	United States
MS35649264	2010-03-80	50	US
MS35649264	2010-03-80	50	US
MS35649264	2010-03-64	114	US
5310-01-389-8001	2009-02-42	7218	DIBBS

Cross Reference | NSN 5310-01-389-8001

Part Number	Cage Code	Manufacturer
MS35649-264	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5310-01-389-8001

Compare

Related Products | NSN 5310-01-389-8001

5310-01-389-8002, 5310-01-389-8004, 5310-01-389-8020, 5310-01-389-8021, 5310-01-389-8024

Technical Data | NSN 5310-01-389-8001

Characteristic	Specifications
THREAD SERIES	UNC
NOMINAL THREAD SIZE	0.138 INCHES
THREAD QUANTITY PER INCH	32
THREAD CLASS	2B
THREAD DIRECTION	RIGHT-HAND
MATERIAL	STEEL COMP 316 OVERALL
SURFACE TREATMENT	PASSIVATE OVERALL
SURFACE TREATMENT DOCUMENT AND CLASSIFICATION	QQ-P-35 FED SPEC SINGLE TREATMENT RESPONSE OVERALL
HARDNESS RATING	NOT RATED
NUT STYLE	A12 HEXAGON
NUT HEIGHT	0.102 INCHES MINIMUM AND 0.114 INCHES MAXIMUM
WIDTH ACROSS FLATS	0.302 INCHES MINIMUM AND 0.312 INCHES MAXIMUM
BEARING SURFACE TYPE	CHAMFERED
TEMP RATING	NOT RATED
DEPARTURE FROM CITED DOCUMENT	AS MODIFIED BY MATERIAL
MANUFACTURERS CODE	96906
NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE	MS35649-264

Restrictions/Controls & Freight Information | NSN 5310-01-389-8001

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	N	There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	A	Item does not contain precious metal
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
Automatic Data Processing Equipment:	0	Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9)

Category	Code	Description
NMF Description	093486	BOLTS,NUTS OR SCREWS, NOI (SUB 3)
Less than car load rating
Less than truck load rating	W	Rating Variable
Water commodity Code	573	unknown
Originating Activity Code	KZ	Defense Supply Center Philadelphia Philadelphia, PA 19101
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	B	Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 5310-01-389-8001

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Price Validation	N	The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM. The price has not been analyzed or reviewed for accuracy. ZOP or Standard price challenges are permissible, but must be supported with adequate justification. However, if coded for Local Purchase (LP) or Fabrication/Manufacture as indicated with an (LM) Acquisition Advice Code of ?L? or?F?,the case must be evaluated locally where purchased or fabricated.
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Materiel Management Aggregation Code	SX	SX:AF SICA RESIDUAL MMAC-OC-ALC
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	M EA : Each

Category	Code	Description
Stores Account Code	1	Marine Corps Stock Fund Account Item.
Combat Essentiality Code	5	Critical Repair Part to a Combat Essential End Item. Those parts or components whose failure in a combat essential end item will render the end item inoperative or reduce its effectiveness below the minimum acceptable level of efficiency.
Materiel Management Code	B	All CommoditiesDefense Logistics Agency, (DLA,)
Echelon Management Code	2	ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled.
Physical Category Code	1	Bin
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DM	U.S. Marine Corps
Service Organization	M	U.S. Marine Corps
Reparability	Z	Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	M EA : Each

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	M EA : Each
