NSN 5310-01-398-9514 6962398-30, 6962399-30, 01-398-9514
Product Details | HEXAGON EXTENDED WASHER SELF-LOCKING NUT
5310-01-398-9514 A nut having 6 flat sides and an integral washer which extends beyond the flats or periphery. An integral feature is incorporated for locking on the threads of a mating member.
Part Alternates: 6962398-30, 6962399-30, 5310-01-398-9514, 01-398-9514, 5310013989514, 696239830, 013989514, 696239930
Hardware and Abrasives | Nuts and Washers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 11 NOV 1994 | 01-398-9514 | 29730 ( NUT, SELF-LOCKING, EXTENDED WASHER, HEXAGON ) |

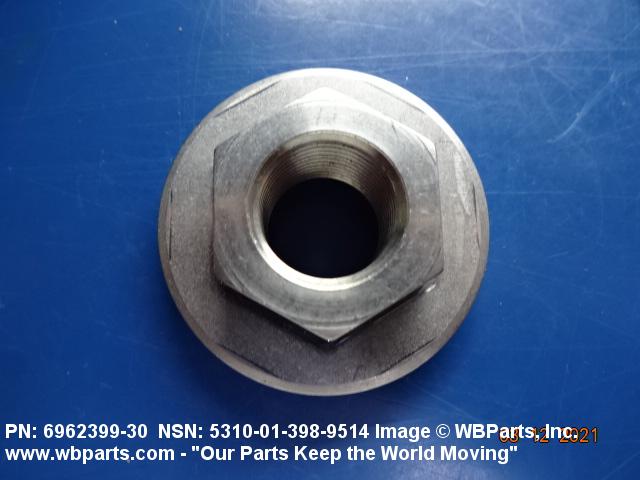

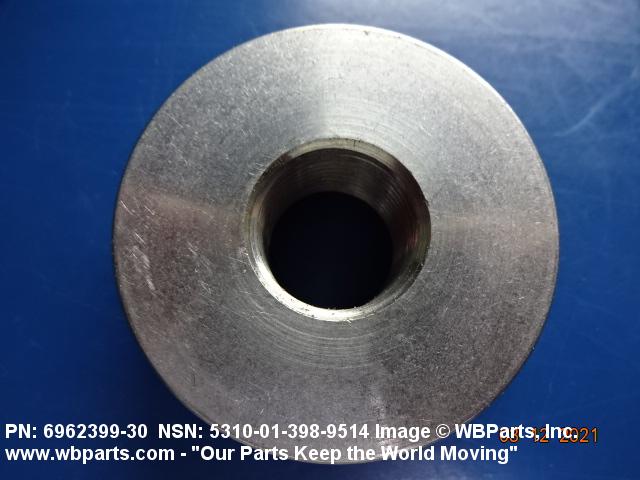

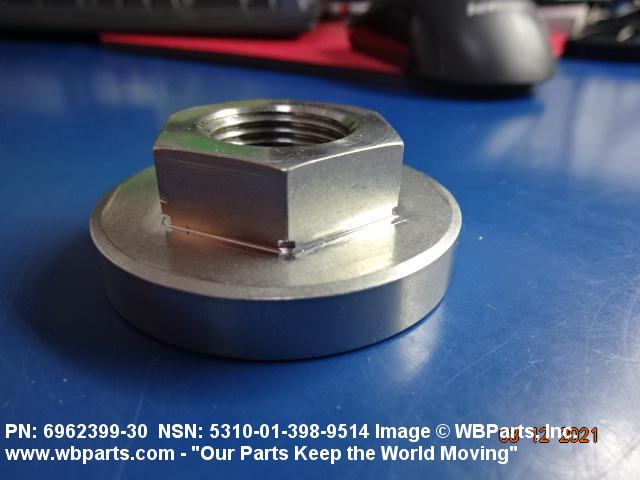

Drawings & Photos | NSN 5310-01-398-9514
Demand History | NSN 5310-01-398-9514
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5310-01-398-9514 | 2025-03-87 | 1 | US |
| 5310-01-398-9514 | 2024-07-198 | 2 | United States |
| 5310-01-398-9514 | 2021-03-67 | 2 | United States |
| 5310-01-398-9514 | 2018-07-182 | 35 | DIBBS |
| 5310-01-398-9514 | 2018-05-130 | 1 | DIBBS-RFPs |
| 5310-01-398-9514 | 2018-02-32 | 1 | US |
| 5310-01-398-9514 | 2017-07-204 | 31 | DIBBS |
| 5310-01-398-9514 | 2016-06-175 | 22 | DIBBS |
| 5310-01-398-9514 | 2015-04-92 | 22 | DIBBS |
| 5310-01-398-9514 | 2014-09-272 | 15 | DIBBS |
| 5310-01-398-9514 | 2014-09-259 | 15 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5310-01-398-9514
Related Products | NSN 5310-01-398-9514
Technical Data | NSN 5310-01-398-9514
| Characteristic | Specifications |
|---|---|
| THREAD SERIES | UNF |
| NOMINAL THREAD SIZE | 0.875 INCHES |
| THREAD QUANTITY PER INCH | 14 |
| THREAD CLASS | 3B |
| THREAD DIRECTION | RIGHT-HAND |
| MATERIAL | NICKEL ALLOY 625 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | ASTM B446 GRADE 1 ASSN STD SINGLE MATERIAL RESPONSE OVERALL |
| HARDNESS RATING | NOT RATED |
| NUT STYLE | A294 HEXAGON |

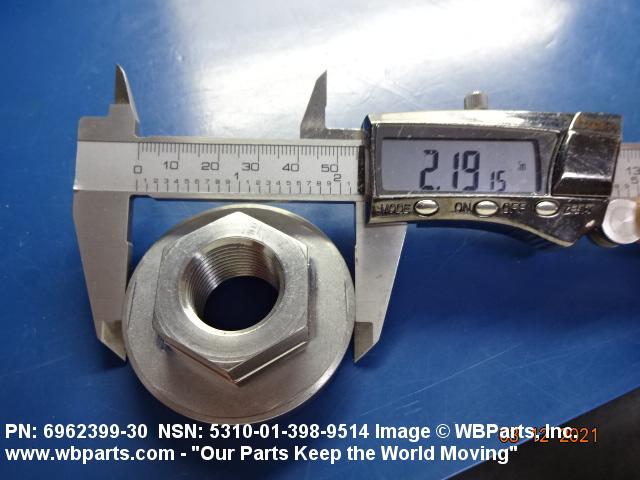

| WASHER OUTSIDE DIAMETER | 2.188 INCHES MINIMUM |

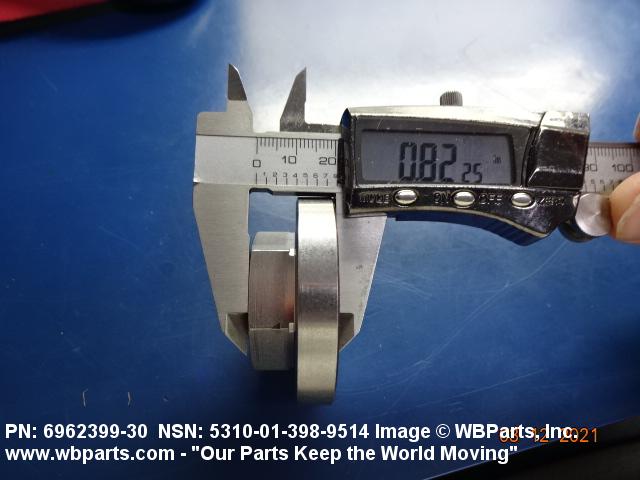

| OVERALL HEIGHT | 0.813 INCHES NOMINAL |

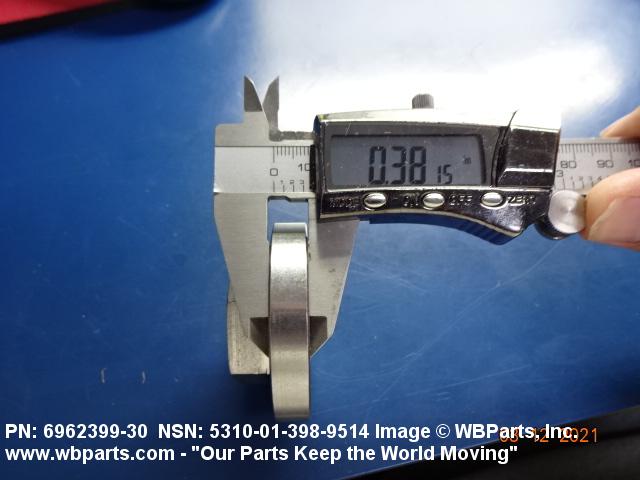

| WASHER THICKNESS | 0.380 INCHES NOMINAL |

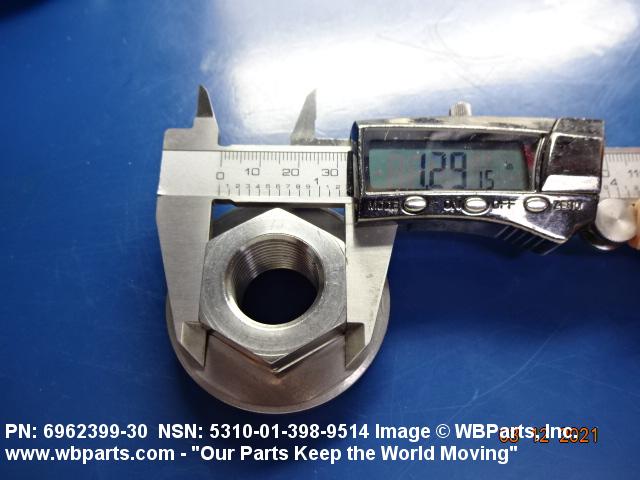

| WIDTH ACROSS FLATS | 1.269 INCHES MINIMUM AND 1.312 INCHES MAXIMUM |
| LOCKING FEATURE | ANY ACCEPTABLE |
| TEMP RATING | NOT RATED |
Restrictions/Controls & Freight Information | NSN 5310-01-398-9514
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 093486 | BOLTS,NUTS OR SCREWS, NOI (SUB 3) |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 576 | unknown |
| Originating Activity Code | KZ | Defense Supply Center Philadelphia Philadelphia, PA 19101 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5310-01-398-9514
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
