NSN 5310-01-407-7780 NAS1149C1232R, TW0498, 10122296

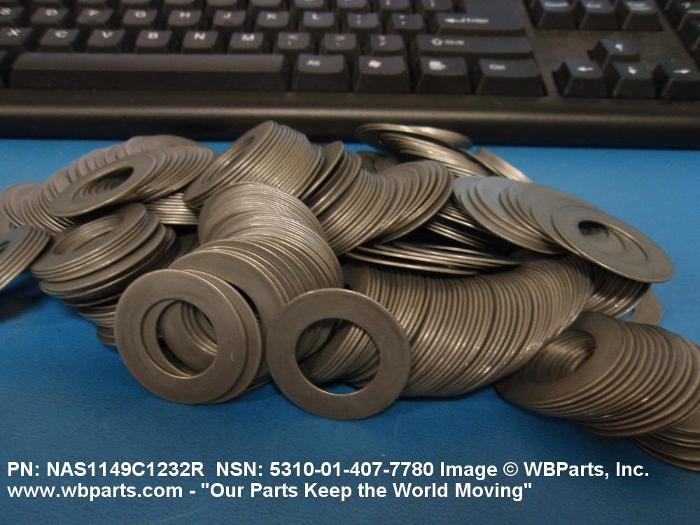

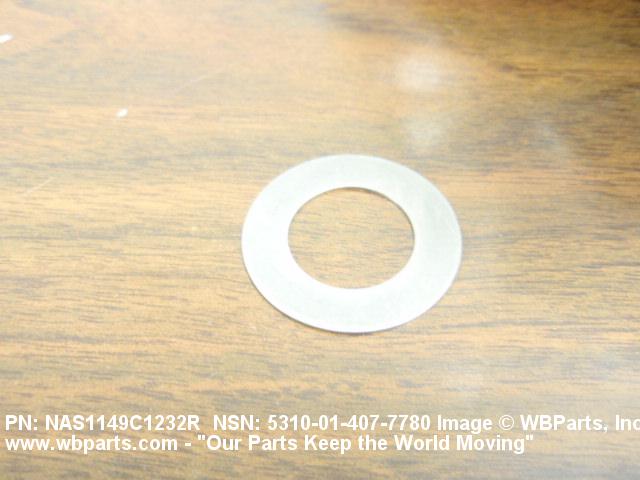

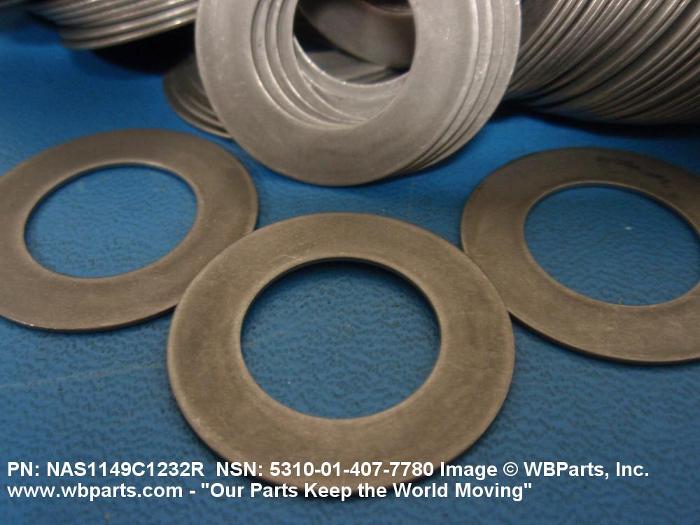

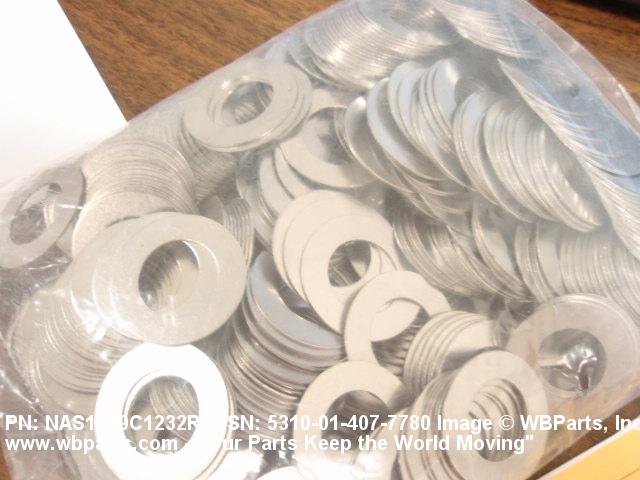

Product Details | FLAT WASHER

5310-01-407-7780 A washer having a centrally located hole with a solid or laminated cross-section and two flat parallel bearing surfaces. The hole must be 75 percent or less than the largest dimension and the bearing surface finish is greater than 32 microinch (0.8 micrometer). The thickness cannot exceed 25 percent of the largest outside dimension. When the largest outside dimension is less than 1/4 inch or 6mm, the thickness must be 0.006 inches (0.15mm) or greater and for items 1/4 inch (6mm) or larger, the thickness must be 0.016 inches (0.4mm) or greater. The maximum tolerance is applied to dimensions and used as a determining factor. Items with separable lamination use SHIM. For items fabricated from ceramic or electrically rated materials by specification or industry standards use INSULATOR (1), WASHER. Excludes DISK, VALVE, graphite impregnated and lubricated items.

Part Alternates: NAS1149C1232R, TW0498, 10122296 , 5310-01-407-7780, 01-407-7780, 5310014077780, 014077780

Hardware and Abrasives | Nuts and Washers

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
53	05 FEB 1995	01-407-7780	13393 ( WASHER, FLAT )

Drawings & Photos | NSN 5310-01-407-7780

Part Number	Request Date	QTY	Origin
5310-01-407-7780	2026-01-12	8500	DIBBS
5310-01-407-7780	2025-12-346	220	UK
5310-01-407-7780	2025-10-289	7938	DIBBS
5310-01-407-7780	2025-08-233	48	us
5310-01-407-7780	2025-06-176	2350	DIBBS
NAS1149C1232R	2022-09-262	25	United States
NAS1149C1232R	2021-08-239	16	us
NAS1149C1232R	2021-04-109	20	United States
5310-01-407-7780	2021-01-14	20000	DIBBS
5310-01-407-7780	2019-07-203	8650	DIBBS
5310-01-407-7780	2019-07-195	8650	DIBBS
5310-01-407-7780	2019-05-136	4149	DIBBS
5310-01-407-7780	2019-04-107	6750	US
5310-01-407-7780	2019-04-106	6740	DIBBS
5310-01-407-7780	2019-01-14	15092	DIBBS
5310-01-407-7780	2019-01-06	15092	DIBBS
5310-01-407-7780	2018-09-268	13960	DIBBS
5310-01-407-7780	2018-08-231	11589	DIBBS
5310-01-407-7780	2018-08-230	11589	DIBBS
NAS1149C1232R	2018-01-23	365	United States
5310-01-407-7780	2017-05-137	10284	DIBBS
NAS1149C1232R	2017-05-128	100	SG
NAS1149C1232R	2017-04-95	24	US
5310-01-407-7780	2016-12-354	9972	DIBBS
NAS1149C1232R	2016-03-77	200	US
NAS1149C1232R	2016-03-68	30	United States
NAS1149C1232R	2015-03-61	3	US
5310-01-407-7780	2014-02-35	15920	DIBBS
NAS1149C1232R	2014-01-24	24	US
5310-01-407-7780	2013-06-161	15304	DIBBS
NAS1149C1232R	2013-05-142	1	US
NAS1149C1232R	2012-10-305	4	Taiwan
5310-01-407-7780	2012-05-150	9304	DIBBS
NAS1149C1232R	2011-12-335	100
NAS1149C1232R	2011-10-279	100	US
NAS1149C1232R	2011-07-202	800	TR
NAS1149C1232R	2011-03-88	1500	Belgium
NAS1149C1232R	2010-11-334	1000	Belgium
NAS1149C1232R	2010-09-252	1	United States
NAS1149C1232R	2010-08-229	380	Belgium
5310-01-407-7780	2009-03-82	11642	DIBBS
5310-01-407-7780	2009-01-06	20	US
5310-01-407-7780	2008-10-294	9216	DIBBS
5310-01-407-7780	2008-03-71	19494	DIBBS

Cross Reference | NSN 5310-01-407-7780

Part Number	Cage Code	Manufacturer
NAS1149C1232R	80205	NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES
TW0498	U8532	T.W. ENGINEERING COMPANY LIMITED

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5310-01-407-7780

Compare

Related Products | NSN 5310-01-407-7780

5310-01-407-7783, 5310-01-407-7814, 5310-01-407-7856, 5310-01-407-7861, 5310-01-407-7862

Technical Data | NSN 5310-01-407-7780

Characteristic	Specifications
MATERIAL	STEEL COMP 301 OR STEEL COMP 302 OR STEEL COMP 304 OR STEEL COMP 316 OR STEEL COMP 321 OR STEEL COMP 347 OVERALL
SURFACE TREATMENT	PASSIVATE OVERALL
SURFACE TREATMENT DOCUMENT AND CLASSIFICATION	QQ-P-35 FED SPEC SINGLE TREATMENT RESPONSE OVERALL
HOLE DIAMETER	0.760 INCHES MINIMUM AND 0.765 INCHES MAXIMUM
PERIPHERAL SHAPE STYLE	1 ROUND
OVERALL DIAMETER	1.307 INCHES MINIMUM AND 1.312 INCHES MAXIMUM
CENTER HOLE SHAPE STYLE	1 ROUND
CROSS-SECTIONAL SHAPE STYLE	1 RECTANGULAR
THICKNESS	0.028 INCHES MINIMUM AND 0.036 INCHES MAXIMUM
SPECIFICATION/STANDARD DATA	80205-NAS1149 PROFESSIONAL/INDUSTRIAL ASSOCIATION STANDARD

Restrictions/Controls & Freight Information | NSN 5310-01-407-7780

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	N	There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	A	Item does not contain precious metal
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
Automatic Data Processing Equipment:	0	Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9)

Category	Code	Description
NMF Description	194160	WASHER OR GASKETS, IRON OR STEEL,
Less than car load rating
Less than truck load rating	U	50.0
Water commodity Code	573	unknown
Originating Activity Code	KZ	Defense Supply Center Philadelphia Philadelphia, PA 19101
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	V	Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
