NSN 5310-01-437-6353 F22NKM02, F22NKM-02, 8670310008
Product Details | CAP SELF-LOCKING NUT
5310-01-437-6353 A nut internally threaded from one end, and completely enclosed on the opposite end. The outer periphery parallel to the threaded axis may be square, cylindrical, hexagonal, octagonal, dodecagonal or the like and taper to a cone or dome shape on the closed end. An integral feature is incorporated for locking on the threads of a mating memeber. Excludes NUT (1), STAMPED.
Part Alternates: F22NKM02, F22NKM-02, 8670310008, 867031-0008, 29132488, 2913248-8, 5310-01-437-6353, 01-437-6353, 5310014376353, 014376353
Hardware and Abrasives | Nuts and Washers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 20 OCT 1996 | 01-437-6353 | 05275 ( NUT, SELF-LOCKING, CAP ) |

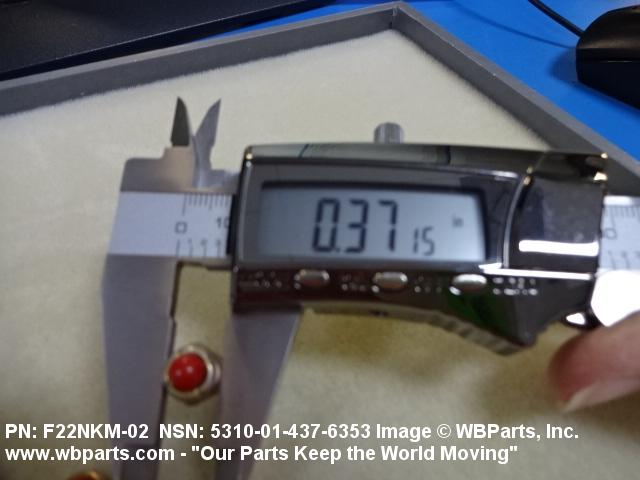

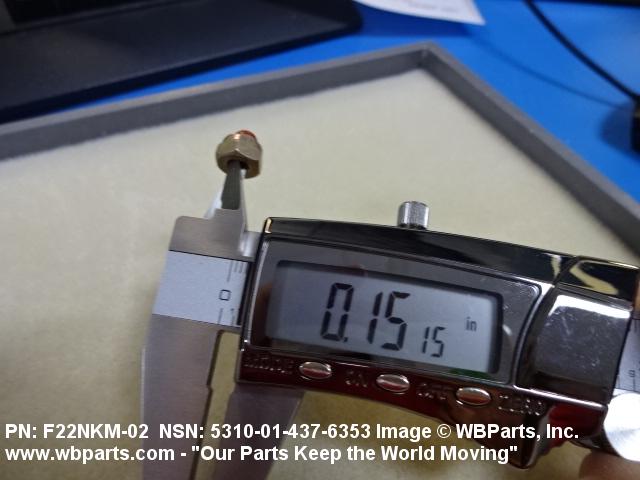

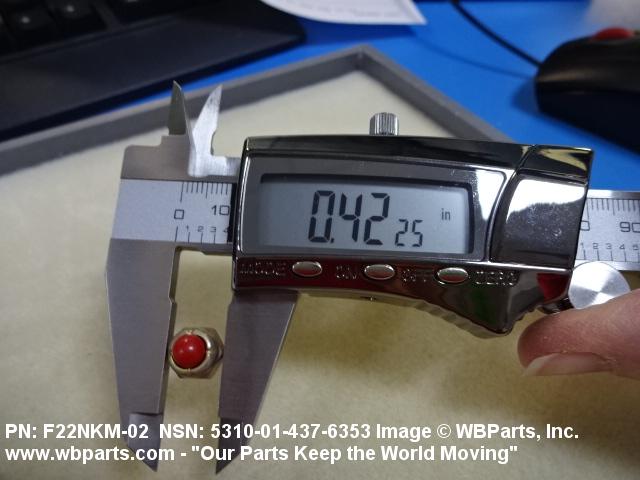

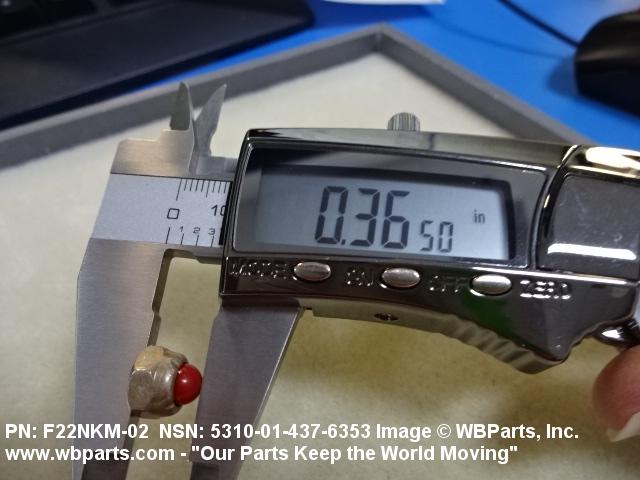

Drawings & Photos | NSN 5310-01-437-6353
Demand History | NSN 5310-01-437-6353
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| F22NKM02 | 2022-02-33 | 25 | US |
| F22NKM02 | 2019-07-198 | 120 | United States |
| F22NKM02 | 2015-03-78 | 16000 | US |
| F22NKM-02 | 2014-06-157 | 50 | United States |
| 5310-01-437-6353 | 2014-06-153 | 12 | DIBBS |
| 5310-01-437-6353 | 2014-05-141 | 12 | DIBBS |
| 5310-01-437-6353 | 2014-04-104 | 12 | DIBBS |
| F22NKM02 | 2014-02-36 | 200 | United States |
| 5310-01-437-6353 | 2013-09-256 | 12 | DIBBS |
| 5310-01-437-6353 | 2013-07-184 | 12 | DIBBS |
| 5310-01-437-6353 | 2012-06-173 | 8 | DIBBS |
| 5310-01-437-6353 | 2012-04-95 | 7 | DIBBS |
| 5310-01-437-6353 | 2011-08-222 | 8 | DIBBS |
| 5310-01-437-6353 | 2011-05-132 | 2 | DIBBS |
| 5310-01-437-6353 | 2010-10-295 | 8 | DIBBS |
Cross Reference | NSN 5310-01-437-6353
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5310-01-437-6353
Related Products | NSN 5310-01-437-6353
Technical Data | NSN 5310-01-437-6353
| Characteristic | Specifications |
|---|---|
| THREAD SERIES | UNF |
| NOMINAL THREAD SIZE | 0.190 INCHES |
| THREAD QUANTITY PER INCH | 32 |
| THREAD CLASS | 3B |
| THREAD DIRECTION | RIGHT-HAND |
| MATERIAL | PLASTIC POLYAMIDE CAP PLASTIC POLYAMIDE LOCKING INSERT STEEL NUT |
| SURFACE TREATMENT | CADMIUM AND CHROMATE OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-416 TYPE 2, CLASS 3 FED SPEC SINGLE TREATMENT RESPONSE OVERALL |
| HARDNESS RATING | NOT RATED |
| NUT STYLE | A10 CAP |
| NUT HEIGHT | 0.363 INCHES NOMINAL |
| WIDTH ACROSS FLATS | 0.413 INCHES NOMINAL |
| BEARING SURFACE TYPE | WASHER FACED |
| LOCKING FEATURE | PREVAILING TORQUE WITH NONMETALLIC INSERT |
| TEMP RATING | NOT RATED |
Restrictions/Controls & Freight Information | NSN 5310-01-437-6353
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 093486 | BOLTS,NUTS OR SCREWS, NOI (SUB 3) |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 576 | unknown |
| Originating Activity Code | KZ | Defense Supply Center Philadelphia Philadelphia, PA 19101 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5310-01-437-6353
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
M EA : Each |
