Product Details | BLIND RIVET PLAIN NUT
5310-01-462-2027 A metallic headed fastener having internal threads for a portion of the full length. It may have a smooth, hexagon or splined shank with an open or closed end. Is designed to be expanded tightly against the material it is being installed in by means of a special tool. The item must have a specified grip range. The grip range is the thickness of the material the item is being installed in. See also NUT (1) SELF-LOCKING, BLIND RIVET. Excludes NUT (1), SLEEVE.
Part Alternates: SM5-3.5, SM535, 10551556, 1055155614, 10551556-14, 5310-01-462-2027, 01-462-2027, 5310014622027, 014622027
Hardware and Abrasives | Nuts and Washers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 25 JAN 1999 | 01-462-2027 | 01873 ( NUT, PLAIN, BLIND RIVET ) |

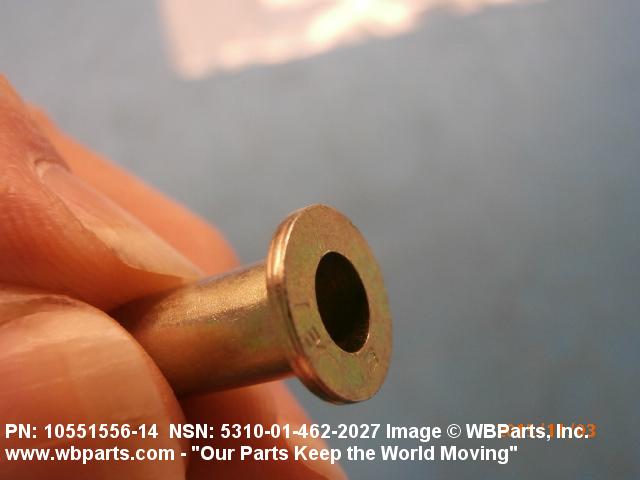

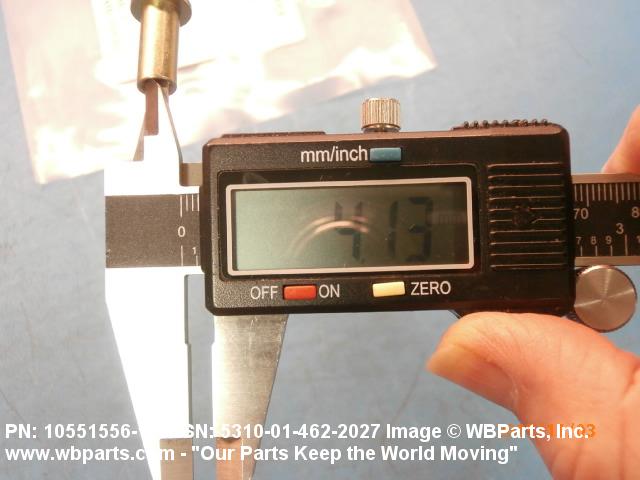

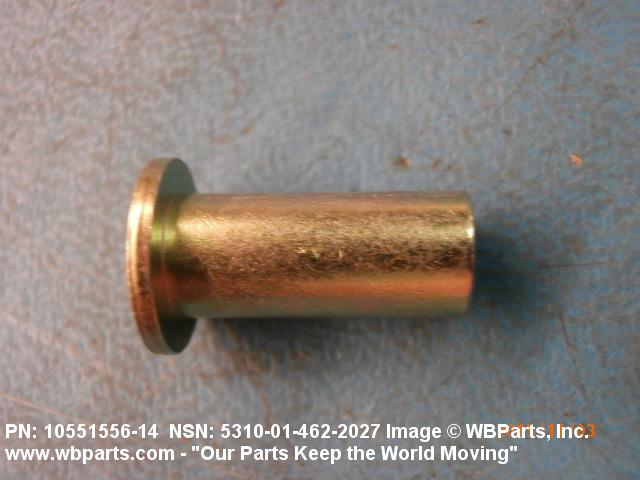

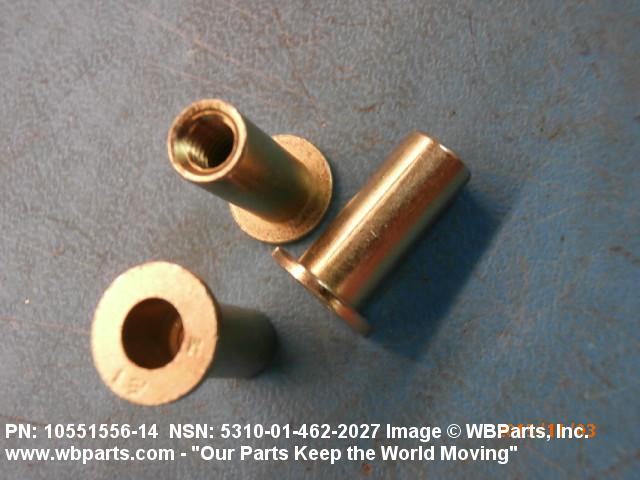

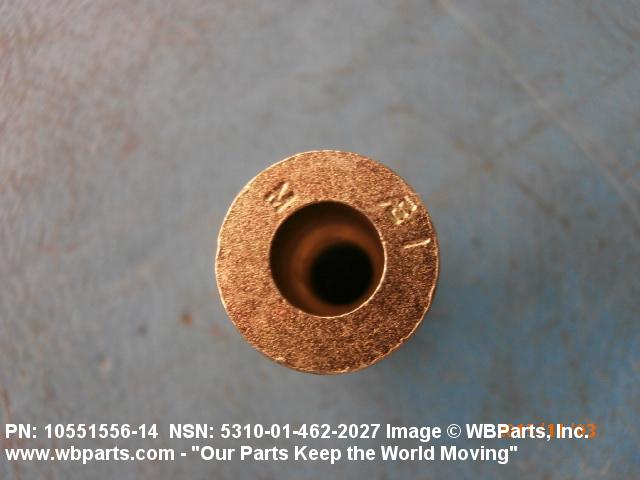

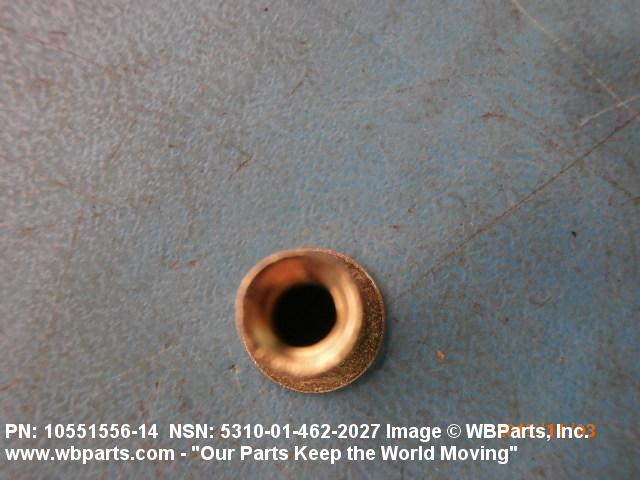

Drawings & Photos | NSN 5310-01-462-2027
Demand History | NSN 5310-01-462-2027
Request a Quote
Comments | What our customers are saying...
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Related Products | NSN 5310-01-462-2027
5310-01-462-2175, 5310-01-462-2247, 5310-01-462-2331, 5310-01-462-2333, 5310-01-462-2372
Technical Data | NSN 5310-01-462-2027
| Characteristic | Specifications |
|---|---|
| THREAD SERIES | ISO M |
| NOMINAL THREAD SIZE | 5.0 MILLIMETERS |
| THREAD PITCH IN MILLIMETERS | 0.80 |
| THREAD CLASS | 5M |
| THREAD TOLERANCE CLASS | 6H INTERNAL |
| THREAD PITCH DIAMETERS | 0.5 TO 1.1 MILLIMETERS |
| THREAD DIRECTION | RIGHT-HAND |
| MATERIAL | STEEL COMP 1008 AND STEEL COMP 1010 OVERALL |
| SURFACE TREATMENT | ZINC OVERALL |
| HARDNESS RATING | NOT RATED |
| NUT STYLE | A22 BLIND RIVET W/SMOOTH ROUND SHANK |
| NUT DIAMETER | 10.0 MILLIMETERS NOMINAL |
| NUT LENGTH | 1.2 MILLIMETERS NOMINAL |
| NUT GRIP RANGE | 2.0 TO 3.5 MILLIMETERS |
| HEAD STYLE | D13 FLAT |

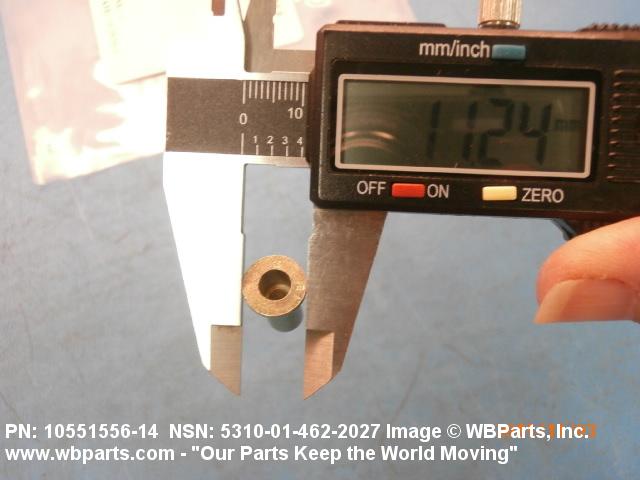

| HEAD DIAMETER | 11.2 MILLIMETERS NOMINAL |

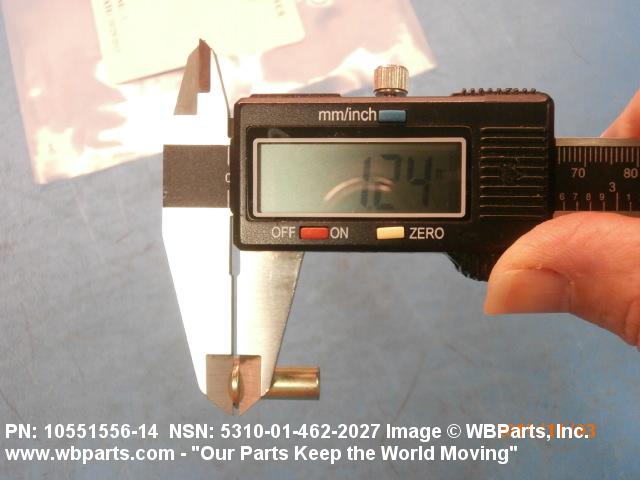

| HEAD HEIGHT | 1.2 MILLIMETERS NOMINAL |
| SHANK END TYPE | CLOSED |
| TEMP RATING | NOT RATED |
| SPECIAL FEATURES | OPEN END AND KEYLESS |
| III PART NAME ASSIGNED BY CONTROLLING AGENCY | RIVNUT-FLATHEAD-METRIC THREAD M5X0.8-6H |
Restrictions/Controls & Freight Information | NSN 5310-01-462-2027
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
