NSN 5310-01-475-3486 124-4322621 PC 192, 1244322621PC192, 124-4322623 PC 28
Product Details | KEYWAY WASHER
5310-01-475-3486 A washer of nonresilient material usually having two parallel bearing surfaces. The outside and/or inside edges have one or more notches. Excludes thrust type washers.
Part Alternates: 124-4322621 PC 192, 1244322621PC192, 124-4322623 PC 28, 1244322623PC28, 124-5794559 PC 28, 1245794559PC28, 124-5923272 PC 192, 1245923272PC192, 4322623, 5310-01-475-3486, 01-475-3486, 5310014753486, 014753486
Hardware and Abrasives | Nuts and Washers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JUN 2000 | 01-475-3486 | 06158 ( WASHER, KEYWAY ) |

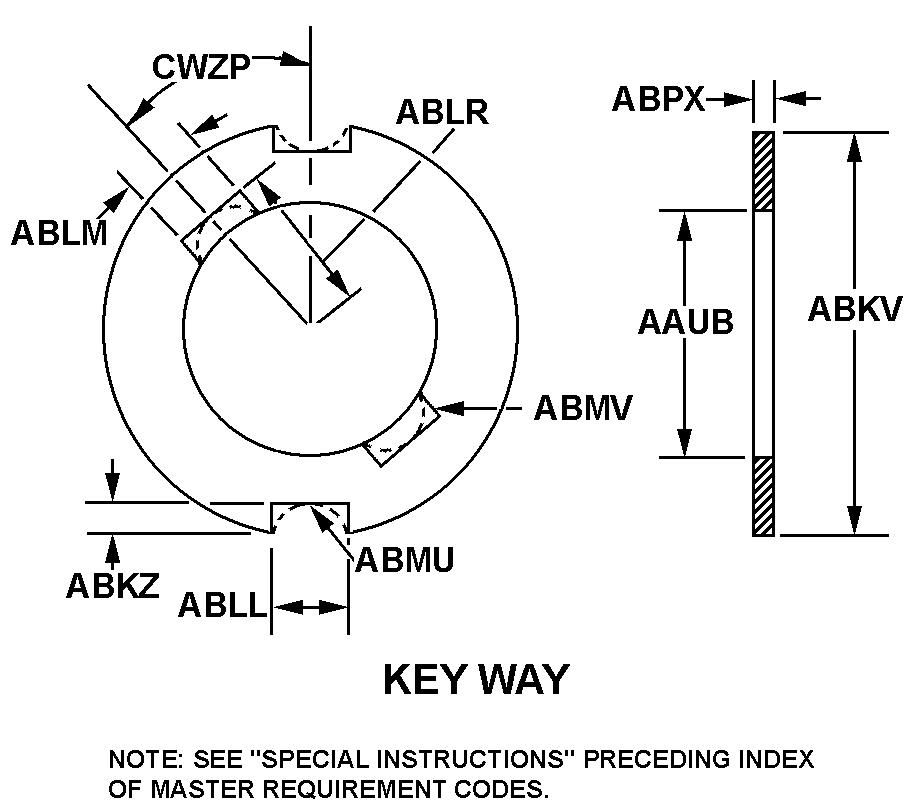

Drawings & Photos | NSN 5310-01-475-3486
Cross Reference | NSN 5310-01-475-3486
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5310-01-475-3486
Technical Data | NSN 5310-01-475-3486
| Characteristic | Specifications |
|---|---|
| MATERIAL | COPPER ALLOY OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | QQ-B-637 FED SPEC SINGLE MATERIAL RESPONSE OVERALL |
| STYLE DESIGNATOR | 169C KEYWAY |
| INTERNAL KEYWAY QUANTITY | 1 |
| HOLE DIAMETER | 1.156 INCHES NOMINAL |
| OUTSIDE DIAMETER | 2.000 INCHES NOMINAL |
| INTERNAL KEYWAY WIDTH | 0.375 INCHES NOMINAL |
| DISTANCE FROM CENTERLINE TO BOTTOM OF INTERNAL KEYWAY | 0.766 INCHES NOMINAL |
| MATERIAL THICKNESS | 0.125 INCHES NOMINAL |
| SURFACE FINISH | 125.0 MICROINCHES ALL SURFACES |
| III END ITEM IDENTIFICATION | NAVY EQUIP |
Restrictions/Controls & Freight Information | NSN 5310-01-475-3486
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 194160 | WASHER OR GASKETS, IRON OR STEEL, |
| Less than car load rating | ||
| Less than truck load rating | U | 50.0 |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | KZ | Defense Supply Center Philadelphia Philadelphia, PA 19101 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5310-01-475-3486
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
