NSN 5310-01-477-2556 NAS1149E1063R, 01-477-2556, 014772556
Product Details | FLAT WASHER
5310-01-477-2556 A washer having a centrally located hole with a solid or laminated cross-section and two flat parallel bearing surfaces. The hole must be 75 percent or less than the largest dimension and the bearing surface finish is greater than 32 microinch (0.8 micrometer). The thickness cannot exceed 25 percent of the largest outside dimension. When the largest outside dimension is less than 1/4 inch or 6mm, the thickness must be 0.006 inches (0.15mm) or greater and for items 1/4 inch (6mm) or larger, the thickness must be 0.016 inches (0.4mm) or greater. The maximum tolerance is applied to dimensions and used as a determining factor. Items with separable lamination use SHIM. For items fabricated from ceramic or electrically rated materials by specification or industry standards use INSULATOR (1), WASHER. Excludes DISK, VALVE, graphite impregnated and lubricated items.
Part Alternates: NAS1149E1063R, 5310-01-477-2556, 01-477-2556, 5310014772556, 014772556
Hardware and Abrasives | Nuts and Washers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 03 AUG 2000 | 01-477-2556 | 13393 ( WASHER, FLAT ) |

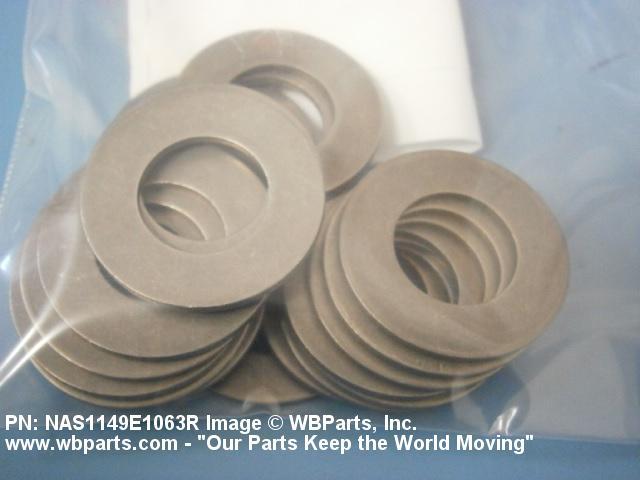

Drawings & Photos | NSN 5310-01-477-2556
Demand History | NSN 5310-01-477-2556
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| NAS1149E1063R | 2025-10-301 | 144 | us |
| NAS1149E1063R | 2025-07-204 | 300 | Japan |
| 5310-01-477-2556 | 2024-04-108 | 363 | DIBBS |
| 5310-01-477-2556 | 2024-03-77 | 173 | DIBBS |
| 5310-01-477-2556 | 2023-12-353 | 190 | DIBBS |
| 5310-01-477-2556 | 2023-12-337 | 166 | DIBBS |
| 5310-01-477-2556 | 2023-07-197 | 15 | DIBBS |
| NAS1149E1063R | 2023-06-165 | 6 | US |
| 5310-01-477-2556 | 2023-04-106 | 15 | DIBBS |
| 5310-01-477-2556 | 2023-01-16 | 25 | DIBBS |
| 5310-01-477-2556 | 2023-01-10 | 70 | DIBBS |
| 5310-01-477-2556 | 2022-07-210 | 66 | DIBBS |
| 5310-01-477-2556 | 2022-07-199 | 66 | DIBBS |
| NAS1149E1063R | 2022-07-182 | 380 | United States |
| 5310-01-477-2556 | 2021-09-263 | 66 | DIBBS |
| 5310-01-477-2556 | 2021-09-252 | 66 | DIBBS |
| 5310-01-477-2556 | 2021-03-69 | 48 | DIBBS |
| 5310-01-477-2556 | 2020-03-89 | 162 | DIBBS |
| NAS1149E1063R | 2019-07-209 | 119 | DIBBS |
| 5310-01-477-2556 | 2016-11-321 | 302 | DIBBS |
| 5310-01-477-2556 | 2016-10-297 | 139 | DIBBS |
| 5310-01-477-2556 | 2015-11-326 | 52 | DIBBS |
| 5310-01-477-2556 | 2014-04-107 | 57 | DIBBS |
| 5310-01-477-2556 | 2014-04-96 | 57 | DIBBS |
| NAS1149E1063R | 2012-08-227 | 20 | US |
| NAS1149E1063R | 2011-12-341 | 11 | United States |
| NAS1149E1063R | 2007-03-86 | 100 | US |
Cross Reference | NSN 5310-01-477-2556
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| NAS1149E1063R | 80205 | NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5310-01-477-2556
Related Products | NSN 5310-01-477-2556
Technical Data | NSN 5310-01-477-2556
| Characteristic | Specifications |
|---|---|
| III END ITEM IDENTIFICATION | FIGHTER, AIRCRAFT-FIRST |
Restrictions/Controls & Freight Information | NSN 5310-01-477-2556
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | Y | The item does not have a nuclear hardened feature but does have other critical feature(s) such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 194160 | WASHER OR GASKETS, IRON OR STEEL, |
| Less than car load rating | U | 50 |
| Less than truck load rating | U | 50.0 |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | KE | Naval ICP Philadelphia, PA 19111 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | ||
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5310-01-477-2556
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 HD : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Special Material ID | QE | FIGHTERAIRCRAFT-FIRST(F18 E/F) |
| Special Material Content | 9 | Non-Hazardous or Non-Sensitive Item, does not require hazardous or special handling, packaging or precautions |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 HD : Each |
