NSN 5310-01-481-7557 BN372103203, BN372-1032-03 , 5058
Product Details | BLIND ASSEMBLY NUT
5310-01-481-7557 A two-piece fastener consisting of a sleeve and an expander nut. The nut is self-retaining when drawn into the sleeve with a mandrel or other special tool. The item is designed to be installed or expanded from only one side of a structure or component part. Excludes RIVET, BLIND.
Part Alternates: BN372103203, BN372-1032-03 , 5058, 5058103203, 5058-1032-03, 5310-01-481-7557, 01-481-7557, 5310014817557, 014817557
Hardware and Abrasives | Nuts and Washers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 24 JAN 2001 | 01-481-7557 | 40121 ( NUT, BLIND ASSEMBLY ) |

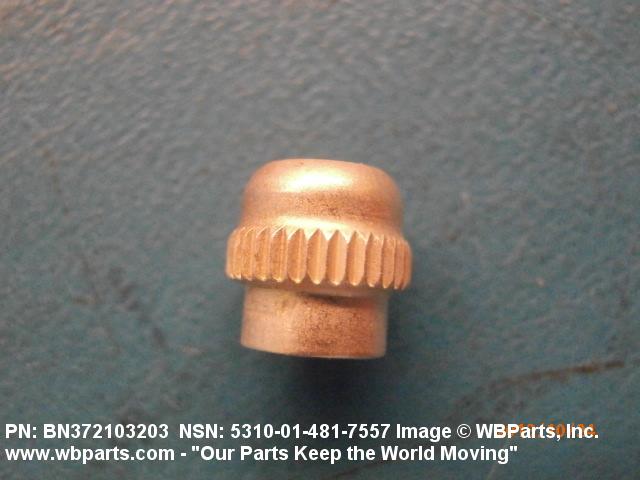

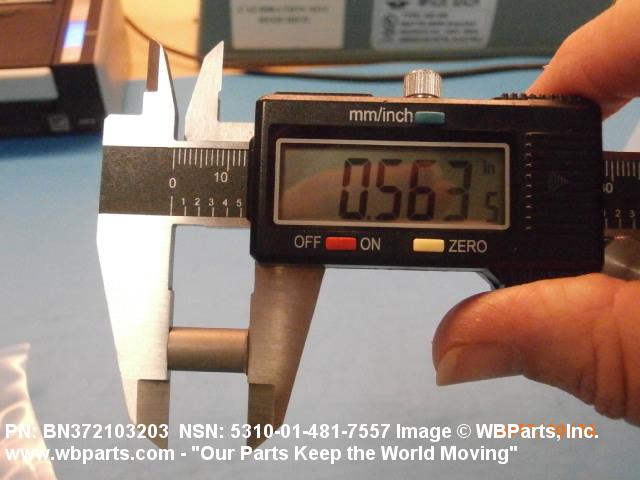

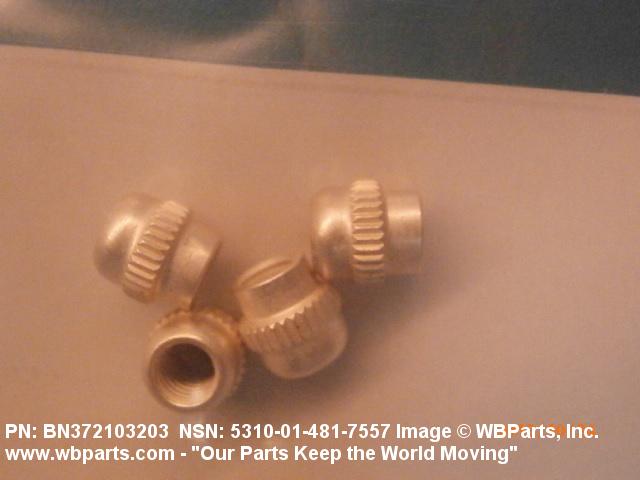

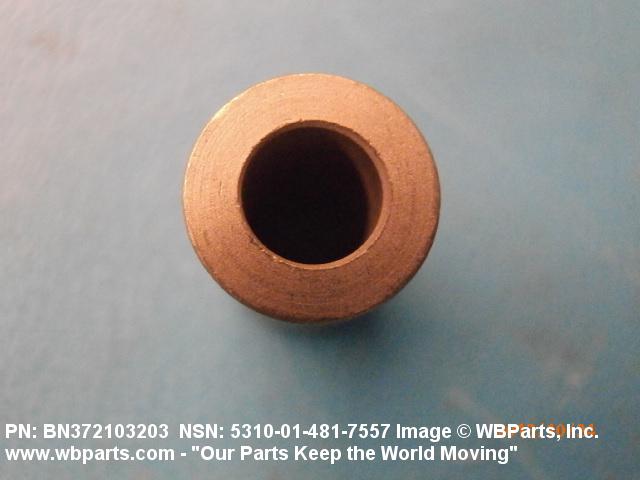

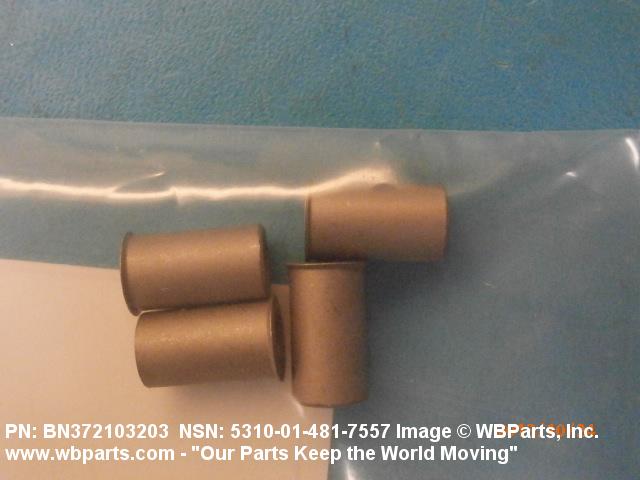

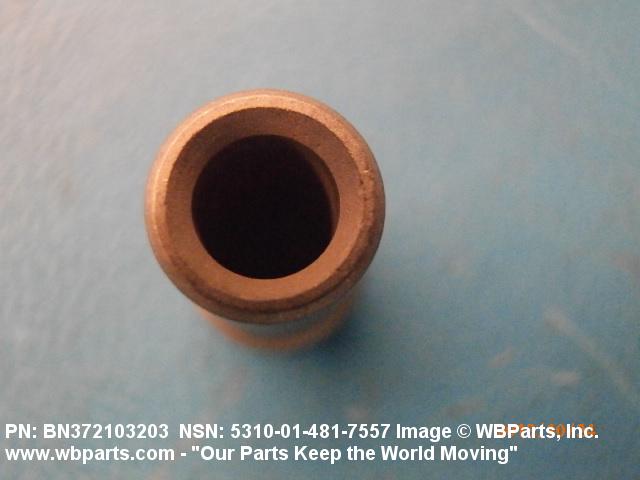

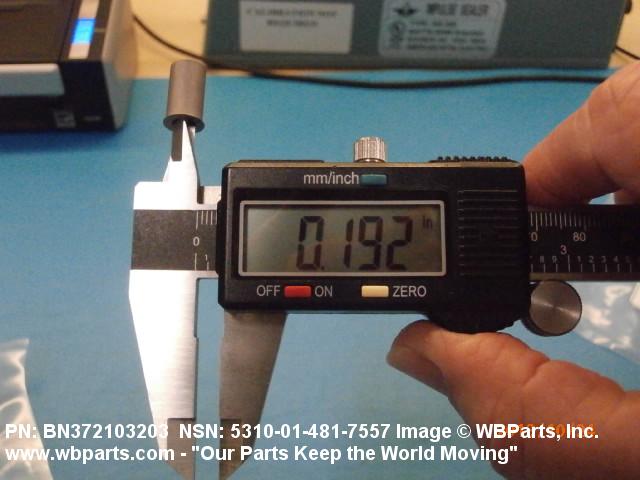

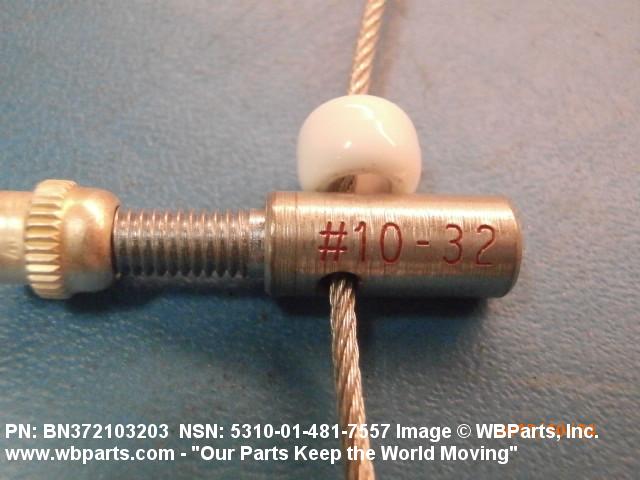

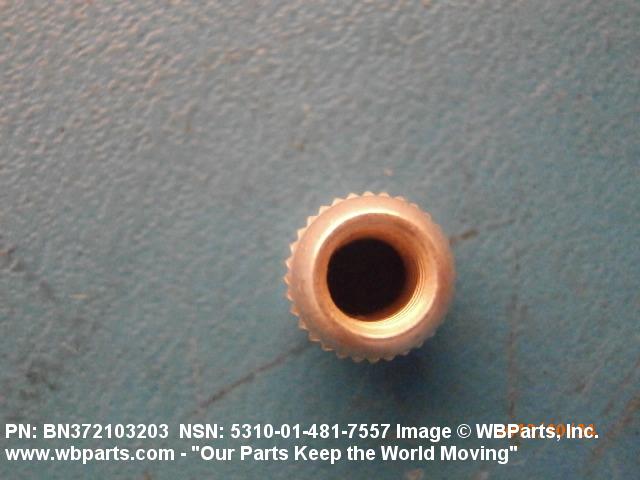

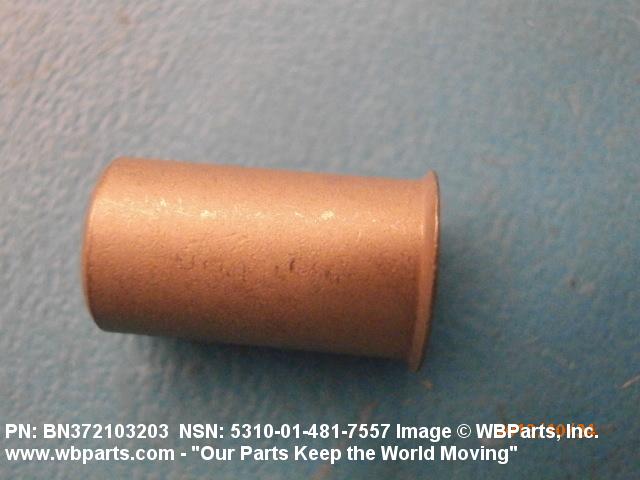

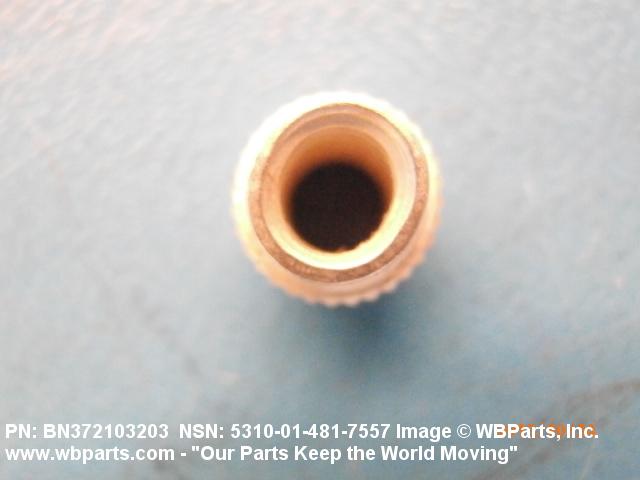

Drawings & Photos | NSN 5310-01-481-7557
Demand History | NSN 5310-01-481-7557
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| BN372103203 | 2013-10-281 | 4 | United States |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5310-01-481-7557
Technical Data | NSN 5310-01-481-7557
| Characteristic | Specifications |
|---|---|
| THREAD SERIES | UNF |
| NOMINAL THREAD SIZE | 0.190 INCHES |
| THREAD QUANTITY PER INCH | 32 |
| THREAD CLASS | 3B |
| THREAD DIRECTION | RIGHT-HAND |
| MATERIAL | STEEL COMP 431 NUT IRON ALLOY 660 FLANGE |
| MATERIAL DOCUMENT AND CLASSIFICATION | QQ-S-763,TYPE 431 FED SPEC SINGLE MATERIAL RESPONSE NUT AMS 5735,ALY A-286 ASSN STD SINGLE MATERIAL RESPONSE FLANGE |
| SURFACE TREATMENT | SILVER NUT |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | AMS 2410 ASSN STD SINGLE TREATMENT RESPONSE NUT |

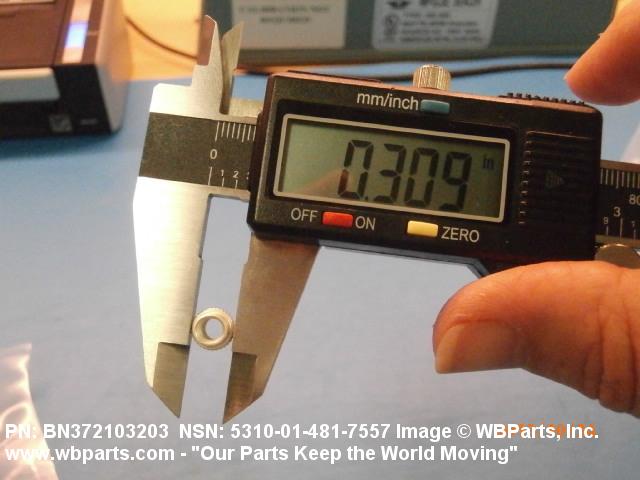

| NUT DIAMETER | 0.309 INCHES NOMINAL |

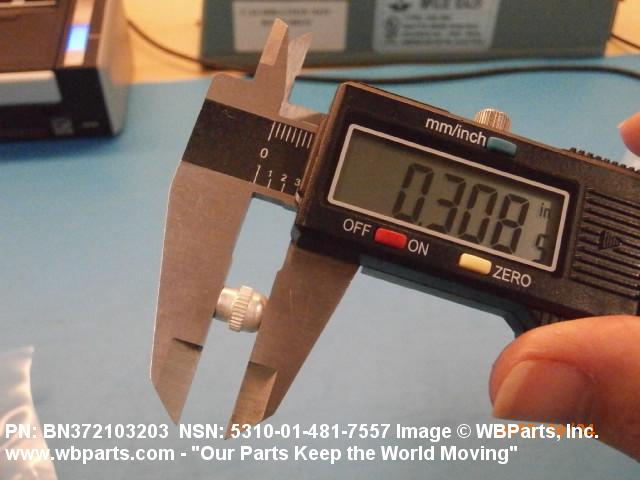

| NUT HEIGHT | 0.307 INCHES NOMINAL |
| MOUNTING STYLE | B6 FLUSH FLANGE |

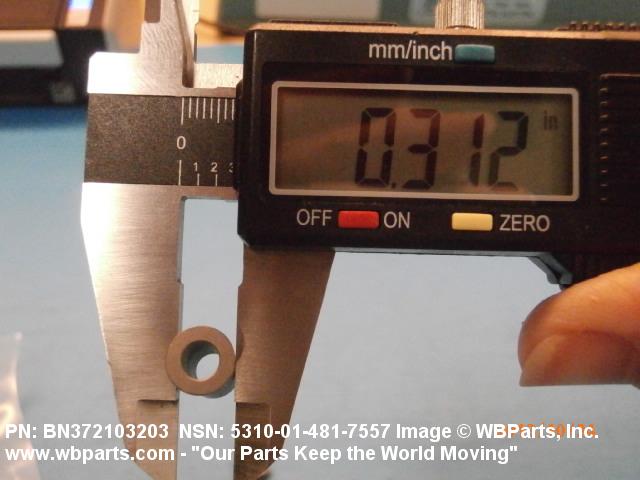

| SLEEVE DIAMETER | 0.309 INCHES MINIMUM AND 0.312 INCHES MAXIMUM |
| LUBRICATION | WAX |
| III PRECIOUS MATERIAL | SILVER |
Restrictions/Controls & Freight Information | NSN 5310-01-481-7557
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | S | Item contains silver |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 093486 | BOLTS,NUTS OR SCREWS, NOI (SUB 3) |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 573 | unknown |
| Originating Activity Code | KZ | Defense Supply Center Philadelphia Philadelphia, PA 19101 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5310-01-481-7557
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
