NSN 5310-01-497-1478 SL211081, SL211-08-1, 21074461
Product Details | CLIP-ON NUT
5310-01-497-1478 An internally threaded fastener, plain or self-locking, of various shapes attached to a preformed item of semi-rigid material designed to retain, position or support other items by its own inherent spring action. The internally threaded fastener and the preformed item may be of one piece construction or fastened together by other means.
Part Alternates: SL211081, SL211-08-1, 21074461, 2107446-1, 5310-01-497-1478, 01-497-1478, 5310014971478, 014971478
Hardware and Abrasives | Nuts and Washers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 10 MAY 2002 | 01-497-1478 | 35871 ( NUT, CLIP-ON ) |

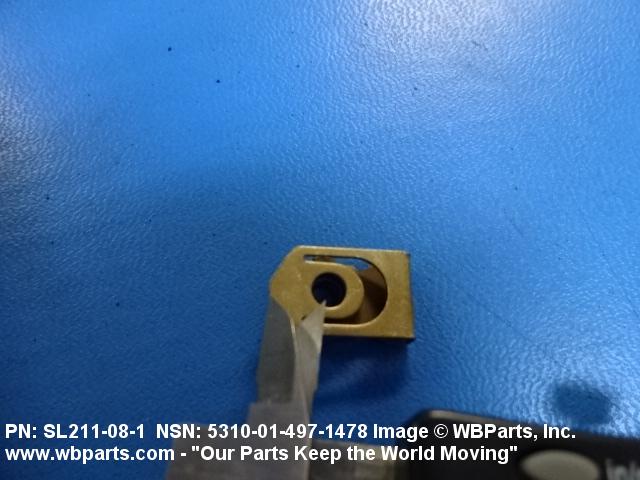

Drawings & Photos | NSN 5310-01-497-1478
Demand History | NSN 5310-01-497-1478
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| SL211081 | 2024-09-262 | 500 | United States |
| SL211081 | 2024-05-129 | 800 | US |
| 5310-01-497-1478 | 2023-12-355 | 161 | US |
| SL211081 | 2021-03-76 | 200 | United States |
| SL211081 | 2021-02-32 | 1000 | United States |
| SL211081 | 2020-02-52 | 1000 | United States |
| 5310-01-497-1478 | 2018-12-354 | 10000 | United States |
| SL211081 | 2016-03-89 | 20000 | US |
| SL211081 | 2016-03-89 | 20000 | US |
| 5310-01-497-1478 | 2016-01-27 | 6 | US |
| SL211081 | 2008-01-10 | 80000 | United States |
| SL211081 | 2007-10-289 | 20000 | US |
| SL211081 | 2007-10-284 | 20000 | United States |
| SL211081 | 2007-06-156 | 2000 | United States |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5310-01-497-1478
Related Products | NSN 5310-01-497-1478
Technical Data | NSN 5310-01-497-1478
| Characteristic | Specifications |
|---|---|
| THREAD SERIES | UNJC |
| NOMINAL THREAD SIZE | 0.164 INCHES |
| THREAD QUANTITY PER INCH | 32 |
| THREAD CLASS | 3B |
| THREAD DIRECTION | RIGHT-HAND |
| MATERIAL | STEEL OVERALL |
| SURFACE TREATMENT | CADMIUM AND CHROMATE OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-416, TY II FED SPEC SINGLE TREATMENT RESPONSE OVERALL |
| HARDNESS RATING | NOT RATED |
| NUT STYLE | A394 FLOATING |

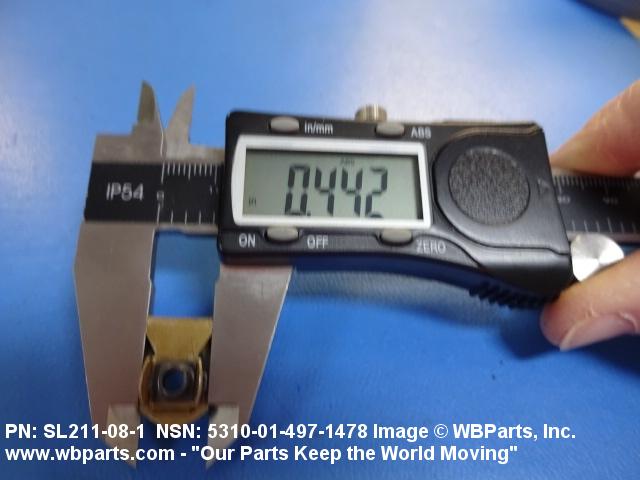

| OVERALL WIDTH | 0.395 INCHES MINIMUM AND 0.510 INCHES MAXIMUM |

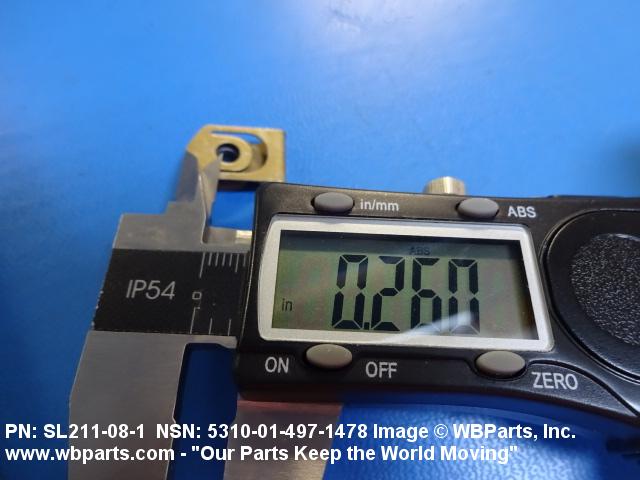

| DISTANCE FROM BASE TO CENTER OF APERTURE | 0.250 INCHES NOMINAL |
| PANEL THICKNESS | 0.100 INCHES MINIMUM AND 0.140 INCHES MAXIMUM |
| LUBRICATION | DRY FILM LUBRICANT |
| SPECIAL FEATURES | CLIP TO FLOAT APPROX. .011 RADIALLY |
| III END ITEM IDENTIFICATION | 13458175, MQM-170E |
Restrictions/Controls & Freight Information | NSN 5310-01-497-1478
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 093486 | BOLTS,NUTS OR SCREWS, NOI (SUB 3) |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 576 | unknown |
| Originating Activity Code | KH | Defense Industrial Supply Center Philadelphia, PA 19111 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5310-01-497-1478
Air Force| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Materiel Management Aggregation Code | QK | SX:"ROPE, HARDWARE, SPRINGS, SPACERS, AND ABRASIVES" |
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
