NSN 5310-01-497-3983 NAS1149C0663R, 01-497-3983, 014973983
Product Details | FLAT WASHER
5310-01-497-3983 A washer having a centrally located hole with a solid or laminated cross-section and two flat parallel bearing surfaces. The hole must be 75 percent or less than the largest dimension and the bearing surface finish is greater than 32 microinch (0.8 micrometer). The thickness cannot exceed 25 percent of the largest outside dimension. When the largest outside dimension is less than 1/4 inch or 6mm, the thickness must be 0.006 inches (0.15mm) or greater and for items 1/4 inch (6mm) or larger, the thickness must be 0.016 inches (0.4mm) or greater. The maximum tolerance is applied to dimensions and used as a determining factor. Items with separable lamination use SHIM. For items fabricated from ceramic or electrically rated materials by specification or industry standards use INSULATOR (1), WASHER. Excludes DISK, VALVE, graphite impregnated and lubricated items.
Part Alternates: NAS1149C0663R, 5310-01-497-3983, 01-497-3983, 5310014973983, 014973983
Hardware and Abrasives | Nuts and Washers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 20 MAY 2002 | 01-497-3983 | 13393 ( WASHER, FLAT ) |

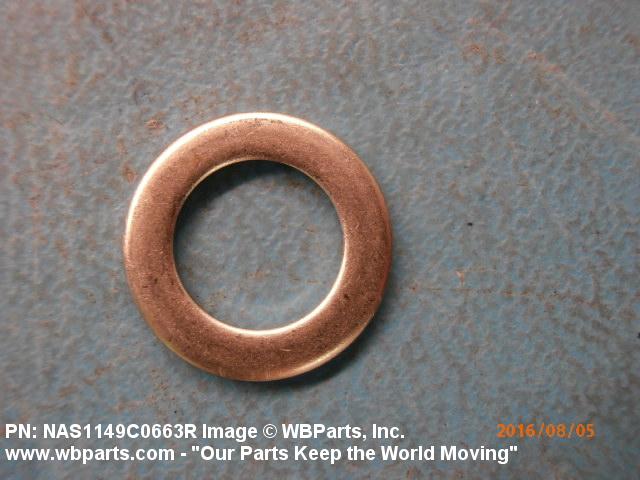

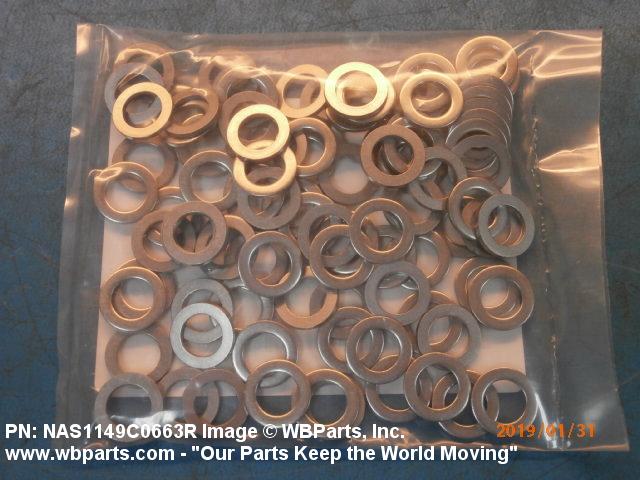

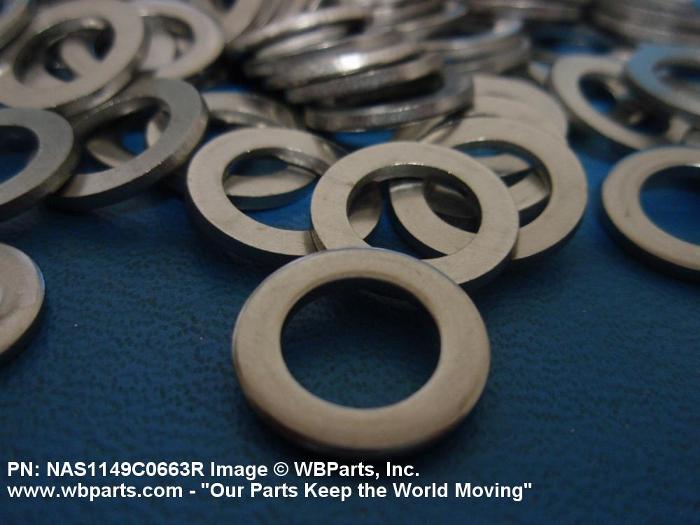

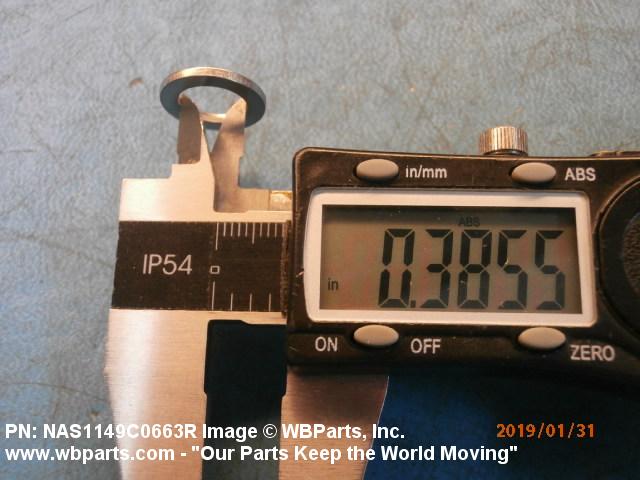

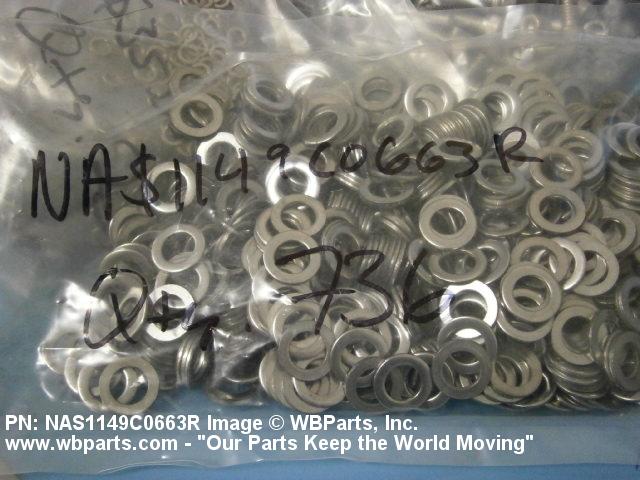

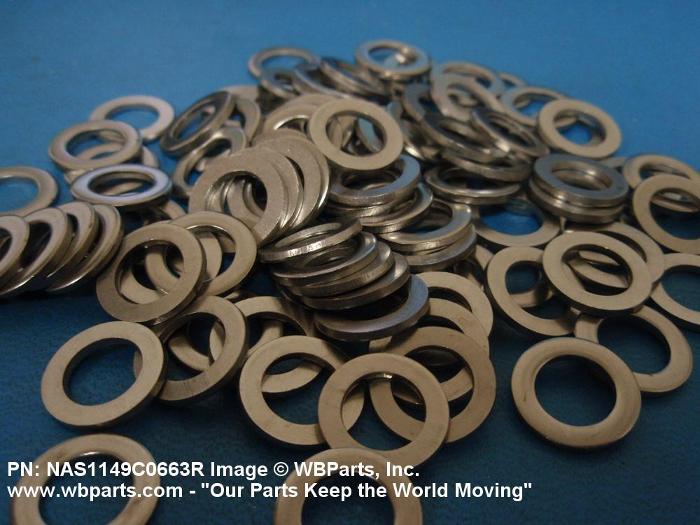

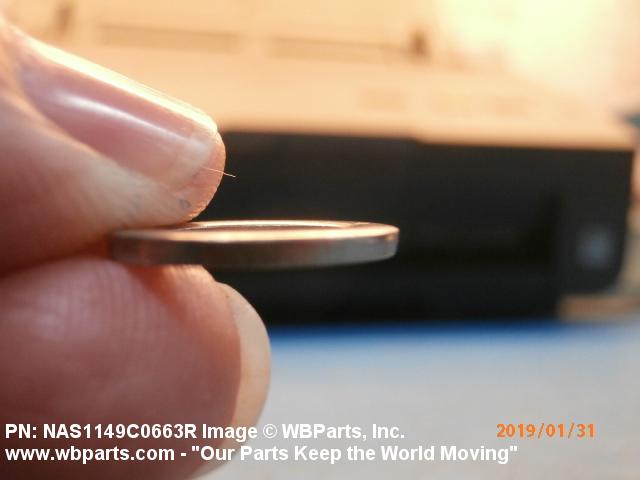

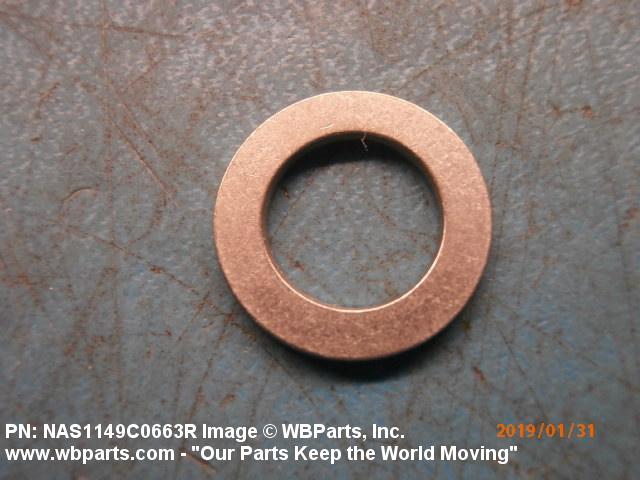

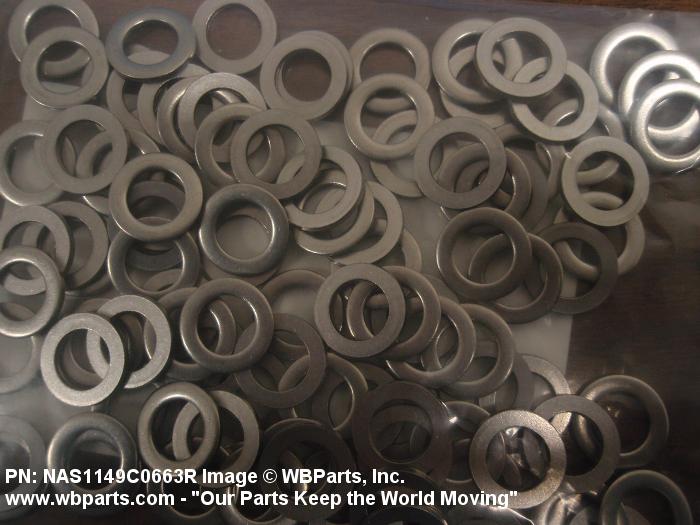

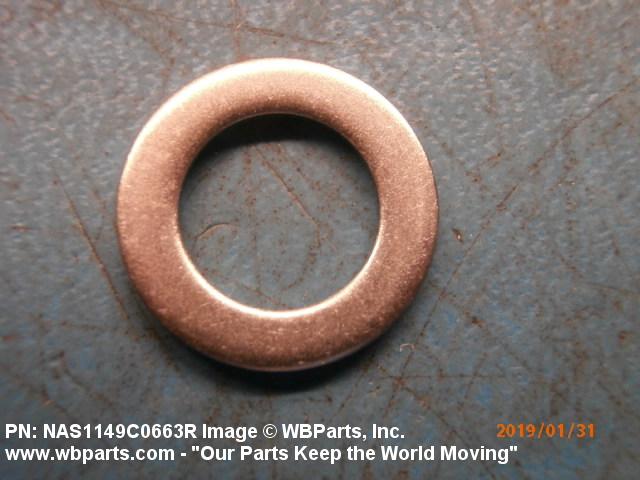

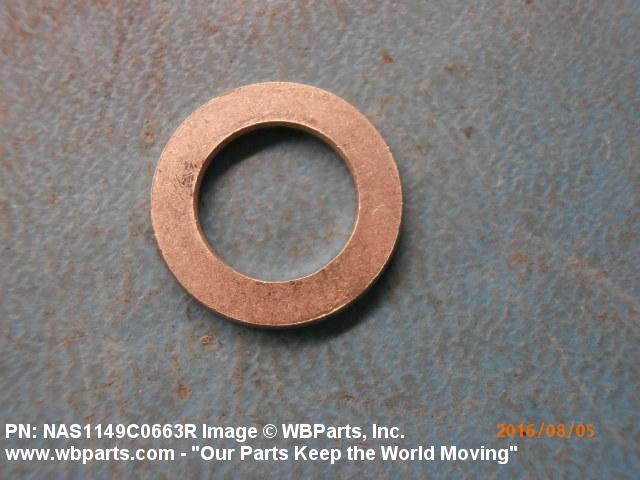

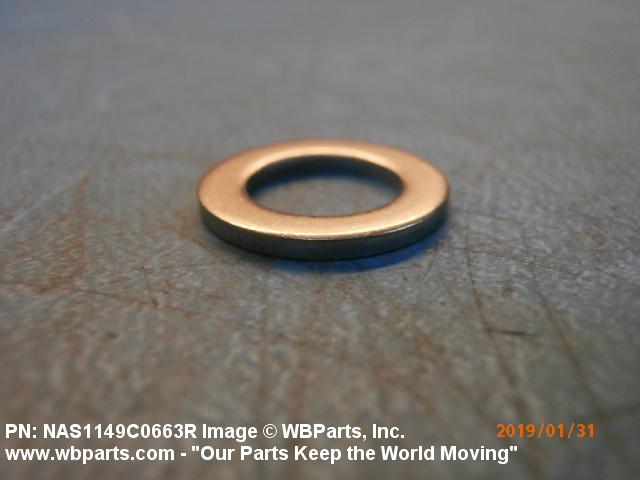

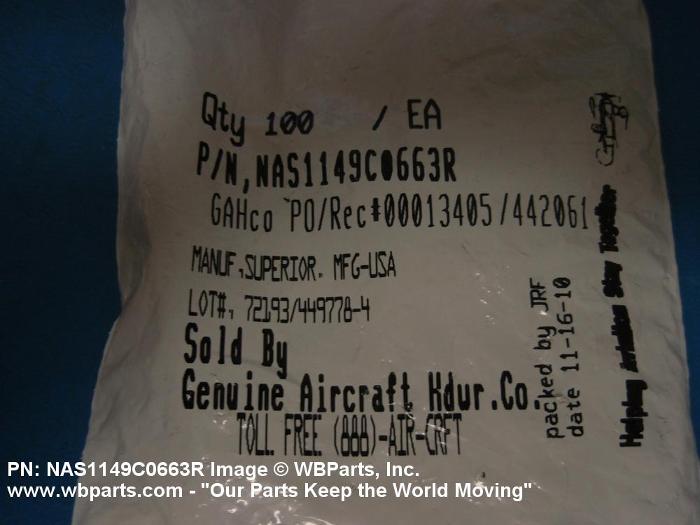

Drawings & Photos | NSN 5310-01-497-3983
Demand History | NSN 5310-01-497-3983
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| NAS1149C0663R | 2025-07-191 | 24 | United States |
| NAS1149C0663R | 2025-07-191 | 24 | US |
| NAS1149C0663R | 2025-06-161 | 10 | US |
| NAS1149C0663R | 2025-05-121 | 2 | United States |
| NAS1149C0663R | 2025-04-111 | 8 | United States |
| NAS1149C0663R | 2024-05-151 | 20 | United Kingdom |
| NAS1149C0663R | 2024-04-121 | 900 | us |
| NAS1149C0663R | 2024-03-65 | 20 | us |
| NAS1149C0663R | 2023-09-258 | 115 | US |
| NAS1149C0663R | 2022-07-192 | 35000 | United States |
| NAS1149C0663R | 2022-05-123 | 1 | United States |
| NAS1149C0663R | 2022-04-112 | 70 | United Kingdom |
| NAS1149C0663R | 2021-12-348 | 200 | Croatia |
| NAS1149C0663R | 2021-08-239 | 6 | us |
| NAS1149C0663R | 2020-10-283 | 24 | US |
| NAS1149C0663R | 2020-03-63 | 100 | United States |
| NAS1149C0663R | 2020-03-63 | 50 | United States |
| NAS1149C0663R | 2020-02-36 | 72 | US |
| NAS1149C0663R | 2019-10-277 | 2 | United States |
| NAS1149C0663R | 2019-02-42 | 180 | Lebanon |
| NAS1149C0663R | 2019-01-23 | 36 | us |
| NAS1149C0663R | 2018-11-310 | 1474 | Israel |
| NAS1149C0663R | 2018-02-51 | 25 | US |
| NAS1149C0663R | 2018-01-23 | 13000 | United States |
| NAS1149C0663R | 2017-03-80 | 200 | United States |
| NAS1149C0663R | 2017-02-54 | 16 | United States |
| NAS1149C0663R | 2016-07-203 | 100 | United States |
| NAS1149C0663R | 2016-01-18 | 16 | Australia |
| NAS1149C0663R | 2015-09-267 | 100 | United States |
| NAS1149C0663R | 2015-05-134 | 20 | SA |
| NAS1149C0663R | 2015-04-97 | 12 | US |
| NAS1149C0663R | 2015-03-71 | 6 | United States |
| NAS1149C0663R | 2014-12-346 | 95 | United States |
| NAS1149C0663R | 2014-11-316 | 60 | United States |
| NAS1149C0663R | 2014-09-245 | 20 | Australia |
| NAS1149C0663R | 2014-09-245 | 18 | Australia |
| NAS1149C0663R | 2014-09-245 | 4 | Australia |
| NAS1149C0663R | 2014-09-245 | 1 | Australia |
| NAS1149C0663R | 2014-08-217 | 68 | United States |
| NAS1149C0663R | 2014-08-217 | 10 | US |
| NAS1149C0663R | 2014-07-188 | 8 | Australia |
| NAS1149C0663R | 2014-07-188 | 16 | Australia |
| NAS1149C0663R | 2014-05-140 | 1 | United States |
| NAS1149C0663R | 2014-03-83 | 4 | Philippines |
| NAS1149C0663R | 2014-02-37 | 192 | United States |
| NAS1149C0663R | 2013-12-346 | 10 | United States |
| NAS1149C0663R | 2013-10-282 | 12 | US |
| NAS1149C0663R | 2013-08-238 | 20 | US |
| NAS1149C0663R | 2013-08-238 | 20 | CN |
| NAS1149C0663R | 2013-08-224 | 1000 | CN |
| NAS1149C0663R | 2013-05-134 | 50 | CZ |
| NAS1149C0663R | 2012-11-310 | 86 | |
| NAS1149C0663R | 2012-07-209 | 12 | us |
| NAS1149C0663R | 2012-07-201 | 100 | United States |
| NAS1149C0663R | 2012-05-150 | 195 | Israel |
| 5310-01-497-3983 | 2012-05-137 | 3000 | US |
| NAS1149C0663R | 2012-05-136 | 16 | US |
| 5310-01-497-3983 | 2012-04-107 | 80 | US |
| NAS1149C0663R | 2012-04-103 | 1200 | Israel |
| NAS1149C0663R | 2012-03-73 | 378 | Israel |
| NAS1149C0663R | 2012-03-73 | 200 | US |
| NAS1149C0663R | 2012-02-46 | 3000 | US |
| NAS1149C0663R | 2012-02-44 | 2 | United States |
| NAS1149C0663R | 2011-12-341 | 736 | Israel |
| NAS1149C0663R | 2011-11-327 | 400 | United States |
| NAS1149C0663R | 2011-11-305 | 36 | United States |
| 5310-01-497-3983 | 2011-10-304 | 20 | CA |
| NAS1149C0663R | 2011-08-224 | 15 | United States |
| NAS1149C0663R | 2011-08-216 | 30 | US |
| NAS1149C0663R | 2011-07-201 | 28900 | TR |
| NAS1149C0663R | 2011-06-180 | 400 | US |
| NAS1149C0663R | 2011-05-146 | 1200 | United States |
| NAS1149C0663R | 2011-04-104 | 70 | United States |
| NAS1149C0663R | 2011-03-90 | 70 | United States |
| NAS1149C0663R | 2011-03-80 | 8 | United States |
| NAS1149C0663R | 2011-03-77 | 8 | US |
| NAS1149C0663R | 2011-02-46 | 50 | United States |
| NAS1149C0663R | 2011-01-28 | 960 | US |
| 5310-01-497-3983 | 2010-05-131 | 1000 | US |
| 5310-01-497-3983 | 2010-05-126 | 38 | US |
| NAS1149C0663R | 2010-02-35 | 12 | US |
| NAS1149C0663R | 2009-08-233 | 34 | United States |
| NAS1149C0663R | 2009-08-218 | 125 | US |
| NAS1149C0663R | 2009-07-204 | 2 | US |
| NAS1149C0663R | 2009-07-182 | 100 | US |
| NAS1149C0663R | 2009-05-131 | 10 | US |
| NAS1149C0663R | 2008-10-301 | 24 | us |
| NAS1149C0663R | 2008-07-197 | 170 | United States |
| NAS1149C0663R | 2008-07-196 | 5040 | US |
| NAS1149C0663R | 2008-07-183 | 20 | United States |
| NAS1149C0663R | 2008-05-137 | 175 | US |
Cross Reference | NSN 5310-01-497-3983
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| NAS1149C0663R | 1E0F1 | ROLLS ROYCE CORP |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5310-01-497-3983
Related Products | NSN 5310-01-497-3983
Technical Data | NSN 5310-01-497-3983
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 301 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | MIL-S-5059 1/4 HARD (125 KSI) MIL SPEC ALL MATERIAL RESPONSES OVERALL |

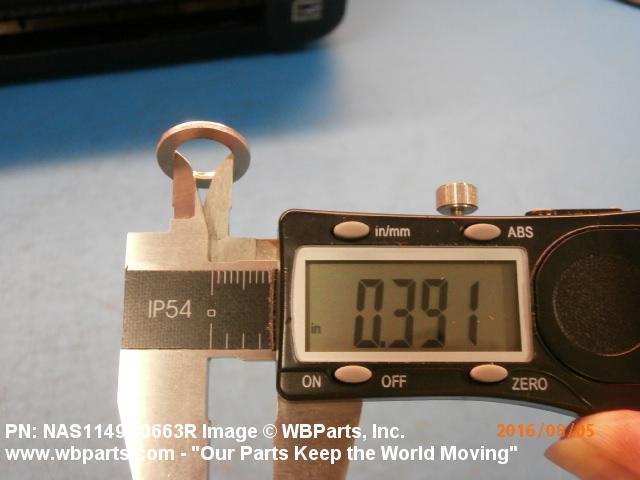

| HOLE DIAMETER | 0.380 INCHES MINIMUM AND 0.400 INCHES MAXIMUM |
| PERIPHERAL SHAPE STYLE | 1 ROUND |

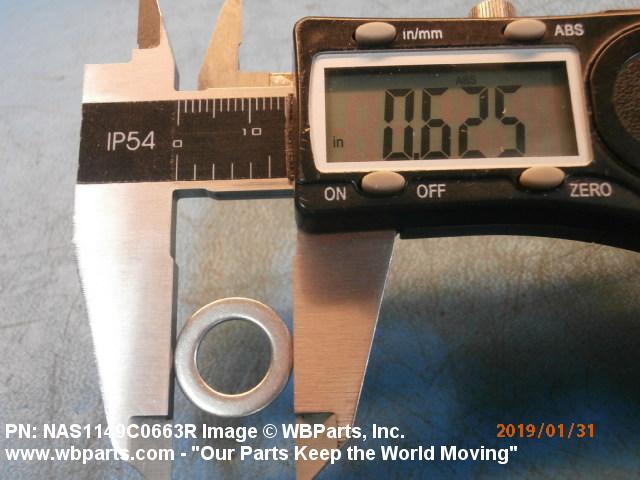

| OVERALL DIAMETER | 0.620 INCHES MINIMUM AND 0.645 INCHES MAXIMUM |
| CENTER HOLE SHAPE STYLE | 1 ROUND |
| CROSS-SECTIONAL SHAPE STYLE | 1 RECTANGULAR |

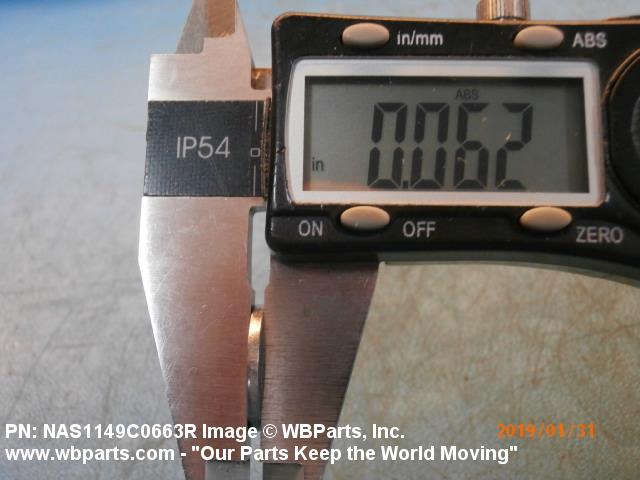

| THICKNESS | 0.061 INCHES MINIMUM AND 0.065 INCHES MAXIMUM |
| CRITICALITY CODE JUSTIFICATION | AGAV |
| III END ITEM IDENTIFICATION | KC-130J ACFT ENGINE; MODEL AE2100D3 |
Restrictions/Controls & Freight Information | NSN 5310-01-497-3983
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | Y | The item does not have a nuclear hardened feature but does have other critical feature(s) such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 194120 | WASHERS/GASKETS/PCKG DVCS NOI |
| Less than car load rating | W | Rating Variable |
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | KE | Naval ICP Philadelphia, PA 19111 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | ||
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5310-01-497-3983
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 0Q | Contractor supported items for NAVICP PHIL Consumables (1R) Naval Inventory Control Point, Philadelphia |
| Special Material ID | KF | KC130JAIRCRAFT ENGINEAE2100D3 |
| Special Material Content | 9 | Non-Hazardous or Non-Sensitive Item, does not require hazardous or special handling, packaging or precautions |
| Source of Supply | NRP | NAVICP-ERP 700 Robbins Avenue Philadelphia, PA 19111-5098 |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Reparability | M | Medium Demand Velocity Items (consumables) |
| Acquisition Advice Codes | H | DIRECT DELIVERY UNDER A CENTRAL CONTRACT # (VENDOR STOCKED) Issue, transfer or shipment is not subject to specialized controls other than those imposed by IMM/Service/Agency supply policy. 1. The item is centrally managed and procured. 2. Normal issue is by direct shipment from the vendor to the user at the order of the ICP or IMM. However, orders may be shipped from stock by ICP or IMM distribution facilities when the vendor's minimum order quantity is not met, or when stocks are being drawn down. 3. Requisitions and fund citations will be submitted in accordance with IMM/Service/Agency Requisitioning Procedures. 4. Generally delivery will be made within applicable Service/Agency guidelines addressing customer required timeframe. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
Y EA : Each |
